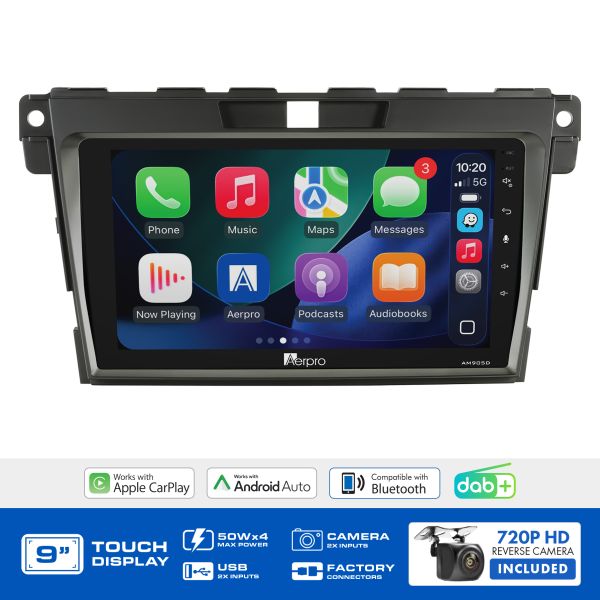

Aerpro AMDMZ20 9" Multimedia Receiver Mazda CX7 2009-2012 Kit

SKU: AMDMZ20
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9" Wireless CarPlay for the Mazda CX7 ER Series 2 Non-Amplified, SWC and Vehicle Menu Retained, Phone Button Not Supported

Product Overview

The Aerpro AMDMZ20 is a complete head unit upgrade kit for the Mazda CX7 ER Series 2 (2009–2012) in non-amplified specification. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining factory steering wheel controls and full vehicle menu access.

The kit includes the AM905D multimedia receiver, matte black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Note that the phone button on the steering wheel is not supported by this kit. Factory reverse camera, USB, AUX, and amplifier integration are all N/A for this platform.

Features & Benefits

  • SWC retained — phone button not supported — all factory CX7 steering wheel controls carry over via the SWC interface harness and patch lead, with the exception of the phone button which is not supported
  • Vehicle menu retained — full vehicle menu access is preserved after installation with no additional display relocation required
  • Non-amplified models only — factory-amplified CX7 ER Series 2 variants are not compatible with this kit
  • Matte black vehicle-specific facia kit — matched to the CX7 ER Series 2 interior trim
  • Antenna adaptor included — ensures correct antenna connection for the CX7 platform
  • Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
  • 9" capacitive touchscreen at 1024x600 resolution — a significant display upgrade over the factory CX7 unit with full touch control across navigation, media, and settings
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles not factory-equipped with a reverse camera
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes (phone button not supported)
Vehicle menu Yes
Factory reverse camera N/A — not factory equipped
Factory AUX / USB N/A
Factory amplifier Not retained — non-amplified models only
Parking tones N/A
Dash modification Not required
Park brake requirement Not required

Compatible With / Goes Well With

  • Mazda CX7 ER Series 2 (2009–2012) — non-amplified variants only
  • Not compatible with factory-amplified CX7 ER Series 2 variants
  • Not compatible with CX7 ER Series 1 (2006–2009) — confirm fitment for earlier variants using the Aerpro What Fits Your Car Guide
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Does the phone button on the CX7 steering wheel work after installation?

No — the phone button is specifically not supported by the AMDMZ20. All other factory steering wheel control functions are retained. If phone button support is a requirement, this kit is not suitable.

What is the difference between CX7 Series 1 and Series 2?

The Mazda CX7 ER ran in two series: Series 1 (2006–2009) and the facelifted Series 2 (2009–2012). The AMDMZ20 covers Series 2 only. Confirm whether Series 1 variants are also covered using the Aerpro What Fits Your Car Guide before purchasing for an earlier CX7.

How do I know if my CX7 ER Series 2 is non-amplified?

A non-amplified CX7 has all speaker wiring running directly from the factory head unit with no separate amplifier unit mounted elsewhere in the vehicle. If your CX7 has a separate amp (typically under a seat or in the boot) with its own speaker wiring, it is an amplified variant and requires a different kit.

Is the vehicle menu accessible after installation?

Yes — the vehicle menu is fully retained on the AMDMZ20 without any additional display relocation or components required.

Does the Mazda CX7 have a factory reverse camera?

No — the CX7 ER Series 2 is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.
