Aerpro AMDMZ19 9" Wireless CarPlay Android Auto DAB+ Mazda 2 DE 2007-2011 No SWC

SKU: AMDMZ19
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Mazda 2 DE Series 1 2007–2011 (Without Steering Wheel Controls) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.

Product Overview

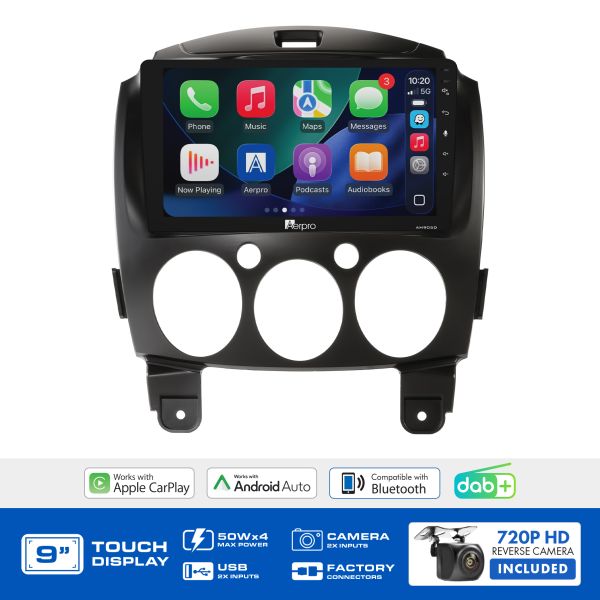

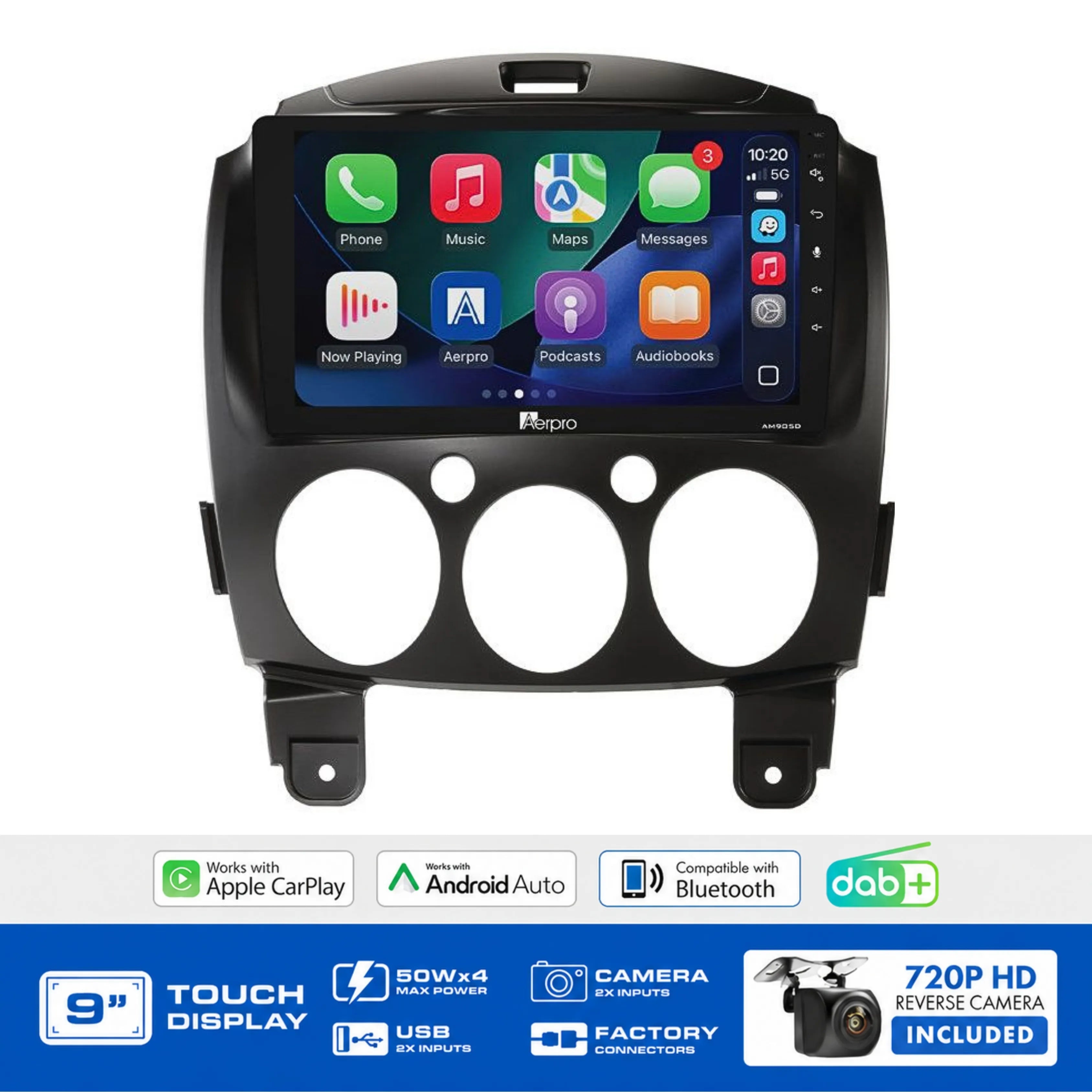

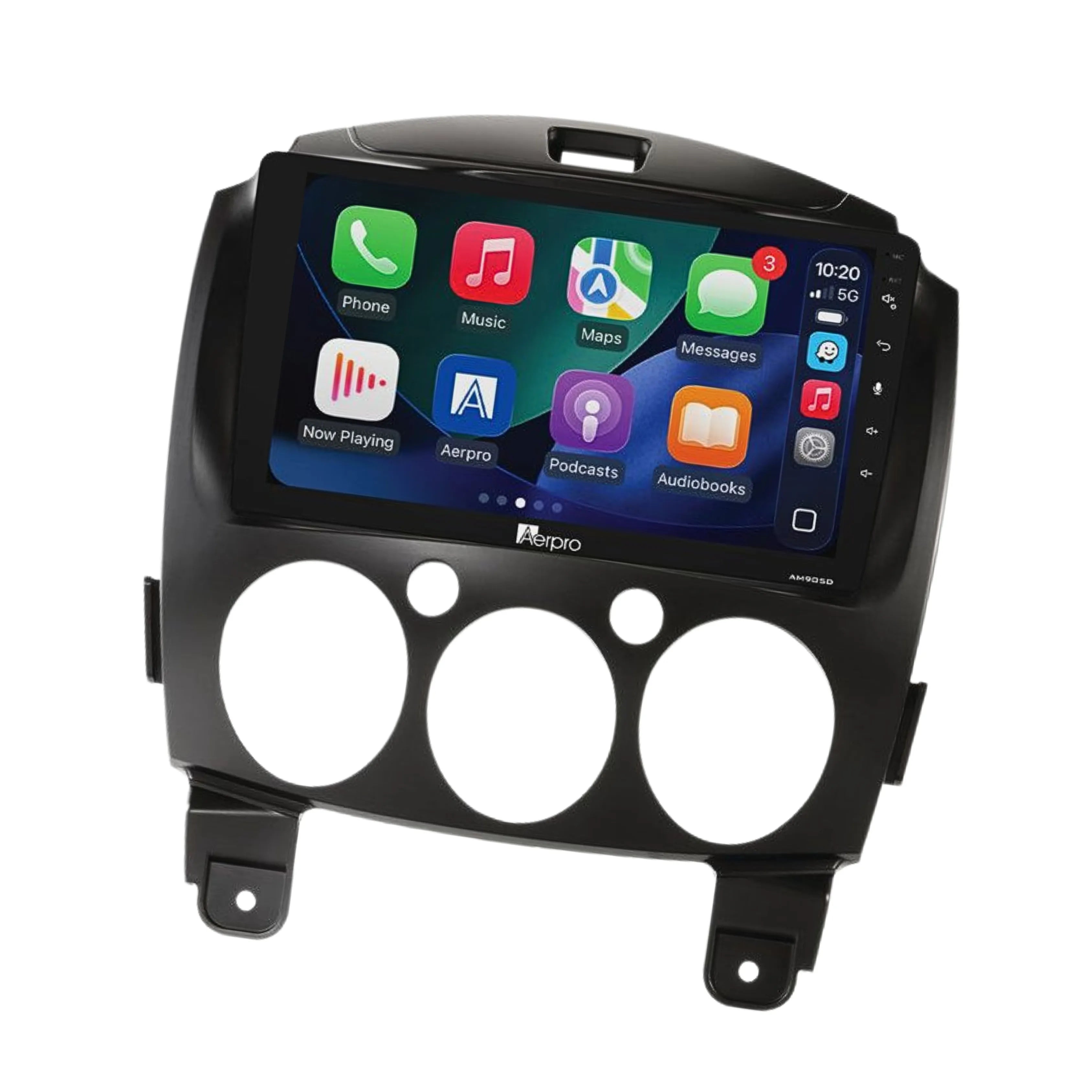

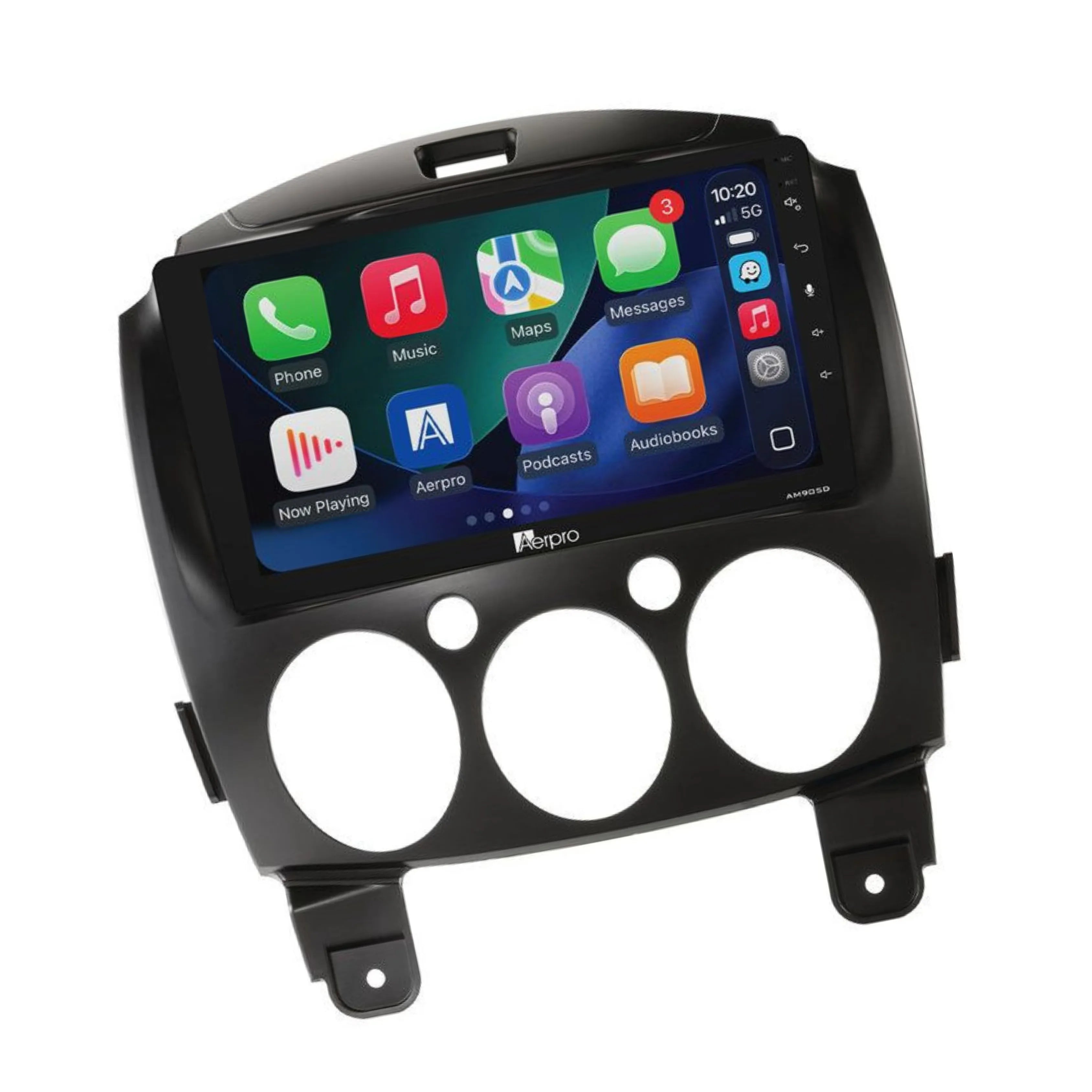

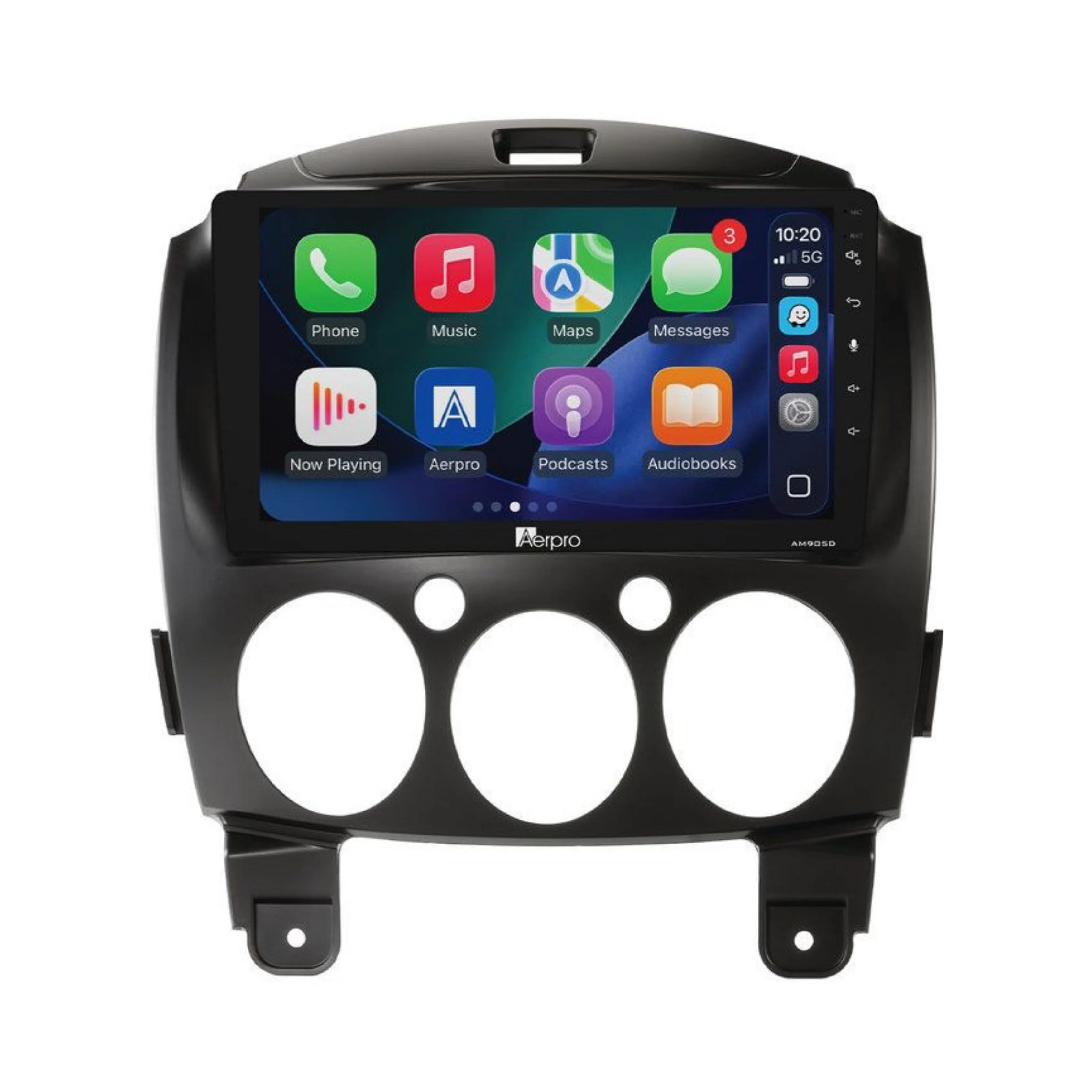

The Aerpro AMDMZ19 is a complete head unit upgrade kit specifically designed for the Mazda 2 DE Series 1 (2007–2011) without factory steering wheel controls. Everything required for installation is included the AM905D multimedia receiver, black fascia kit, harness, and a 720P AHD universal rear camera.

The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • Harness
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits no-SWC Mazda 2 DE models: Specifically designed for Mazda 2 DE Series 1 without factory steering wheel controls
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDMZ19
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC N/A (no SWC models)
Kit Includes Rear Camera Yes 720P AHD universal
Weight 3.00kg
Suits Mazda 2 DE Series 1 2007–2011 (no SWC)

Compatible Vehicles

  • Mazda 2 (Demio) 2007–2014 DE

Frequently Asked Questions

Does this kit suit Mazda 2 models with factory steering wheel controls?

No the AMDMZ19 suits Mazda 2 DE Series 1 (2007–2011) without factory SWC only. For SWC-equipped models, use the appropriate Aerpro SWC kit.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.

Does CarPlay require the park brake to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Does this kit suit Mazda 2 models beyond 2011?

The Aerpro compatible vehicles list includes the Mazda 2 DE up to 2014. The title specifies Series 1 2007–2011. Always verify your exact model using the Aerpro What Fits Your Car Guide before purchasing.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
