Aerpro AMDMC4 9" Multimedia Receiver Mercedes C-Class W203 CLC

9" Wireless CarPlay for the Mercedes C-Class W203 and CLC Non-Amplified, SWC Retained, Sub Frame Modification Required

Product Overview

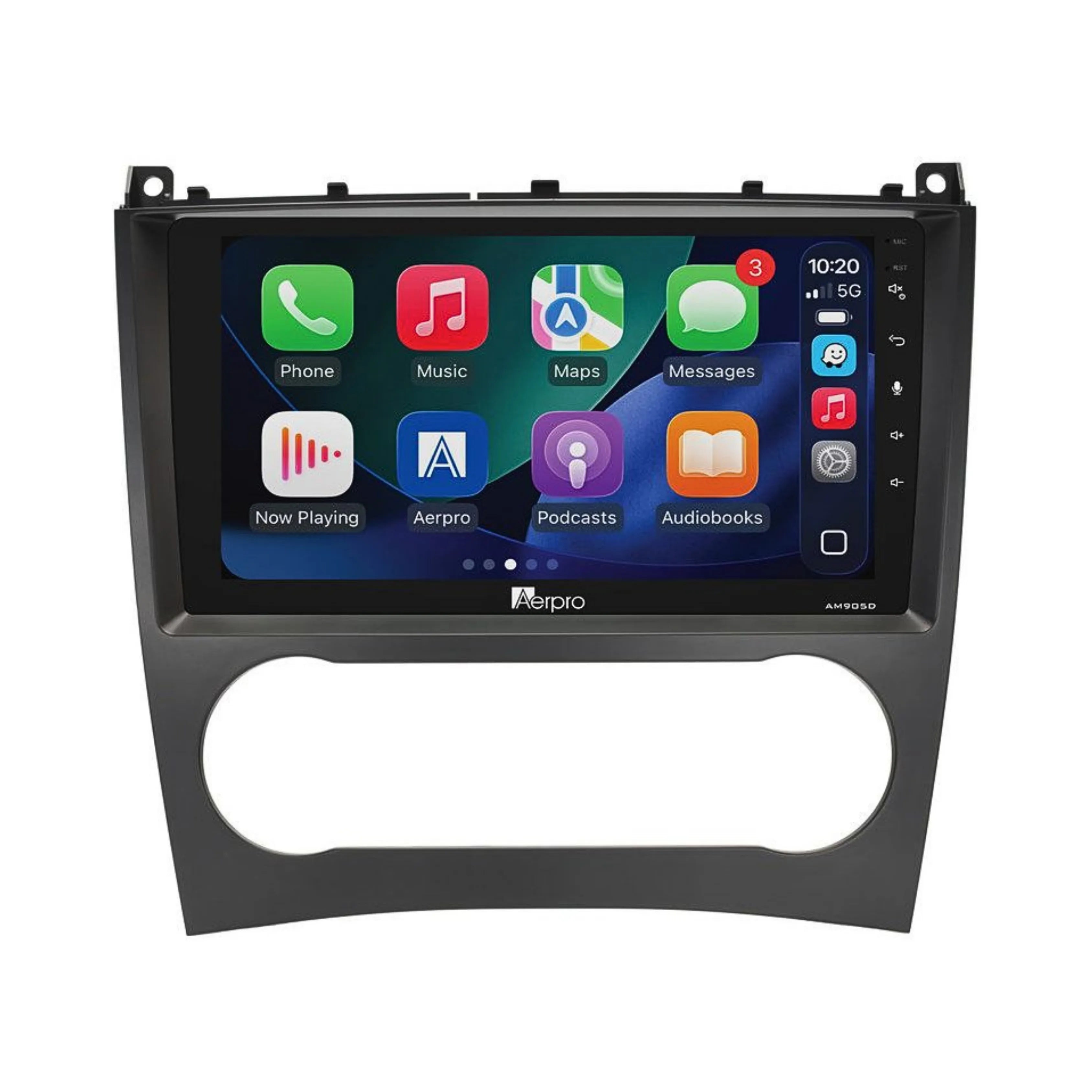

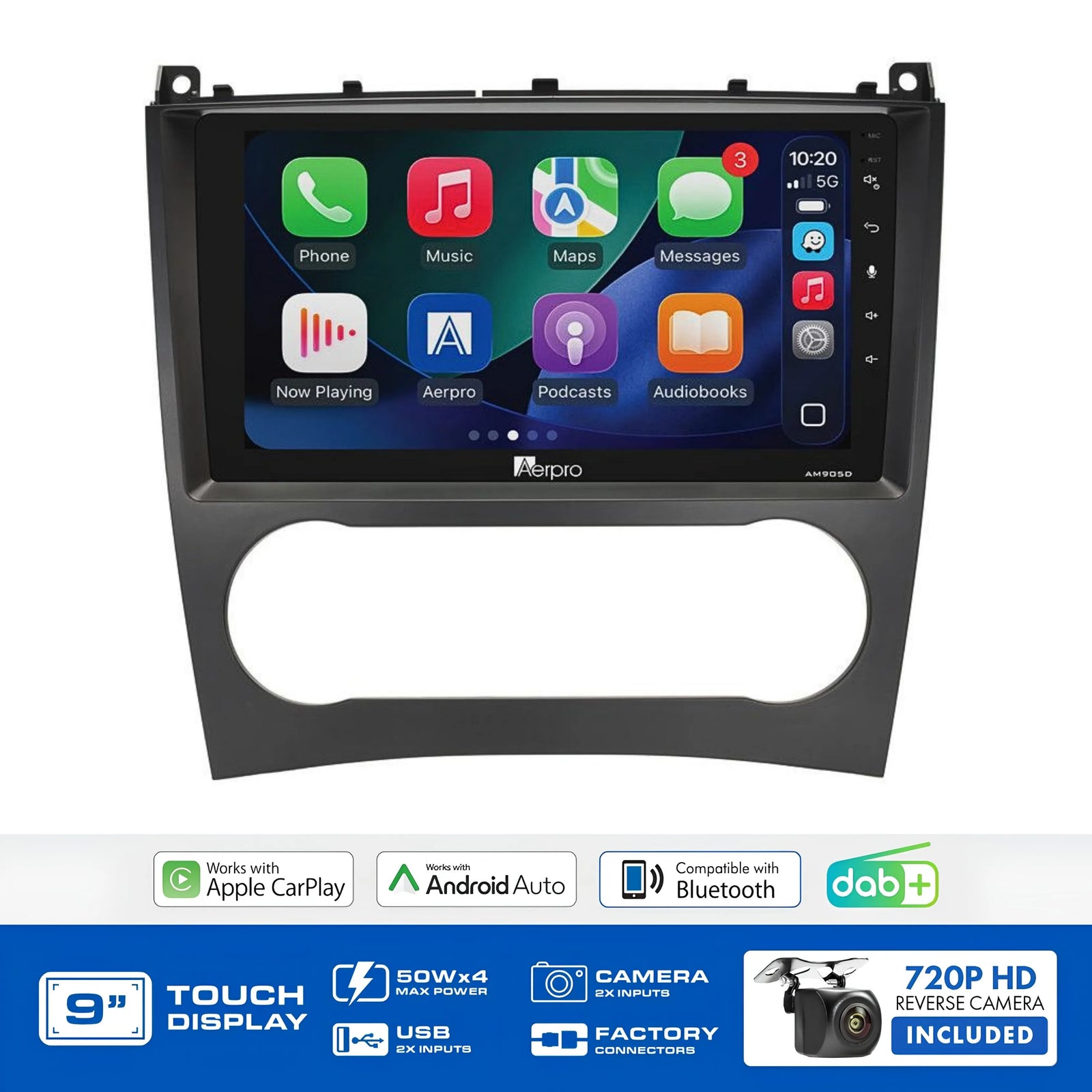

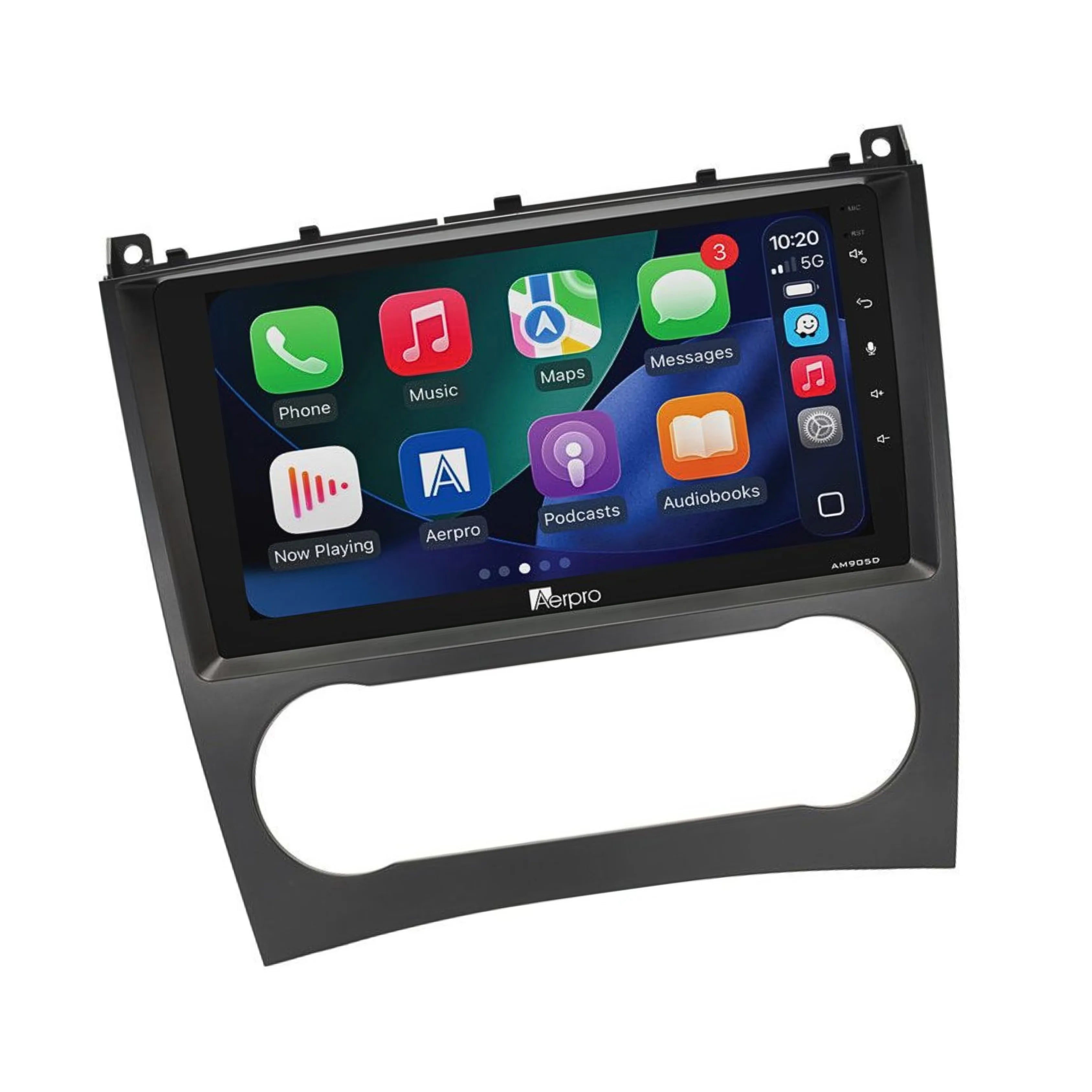

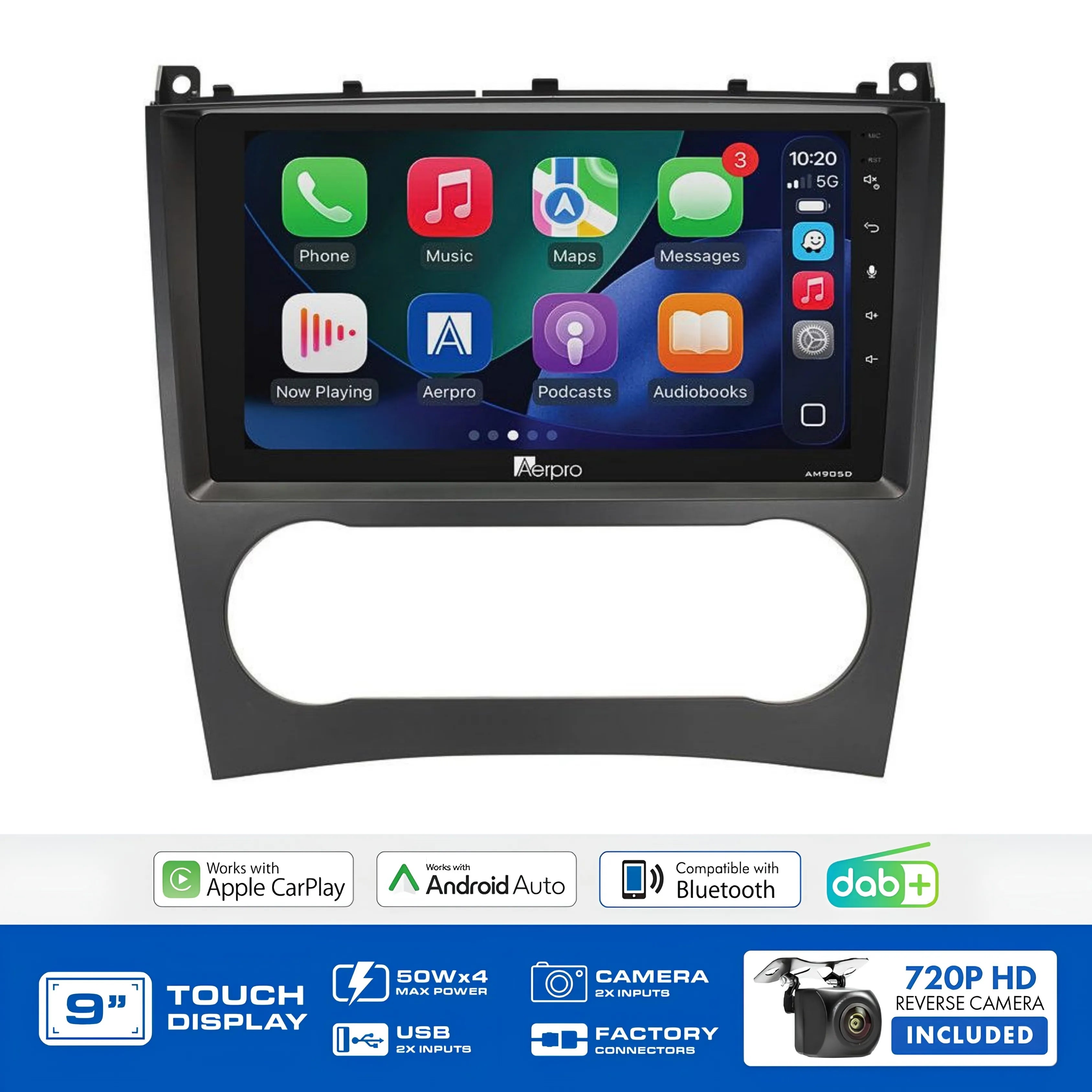

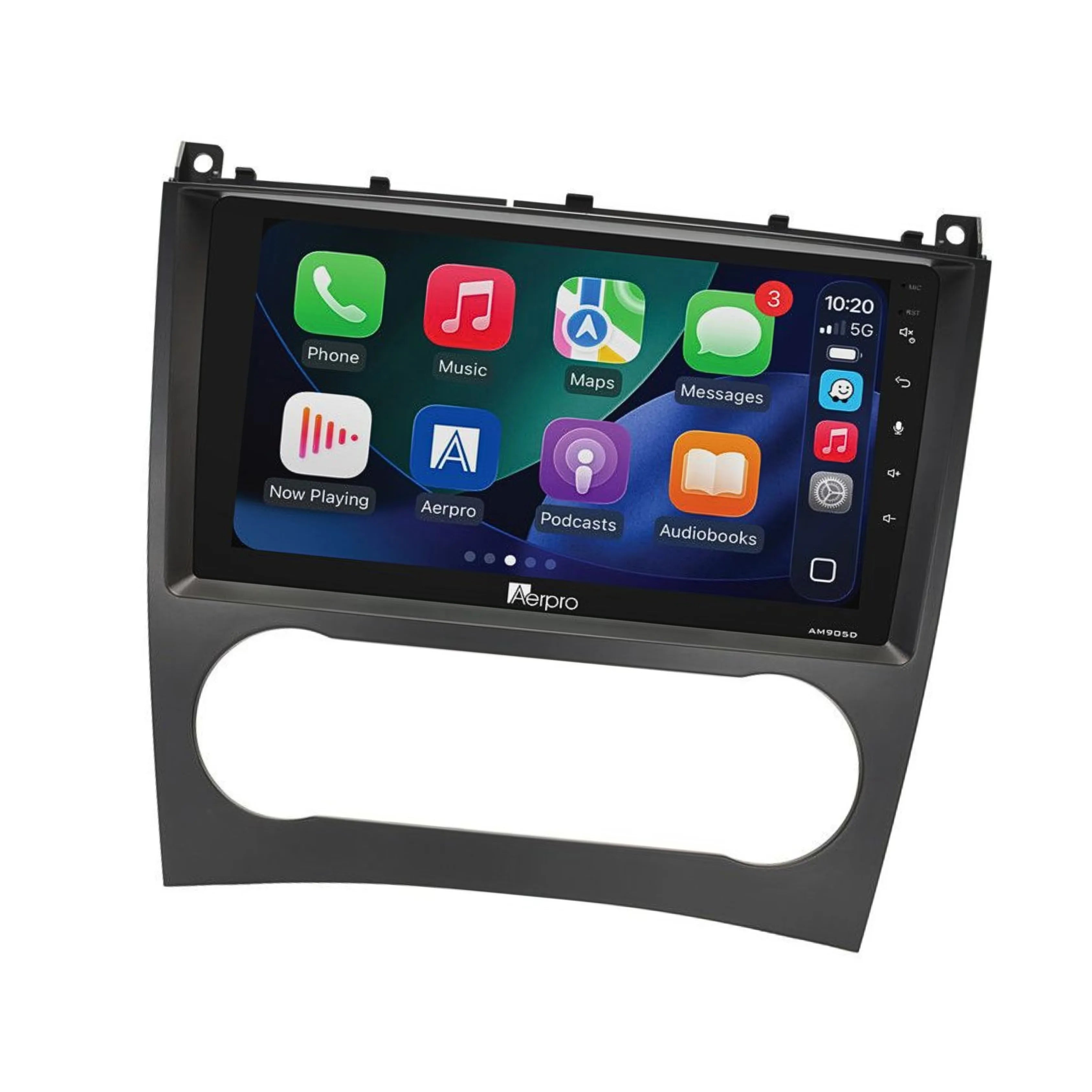

The Aerpro AMDMC4 is a complete head unit upgrade kit for the Mercedes-Benz C-Class W203 (2004–2006) and CLC CL203 (2008–2011) in non-amplified specification. It replaces the factory head unit with a 9" capacitive touchscreen at 1024x600 resolution, bringing wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to vehicles originally fitted with an older factory unit.

Steering wheel controls are retained via the included SWC interface harness and patch lead. Factory reverse camera, USB input, AUX input, and vehicle menu are not applicable or retained on this kit the head unit's own connectivity handles those functions. The kit includes the AM905D multimedia receiver, matte black facia kit, SWC harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Features & Benefits

• Requires plastic factory sub frame modification — the factory dash sub frame in the C-Class W203 and CLC CL203 requires physical trimming to seat the new head unit correctly; professional installation is strongly recommended
• Non-amplified models only — factory-amplified C-Class W203 and CLC CL203 variants are not compatible with this kit
• SWC retained — SWC interface harness and patch lead included; factory steering wheel controls carry over without manual programming
• Matte black facia kit — vehicle-specific matte black trim matched to the W203/CL203 dash aesthetic
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages without cabling; wired USB connection also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a major upgrade over the factory W203/CL203 display with full touch control across media, navigation, and settings
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to vehicles not factory-equipped with a reverse camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for cabin-specific tuning

Technical Specs

Compatible With / Goes Well With

• Mercedes-Benz C-Class W203 (2004–2006) — non-amplified variants only
• Mercedes-Benz CLC CL203 (2008–2011) — non-amplified variants only
• Not compatible with factory-amplified W203 or CL203 variants
• Not compatible with the W204 C-Class (2007–2014) — a different kit is required for that generation
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or reversing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

What does "modification to the plastic factory sub frame" mean?

The factory dashboard in the C-Class W203 and CLC CL203 includes a plastic sub frame or bracket behind the head unit opening that must be physically trimmed or cut to create the clearance needed for the new head unit to seat correctly. This is a physical modification to the factory dash structure and is not reversible. Professional installation by someone familiar with W203 dash work is strongly recommended.

What factory features are retained after installation?

Only steering wheel controls are retained. Factory reverse camera, USB input, AUX input, and vehicle menu access are all not applicable on this kit. The head unit's own dual USB ports, wireless CarPlay/Android Auto, and Bluetooth replace the factory connectivity options.

How does the AMDMC4 differ from the AMDMC2?

The AMDMC2 covers a broader range including the Mercedes A-Class, B-Class, Sprinter, Viano, Vito, and VW Crafter, retains both SWC and vehicle menu, and includes multiple antenna adaptors. The AMDMC4 is specific to the C-Class W203 and CLC CL203, retains SWC only, uses a matte black facia, and uniquely requires a sub frame modification that the AMDMC2 does not.

Does this suit the W204 C-Class (2007-2014)?

No — the AMDMC4 is designed for the earlier W203 (2004–2006) and CL203 CLC (2008–2011). The W204 C-Class is a different platform and requires a different kit.

Is this a DIY-friendly installation?

Due to the required sub frame modification, this installation is more involved than a standard plug-and-play kit. It is recommended for experienced installers or automotive workshop fitting. Inexperienced installation risks damage to the factory dash structure.
