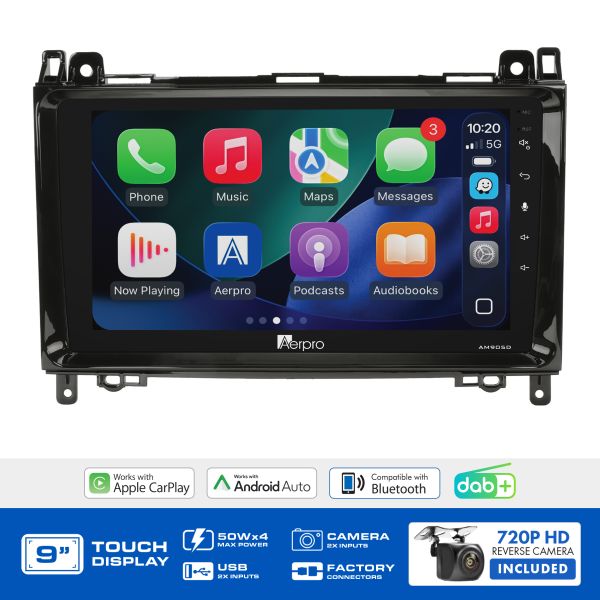

Aerpro AMDMC2 9" Multimedia Receiver Mercedes VW Non-Amplified

One 9" Wireless CarPlay Kit Across Six Mercedes and VW Models Non-Amplified, SWC and Vehicle Menu Retained

Product Overview

The Aerpro AMDMC2 is a complete head unit upgrade kit covering a broad range of non-amplified Mercedes-Benz and Volkswagen vehicles: the Mercedes A-Class W169 (2005–2011, excluding single DIN variants), B-Class W245 (2005–2011), Sprinter (2007–2018), Viano (2008–2011), Vito W639 (2006–2014), and Volkswagen Crafter (2007–2013). Across all of these, it replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining steering wheel controls and vehicle menu access.

The kit includes the AM905D multimedia receiver, a gloss black facia kit, SWC interface harness, SWC patch lead, antenna adaptors (multiple included to suit vehicle variances across the range), and a 720P AHD universal rear camera. Factory reverse camera, USB input, and AUX input are not retained the head unit's own connectivity replaces those functions. There is no park brake wire requirement on this kit.

Features & Benefits

• Covers six models across two brands — a single kit suits the Mercedes A-Class W169, B-Class W245, Sprinter, Viano, Vito W639, and Volkswagen Crafter; one product serves a broad workshop or dealer inventory requirement
• Mercedes Sprinter (2007–2018) and VW Crafter (2007–2013) compatible — extends coverage to high-volume commercial vans, not just passenger vehicles; useful for tradies, fleet operators, and van conversions requiring a modern screen and wireless CarPlay
• Vehicle menu access retained — the AMDMC2 preserves access to the factory vehicle menu after installation on compatible models
• SWC retained — SWC interface harness and patch lead included for plug-and-play steering wheel control retention across the vehicle range
• Multiple antenna adaptors included — the kit includes the necessary antenna adaptors to suit the range of antenna connector types used across the covered Mercedes and VW models
• Gloss black facia kit — vehicle-specific gloss black trim for a clean, matched installation finish
• A-Class W169 exclusion — single DIN variants only — the A-Class W169 with a single DIN factory head unit is not compatible; this kit suits the double DIN factory configuration of the W169
• Non-amplified models only — factory-amplified variants across all covered models are not compatible with this kit
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory displays across all covered vehicles
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility across models without factory reverse cameras
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Compatible With / Goes Well With

• Mercedes-Benz A-Class W169 (2005–2011) — double DIN factory unit variants only; single DIN not compatible
• Mercedes-Benz B-Class W245 (2005–2011)
• Mercedes-Benz Sprinter (2007–2018)
• Mercedes-Benz Viano (2008–2011)
• Mercedes-Benz Vito W639 (2006–2014)
• Volkswagen Crafter (2007–2013)
• Non-amplified variants only across all models listed above
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or reversing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Which specific models does the AMDMC2 suit?

It suits the Mercedes A-Class W169 (2005–2011, double DIN factory unit only), B-Class W245 (2005–2011), Sprinter (2007–2018), Viano (2008–2011), Vito W639 (2006–2014), and Volkswagen Crafter (2007–2013) — all non-amplified variants. Use the Aerpro What Fits Your Car Guide to confirm your exact build.

Why doesn't it suit the Mercedes A-Class with a single DIN unit?

The AMDMC2 is designed for the double DIN factory head unit configuration in the A-Class W169. Vehicles fitted with a single DIN factory unit have a different dash opening and require a different kit — this one will not physically fit those variants.

How do I know if my vehicle is non-amplified?

A factory-amplified vehicle has a separate amplifier unit (typically mounted under a seat or in the boot) with its own speaker wiring running from it. If all speaker wiring runs directly from the factory head unit with no separate amplifier, the vehicle is non-amplified. The Aerpro What Fits Your Car Guide can also assist with confirming this.

Why are multiple antenna adaptors included in the kit?

The AMDMC2 covers six different vehicle models across two brands, each of which may use different factory antenna connector types. Multiple antenna adaptors are included so the correct one can be selected for your specific vehicle during installation.

What factory features are not retained after installation?

The factory reverse camera, USB input, and AUX input are not retained. The head unit's own dual USB ports, wireless connectivity, and CarPlay/Android Auto replace these functions. SWC and vehicle menu are retained.
