Aerpro AMDMB8 9" Multimedia Receiver Mitsubishi Triton 16-18

9" Wireless CarPlay for the Mitsubishi Triton MQ Retains SWC, Reverse Camera, and USB on Auto Climate Non-Amplified Models

Product Overview

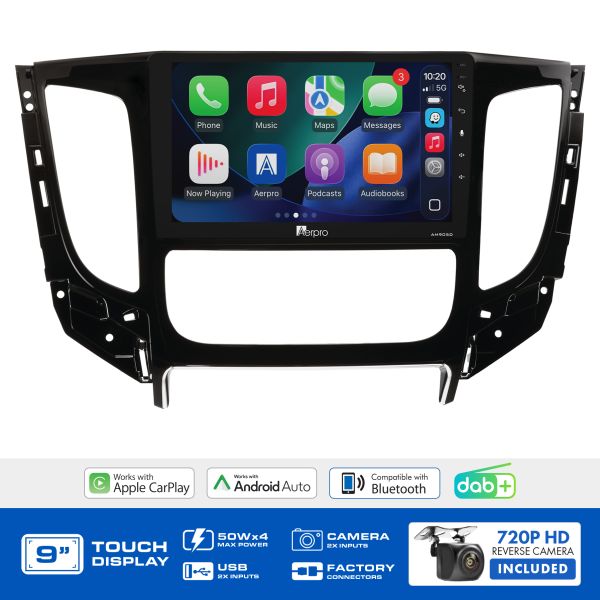

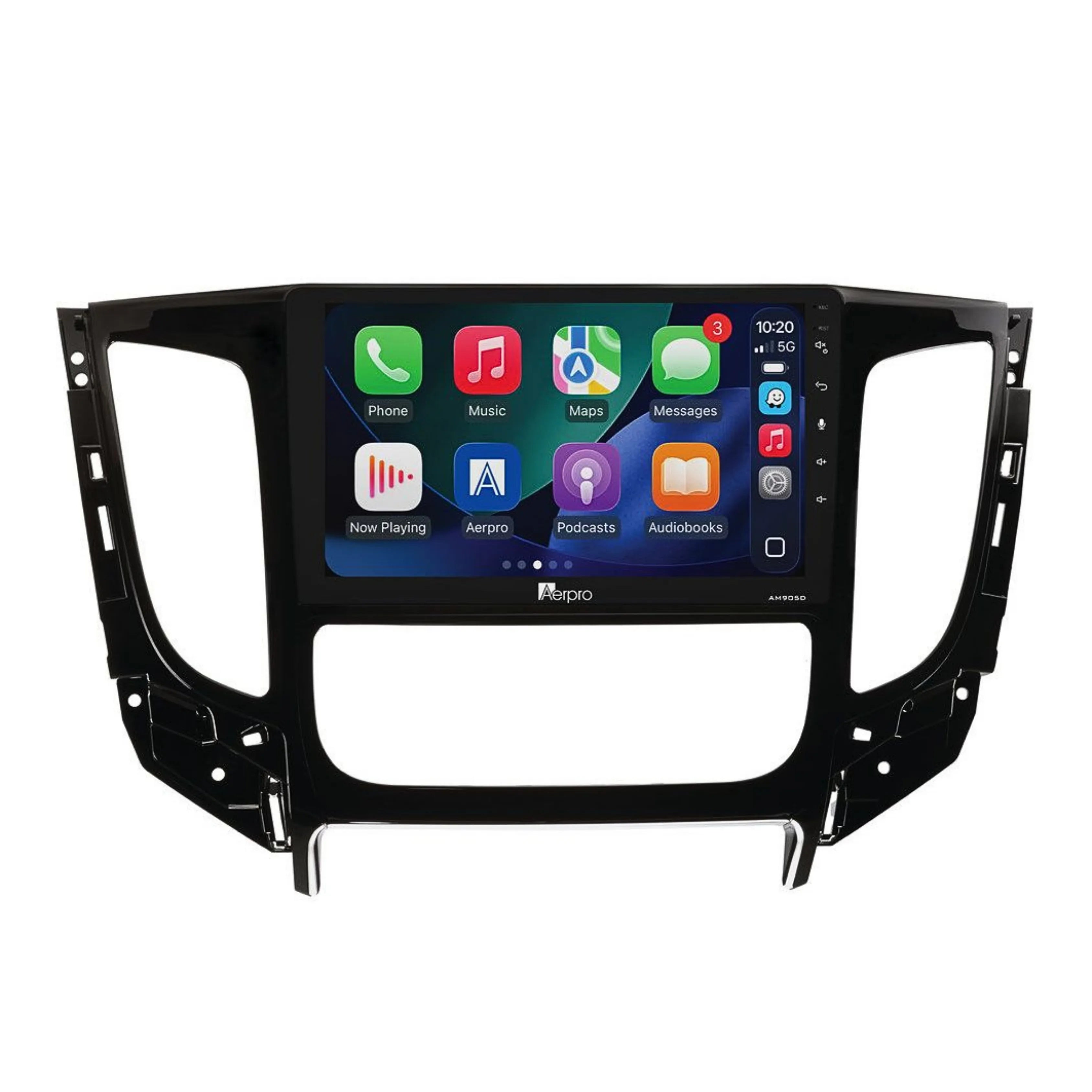

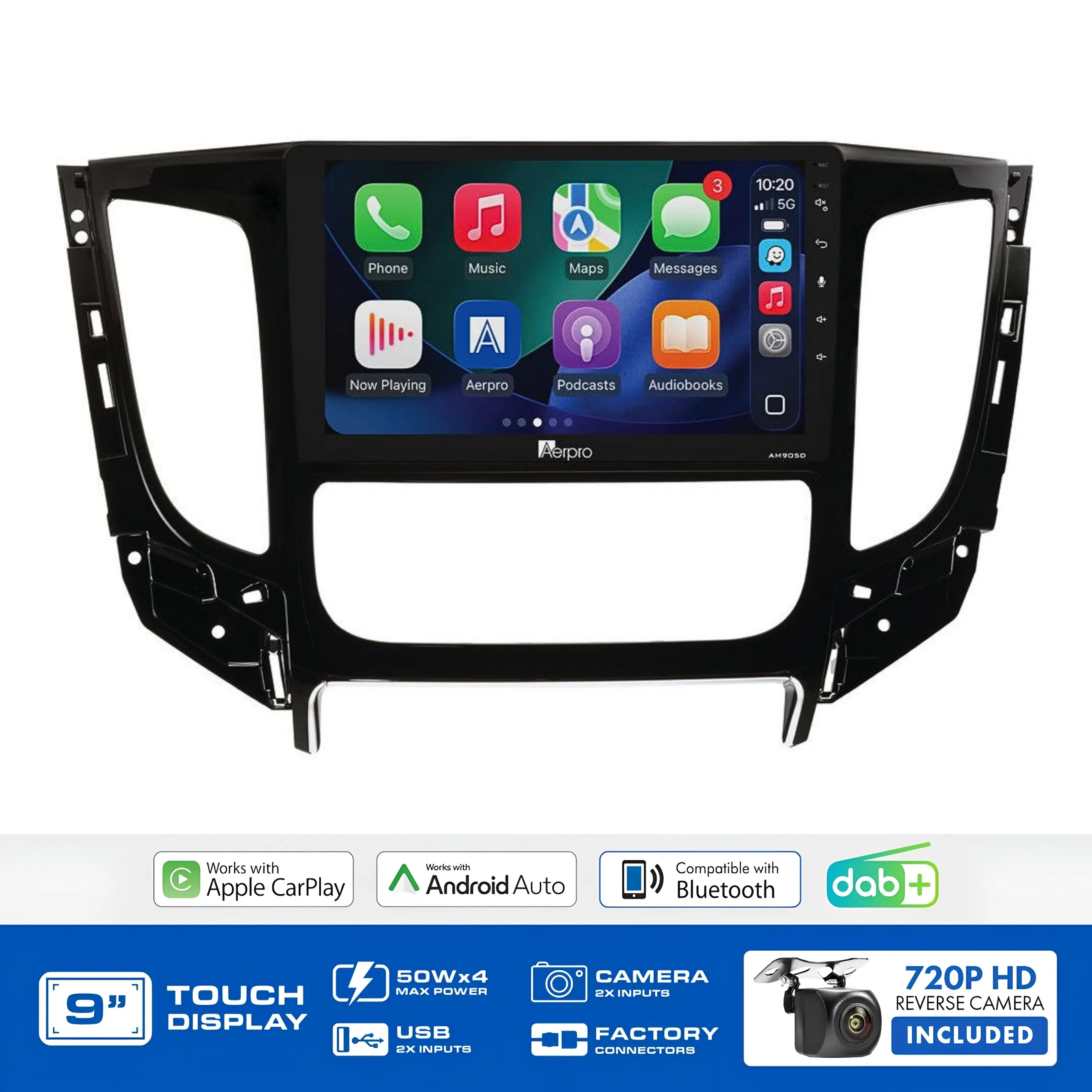

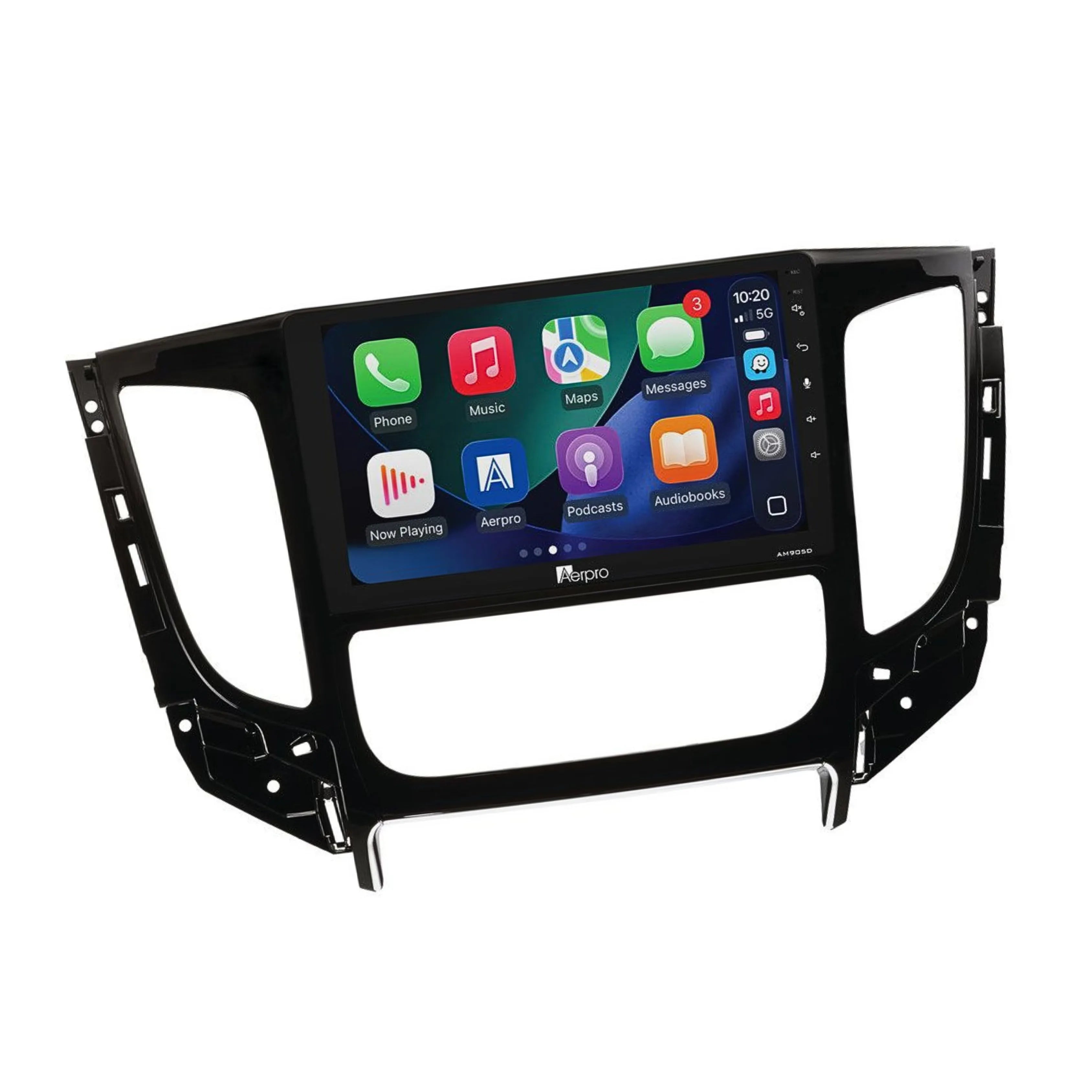

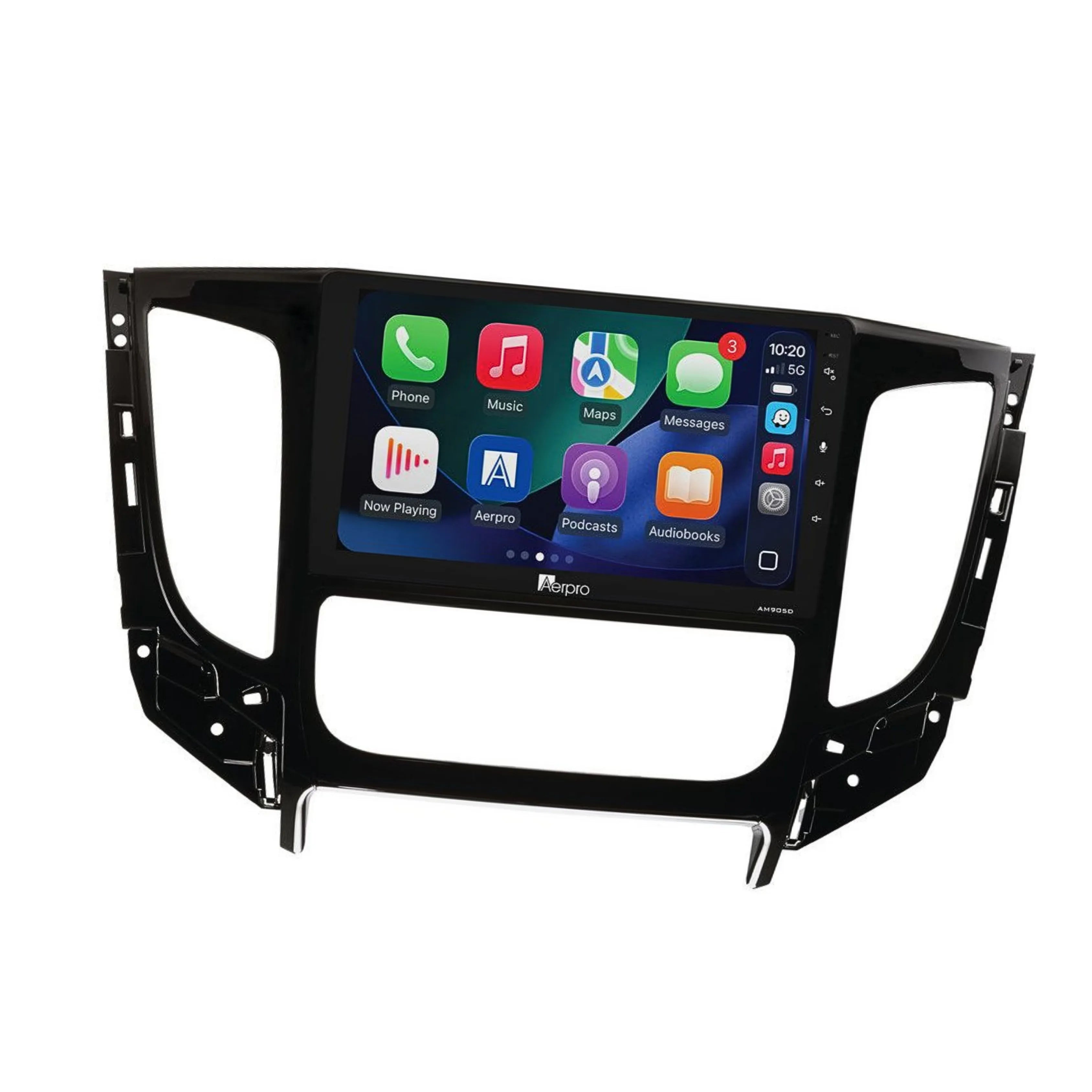

The Aerpro AMDMB8 is a complete head unit upgrade kit for the Mitsubishi Triton MQ (2016–2018) fitted with auto climate control and no factory amplifier. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 retaining steering wheel controls (including the phone button), the factory reverse camera (if equipped), and the factory USB input (if equipped, one port only).

Of the four Triton-specific Aerpro kits, the AMDMB8 offers the most comprehensive factory feature retention for the MQ generation covering both the reverse camera and USB input alongside SWC. The kit includes the AM905D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, and two USB retention adaptors (only one is installed, chosen based on vehicle variance). A 720P AHD universal rear camera is also included.

Features & Benefits

• Retains factory reverse camera, USB input, and SWC — the most complete retention package across the Triton Aerpro range for this generation; camera retention adaptor and USB retention adaptors both included in the kit
• Two USB adaptors included — one installed — the kit supplies two different USB retention adaptors to account for Triton MQ build variances; only one is required for your vehicle; the correct adaptor is selected during installation
• Only one factory USB port is retained — where the Triton MQ has multiple USB ports in the factory cluster, only one is retained via the head unit's rear USB input after installation
• Non-amplified models only — this kit does not support Triton MQ variants with a factory amplifier; amplified models require a different kit
• Auto climate control required — manual climate control Triton MQ variants are not compatible with this kit
• SWC retained including phone button — SWC interface harness and patch lead included; all factory steering wheel controls carry over without manual programming
• Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB connection also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — a major upgrade over the factory Triton MQ display with smooth, responsive touch control
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; connects via second camera input alongside the retained factory camera
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
• 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for Triton MQ cabin-specific tuning

Technical Specs

Compatible With / Goes Well With

• Mitsubishi Triton MQ (2016–2018) with auto climate control and no factory amplifier
• Not compatible with Triton MQ models fitted with a factory amplifier
• Not compatible with Triton MQ models fitted with manual climate control
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How do I know if my Triton MQ is non-amplified?

A factory-amplified Triton MQ typically has a separate amplifier unit fitted to the vehicle (often under a seat or in the cargo area) with dedicated speaker wiring running from it. If your Triton runs all speaker wiring directly from the factory head unit with no separate amplifier unit, it is non-amplified. The Aerpro What Fits Your Car Guide can also help confirm your variant.

Why are two USB adaptors included if only one is used?

The Triton MQ (2016–2018) has build variances that affect which USB retention adaptor is needed. Aerpro supplies both adaptors in the kit so the correct one can be selected during installation without needing a second order. The unused adaptor is simply not installed.

Only one factory USB port is retained — which one?

One factory USB port is retained via the head unit's rear USB input. The specific port retained depends on which USB retention adaptor suits your vehicle's build. The head unit's own dual USB ports remain available for CarPlay/Android Auto and media playback regardless.

Why does the park brake wire need to be connected?

Apple CarPlay and Android Auto require the park brake wire to be connected to the actual park brake. Without this connection, both functions will not activate. This is a safety interlock built into the AM905D head unit.

How does this compare to the other Aerpro kits for the Triton?

The AMDMB8 covers the Triton MQ (2016–2018). For the older MN GLX-R (2012–2014), the AMDMB3 applies; for the MN GL/GLX/GLX-R (2015) and Challenger, the AMDMB26 applies; and for the current MR (2019–2024), the AMDMB27 applies. The AMDMB8 is the only kit in the range that retains both the reverse camera and USB input simultaneously.
