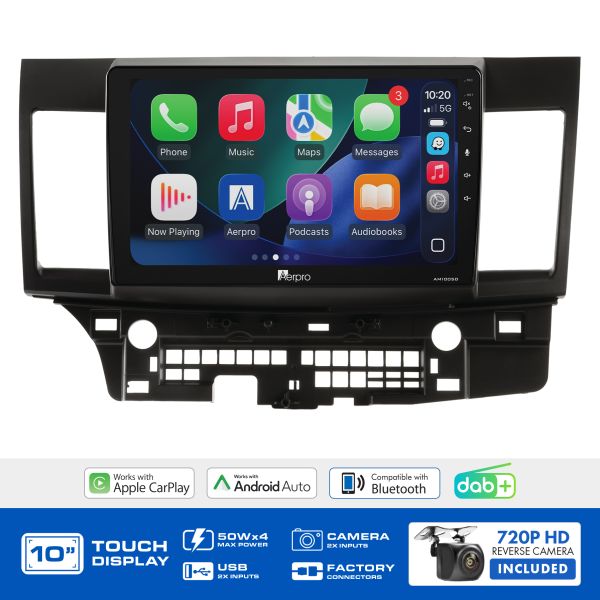

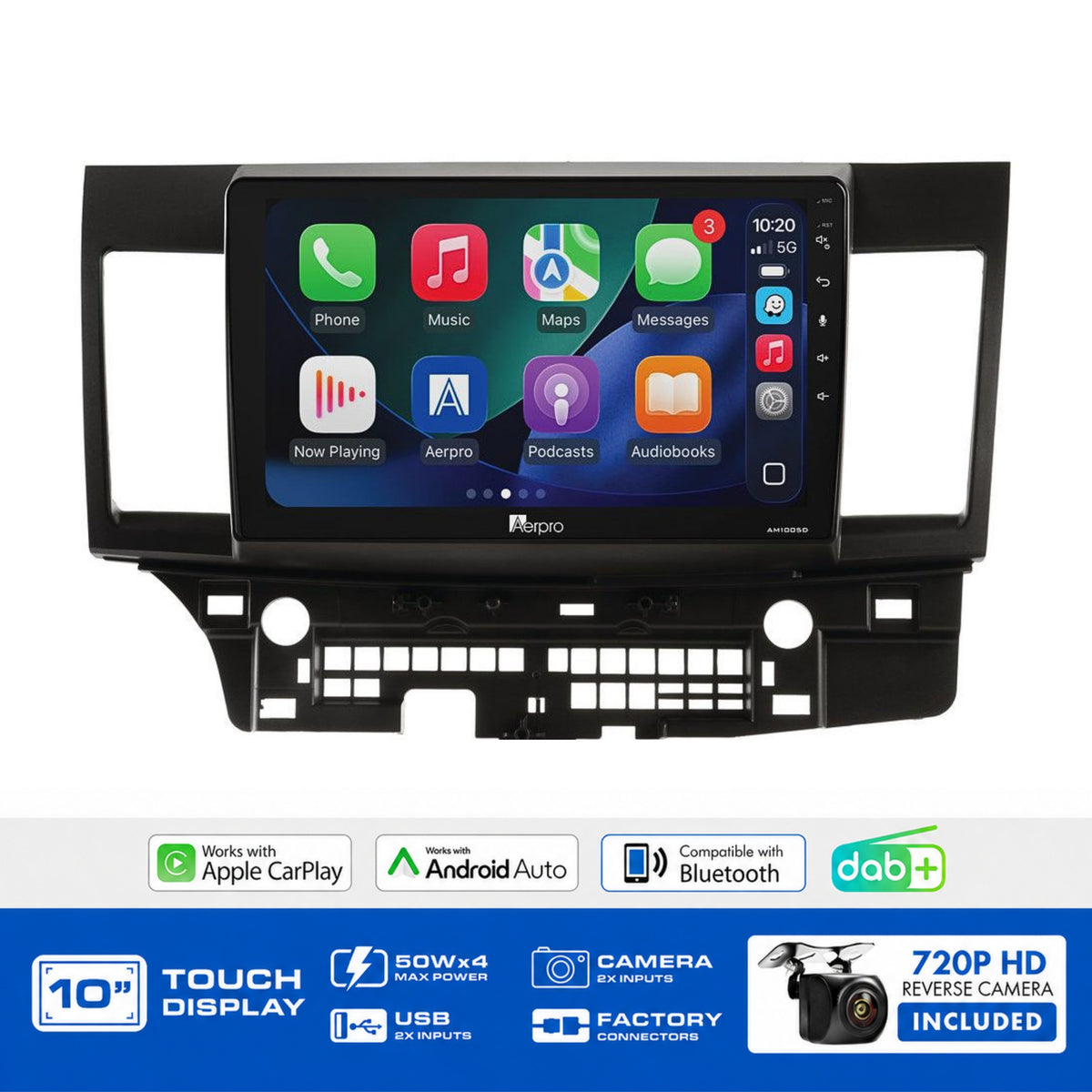

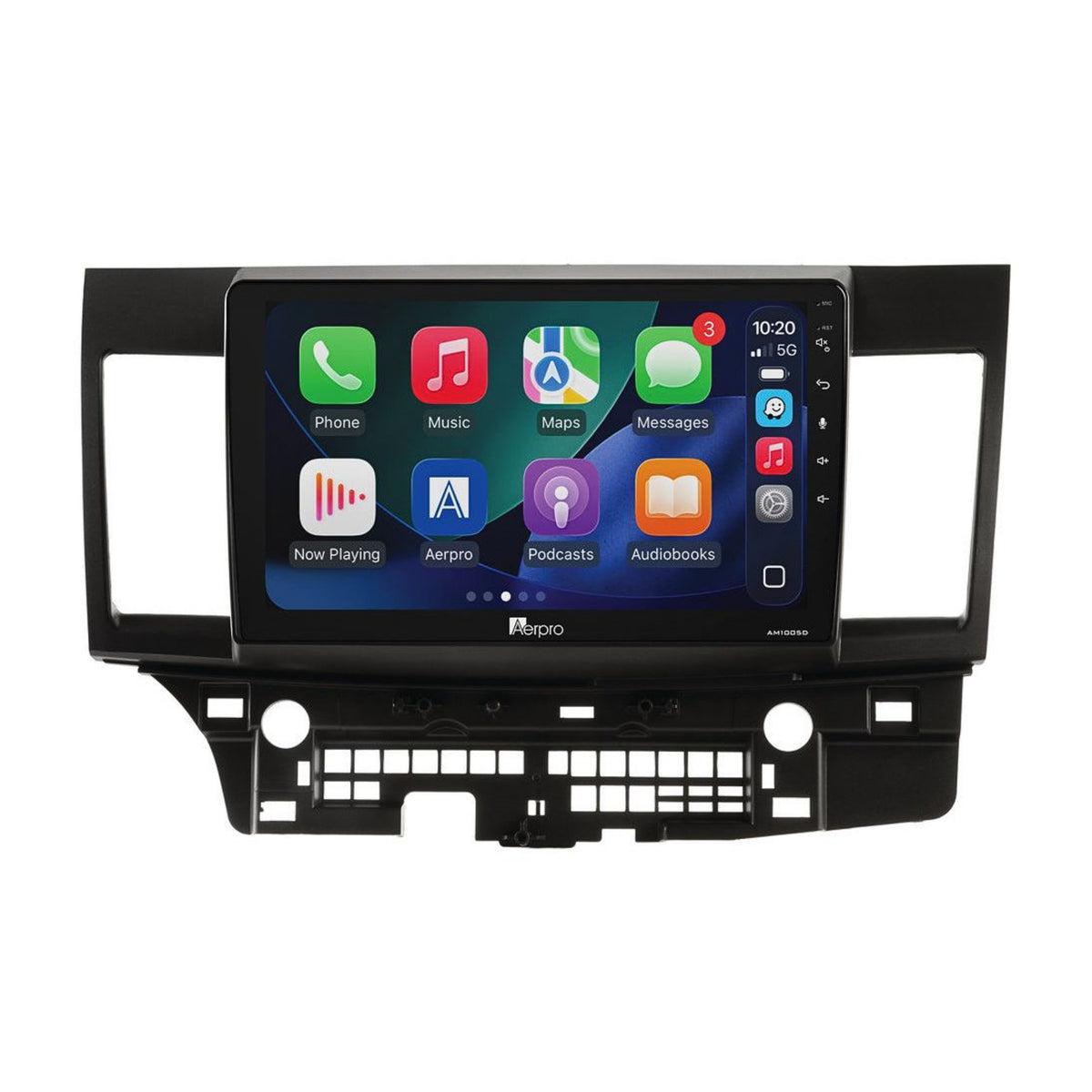

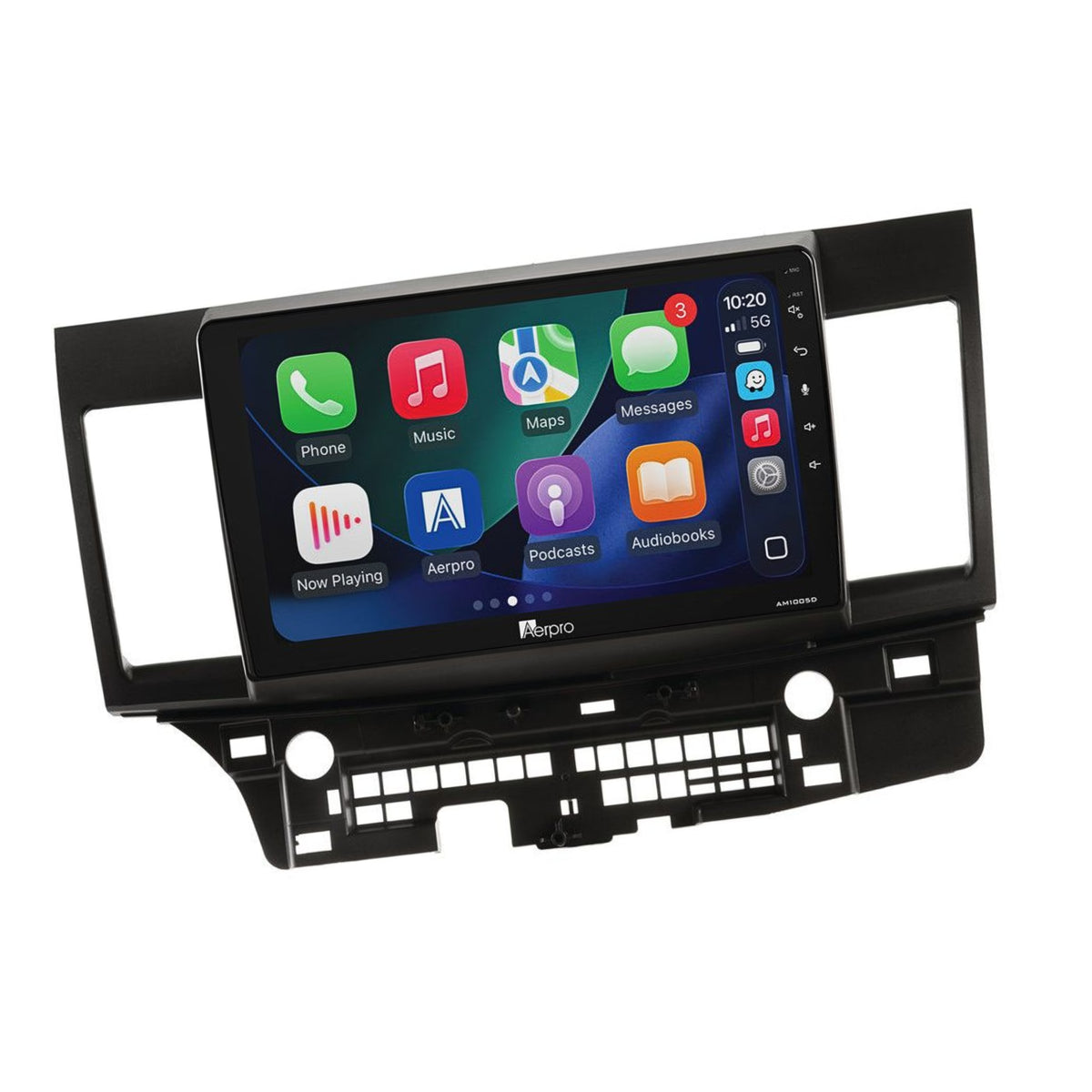

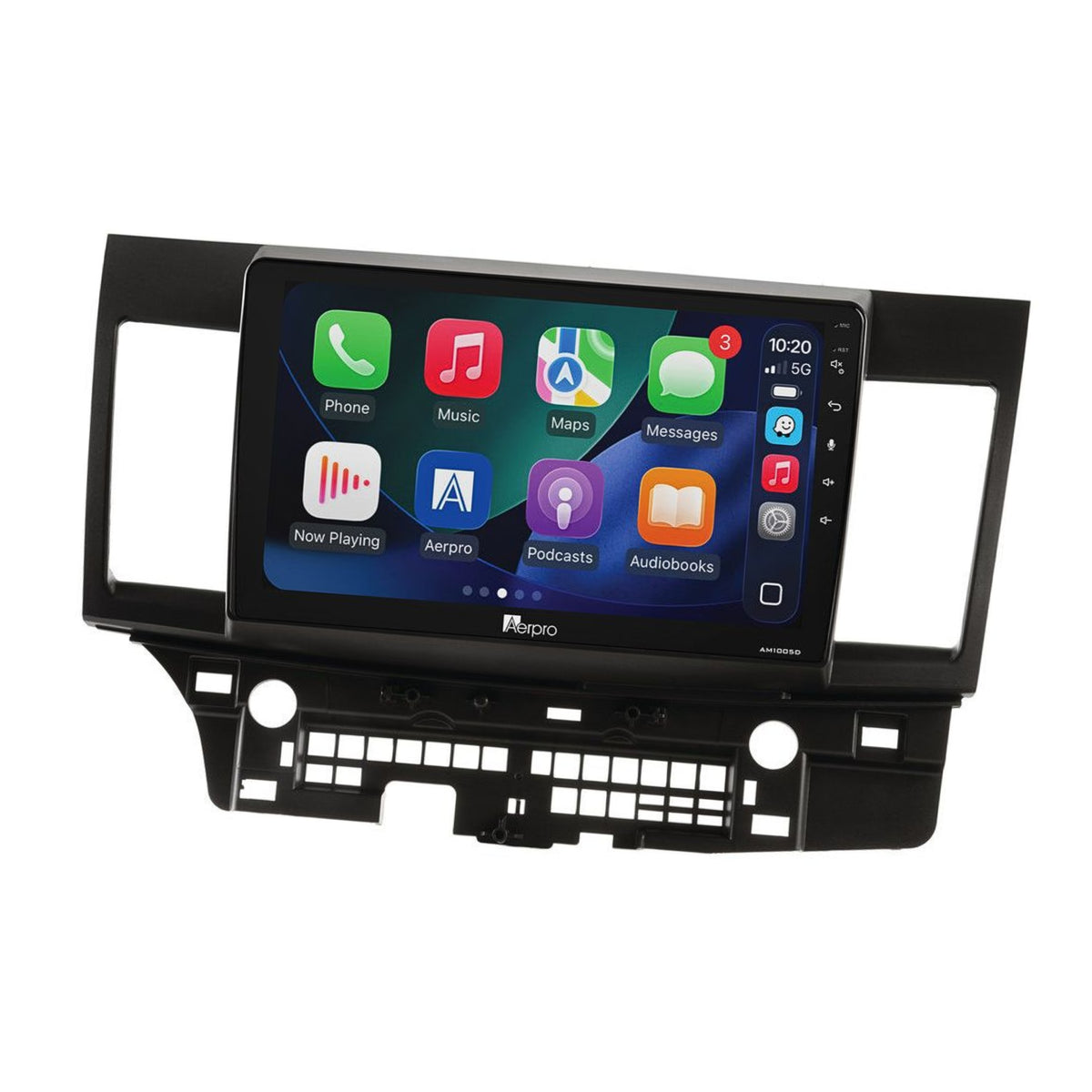

Aerpro AMDMB6 10" Multimedia Receiver Mitsubishi Lancer Rockford

10" Wireless CarPlay for the Rockford Fosgate Lancer CJ Amp, Vehicle Menu and Factory Amp Settings Retained

Product Overview

The Aerpro AMDMB6 is a complete head unit upgrade kit for the Mitsubishi Lancer CJ (2007–2013) fitted with a factory Rockford Fosgate amplified audio system. It retains factory steering wheel controls (including the phone button), the Rockford Fosgate amplifier, factory reverse camera (if equipped), vehicle menu access, and access to factory amplifier settings a meaningful upgrade over the standard SWC kits for this Lancer generation.

The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, and a 720P AHD universal rear camera. USB and AUX retention are N/A for this Rockford Fosgate Lancer integration.

Features & Benefits

• Rockford Fosgate amplified Lancer CJ only — the AMDMB6 is specifically for the Lancer CJ equipped with the factory Rockford Fosgate amplified system; for non-Rockford Lancer CJ variants see AMDMB4, AMDMB5, or AMDMB24
• Factory Rockford Fosgate amplifier retained — the factory amplified audio system is preserved after installation
• Factory amplifier settings access retained — beyond standard vehicle menu access, the SWC harness retains the ability to configure the Rockford Fosgate amplifier's settings through the new head unit interface
• Vehicle menu retained — full vehicle menu access is preserved after installation
• SWC retained including phone button — all factory Lancer steering wheel controls carry over via the SWC interface harness and patch lead
• Factory reverse camera retained (if equipped) — the included camera retention adaptor preserves the factory reverse camera signal via the head unit's reverse camera input
• USB and AUX retention not applicable — the Rockford Fosgate Lancer CJ integration does not include USB or AUX retention paths; these are N/A for this configuration
• Camera retention adaptor included — no separately sold camera adaptor required
• 10" capacitive touchscreen at 1024x600 resolution — the same 10" AM1005D format used across the Lancer CJ range
• Black vehicle-specific facia kit — matched to the Lancer CJ interior
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
• 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained Rockford Fosgate system

Technical Specs

Compatible With / Goes Well With

• Mitsubishi Lancer CJ (2007–2013) with factory Rockford Fosgate amplified system
• Not compatible with non-Rockford Fosgate Lancer CJ variants — use AMDMB4 (2007–2010 SWC), AMDMB5 (2010–2017 SWC), or AMDMB24 (2007–2013 no SWC)
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDMB6 differ from the AMDMB4 or AMDMB5?

The AMDMB4 and AMDMB5 are for non-Rockford Fosgate Lancer CJ models with SWC — they retain SWC (including phone button) and AUX input. The AMDMB6 is for Rockford Fosgate-equipped variants — it retains SWC, the Rockford Fosgate amplifier, factory reverse camera (if equipped), vehicle menu, and factory amplifier settings access, but does not retain USB or AUX inputs which are N/A for this integration.

What does "Access Factory Amp Settings" mean?

The Rockford Fosgate amplified system in the Lancer CJ includes configurable amplifier parameters — such as crossover frequencies and gain settings — that are typically accessed through the factory head unit. The AMDMB6's SWC harness retains this interface, allowing the Rockford Fosgate amp settings to be adjusted through the new AM1005D head unit rather than becoming inaccessible after the swap.

Is USB retention included?

No — USB retention is N/A for the Rockford Fosgate Lancer CJ configuration. This differs from the Rockford Fosgate ASX kits (AMDMB15 and AMDMB28) which do include USB retention. The AMDMB6 includes a camera retention adaptor but no USB retention adaptor.

Does the Lancer CJ always have Rockford Fosgate audio?

No — the Rockford Fosgate system was a higher-specification option, not standard across the Lancer CJ range. Base and mid-spec Lancer CJ models use the standard (non-Rockford) audio system and require the AMDMB4, AMDMB5, or AMDMB24. Confirm your Lancer's audio specification before purchasing.

Is vehicle menu retained on this kit?

Yes — vehicle menu access is fully retained by the AMDMB6. This is an advantage over the non-Rockford Lancer kits (AMDMB4 and AMDMB5) where vehicle menu is N/A.
