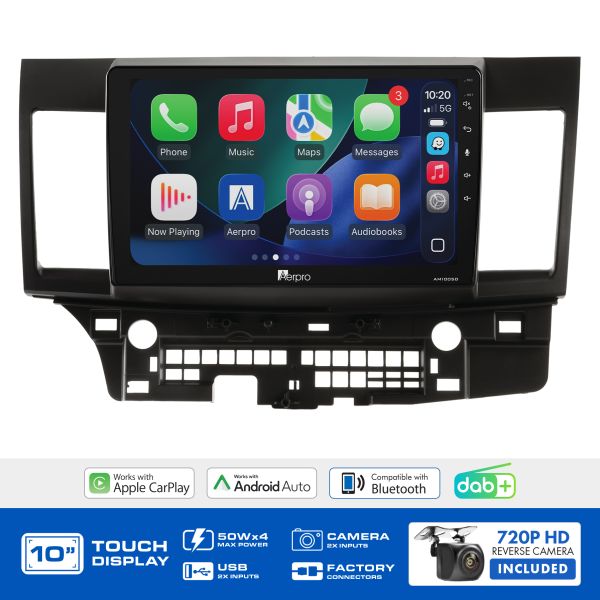

Aerpro AMDMB4 10" Multimedia Receiver Mitsubishi Lancer 07-10

SKU: AMDMB4
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

10" Wireless CarPlay for the Mitsubishi Lancer CJ Non-Amplified, SWC and AUX Retained, Park Brake Required

Product Overview

The Aerpro AMDMB4 is a complete head unit upgrade kit for the Mitsubishi Lancer CJ (2007–2010) in non-amplified specification. Featuring the 10" AM1005D multimedia receiver the same larger-format display used in the AMDMB14 for the ASX it replaces the factory head unit with wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5, while retaining factory steering wheel controls (including the phone button) and the factory AUX input where equipped.

The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, and a 720P AHD universal rear camera. Factory reverse camera, USB, parking tones, and vehicle menu are all N/A for this Lancer platform.

Features & Benefits

  • 10" capacitive touchscreen at 1024x600 resolution — a larger display than the standard 9" AM905D units across the Aerpro range; gives the Lancer cabin a notably wider screen for maps, media, and settings
  • SWC retained including phone button — all factory Lancer steering wheel controls including the phone button carry over via the SWC interface harness and patch lead
  • Factory AUX input retained (if equipped) — where the Lancer CJ is fitted with a factory AUX port, it is retained via the RCA AUX input on the rear of the head unit
  • Non-amplified models only — factory-amplified Lancer CJ variants require a different kit
  • Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
  • Black vehicle-specific facia kit — matched to the Lancer CJ interior trim
  • Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to the Lancer
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Specification Detail
Display size 10"
Head unit model AM1005D
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes (including phone button)
Factory AUX input Yes (if equipped) — via RCA AUX input on head unit
Factory reverse camera N/A
Factory USB input N/A
Parking tones N/A
Vehicle menu N/A
Factory amplifier Not retained — non-amplified models only
Park brake requirement Park brake wire must be connected for CarPlay/Android Auto

Compatible With / Goes Well With

  • Mitsubishi Lancer CJ (2007–2010) — non-amplified variants only
  • Not compatible with factory-amplified Lancer CJ variants
  • Buyers with a Lancer outside the 2007–2010 range should confirm fitment using the Aerpro What Fits Your Car Guide, as supplier metadata references the CJ generation more broadly up to 2013
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Is the 10" screen noticeably bigger than other Aerpro head unit kits?

Yes — the AMDMB4 uses the AM1005D with a 10" capacitive touchscreen, compared to the 9" AM905D in the majority of Aerpro vehicle-specific kits. The larger display makes a meaningful visual difference in the Lancer cabin.

Does the Lancer CJ have a factory reverse camera to retain?

No — the 2007–2010 Lancer CJ is not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.

What AUX input does this retain and how?

Some Lancer CJ models came with a factory AUX port in the console or connected to the factory head unit. Where fitted, this is retained via the RCA AUX input on the rear of the AM1005D head unit. The RCA AUX input accepts a standard stereo line level signal.

Does this suit Lancer CJ models from 2010 onwards?

The product is specified for 2007–2010, but the supplier metadata references the CJ generation up to 2013. Confirm compatibility for your specific model year using the Aerpro What Fits Your Car Guide before purchasing.

Why is the park brake wire required?

The AM1005D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate — this is a design requirement of the head unit.
