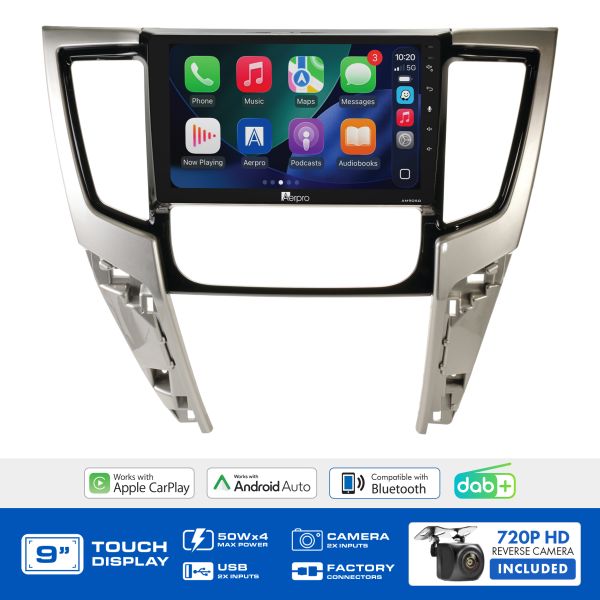

Aerpro AMDMB30 9" Multimedia Receiver Triton 2019-24 360 Cam

The Most Complete Triton MR Upgrade Kit 360° Camera, Factory Amp, USB, AUX, and SWC All Retained

Product Overview

The Aerpro AMDMB30 is the dedicated head unit upgrade kit for the Mitsubishi Triton MR (2019–2024) fitted with auto climate control and the 360-degree camera system the variant that the AMDMB27 explicitly cannot accommodate. Where the AMDMB27 is excluded from 360-camera models, the AMDMB30 is engineered specifically for them, retaining the full 360-degree camera system, factory amplified audio, factory USB input, factory AUX input, and steering wheel controls (including the phone button) in a single all-in-one integration harness.

The kit includes the AM905D multimedia receiver, gloss black/silver facia kit, a specialised SWC interface harness (which also integrates camera, AUX, and USB retention in one cable), SWC patch lead, and a 720P AHD universal rear camera. The 360-degree camera system is retained via the head unit's reverse camera input. USB retention uses the head unit's rear USB input; AUX retention uses the head unit's RCA AUX input.

Features & Benefits

• 360-degree camera system retained — the full factory 360-degree camera is preserved via the head unit's reverse camera input; this is the primary reason the AMDMB30 exists — it solves the 360-camera compatibility gap in the AMDMB27
• All-in-one SWC interface harness — the specialised harness integrates SWC, camera retention, AUX retention, and USB retention in a single cable; no separate adaptors required
• Factory amplifier retained — the factory amplified audio system is preserved after installation; note that attenuator and fade controls are not supported on amplified variants
• Attenuator and fade controls not supported — on factory-amplified Triton MR models, these specific audio controls will not function after installation; all other audio functions are unaffected
• Factory USB input retained — connected via the rear USB input on the head unit
• Factory AUX input retained — connected via the RCA AUX input on the rear of the head unit
• SWC retained including phone button — all factory steering wheel controls carry over via the specialised harness
• Gloss black / silver facia kit — matched to the Triton MR interior; the same dual-finish facia as the AMDMB27
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds supplementary camera coverage alongside the retained 360-degree system
• Auto climate control required — manual climate control Triton MR variants are not compatible with this kit
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• 9" capacitive touchscreen at 1024x600 resolution — large, responsive display upgrade for the Triton MR cabin
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration via front/rear/sub preamp channels

Technical Specs

Compatible With / Goes Well With

• Mitsubishi Triton MR (2019–2024) with auto climate control AND 360-degree camera system
• Not compatible with Triton MR without the 360-degree camera — use Aerpro AMDMB27 for those variants
• Not compatible with Triton MR manual climate control variants
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an additional camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDMB30 differ from the AMDMB27?

The AMDMB27 suits Triton MR 2019–2024 without a 360-degree camera, retaining reverse camera (if equipped), AUX, and SWC but not USB or the factory amplifier. The AMDMB30 is specifically for 360-camera-equipped Triton MR models, retaining the full 360-degree camera system, factory amplifier, USB, AUX, and SWC all together via a specialised all-in-one integration harness.

How is the 360-degree camera system retained?

The 360-degree camera system connects through the specialised SWC interface harness (which integrates camera retention) and outputs via the head unit's reverse camera input. The system is retained as a complete unit — not just the rear view, but the full factory 360-degree functionality.

What does "attenuator and fade controls not supported" mean?

On Triton MR models with the factory amplified audio system, the attenuator (overall volume adjustment applied to the amp's output) and front-to-rear fade controls will not be functional after installation with this kit. All other audio controls — bass, treble, balance, EQ, and overall volume — continue to operate normally through the aftermarket head unit.

Are both USB and AUX inputs retained?

Yes — both are retained via the all-in-one SWC interface harness. USB retention uses the rear USB input on the head unit; AUX retention uses the head unit's RCA AUX input on the rear.

Does this also retain the factory amplifier?

Yes — the factory amplified audio system is retained. The only amplifier-related limitation is that attenuator and fade controls are not supported, as noted in the overview and FAQ 3.
