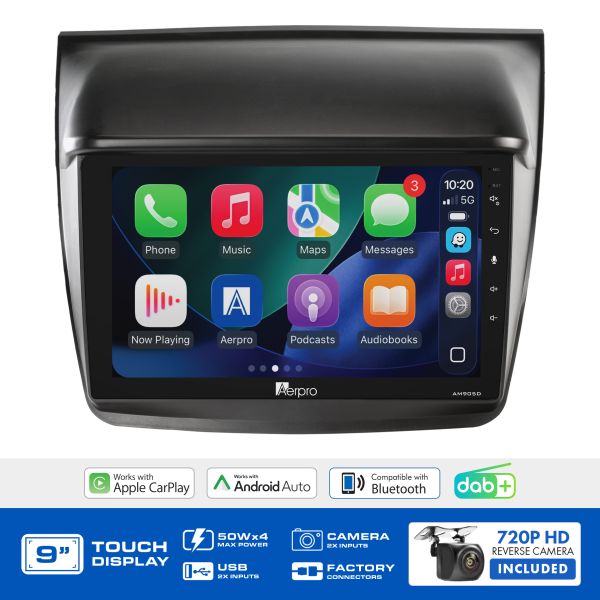

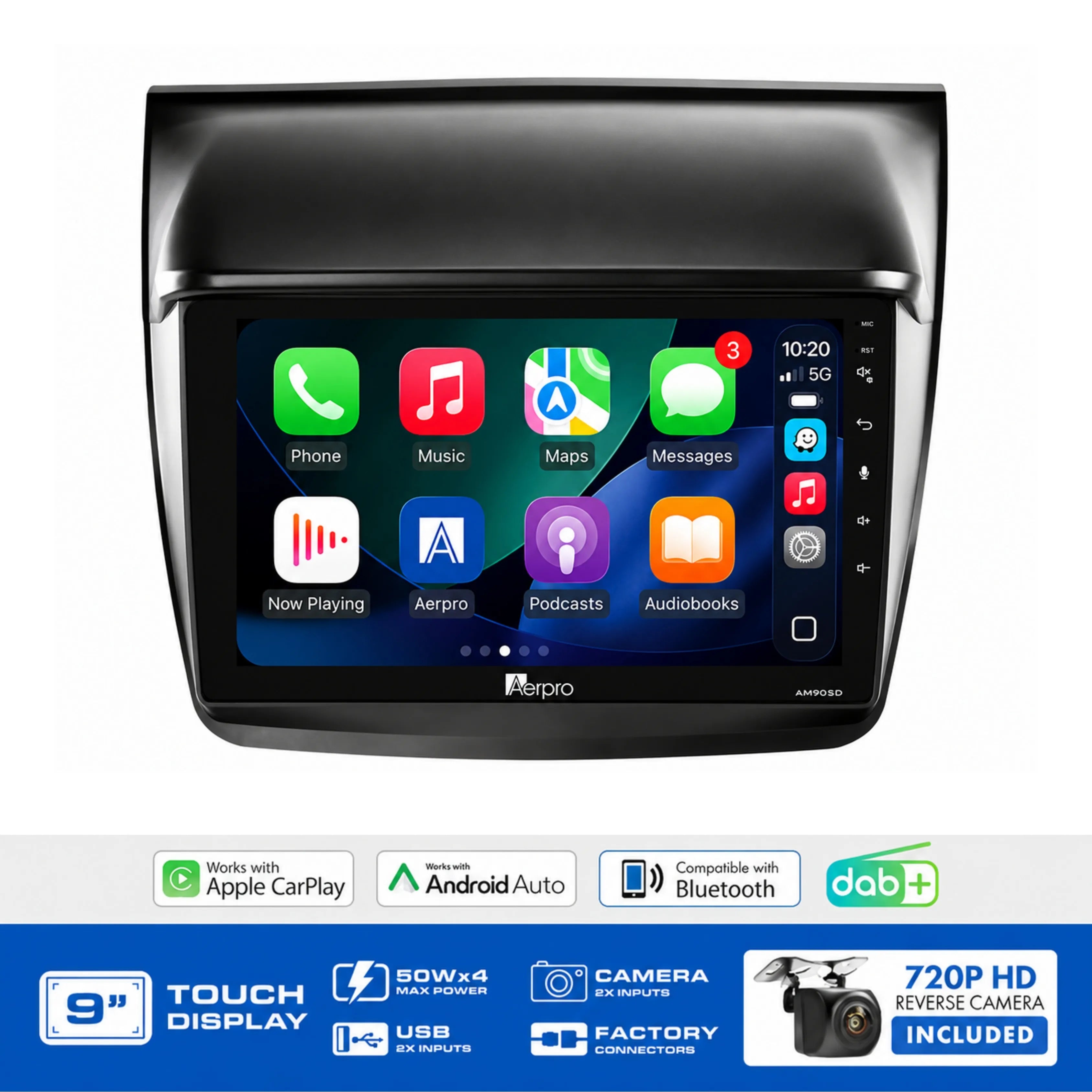

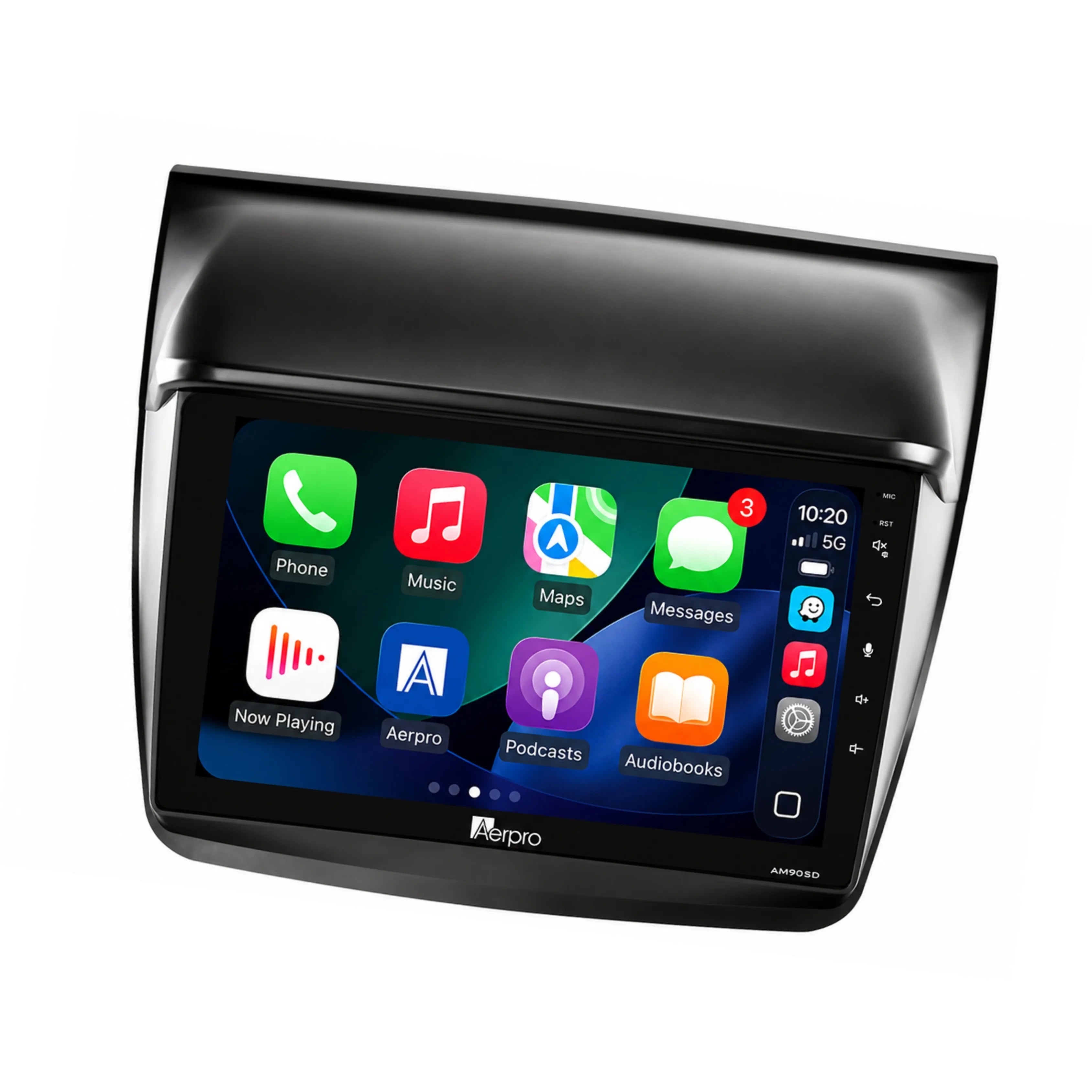

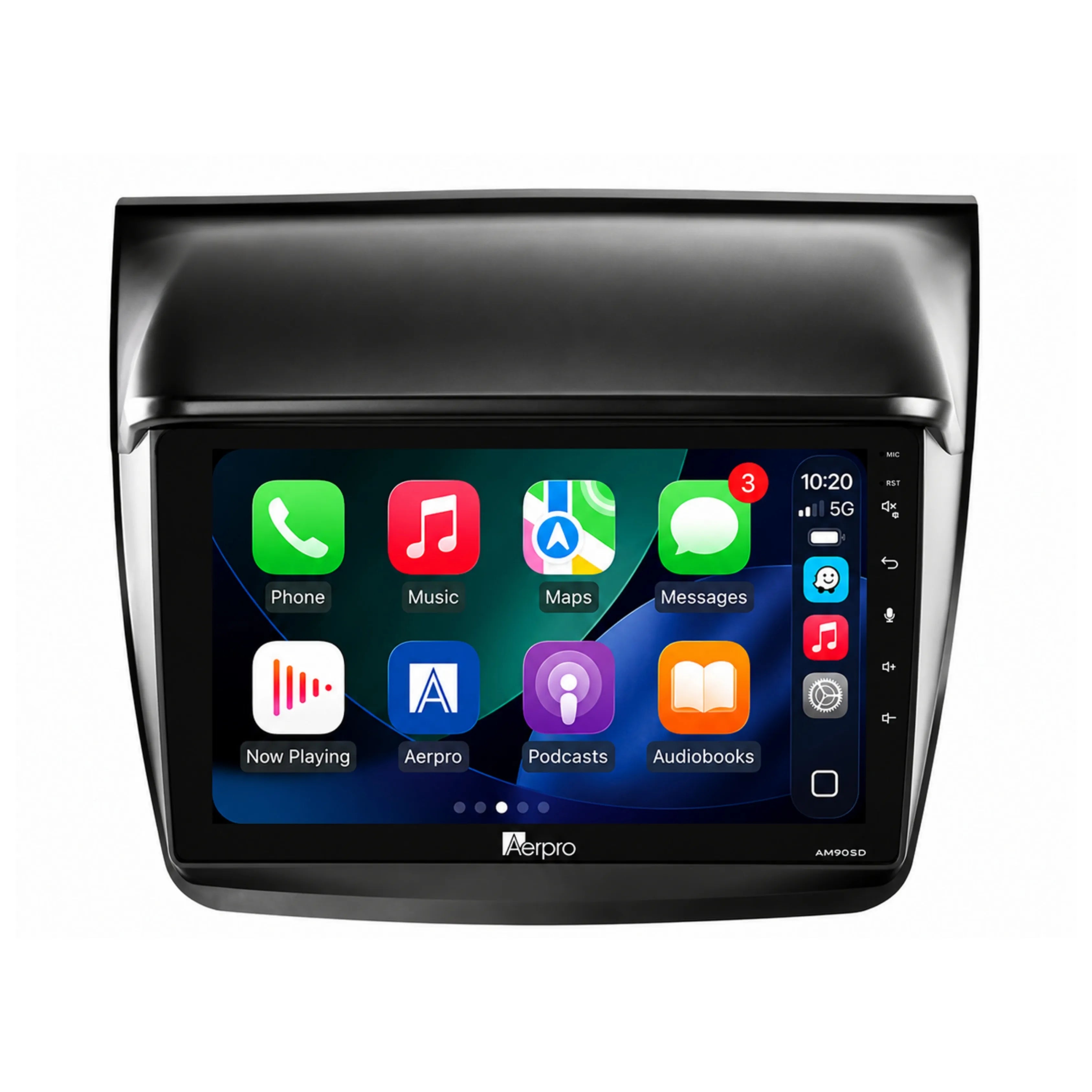

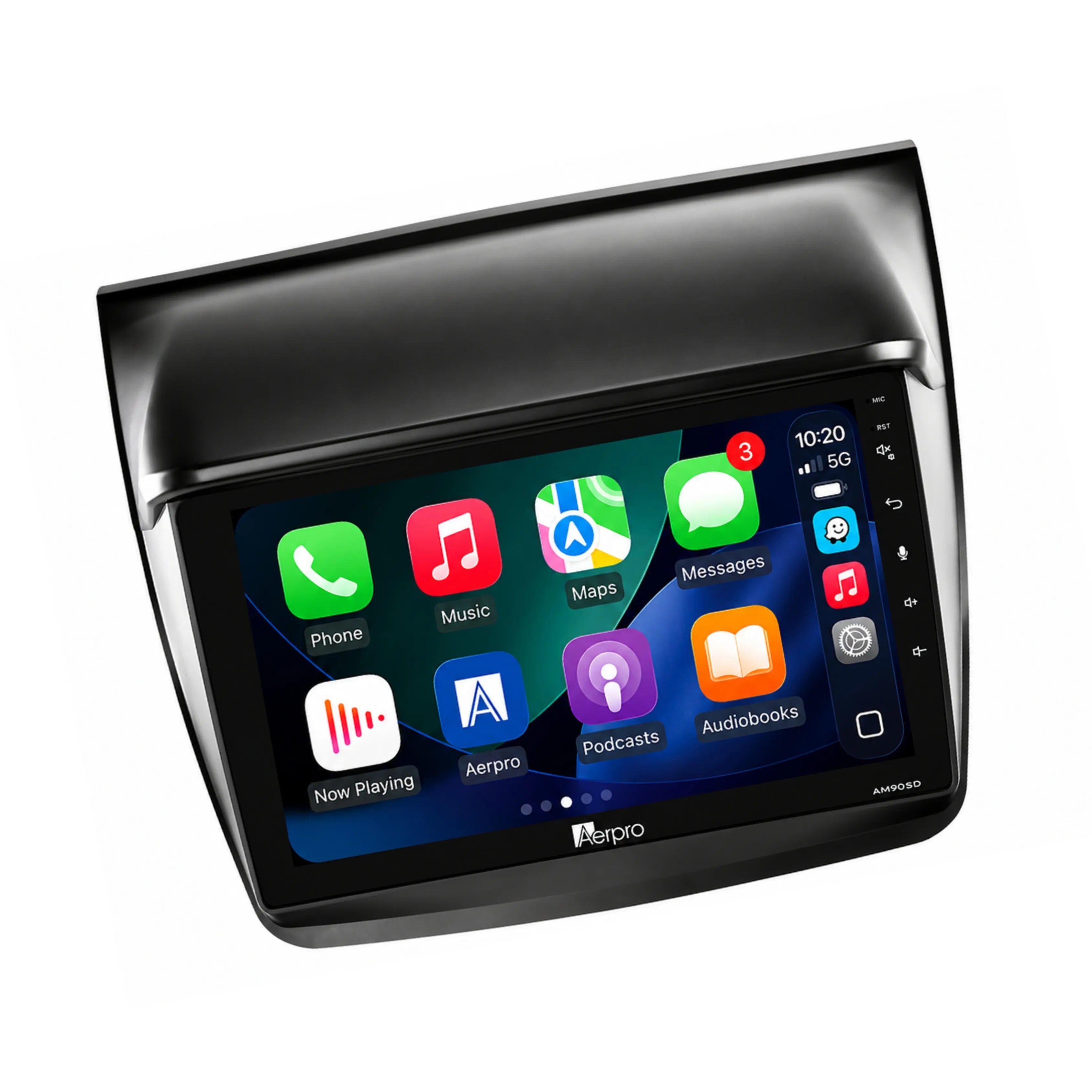

Aerpro AMDMB23 Mitsubishi Triton ML MN 2007-2014 9" Head Unit Wireless CarPlay DAB+

SKU: AMDMB23
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Mitsubishi Triton ML 2007–2009 & MN 2009–2014 (Without Steering Wheel Controls) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.

Product Overview

The Aerpro AMDMB23 is a complete head unit upgrade kit designed for the Mitsubishi Triton ML (GL, GLS, GLX, GLX-R, VR) 2007–2009 and Triton MN (GL, GL-R, GLX) 2009–2014 specifically for vehicles without factory steering wheel controls. Everything required for installation is included the AM905D multimedia receiver, black fascia kit, 2x harnesses, head unit removal keys, and a 720P AHD universal rear camera.

The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • 2x Harnesses
  • Head Unit Removal Keys
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits no-SWC Triton models: Specifically designed for ML and MN Triton variants without factory steering wheel controls for SWC-equipped models, use the appropriate SWC kit
  • Head unit removal keys included: Simplifies extraction of the factory head unit during installation
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDMB23
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC N/A (no SWC models)
Kit Includes Rear Camera Yes 720P AHD universal
Weight 4.00kg
Suits Mitsubishi Triton ML 2007–2009, MN 2009–2014 (no SWC)

Compatible Vehicles

  • Mitsubishi Triton 2007–2009 ML GL, GLX
  • Mitsubishi Triton 2007–2009 ML GLS, GLX-R, VR
  • Mitsubishi Triton 2009–2014 MN GL
  • Mitsubishi Triton 2009–2014 MN GL-R, GLX

Frequently Asked Questions

Does this kit suit Triton models with factory steering wheel controls?

No the AMDMB23 suits Triton models without factory SWC only. For SWC-equipped Triton models, use the appropriate Aerpro SWC kit.

Will the small blue screen on the ML Triton be retained?

No the small blue information screen on the ML Triton will not be retained after installation of the AMDMB23.

What are the head unit removal keys included for?

The removal keys are used to extract the factory head unit from the Triton's DIN slot during installation a required tool for a clean, damage-free removal.

Does CarPlay require the park brake to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
