Aerpro AMDMB2 9" Multimedia Receiver Kit Mitsubishi Triton Challenger

SKU: AMDMB2
Regular price
$799.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMDMB2 9" Multimedia Receiver Complete Kit Mitsubishi Triton and Challenger 2009-2011

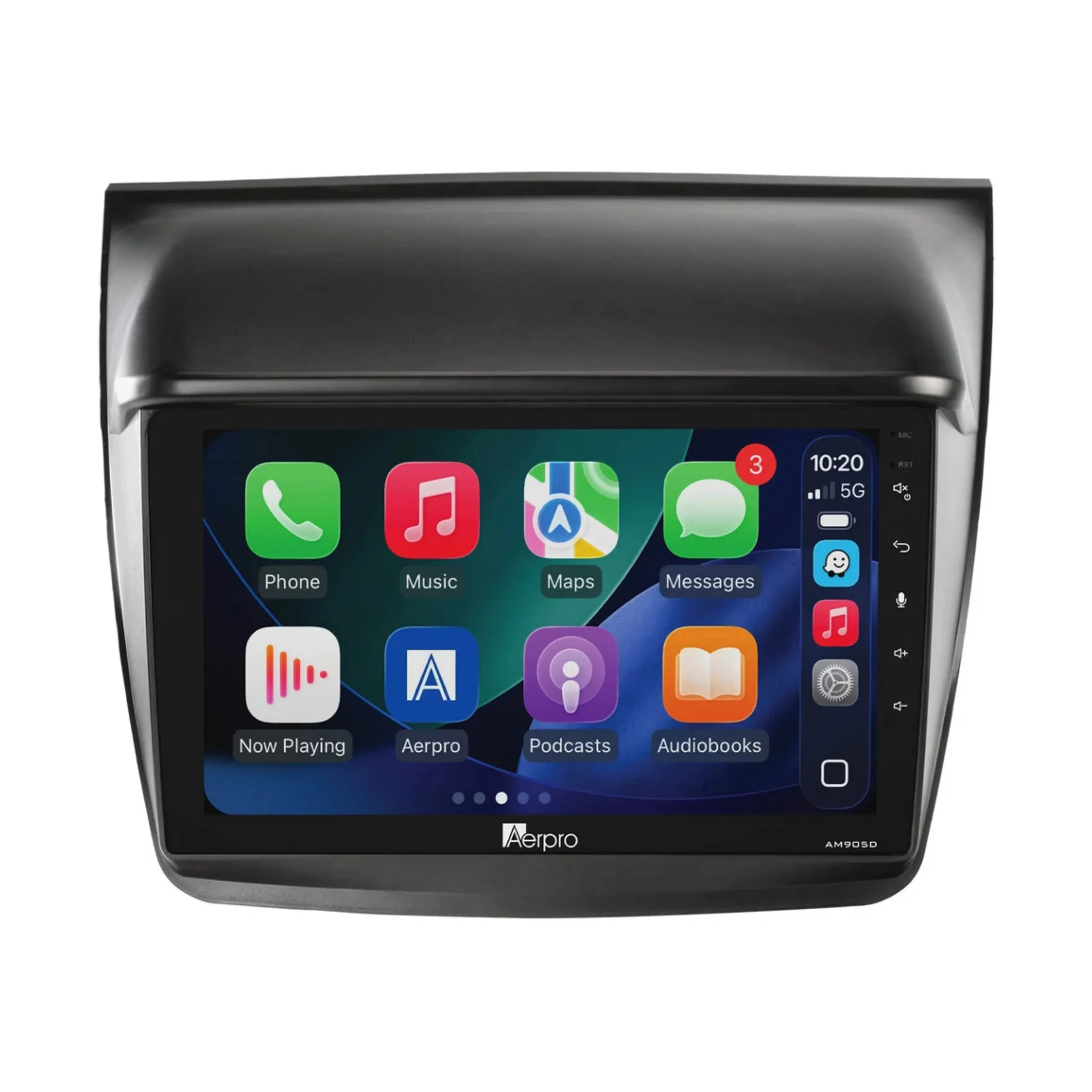

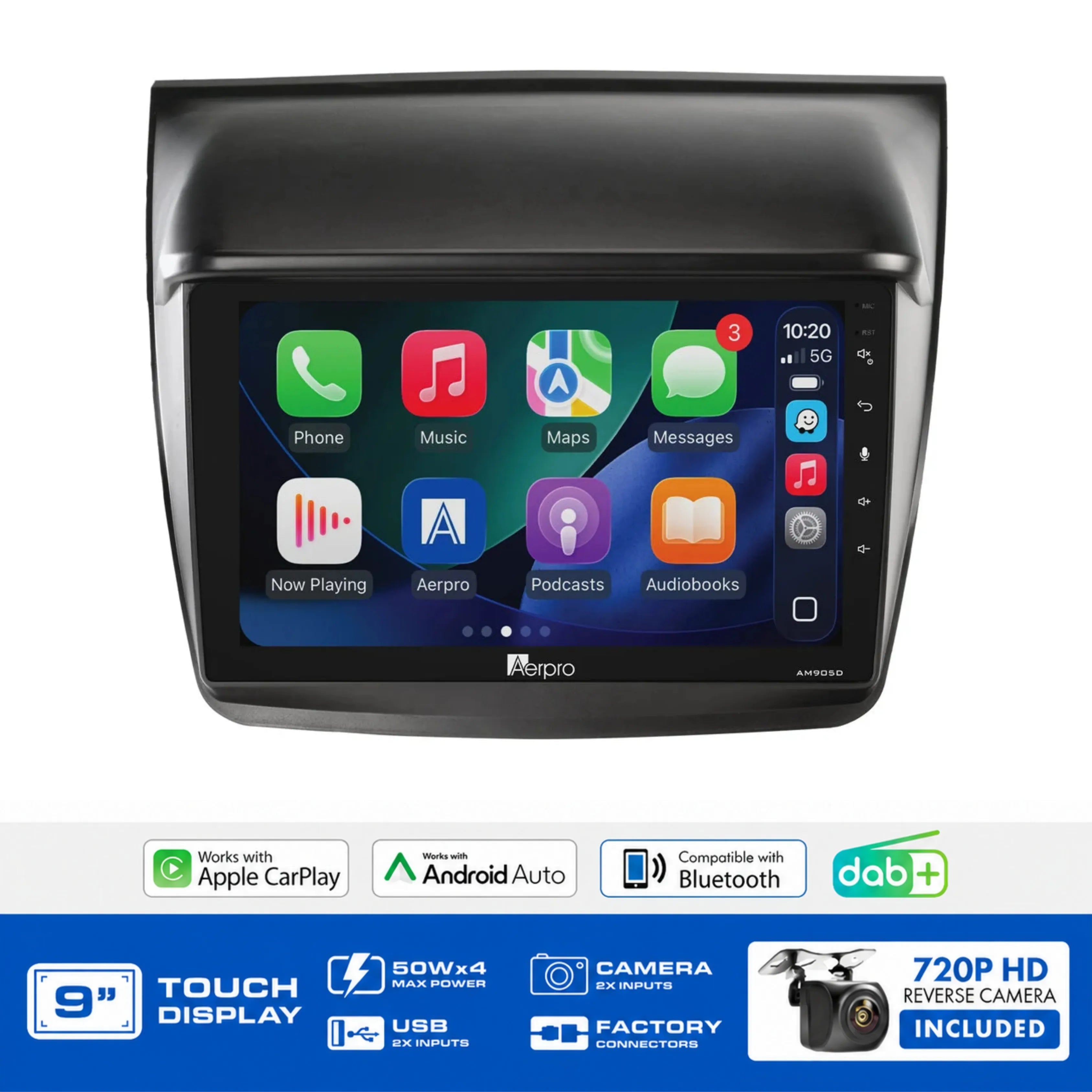

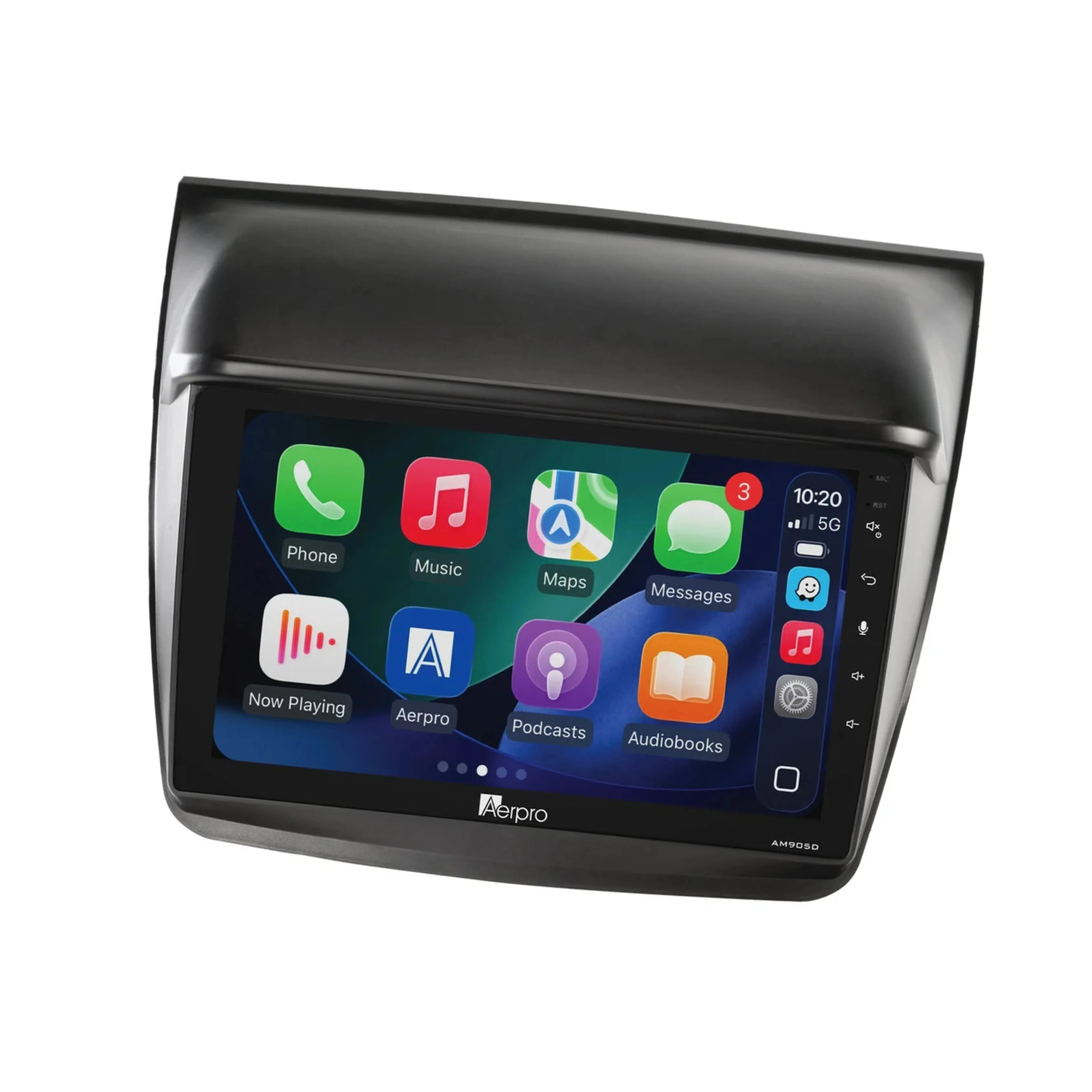

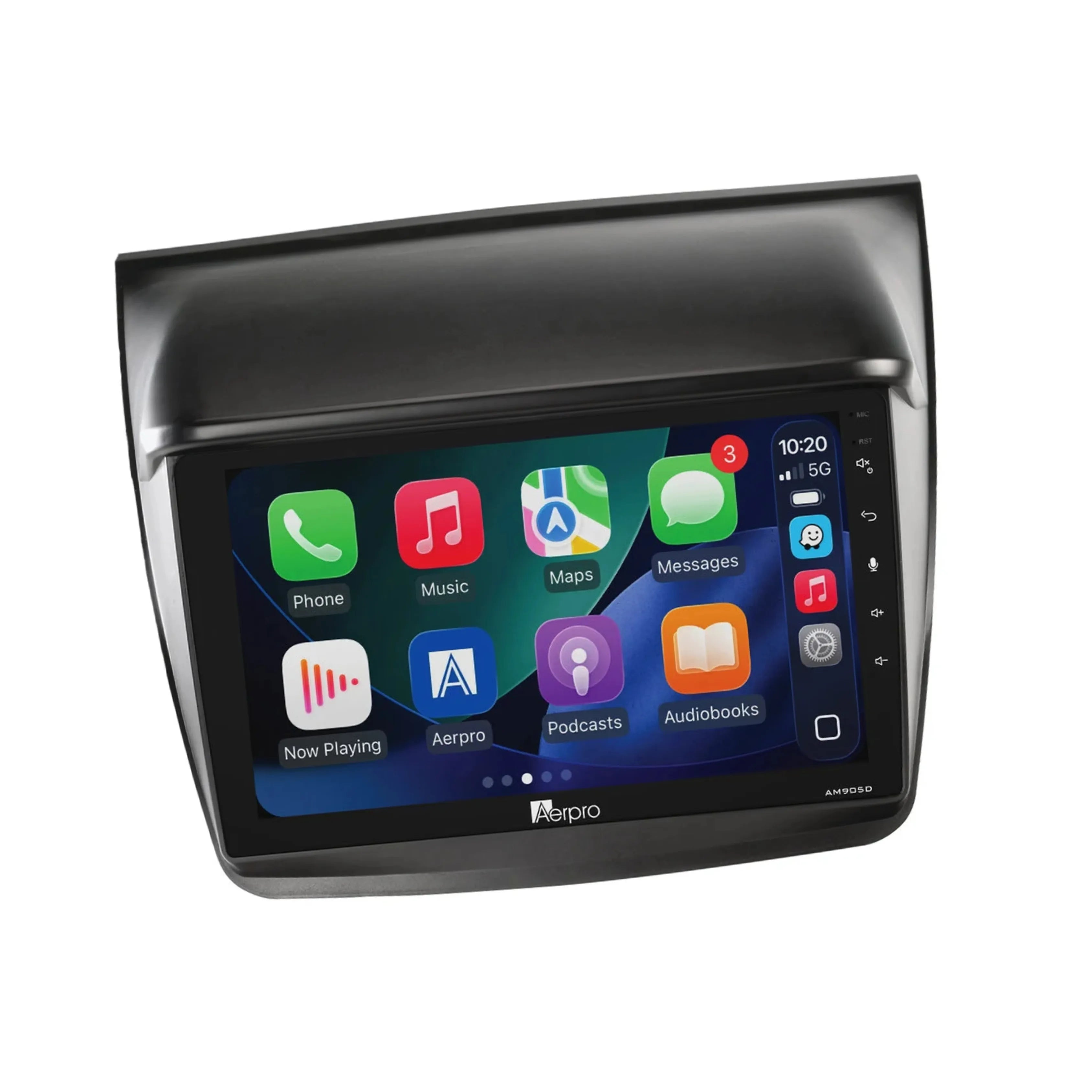

A complete 9" head unit upgrade kit from Aerpro for Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) non-amplified MMCS models, the AMDMB2 includes the AM905D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a black fascia kit, SWC interface harness, camera retention adaptor, and 720P AHD universal rear camera. Retains steering wheel controls, factory reverse camera, and AUX input (where equipped).

Product Overview

The Aerpro AMDMB2 is a vehicle-specific complete head unit upgrade kit for Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011), supplied with everything required to complete the installation. This kit is compatible with non-amplified models fitted with the Mitsubishi Multi Communication System (MMCS) only. The included AM905D multimedia receiver features a 9" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included.

Vehicle feature retention covers steering wheel controls including phone button and PTT function (manually programmable), factory reverse camera (if equipped), and AUX input (if equipped). Factory USB input retention and factory amplifier retention are not supported. A camera retention adaptor is included for factory reverse camera connection. Note: the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDMB2 is supplied as a complete kit including the AM905D multimedia receiver, black fascia kit, SWC interface harness, SWC patch lead, camera retention adaptor, and 720P AHD universal rear camera.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging. Note: the park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

9" Capacitive Touchscreen - 1024x600 Resolution: The 9" capacitive touchscreen at 1024 x 600 resolution provides smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts (front, rear, subwoofer) for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included for reversing visibility. A second camera input is available for a front or towing camera (not included).

Steering Wheel Control Retention Including Phone Button and PTT: The SWC interface harness and patch lead retain steering wheel controls including phone button. PTT function is also supported via manual programming.

Factory Reverse Camera and AUX Input Retention: Camera retention adaptor is included to retain the factory reverse camera (if equipped). AUX input is retained via the RCA AUX input on the rear of the head unit (if equipped).

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

  • AM905D 9" Fixed Multimedia Receiver (Trapezoid)
  • Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • Wiring Harness with ISO Connection
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDMB2
Brand Aerpro
Compatible Vehicles Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011); Mitsubishi Challenger PB (2009-2011)
Compatible Configuration Non-Amplified MMCS Models Only
Head Unit Model AM905D
Screen Size 9"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
SWC Retention Yes (Including Phone Button and PTT - Manually Programmable)
Reverse Camera Retention Yes (If Equipped)
AUX Input Retention Yes (If Equipped)
USB Input Retention No
Factory Amplifier Retention No
Park Brake Requirement Park Brake Wire Must Be Connected for CarPlay/Android Auto
Barcode 9317114955289

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls (Including Phone Button) Yes
PTT Function Yes (Manually Programmable)
Factory Reverse Camera Yes (If Equipped)
AUX Input Yes (If Equipped)
USB Input No
Factory Amplifier No
Parking Tones N/A
Vehicle Menu N/A

Compatible With

Make Model Variant Years
Mitsubishi Triton MN GL-R, GLX, GLX-R 2009-2011
Mitsubishi Challenger PB All (Non-Amplified MMCS) 2009-2011

Note: Compatible with non-amplified models fitted with the Mitsubishi Multi Communication System (MMCS) only. Factory amplifier models are not supported. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Confirm your specific vehicle variant using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Is the AMDMB2 compatible with amplified Triton and Challenger models?

No. The AMDMB2 is compatible with non-amplified models fitted with the Mitsubishi Multi Communication System (MMCS) only. Amplified models are not supported.

Does the AMDMB2 retain the factory USB input?

No. Factory USB input retention is not supported by the AMDMB2.

Does the AMDMB2 support wireless CarPlay and Android Auto?

Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Is a rear camera included with the AMDMB2?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available for a front or towing camera (not included).

What is the PTT function on the AMDMB2?

PTT (Push-to-Talk) function is supported via the steering wheel controls and can be manually programmed through the SWC interface. Confirm PTT programming requirements with your installer before purchase.
