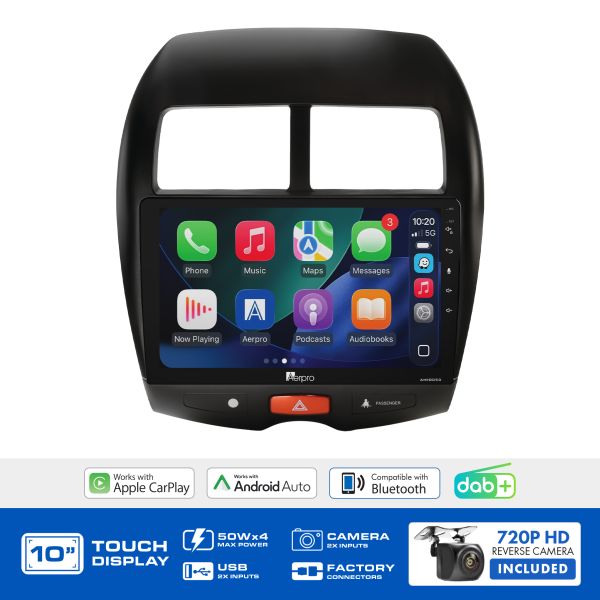

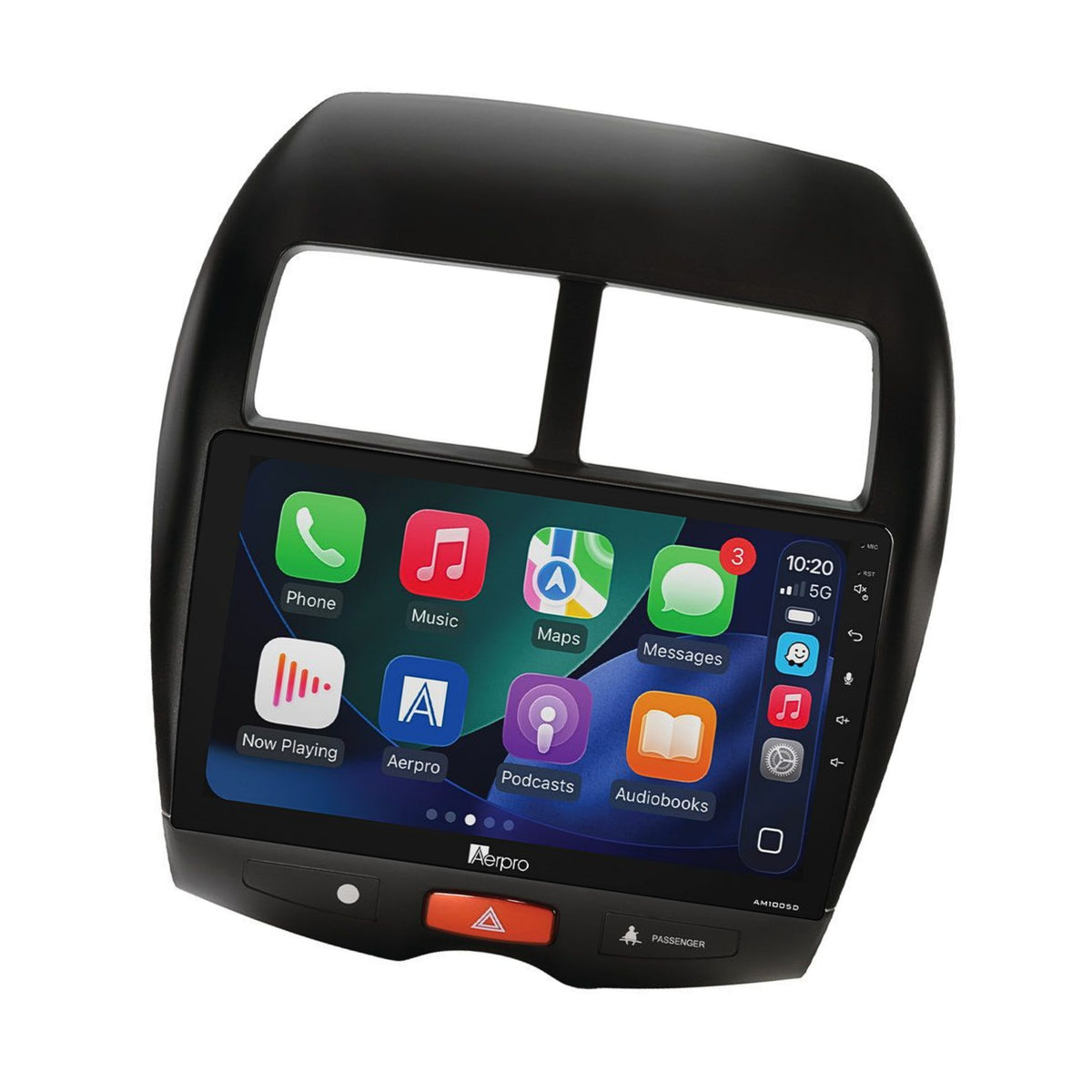

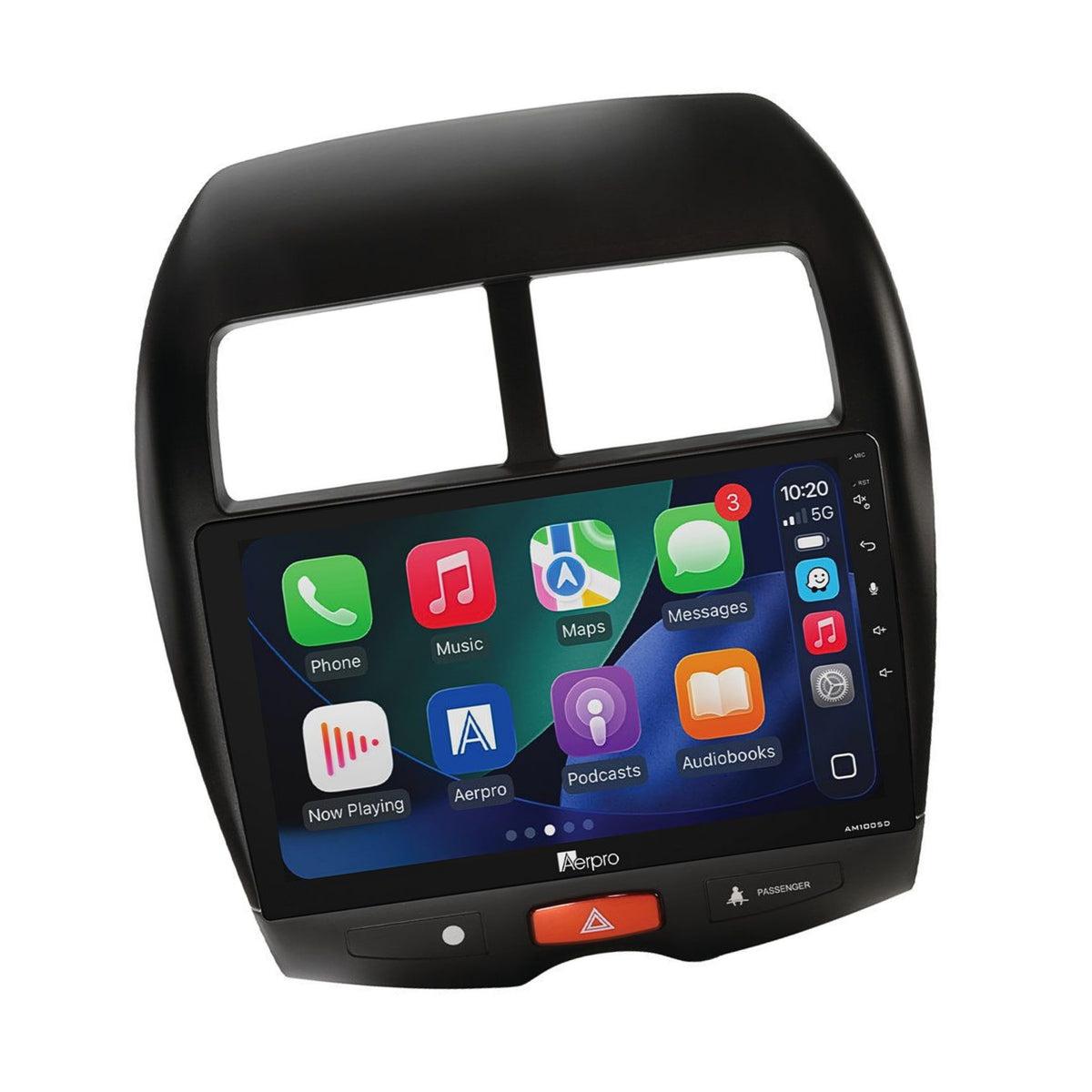

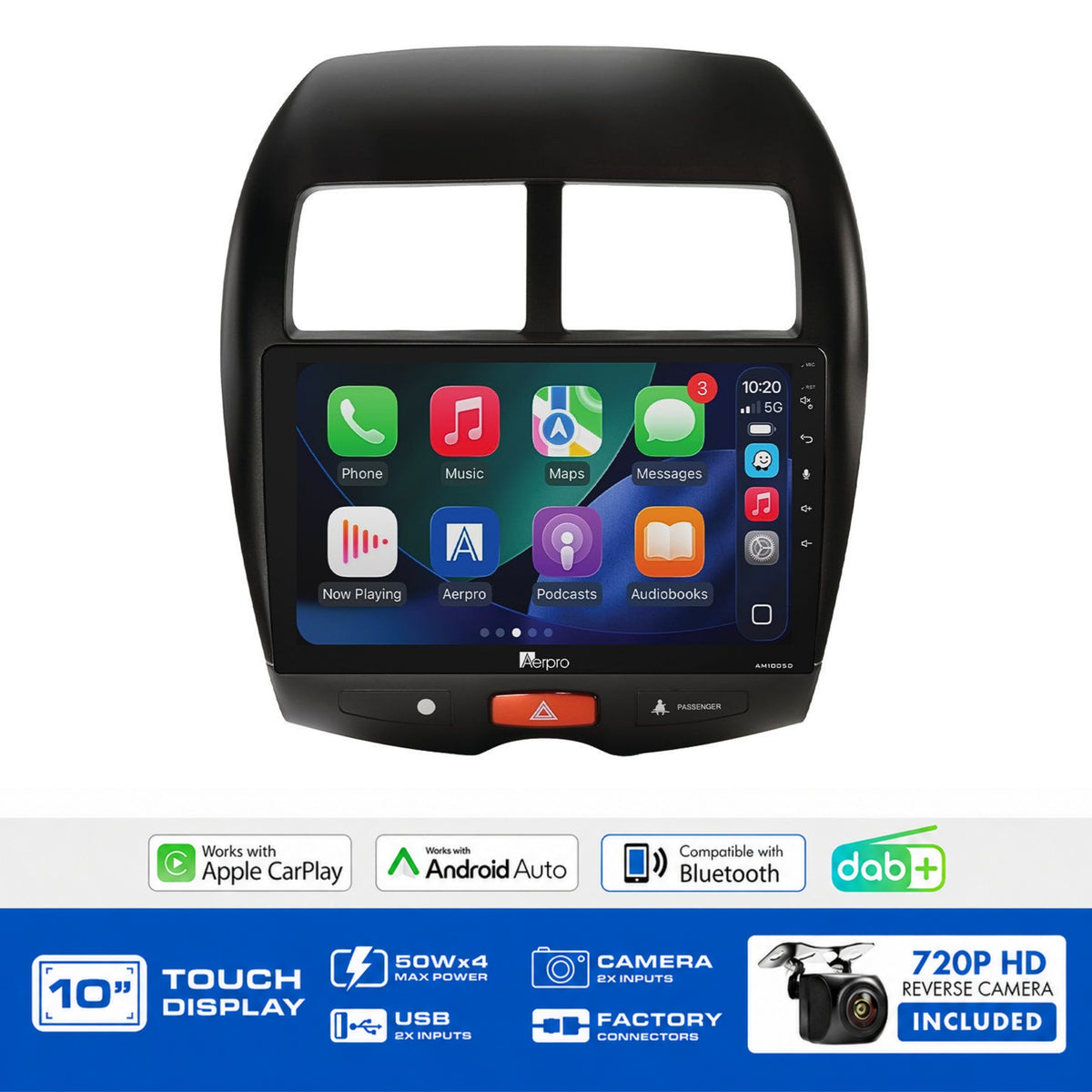

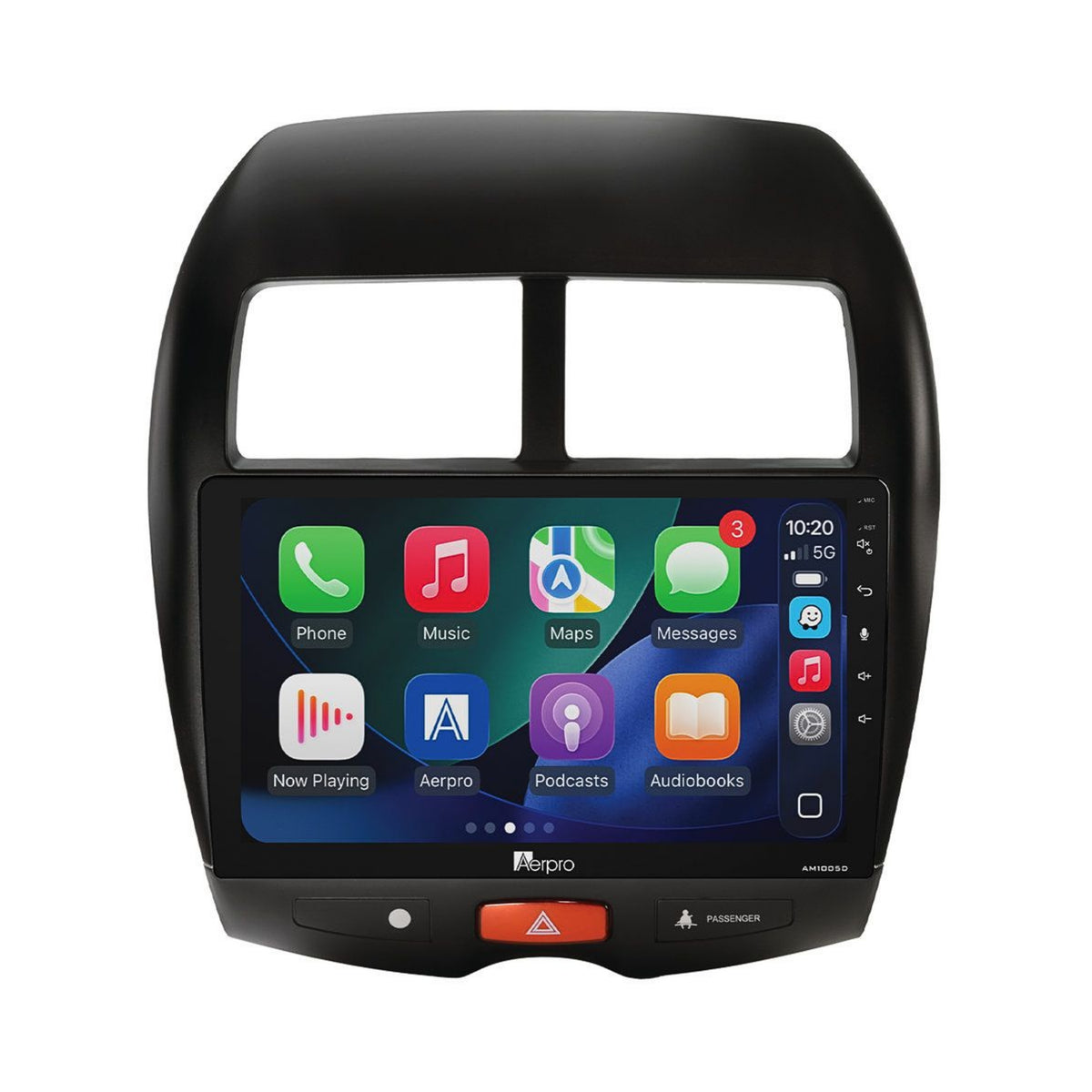

Aerpro AMDMB15 10" Multimedia Receiver Mitsubishi ASX Rockford

10" Wireless CarPlay for the Rockford Fosgate ASX The Most Complete ASX Kit with Amp, USB, Camera, Parking Tones, Vehicle Menu and Factory Settings Access

Product Overview

The Aerpro AMDMB15 is a complete head unit upgrade kit for the Mitsubishi ASX (2010–2013) fitted with a factory Rockford Fosgate amplified audio system. It is the amplified counterpart to the AMDMB14, which covers the non-amplified ASX. The AMDMB15 retains factory steering wheel controls (including the phone button), the Rockford Fosgate amplifier, factory reverse camera (if equipped), factory USB input (if equipped), parking tones (if equipped), vehicle menu, and access to factory settings the most comprehensive feature retention package of any ASX kit.

All retention hardware is included in the box: a camera retention adaptor for the factory reverse camera and a USB retention adaptor for the factory USB input. No additional separately sold adaptors are required for these features.

The kit includes the AM1005D multimedia receiver, black facia kit, SWC interface harness, SWC patch lead, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Features & Benefits

• Rockford Fosgate amplified models only — this kit is specifically engineered for the ASX fitted with the factory Rockford Fosgate amplified system; non-amplified variants use the AMDMB14
• Factory Rockford Fosgate amplifier retained — the factory amplified audio system is preserved after installation
• SWC retained including phone button — all factory ASX steering wheel controls including the phone button carry over
• Vehicle menu retained — full vehicle menu access is preserved after installation
• Factory settings access retained — the kit also retains access to the factory vehicle settings menu beyond standard vehicle menu functions
• Factory reverse camera retained (if equipped) — the included camera retention adaptor preserves the factory camera signal via the head unit's reverse camera input
• Factory USB input retained (if equipped) — the included USB retention adaptor carries over the factory USB port via the head unit's rear USB input
• Parking tones retained (if equipped) — factory parking tone function is preserved after installation
• All retention hardware included in the kit — camera retention adaptor and USB retention adaptor are both in the box; no separately sold adaptors required for camera or USB retention
• 10" capacitive touchscreen at 1024x600 resolution — larger than the 9" AM905D used in most Aerpro kits; significant display upgrade for the ASX cabin
• Black vehicle-specific facia kit — matched to the ASX interior
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
• 4 x 50W max output with 5CH 4V RCA preouts — supports additional external amplifier integration alongside the retained Rockford Fosgate system

Technical Specs

Compatible With / Goes Well With

• Mitsubishi ASX (2010–2013) with factory Rockford Fosgate amplified system
• Not compatible with non-amplified ASX variants — use AMDMB14 for those (covers ASX XA/XB/XC 2010–2017 plus Citroen C4 Aircross and Peugeot 4008)
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDMB15 differ from the AMDMB14?

The AMDMB14 covers the non-amplified ASX (XA/XB/XC 2010–2017) plus the Citroen C4 Aircross and Peugeot 4008 shared-platform models. The AMDMB15 covers only the ASX (2010–2013) with factory Rockford Fosgate amplification. The AMDMB15 additionally retains the Rockford Fosgate amplifier, parking tones, and factory settings access — features the AMDMB14 does not carry over.

What does "Access Factory Settings" mean in practice?

Beyond the standard vehicle menu (trip information, climate preferences, etc.), the ASX in Rockford Fosgate specification has deeper factory settings accessible through the head unit interface. The AMDMB15 SWC harness retains access to these settings after the aftermarket head unit is installed, allowing configuration of vehicle parameters that would otherwise be inaccessible without the factory unit.

Are the camera and USB retention adaptors included or sold separately?

Both are included in the kit — the camera retention adaptor and USB retention adaptor are in the box. Unlike some other Aerpro kits where these require separate purchases (such as the AMDMB5 which requires APVMT01 and APMTUSB1), the AMDMB15 includes all required retention hardware as standard.

Does the ASX 2010-2013 always have the Rockford Fosgate system?

No — the Rockford Fosgate amplified audio system was available on higher specification ASX variants during this period, not across the full range. Lower-grade ASX models from the same years use the non-amplified system and require the AMDMB14 instead. Confirm your vehicle's audio system before purchasing.

Does the kit include a 10" or 9" screen?

10" — the AMDMB15 uses the AM1005D with a 10" capacitive touchscreen, the same larger-format display used in the AMDMB14 for the non-amplified ASX range.
