Aerpro AMDMB14 10" Multimedia Receiver Mitsubishi ASX Peugeot

10" Wireless CarPlay with the Most Complete Retention Package SWC, Camera, USB, AUX and Parking Tones All in One Kit

Product Overview

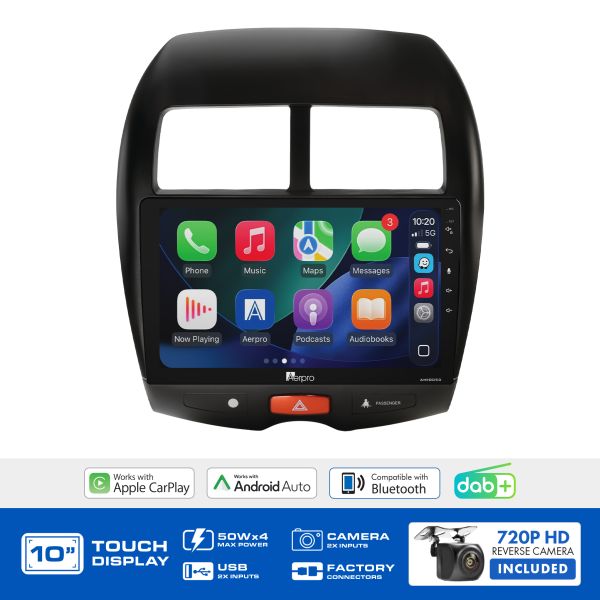

The Aerpro AMDMB14 is a complete head unit upgrade kit for the Mitsubishi ASX XA, XB, and XC (2010–2017), Citroen C4 Aircross Type B (2012-on), and Peugeot 4008 (2012–2013) in non-amplified specification. These vehicles share a common platform under the PSA-Mitsubishi partnership, which is why one kit addresses three brands. The AMDMB14 features a 10" display a step up from the 9" units in the rest of the Aerpro range powered by the AM1005D multimedia receiver at 1024x600 resolution with wireless Apple CarPlay and Android Auto, DAB+ digital radio, and Bluetooth V5.

Feature retention on the AMDMB14 is the most comprehensive of any kit in this range: steering wheel controls (including the phone button), factory reverse camera (if equipped), factory USB input (if equipped), factory AUX input (if equipped), and parking tones (if equipped) are all retained via the dedicated camera retention adaptor, USB retention adaptor, and SWC interface harness included in the kit.

Features & Benefits

• 10" capacitive touchscreen at 1024x600 resolution — a larger display than the 9" AM905D kits across the Aerpro range; the 10" AM1005D gives the ASX, C4 Aircross, and 4008 cabin a significantly more expansive screen real estate for maps, media, and settings
• SWC retained including phone button — all factory steering wheel controls carry over via the SWC interface harness and patch lead, including the phone button
• Factory reverse camera retained (if equipped) — the camera retention adaptor preserves the factory camera signal via the head unit's reverse camera input
• Factory USB input retained (if equipped) — the USB retention adaptor carries over the factory USB port via the head unit's rear USB input
• Factory AUX input retained (if equipped) — AUX retention is handled via the RCA AUX input on the rear of the head unit
• Parking tones retained (if equipped) — factory parking tone function is preserved where the vehicle supports it
• Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
• Non-amplified variants only — factory-amplified ASX, C4 Aircross, and Peugeot 4008 models are not compatible with this kit
• Cross-brand shared platform — the ASX, C4 Aircross, and Peugeot 4008 were built on the same PSA-Mitsubishi platform; this single kit addresses all three vehicles' non-amplified integration requirements
• Black vehicle-specific facia kit — matched across the three shared-platform vehicles
• Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
• Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
• Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
• 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens
• 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels

Technical Specs

Compatible With / Goes Well With

• Mitsubishi ASX XA (2010–2017) — non-amplified variants
• Mitsubishi ASX XB (2010–2017) — non-amplified variants
• Mitsubishi ASX XC (2010–2017) — non-amplified variants
• Citroen C4 Aircross Type B (2012-on) — non-amplified variants
• Peugeot 4008 (2012–2013) — non-amplified variants
• Not compatible with factory-amplified variants across all covered models
• Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
• Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
• Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Why does one kit suit the ASX, Citroen C4 Aircross, and Peugeot 4008?

All three vehicles were built on the same PSA-Mitsubishi shared platform. The Citroen C4 Aircross and Peugeot 4008 are rebadged variants of the Mitsubishi ASX, sharing the same dash, wiring, and head unit mounting structure — which is why a single Aerpro kit addresses all three.

Is this kit a 9" or 10" screen?

10" — the AMDMB14 uses the AM1005D receiver with a 10" capacitive touchscreen, which is larger than the 9" AM905D used in the majority of other Aerpro kits. This gives the ASX, C4 Aircross, and Peugeot 4008 cabin a notably wider display than most comparable vehicle-specific kits.

What factory features are retained?

The AMDMB14 retains steering wheel controls (including the phone button), factory reverse camera (if equipped), factory USB input (if equipped), factory AUX input (if equipped), and parking tones (if equipped) — the most complete factory feature retention of any non-amplified kit across the Aerpro range in this session.

Why is the park brake wire required for CarPlay?

The AM1005D head unit includes a safety interlock requiring the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate. This is a design requirement of the head unit.

Does the Citroen C4 Aircross coverage have an end date?

The supplier data lists coverage as "2012-on" for the Citroen C4 Aircross Type B without a stated end date. Use the Aerpro What Fits Your Car Guide to confirm compatibility for your specific model year before purchasing.
