Aerpro AMDMB10 9" Multimedia Receiver Kit Mitsubishi Outlander Peugeot

Aerpro AMDMB10 9" Multimedia Receiver Complete Kit Mitsubishi Outlander 2007-2010 and Peugeot 4007 2009-2010 Non-Amplified

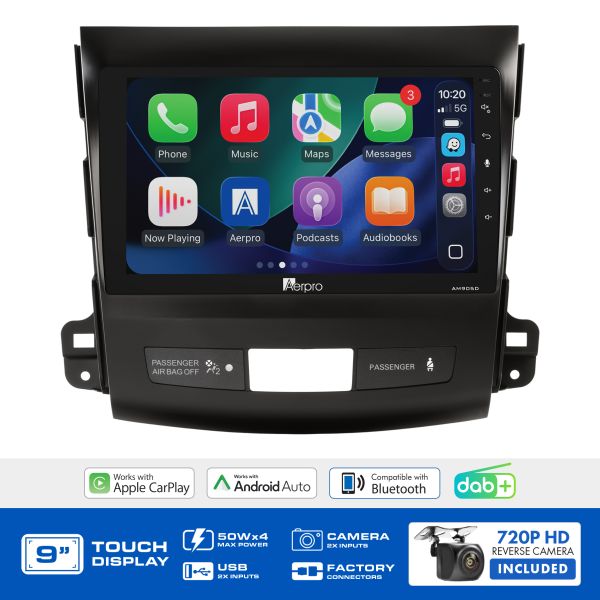

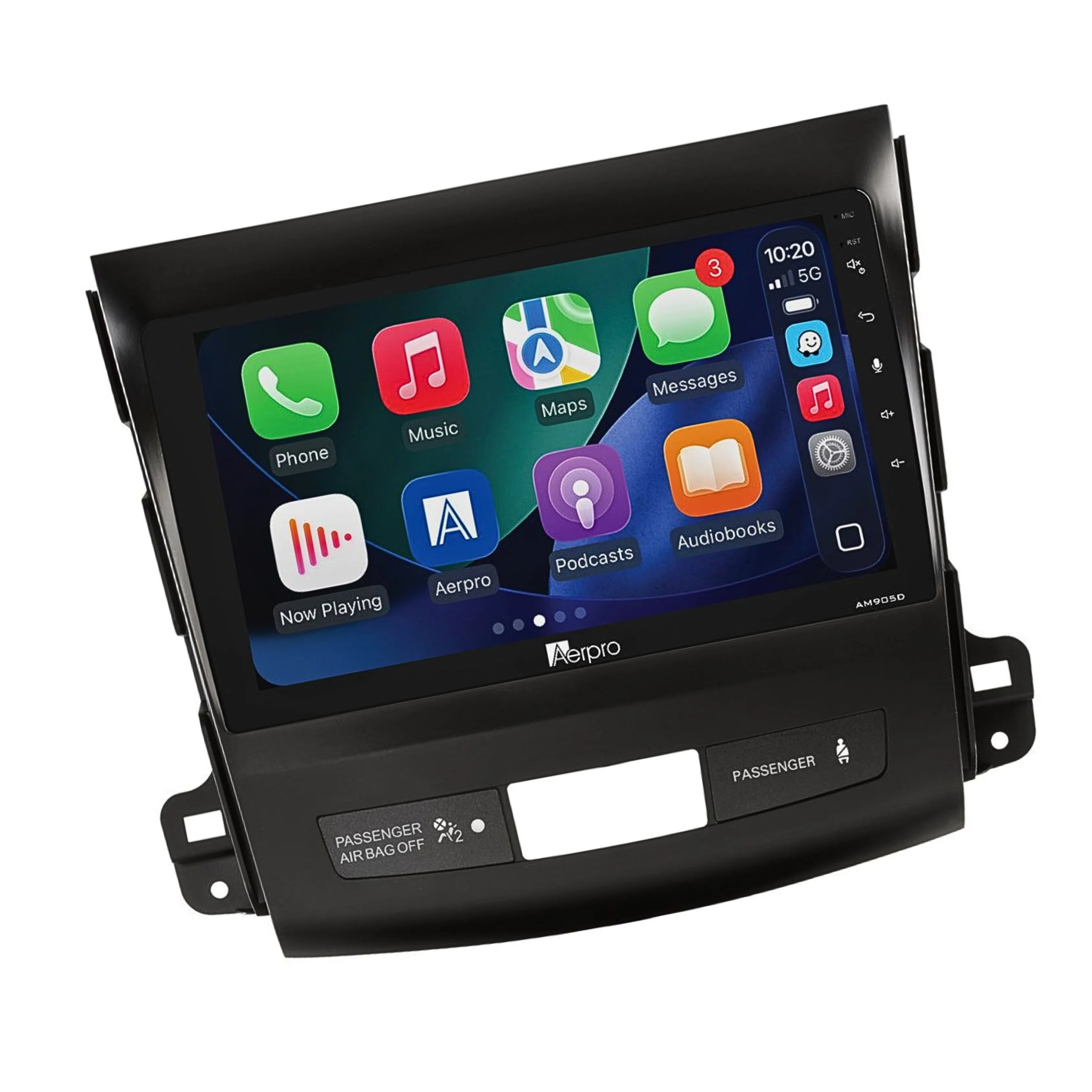

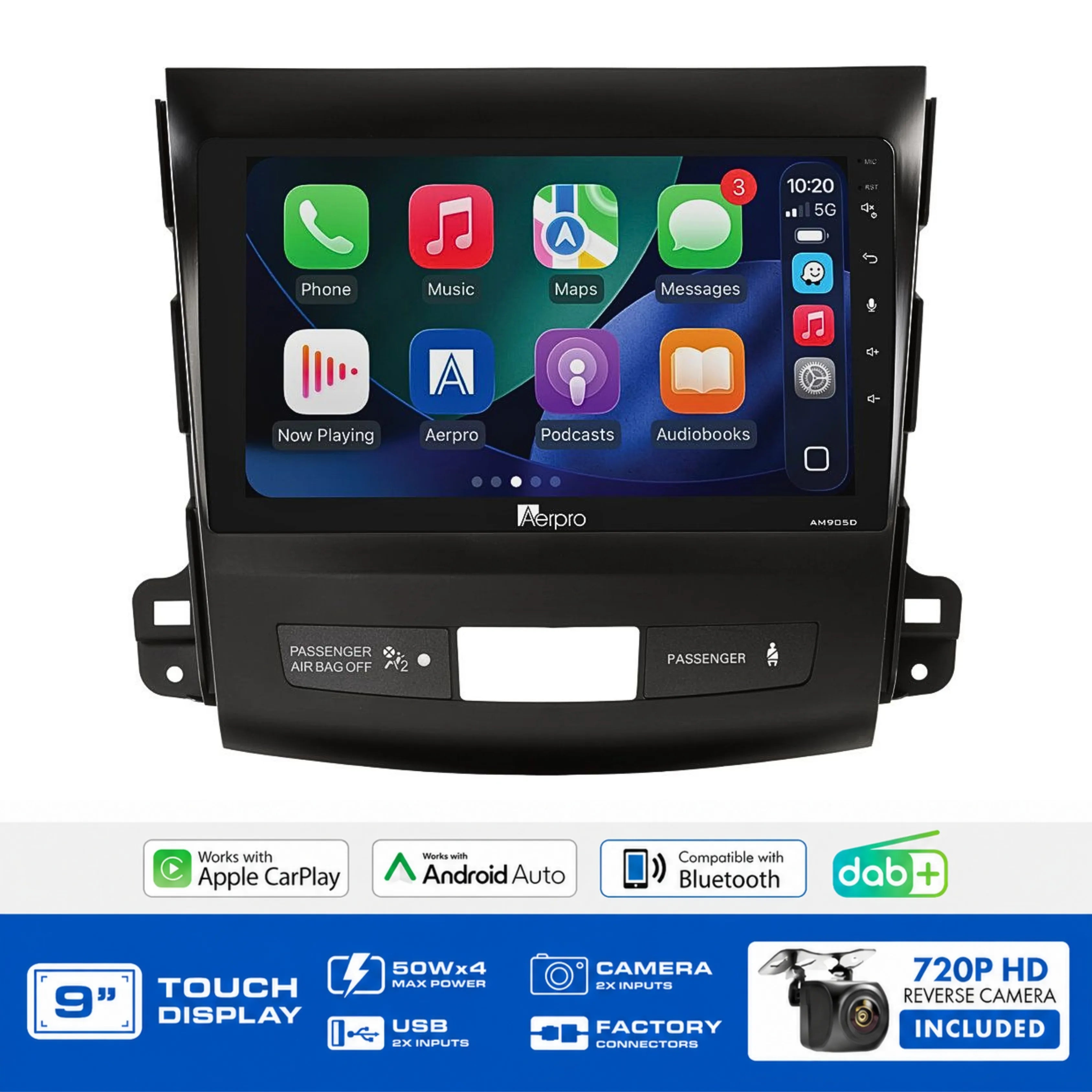

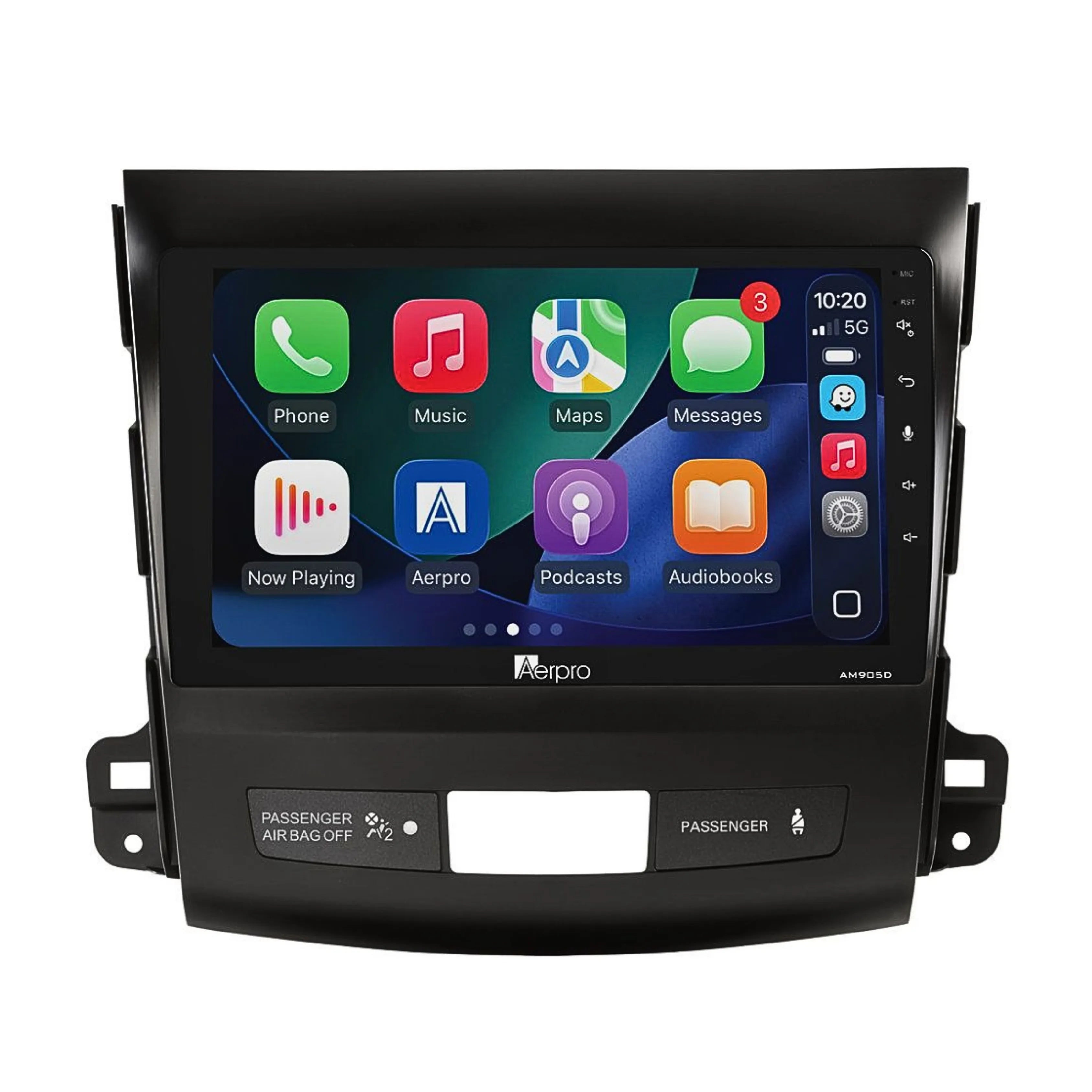

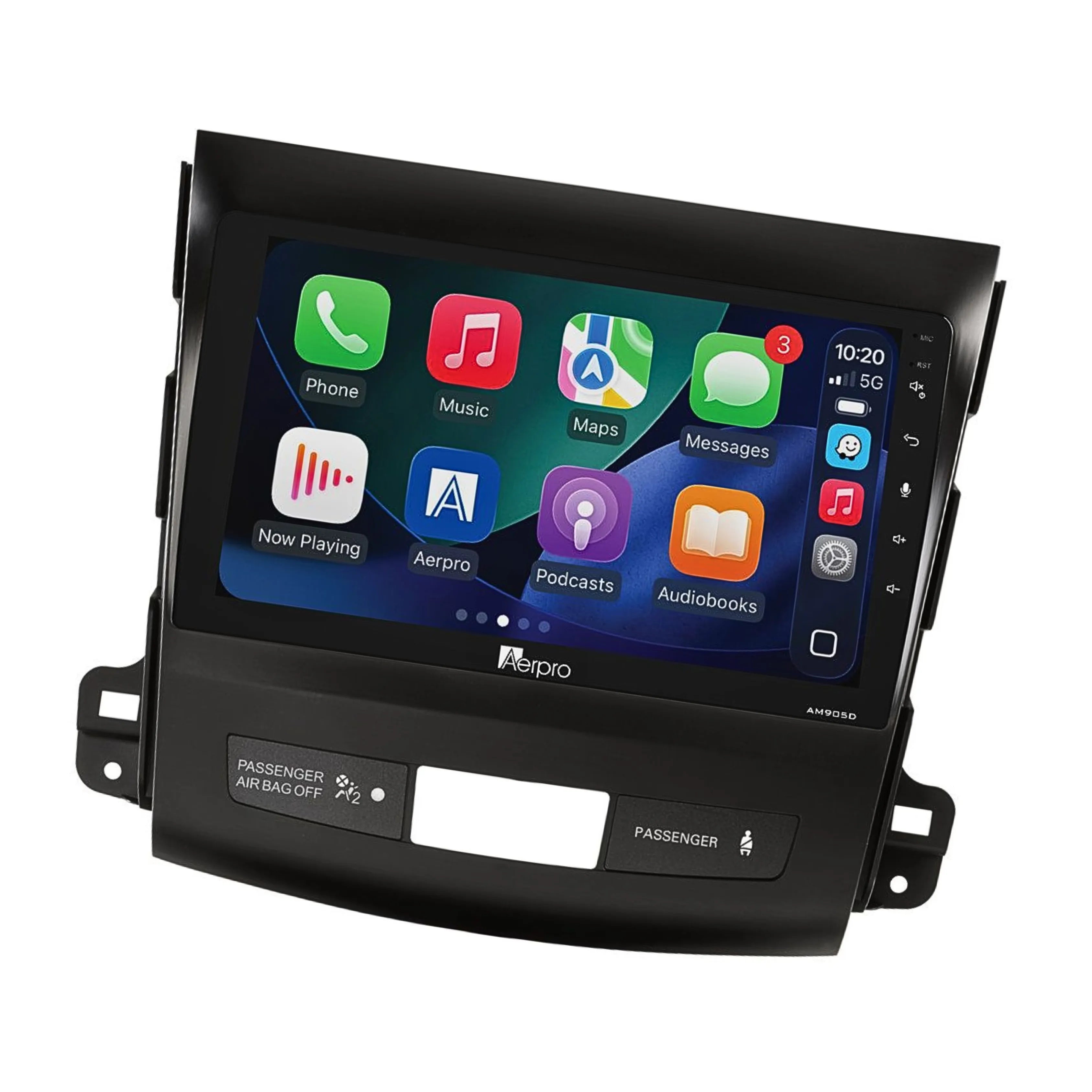

A complete 9" head unit upgrade kit from Aerpro for Mitsubishi Outlander ZG (2007-2010) and Peugeot 4007 (2009-2010) non-amplified vehicles, the AMDMB10 includes the AM905D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a black fascia kit, SWC interface harness, SWC patch lead, and 720P AHD universal rear camera. Retains steering wheel controls. Non-amplified models only.

Product Overview

The Aerpro AMDMB10 is a vehicle-specific complete head unit upgrade kit for Mitsubishi Outlander ZG (2007-2010) and Peugeot 4007 (2009-2010) non-amplified models, supplying everything required to complete the installation and retain factory steering wheel controls. The included AM905D multimedia receiver features a 9" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included.

Steering wheel controls are retained via the included SWC interface harness and patch lead. Factory reverse camera, USB input, AUX input, and factory amplifier retention are not applicable for this vehicle. Note: the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDMB10 includes the AM905D multimedia receiver, black fascia kit, SWC interface harness, SWC patch lead, and 720P AHD universal rear camera.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

9" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included. A second camera input is available for a front or towing camera (not included).

Steering Wheel Control Retention: SWC interface harness and patch lead retain the factory steering wheel controls.

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

• AM905D 9" Fixed Multimedia Receiver (Trapezoid)
• Black Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
• Mounting Hardware and Screws
• Wiring Harness with ISO Connection
• AV, USB, and Camera Harnesses
• DAB Antenna
• GPS Antenna with Adhesive Pad
• External Microphone with Mount
• QR Digital Manual Leaflet

Technical Specs

Vehicle Feature Retention

Compatible With

Note: Compatible with non-amplified models only. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. Confirm your specific vehicle variant using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Is the AMDMB10 compatible with amplified Outlander or 4007 models?

No. The AMDMB10 suits non-amplified models only. Confirm your factory audio configuration before purchase.

Does the AMDMB10 support wireless CarPlay and Android Auto?

Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto. The park brake wire must be connected to the park brake for CarPlay and Android Auto to function.

Does the AMDMB10 retain factory USB or AUX inputs?

Factory USB input, AUX input, and reverse camera retention are not applicable for these vehicles. Only steering wheel controls are retained by this kit.

Is a rear camera included with the AMDMB10?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available on the head unit for a front or towing camera (not included).

Is the AMDMB10 compatible with both the Mitsubishi Outlander and the Peugeot 4007?

Yes. The AMDMB10 suits both the Mitsubishi Outlander ZG (2007-2010) and the Peugeot 4007 (2009-2010) for non-amplified models, as these vehicles share the same factory dashboard and head unit mounting configuration.
