Aerpro AMDIZ1B 9" Wireless CarPlay DAB+ Holden Colorado Isuzu D-Max MU-X Upgrade Kit

SKU: AMDIZ1B
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Holden Colorado (inc. 7) 2012–2014, Isuzu D-Max 2012–2020 & Isuzu MU-X 2013–2017 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

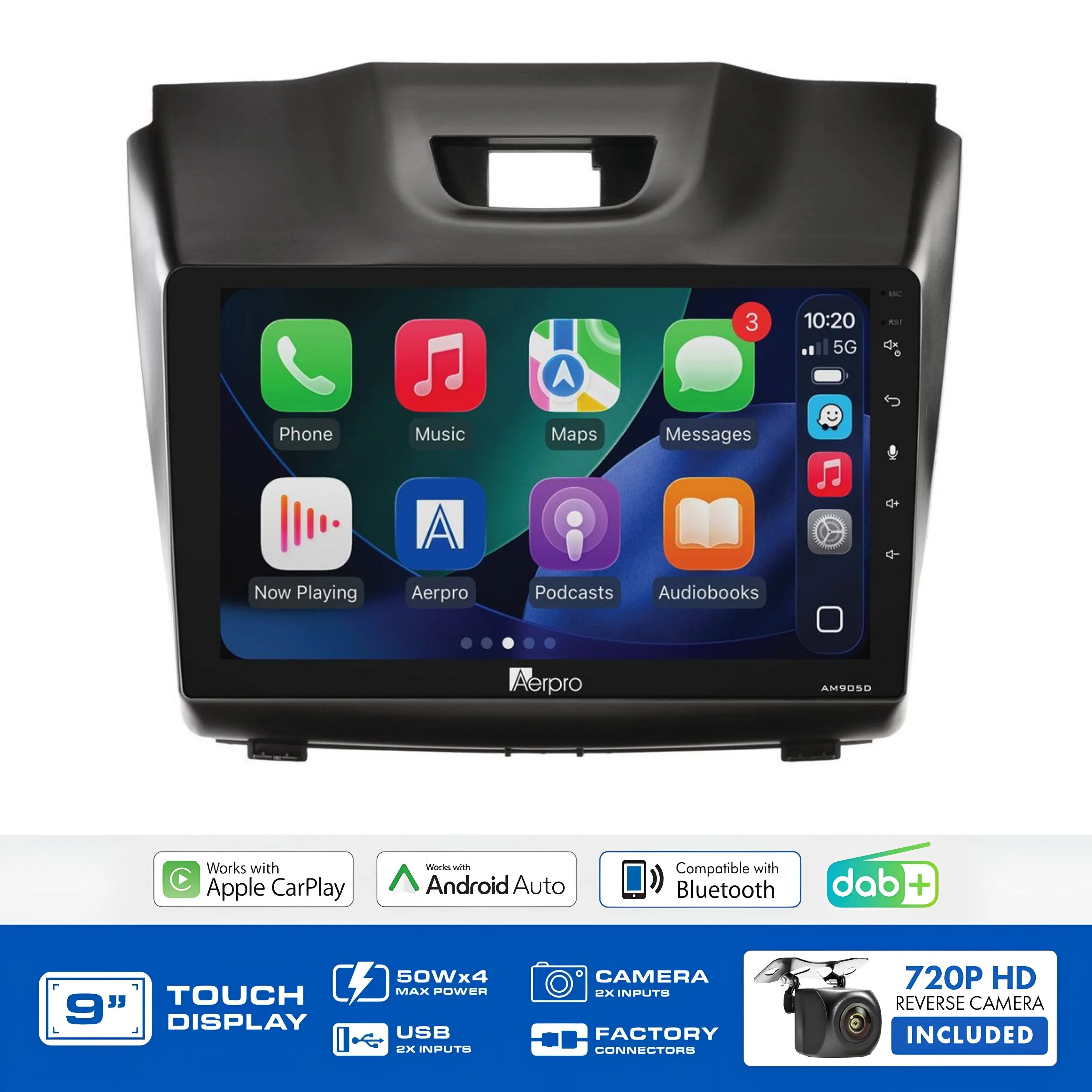

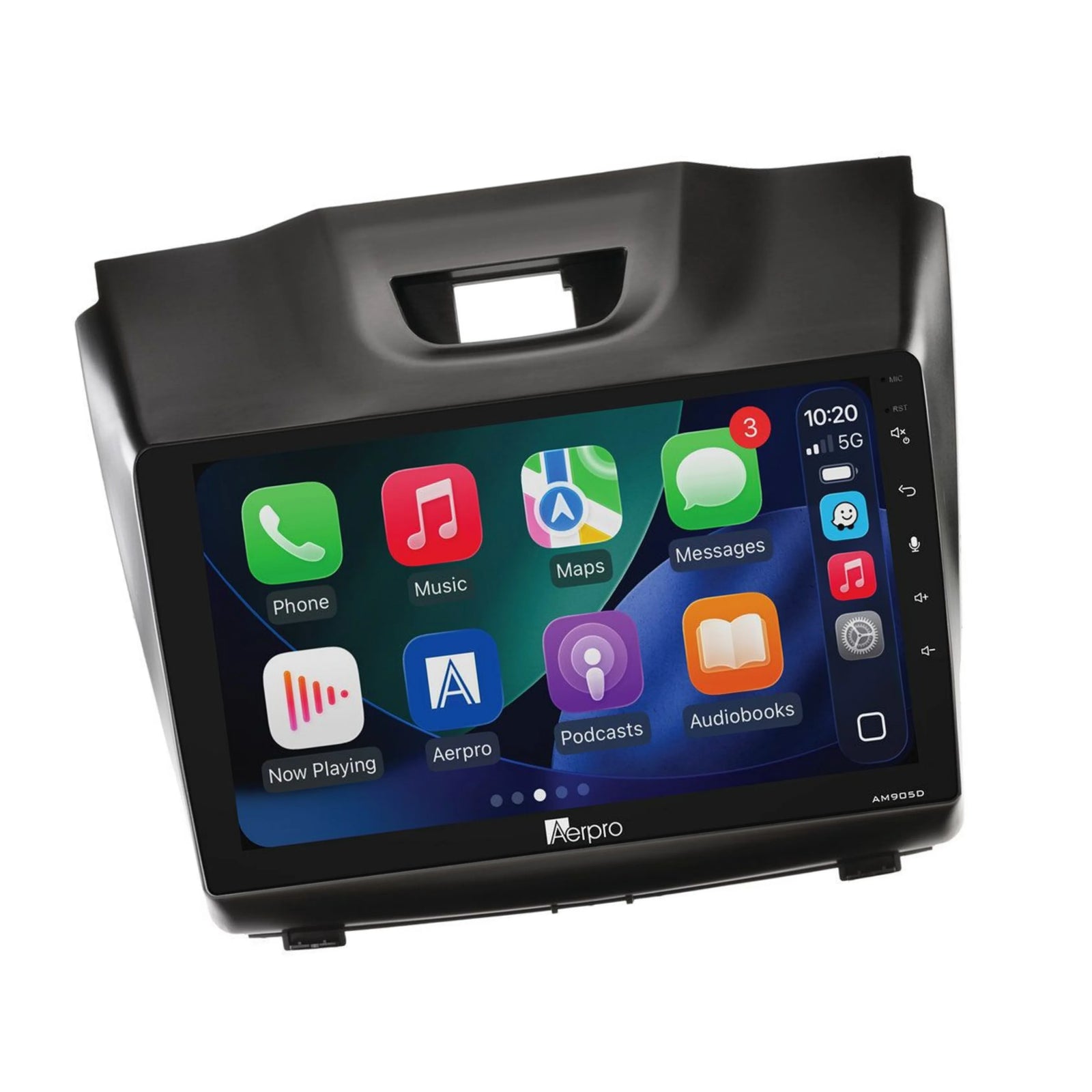

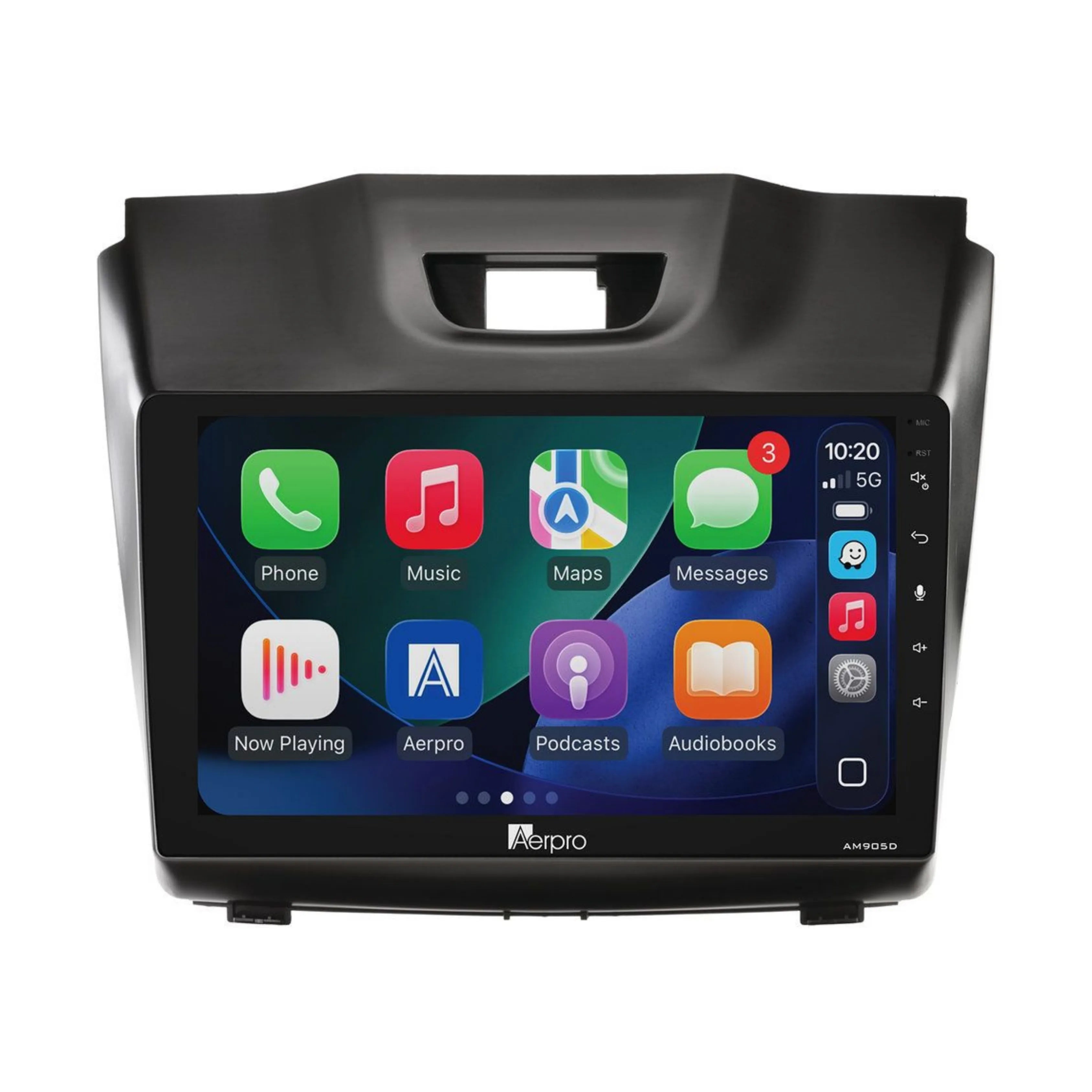

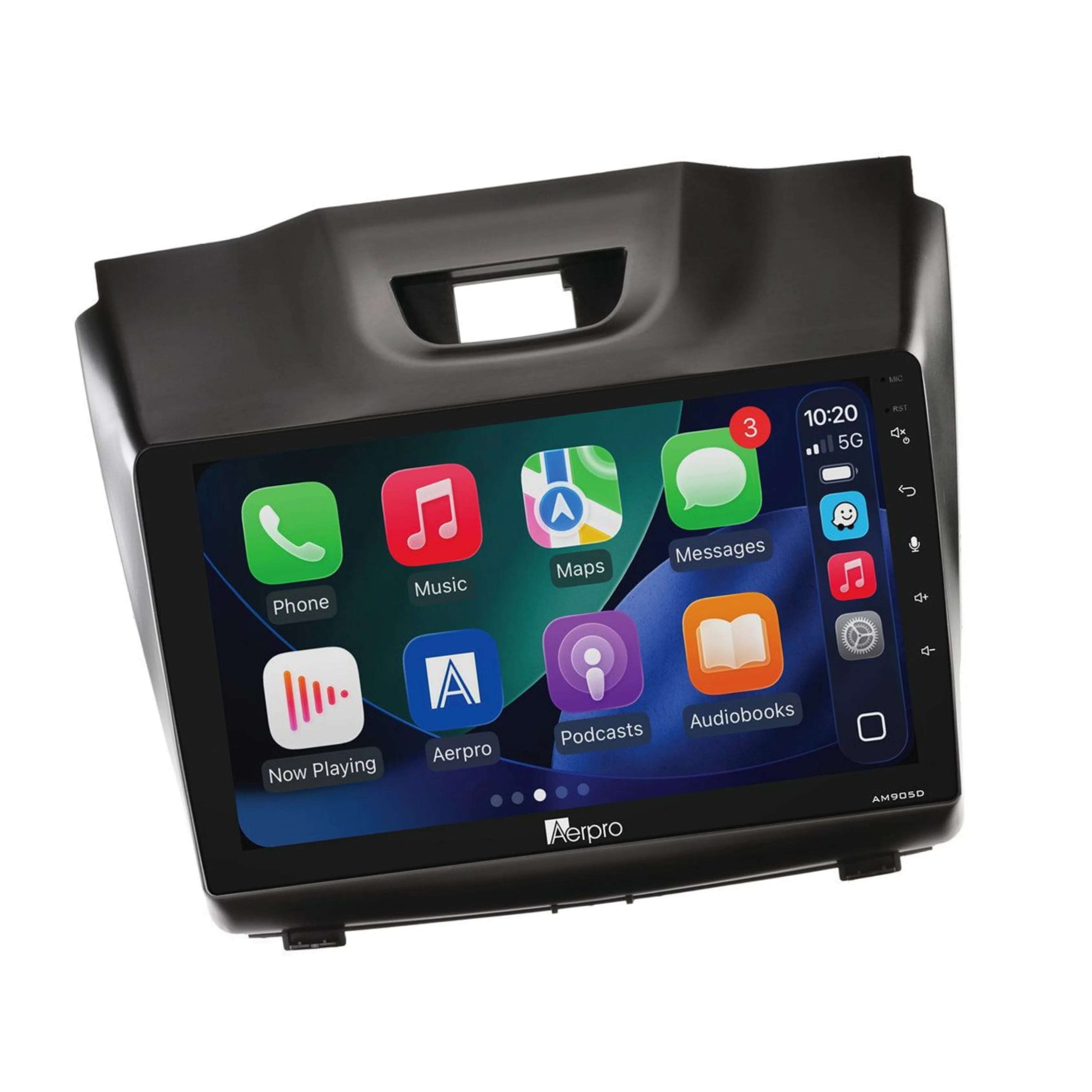

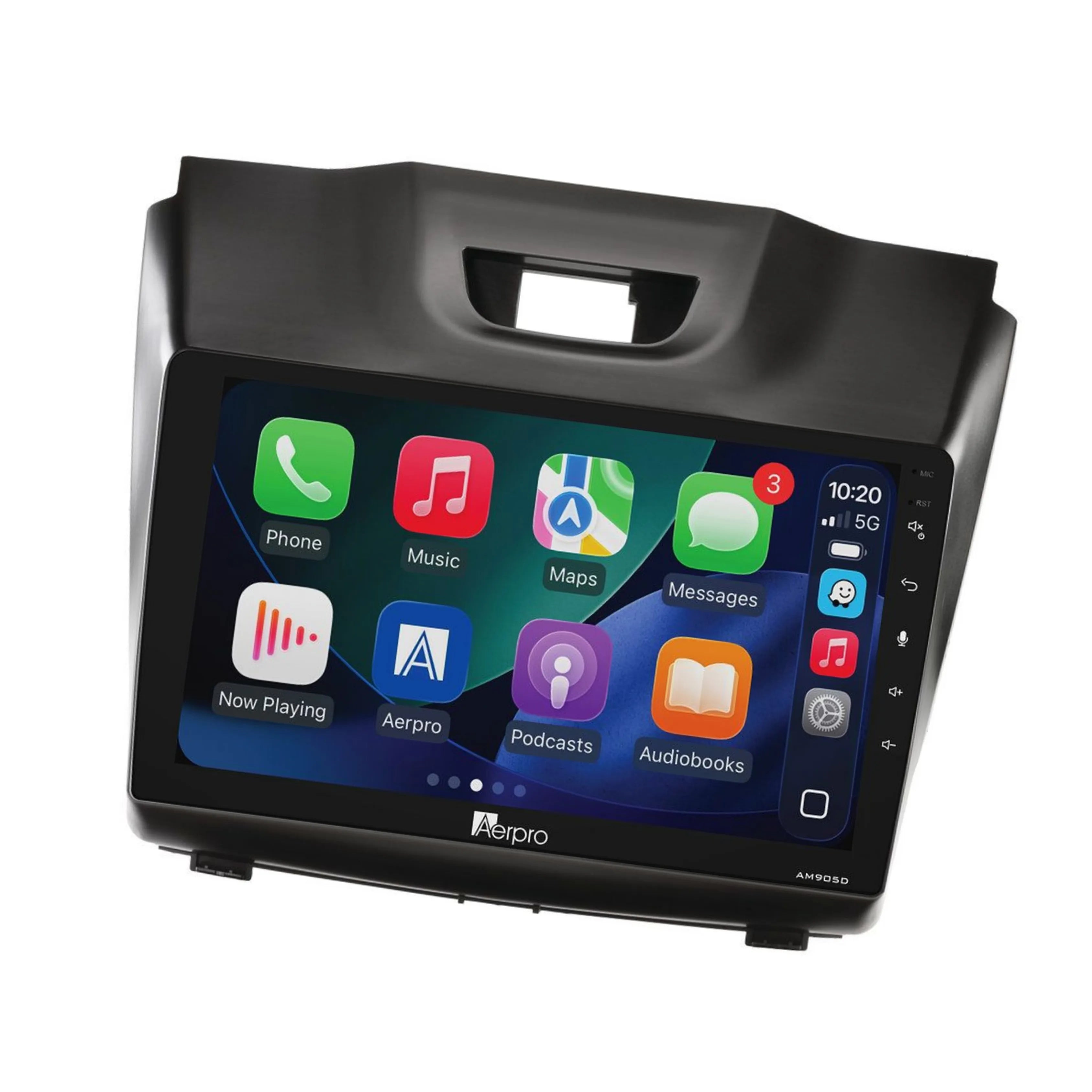

The Aerpro AMDIZ1B is a complete head unit upgrade kit designed for three popular platforms the Holden Colorado (inc. 7) 2012–2014, Isuzu D-Max 2012–2020, and Isuzu MU-X 2013–2017. Everything required for a clean, professional installation is included the AM905D multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls (including the phone button) and factory reverse camera (if equipped) are retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Three-platform compatibility: One kit suits Holden Colorado (inc. 7) 2012–2014, Isuzu D-Max 2012–2020, and Isuzu MU-X 2013–2017 (subject to headunit variant)
  • Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor, if equipped
  • Steering wheel controls retained including phone button: Full SWC including phone button retained via the SWC harness and patch lead
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDIZ1B
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera Retained Yes (if equipped)
USB Retention Optional APIZUSB1 sold separately
Kit Includes Rear Camera Yes 720P AHD universal
Weight 3.00kg

Compatible Vehicles

  • Holden Colorado 2012–2014 RG
  • Holden Colorado 7 2012–2014
  • Isuzu D-Max 2012–2020 (headunit dependent)
  • Isuzu MU-X 2013–2021 (headunit dependent)

Frequently Asked Questions

Does this kit work with Holden Mylink systems?

No the AMDIZ1B is not compatible with Holden Mylink Systems.

Which Isuzu D-Max and MU-X factory head units are supported?

The AMDIZ1B suits Fujitsu 10 (with or without screen), Panasonic, Clarion CX-501, and Clarion Navigation factory head units. Confirm your vehicle's factory head unit before purchasing.

Does this kit retain the factory USB port?

Factory USB port retention is optional the APIZUSB1 USB Retention Adaptor is required and sold separately. It connects to the rear USB input on the multimedia receiver.

Is the factory reverse camera retained?

Yes if equipped, the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
