Aerpro AMDHY9 9" Wireless CarPlay Android Auto DAB+ Hyundai iX35 2009-2013 Navigation

SKU: AMDHY9
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Hyundai iX35 LM1/LM2 2009–2013 (Factory Navigation) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC Phone Button & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

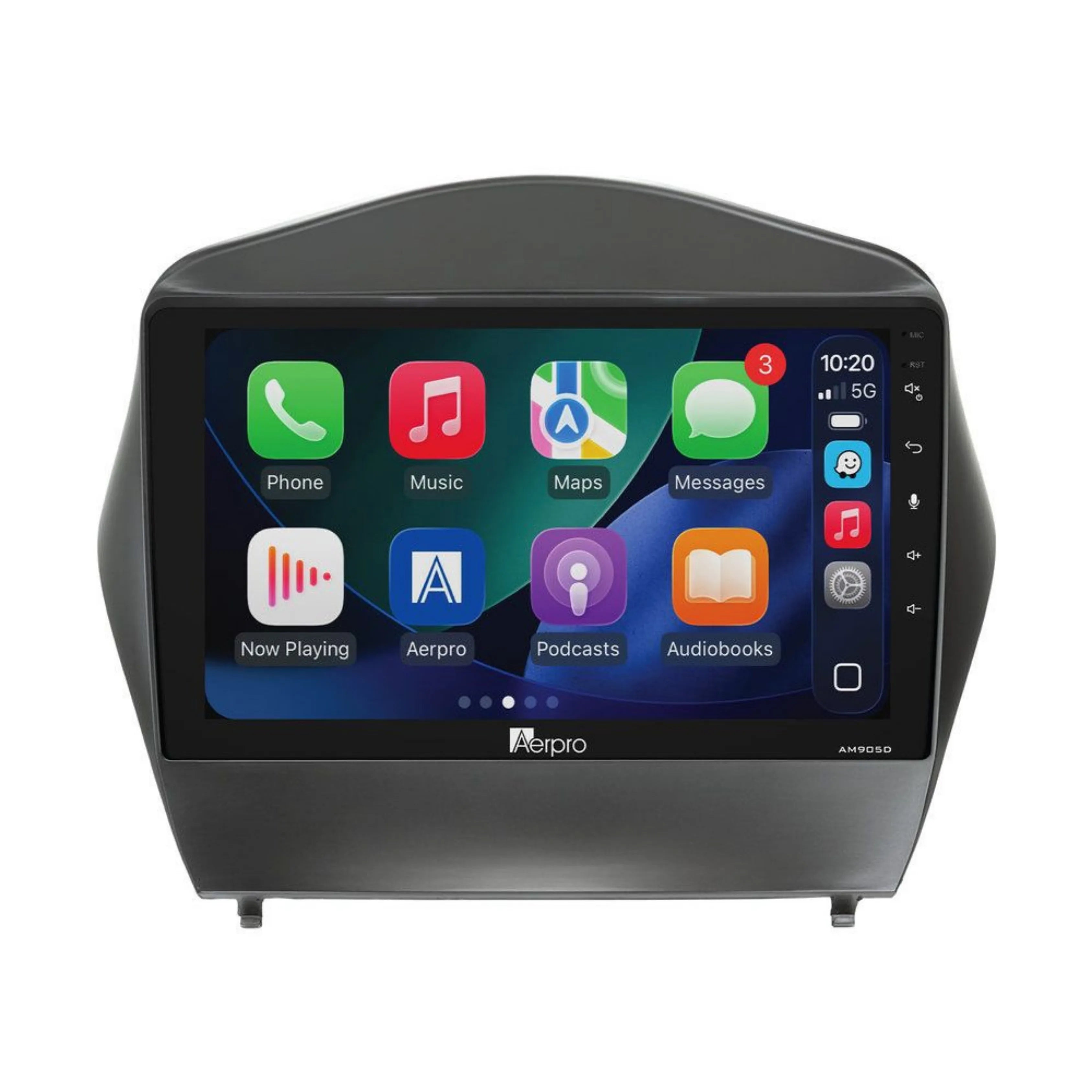

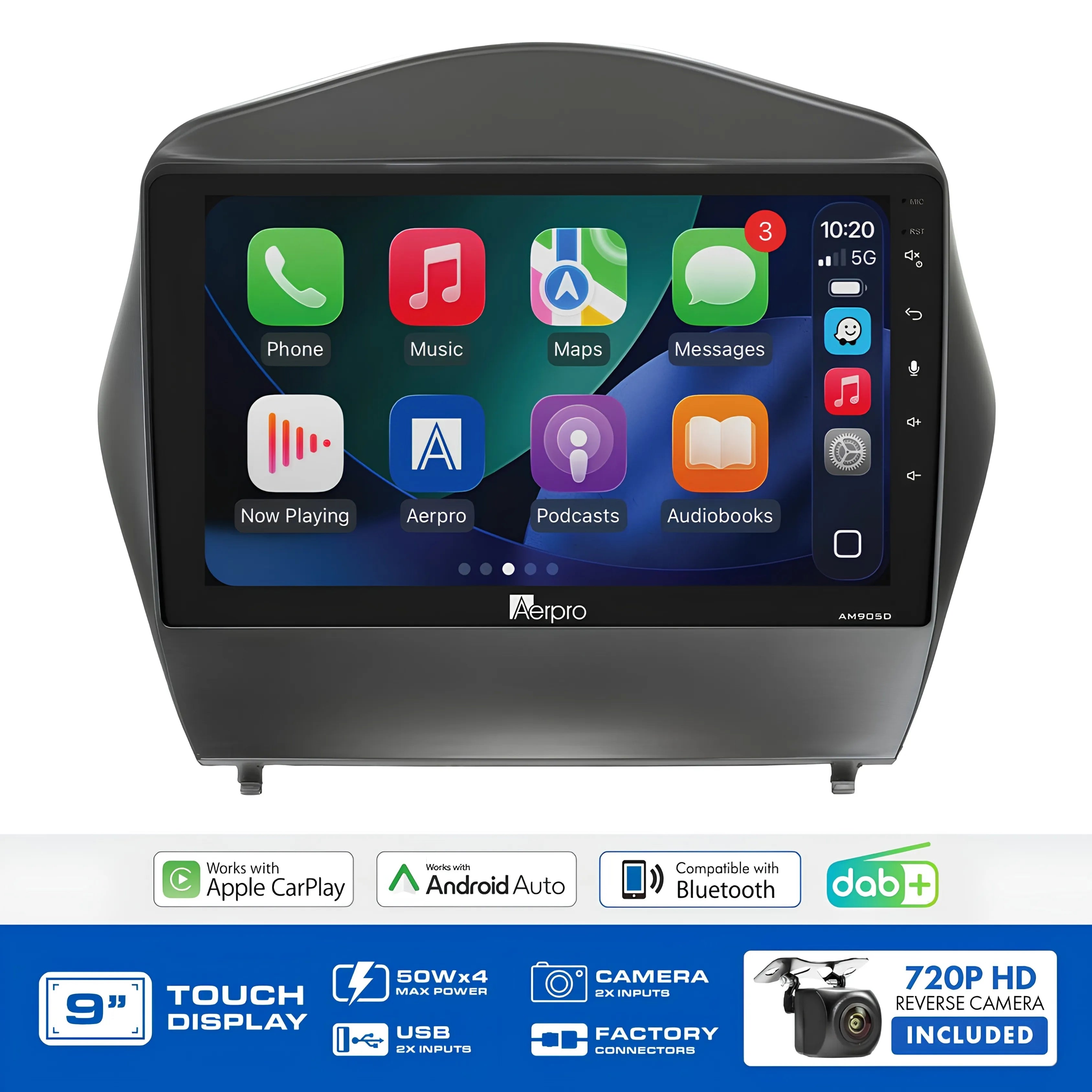

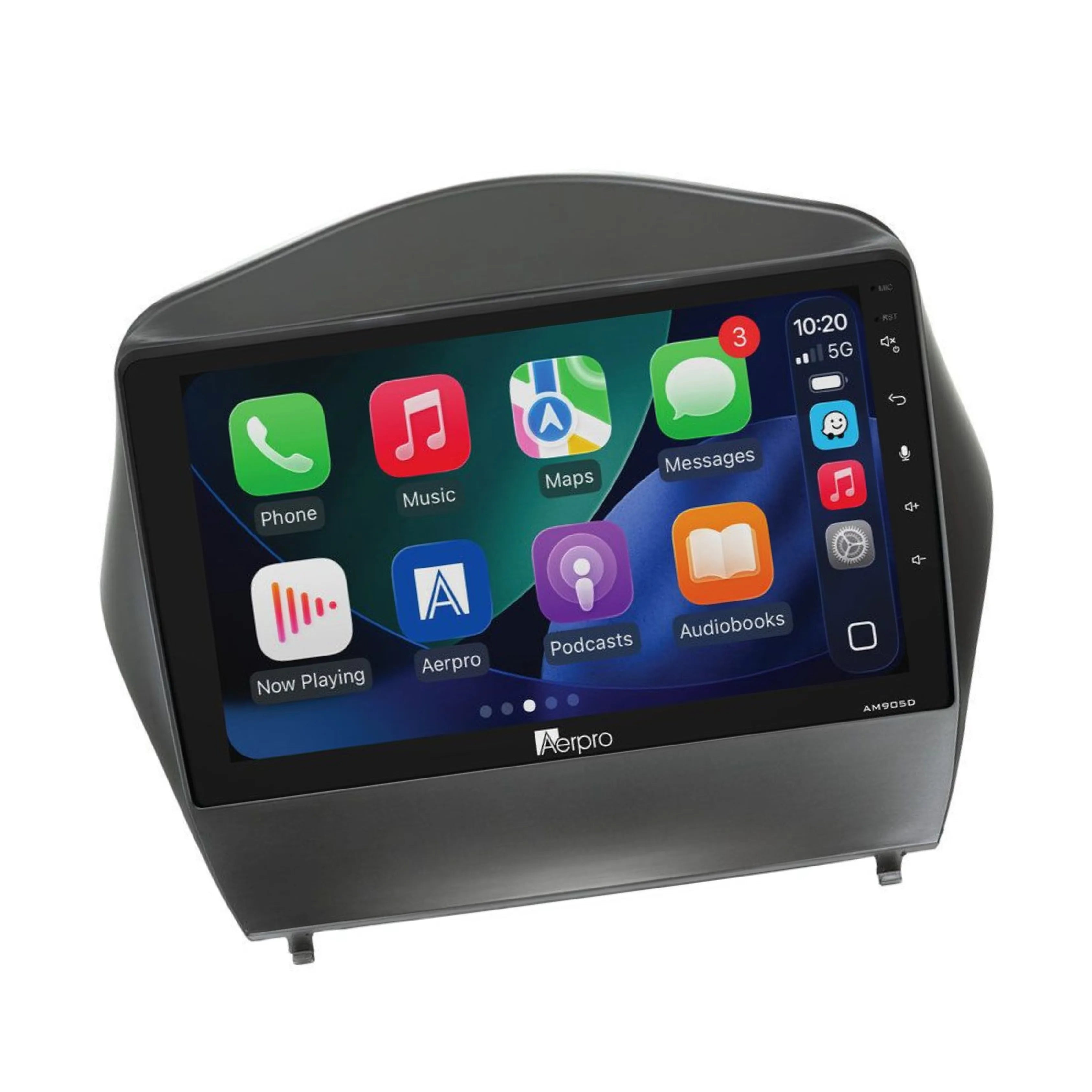

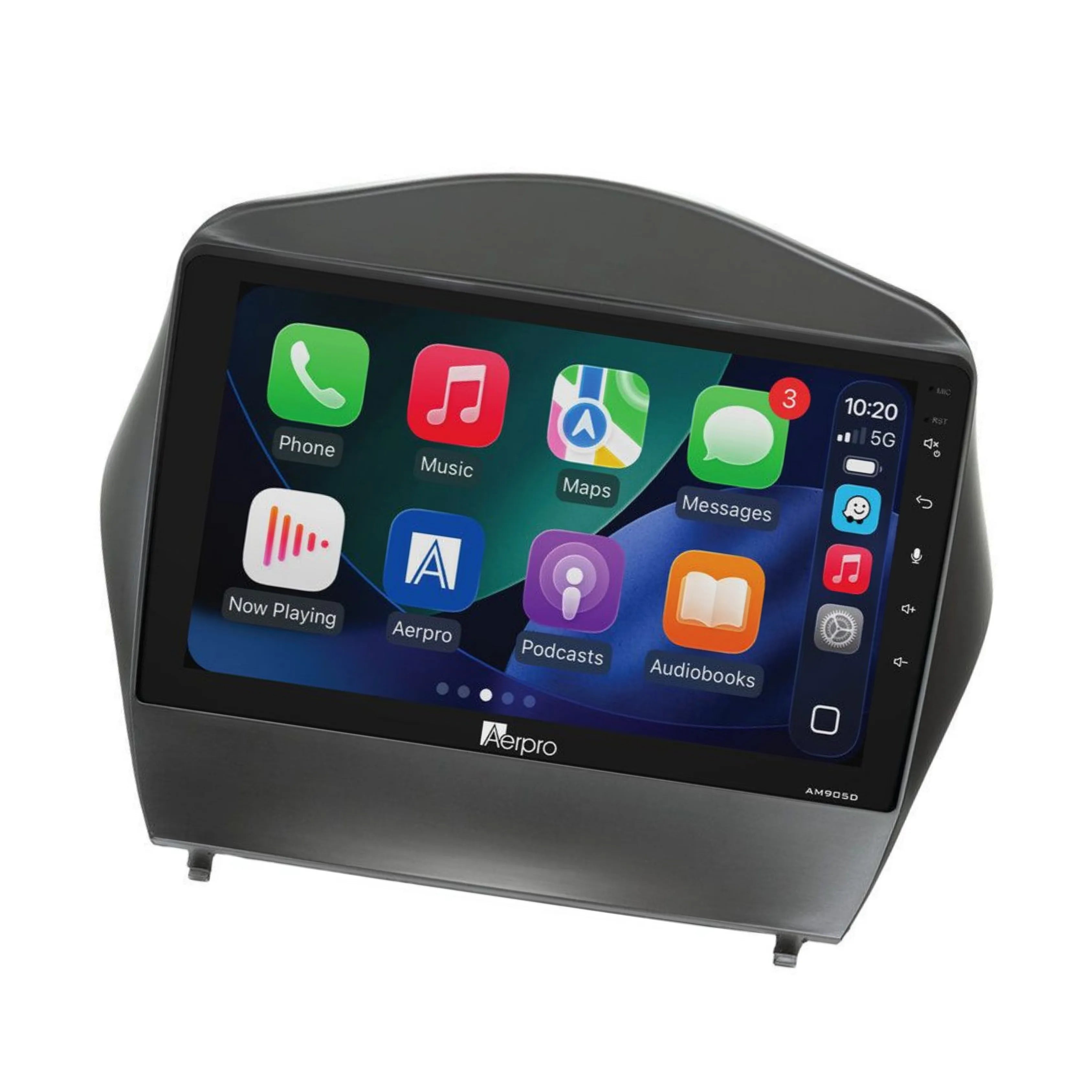

The Aerpro AMDHY9 is a complete head unit upgrade kit specifically designed for the Hyundai iX35 LM1/LM2 (2009–2013) with LG Navigation (LAN8929EHLM) factory head unit. This is the navigation variant kit distinct from the AMDHY8 which suits the Mobis 96170 and LM01 amplified head units. Everything required for a clean installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls (including the phone button) and factory reverse camera are fully retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits LG Navigation LAN8929EHLM factory head unit: Specifically engineered for the factory navigation variant of the iX35 LM1/LM2
  • Factory reverse camera retained: The existing factory reverse camera is retained via the dedicated camera retention adaptor
  • Steering wheel controls retained including phone button: Full SWC function including the phone button retained via the SWC harness and patch lead
  • Complete plug-and-play kit: Fascia, SWC harness, patch lead, antenna adaptor, camera adaptor, and rear camera all included
  • Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDHY9
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Reverse Camera Retained Yes
USB/AUX Retention No (APHYUSB4 sold separately)
Kit Includes Rear Camera Yes 720P AHD universal
Suits Hyundai iX35 LM1/LM2 2009–2013 (headunit dependent)
Weight 3.00kg

Compatible Vehicles

  • Hyundai iX35 2009–2013 LM1, LM2 (headunit dependent)
  • Suits vehicles with LG Navigation LAN8929EHLM factory head unit

Frequently Asked Questions

How is the AMDHY9 different from the AMDHY8?

Both suit the Hyundai iX35 LM1/LM2 2009–2013, but for different factory head unit variants. The AMDHY9 suits vehicles with the LG Navigation (LAN8929EHLM) factory head unit and retains the factory reverse camera. The AMDHY8 suits vehicles with Hyundai Mobis 96170 (6 stacker) and LM01 head units and retains the factory digital amplifier. Confirm your factory head unit type before purchasing.

Does this kit retain the factory reverse camera?

Yes the factory reverse camera is retained via the camera retention adaptor included in the kit.

Are the factory USB and AUX inputs retained?

No USB and AUX input retention are not included. The optional APHYUSB4 USB/AUX Retention Adaptor is available separately.

Does CarPlay require the park brake to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
