Aerpro AMDHY8 9
Click to open expanded view
AERPRO logo

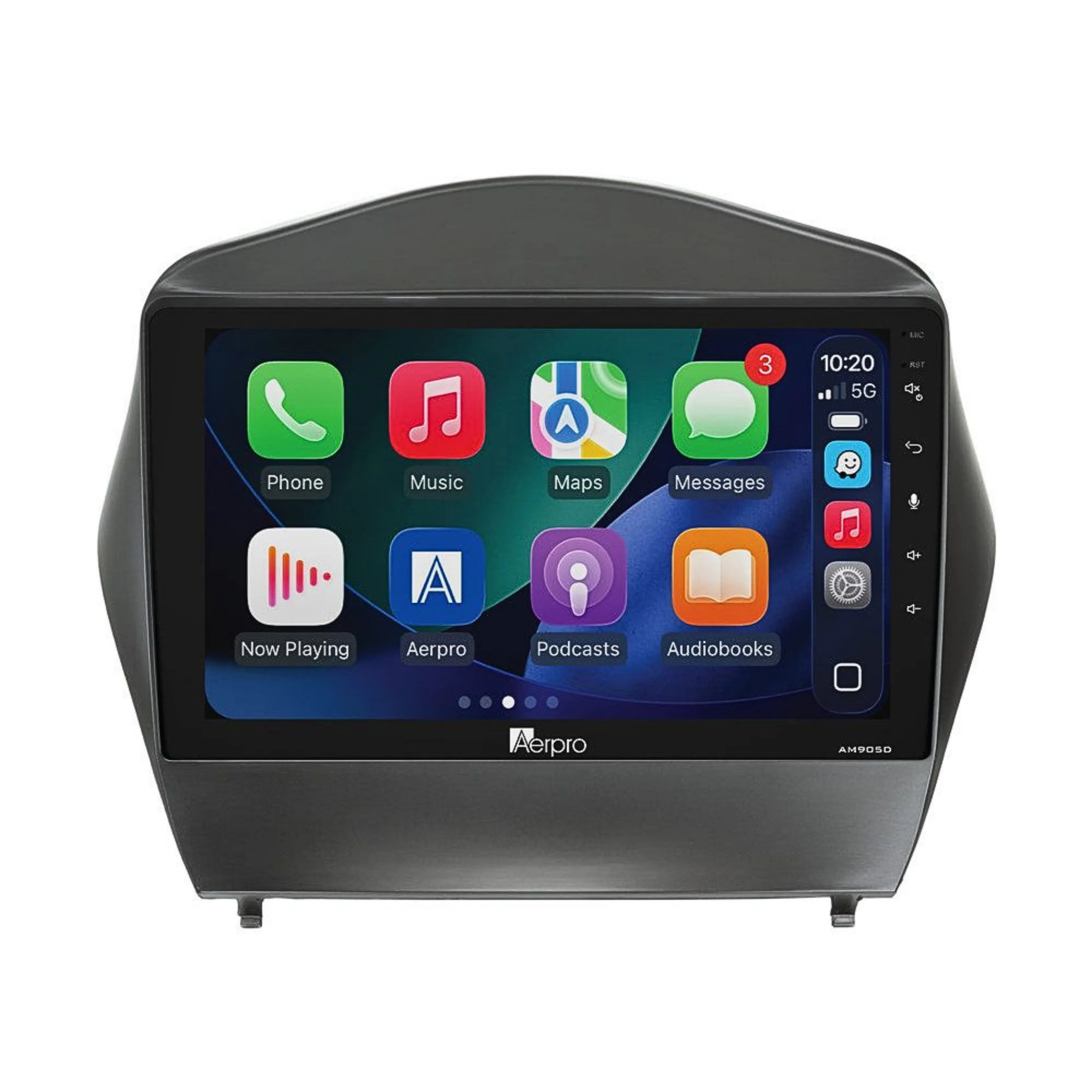

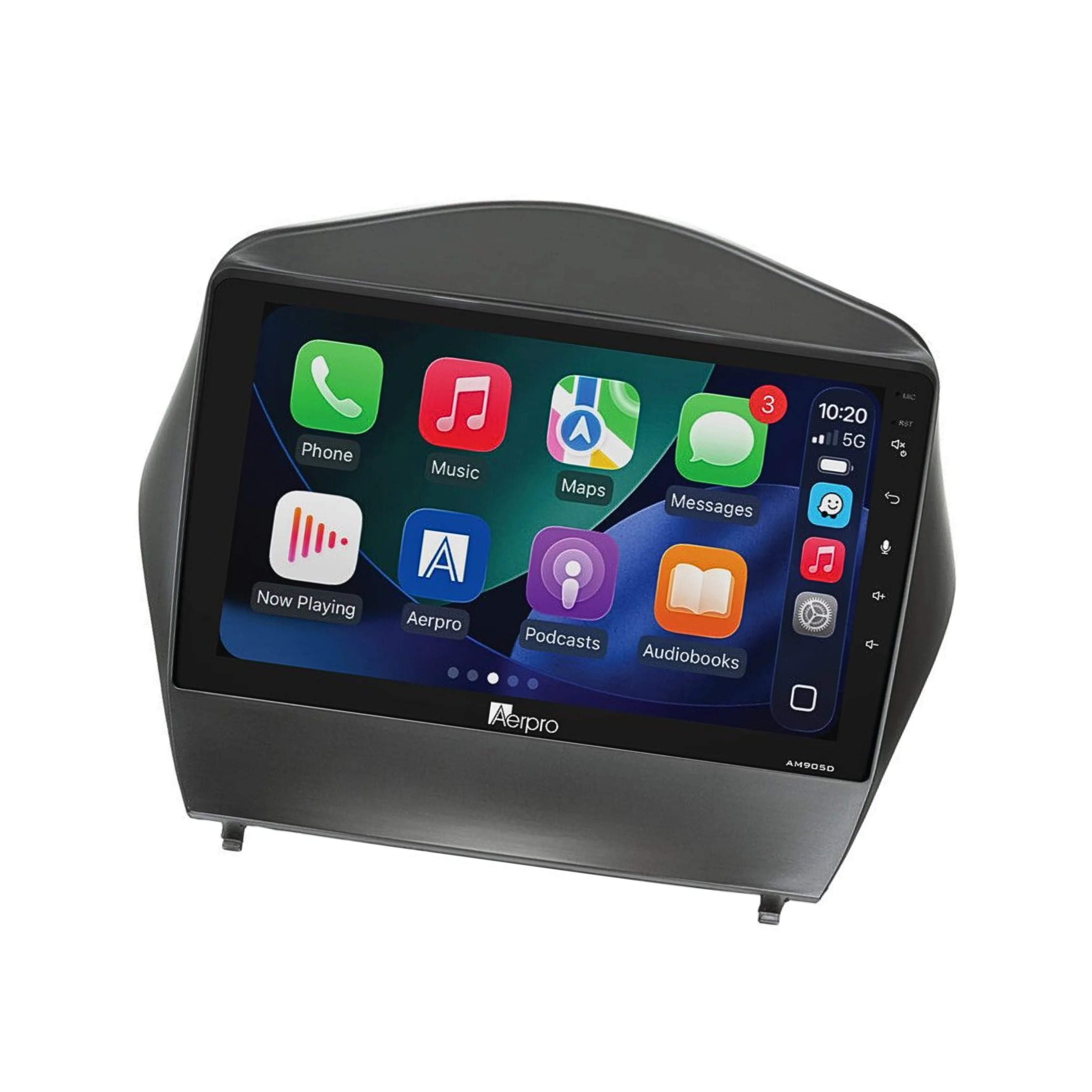

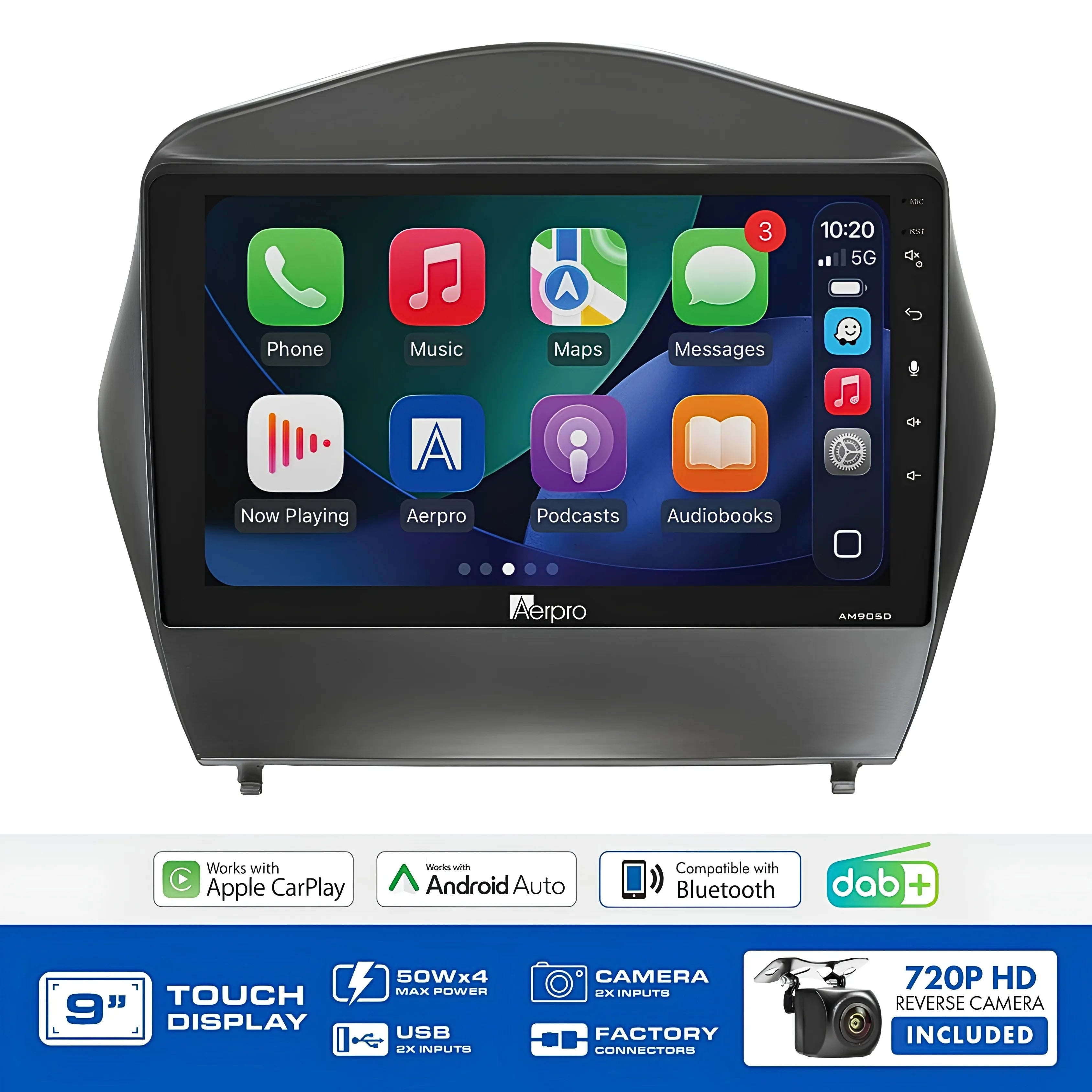

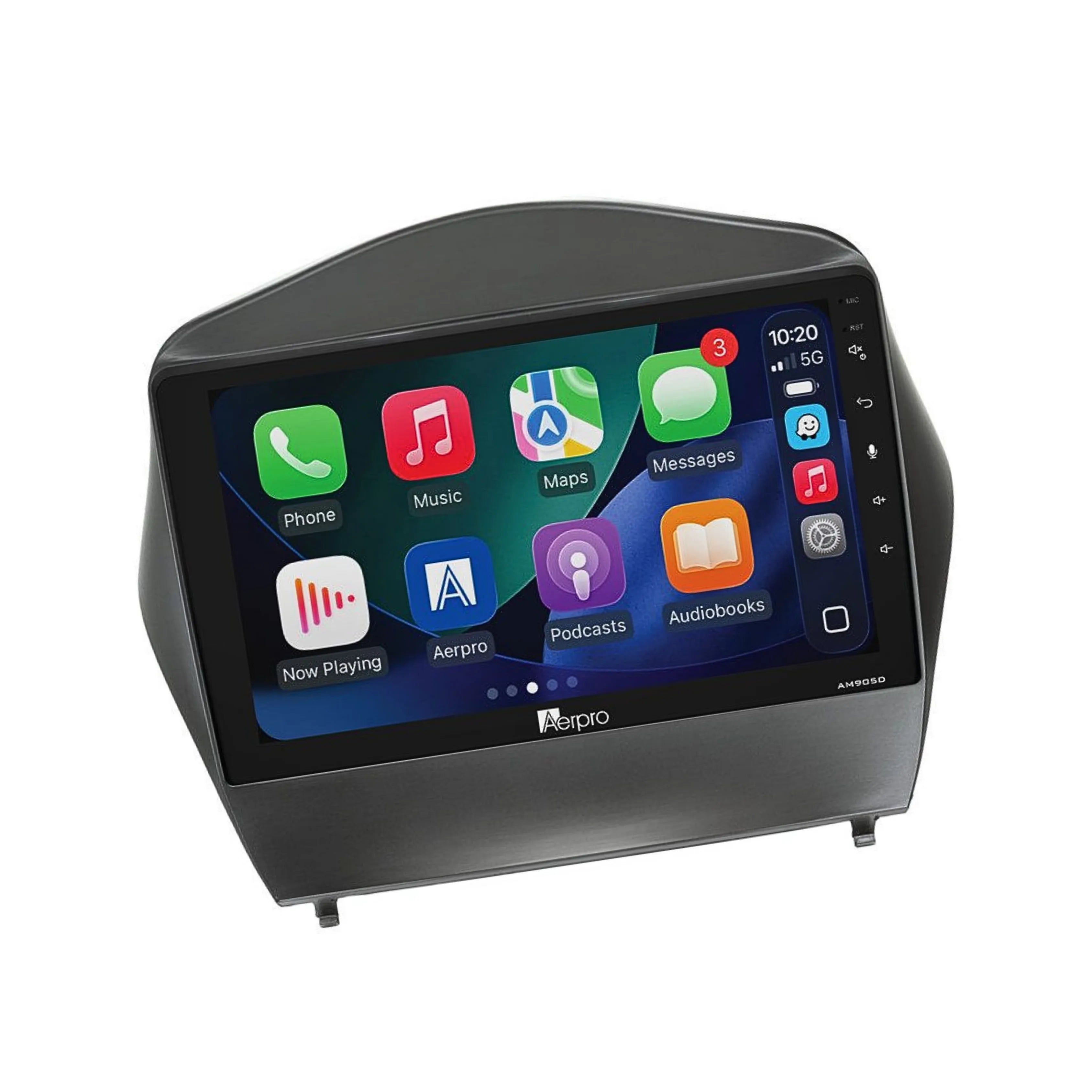

Aerpro AMDHY8 9" Wireless CarPlay Android Auto DAB+ Hyundai iX35 2009-2013 Amplified

SKU: AMDHY8
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Hyundai iX35 LM1/LM2 2009–2013 (Digitally Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Factory Amplifier & SWC Retained, Rear Camera Included.

Product Overview

The Aerpro AMDHY8 is a complete head unit upgrade kit specifically designed for the Hyundai iX35 LM1/LM2 (2009–2013) with a factory digital amplified system. Suits vehicles with Hyundai Mobis 96170 (6 stacker) and LM01 factory head units. Everything required for a clean, professional installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, SWC patch lead, and a 720P AHD universal rear camera.

The factory digital amplified system is fully retained, as are steering wheel controls including the phone button. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Factory digital amplifier retained: The factory digital amplified system is fully retained critical for maintaining audio quality in digitally amplified iX35 models
  • Steering wheel controls retained including phone button: Full SWC function including the phone button is retained via the included SWC harness and patch lead
  • Suits Hyundai Mobis 96170 & LM01 factory head units: Specifically engineered for the iX35's factory headunit variants
  • Complete plug-and-play kit: Fascia, SWC harness, patch lead, and rear camera all included
  • Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with further amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDHY8
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes (including phone button)
Factory Amplifier Retained Yes
USB/AUX Retention No (APHYUSB4 sold separately)
Kit Includes Rear Camera Yes 720P AHD universal
Suits Hyundai iX35 LM1/LM2 2009–2013 (headunit dependent)
Weight 3.00kg

Compatible Vehicles

  • Hyundai iX35 2009–2013 LM1, LM2 (headunit dependent)
  • Suits vehicles with Hyundai Mobis 96170 (6 stacker) & LM01 factory head units

Frequently Asked Questions

Does this kit retain the factory digital amplifier?

Yes the factory digital amplified system is fully retained, making the AMDHY8 the correct kit for amplified iX35 models.

Are the factory USB and AUX inputs retained?

No USB and AUX input retention are not included in this kit. The optional APHYUSB4 USB/AUX Retention Adaptor is available separately if USB and AUX retention are required.

Which factory head units does this kit suit?

The AMDHY8 suits iX35 models with Hyundai Mobis 96170 (6 stacker) and LM01 factory head units. Confirm your vehicle's factory head unit before purchasing.

Does CarPlay require the park brake to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
