Aerpro AMDHY5 9" Wireless CarPlay Android Auto DAB+ Hyundai Santa Fe 2009-2012

SKU: AMDHY5
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

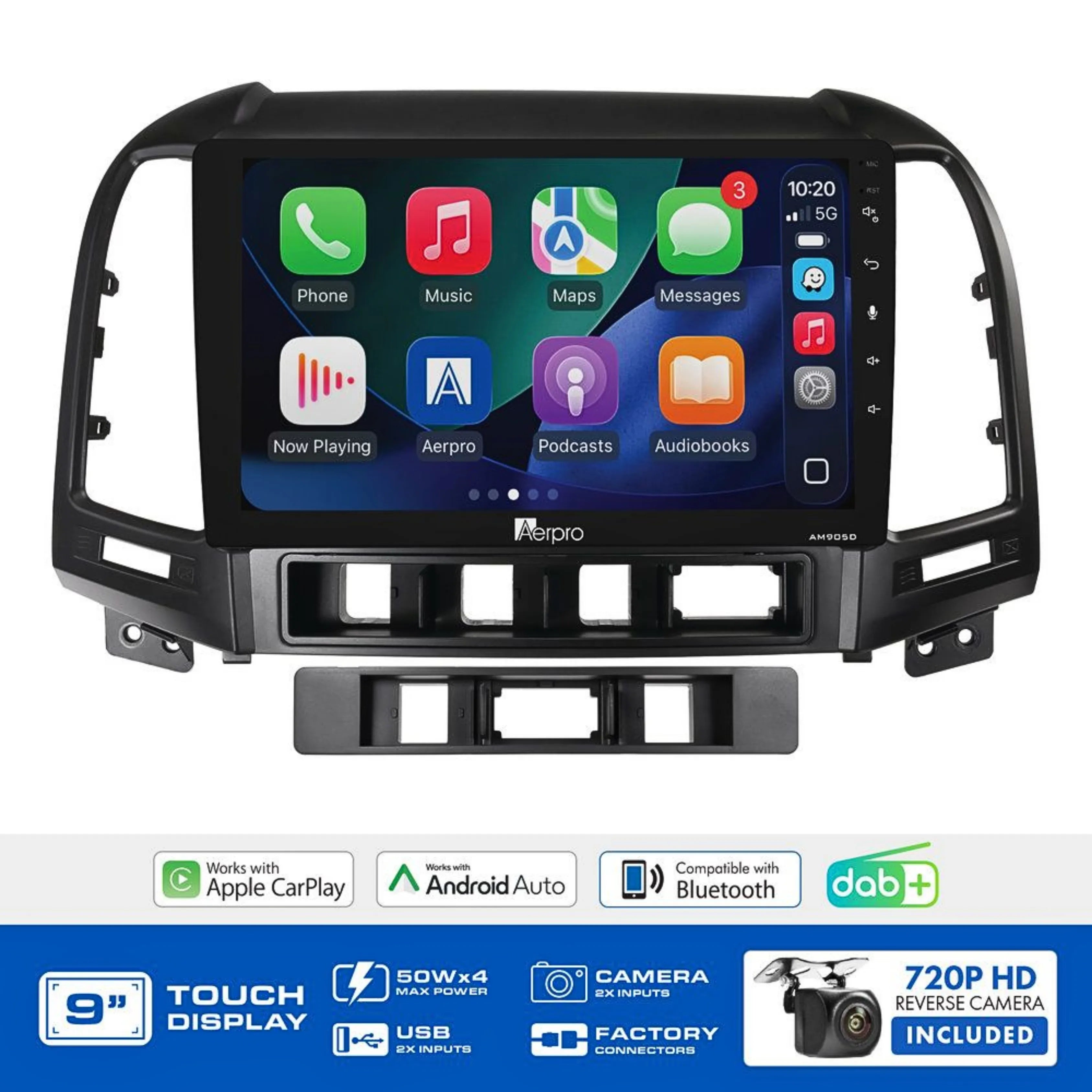

Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe CM 2009–2012 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Suits Amplified & Non-Amplified, Rear Camera Included.

Product Overview

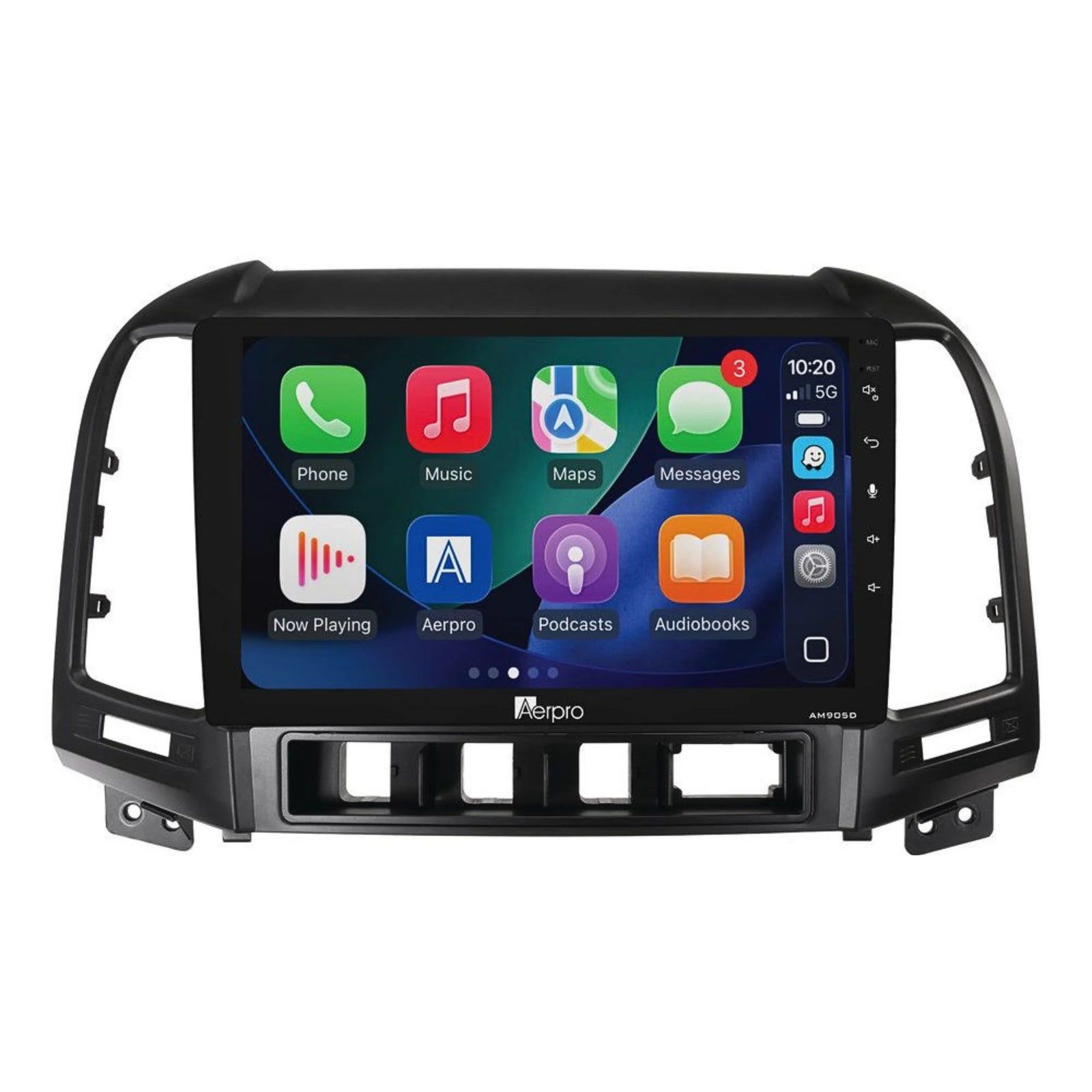

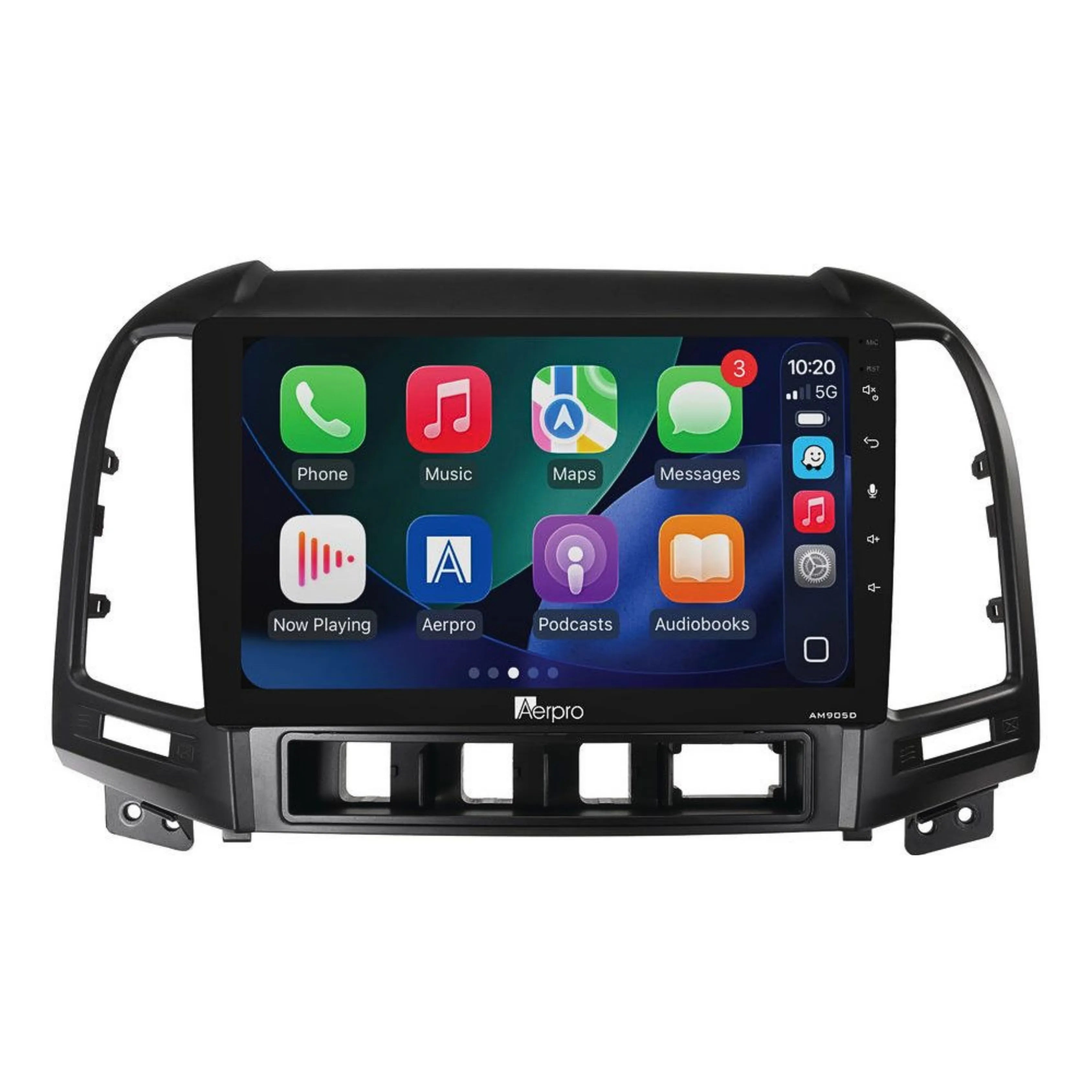

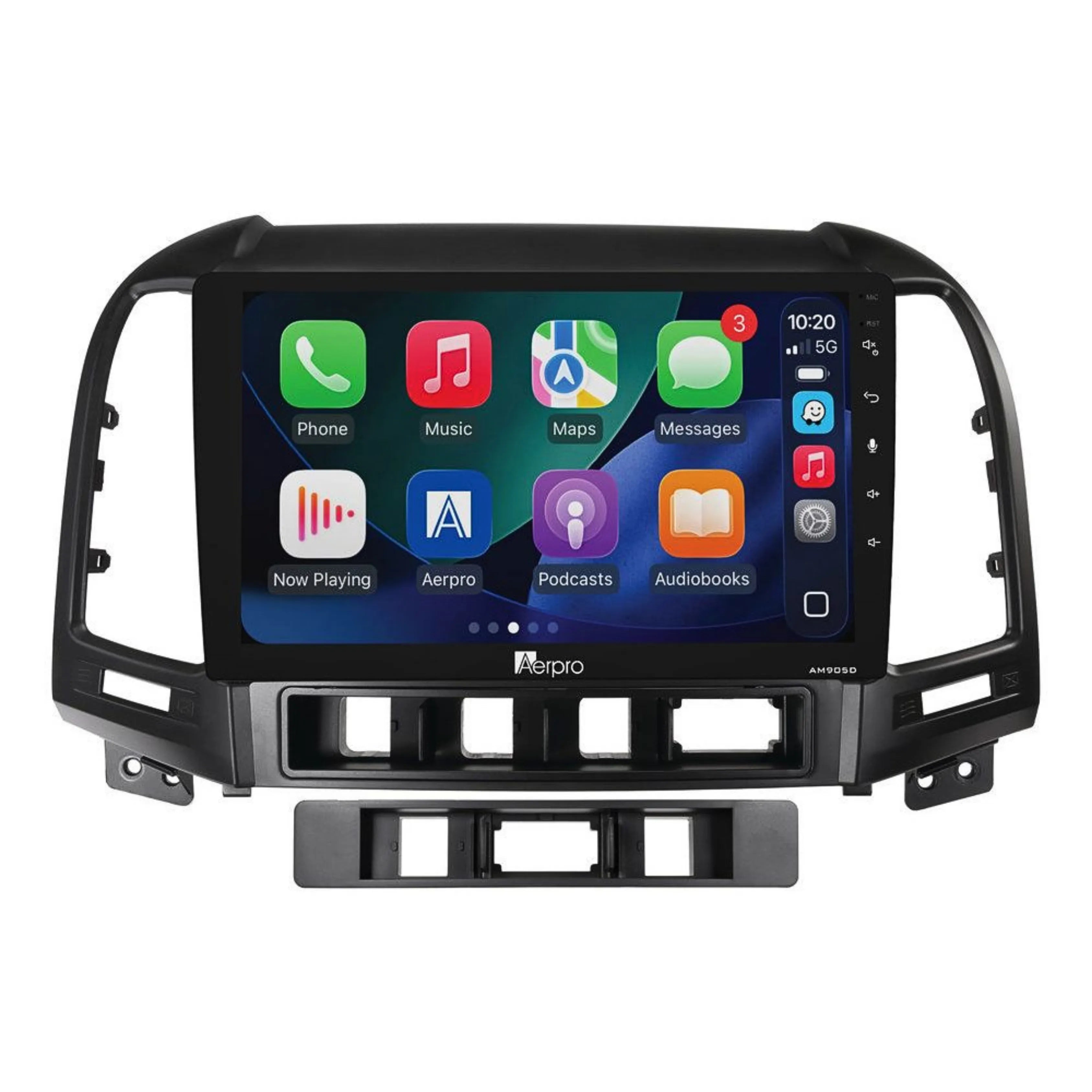

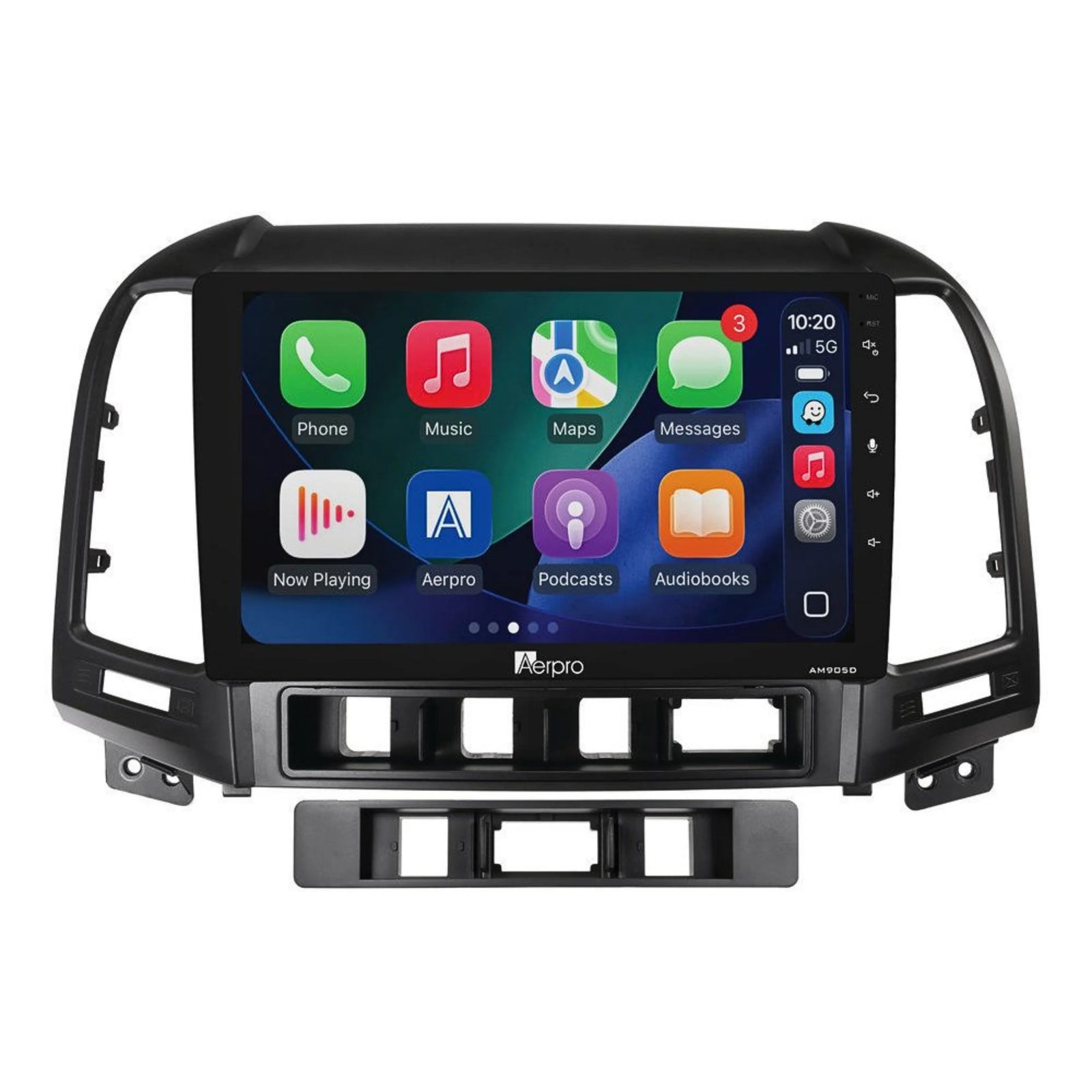

The Aerpro AMDHY5 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe CM (2009–2012). Everything required for a clean, professional installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, antenna adaptor, and a 720P AHD universal rear camera.

A key advantage of the AMDHY5 over other Santa Fe kits is its compatibility with both factory amplified and non-amplified vehicles amplified models are supported via standard trigger wire connection. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts. Steering wheel controls are retained.

Kit Inclusions

  • AM905D 9" Multimedia Receiver

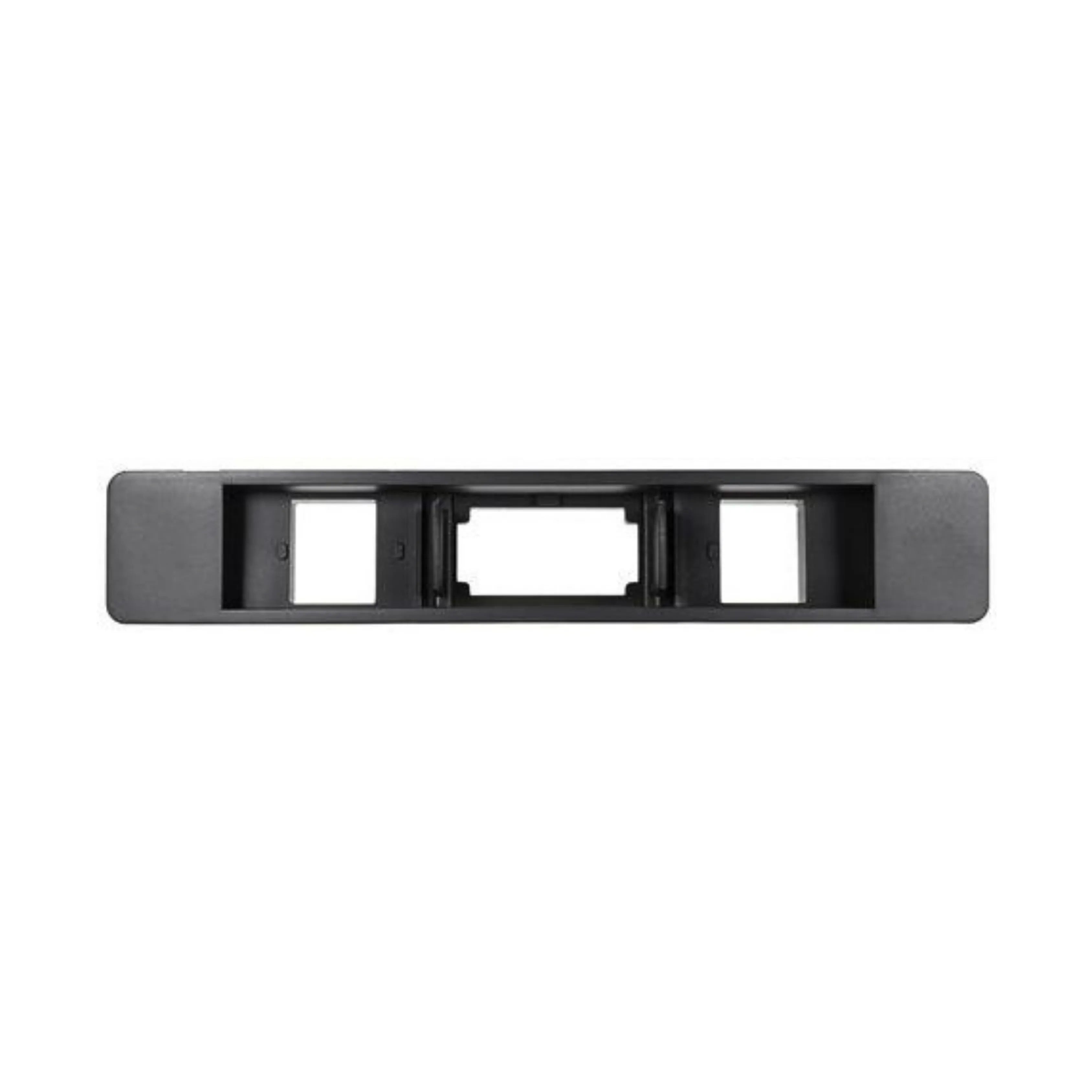

  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Suits both amplified and non-amplified vehicles: Compatible with factory amplified Santa Fe models via standard trigger wire connection unlike many kits restricted to non-amplified vehicles
  • Complete plug-and-play kit: Fascia, SWC harness, antenna adaptor, and rear camera all included
  • Steering wheel controls retained: Factory SWC function retained via the included harness
  • Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDHY5
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Amplifier Supported Yes standard trigger wire
Kit Includes Rear Camera Yes 720P AHD universal
Suits Hyundai Santa Fe CM 2008–2012

Compatible Vehicles

  • Hyundai Santa Fe 2008–2012 CM

Frequently Asked Questions

Does this kit work with factory amplified Santa Fe models?

Yes the AMDHY5 suits both factory amplified and non-amplified Hyundai Santa Fe models. Amplified models are connected via a standard trigger wire connection.

Is phone button retention supported on the steering wheel?

Phone button retention on the steering wheel is not supported in all vehicles confirm your specific model before purchasing.

Does this kit retain steering wheel controls?

Yes the included steering wheel control interface harness retains factory SWC function.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
