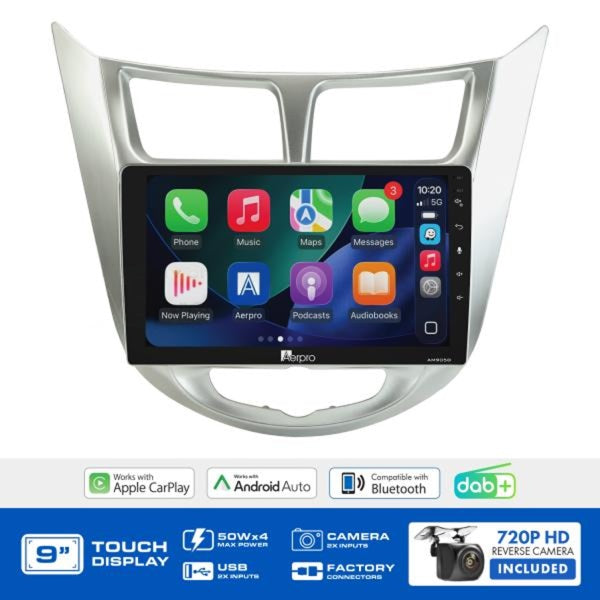

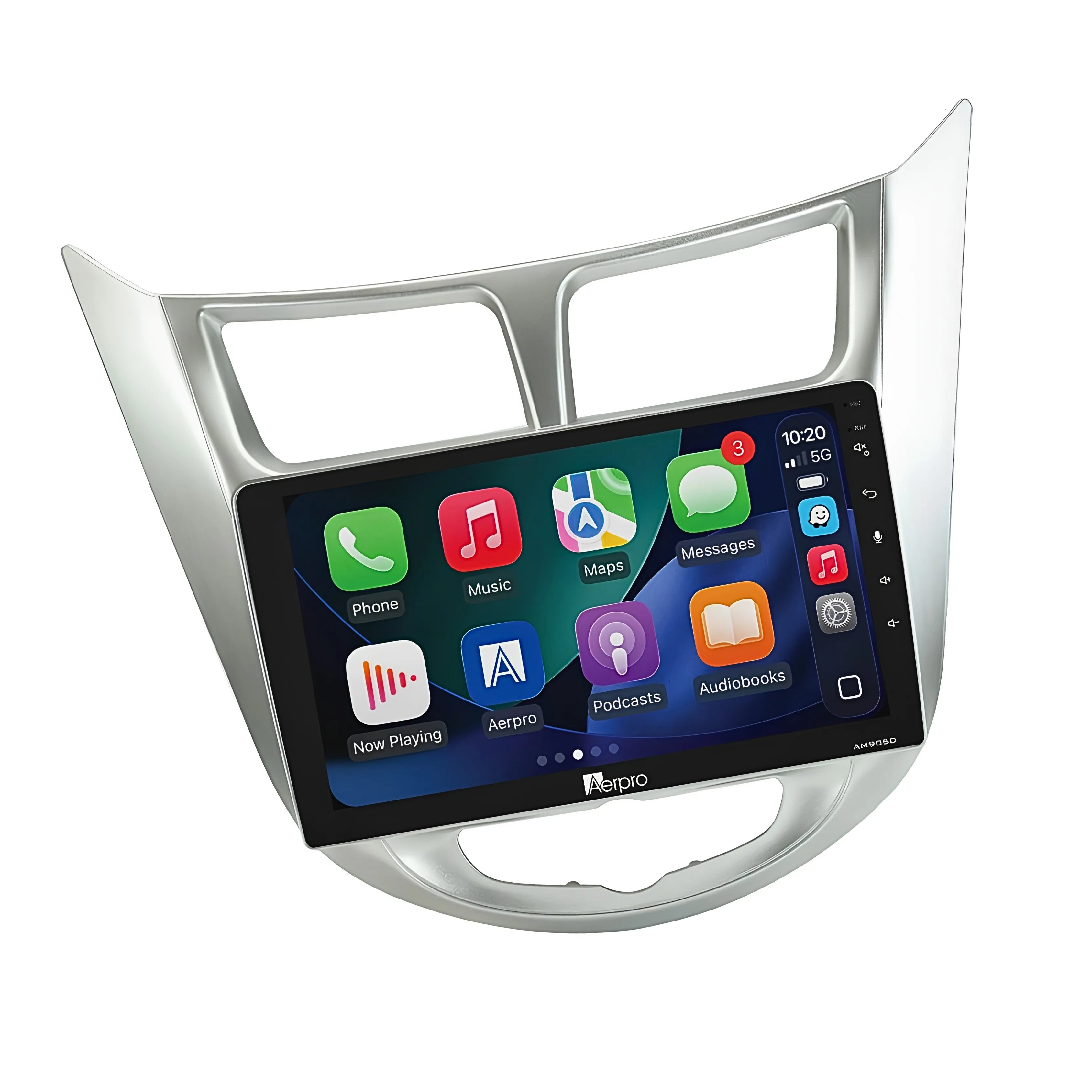

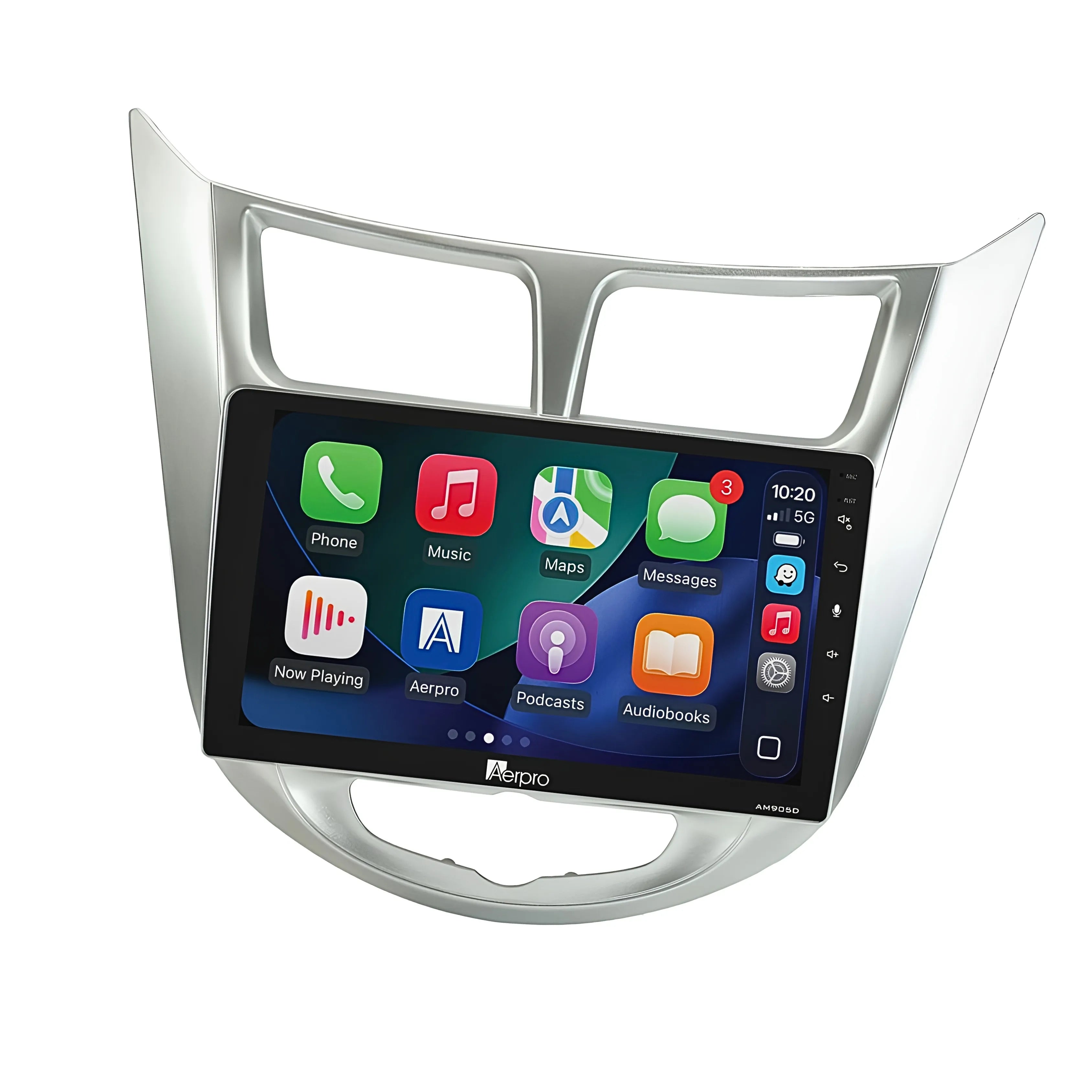

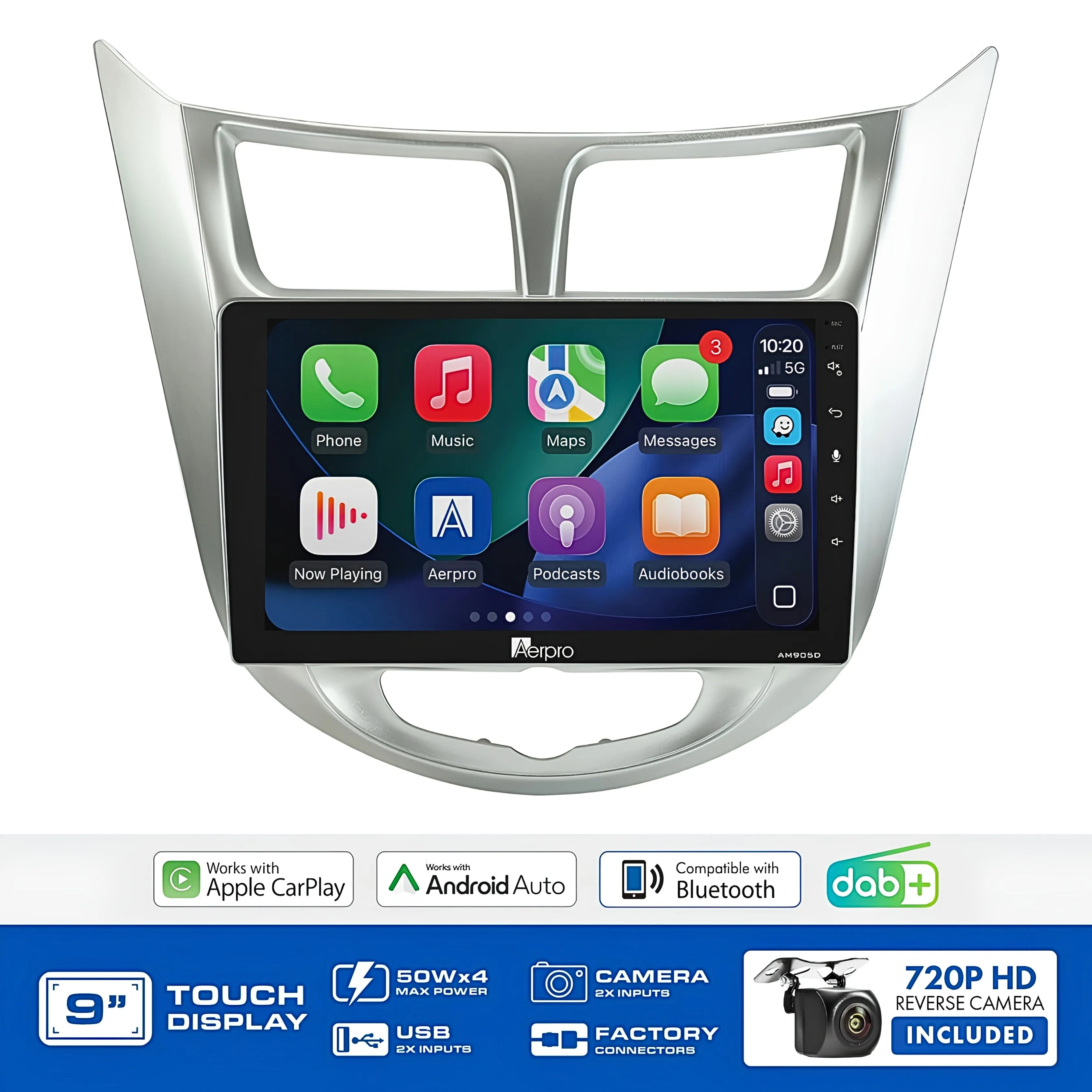

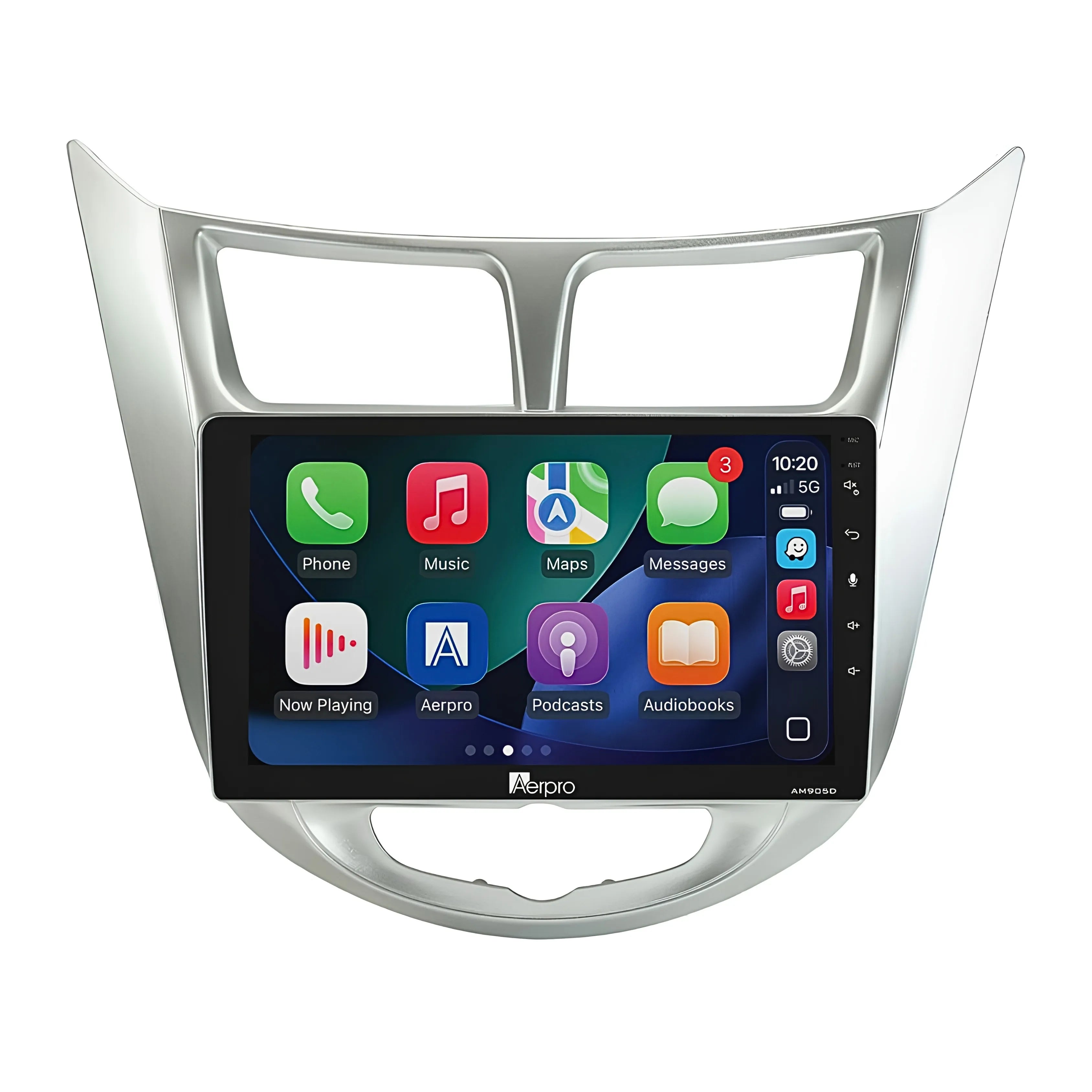

Aerpro AMDHY23 9" Wireless CarPlay Android Auto DAB+ Hyundai Accent 2016-2020

SKU: AMDHY23
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Hyundai Accent RB 2016–2020 Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDHY23 is a complete head unit upgrade kit specifically designed for the Hyundai Accent RB (2016–2020) with factory reverse camera in the OEM head unit. Everything required for a clean, professional installation is included the AM905D multimedia receiver, silver fascia kit, steering wheel control interface harness (with camera retention), USB retention adaptor, and a 720P AHD universal rear camera.

The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts. Steering wheel controls, factory USB input, and factory reverse camera (if equipped, model dependent) are all retained.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Silver Fascia Kit
  • Steering Wheel Control Interface Harness (includes camera retention)
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Complete plug-and-play kit: Fascia, SWC harness with camera retention, USB adaptor, and rear camera all included
  • Factory reverse camera retained: The existing factory reverse camera is retained via the SWC harness if equipped and model dependent
  • Factory USB input retained: Factory USB input is retained via the included USB retention adaptor
  • Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported for charging
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS tuning
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility improvement additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability
  • 13-band EQ with time alignment: Precision audio tuning

Technical Specs

Specification Detail
SKU AMDHY23
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Reverse Camera Retained Yes (if equipped, model dependent)
USB Input Retained Yes
Kit Includes Rear Camera Yes 720P AHD universal
Weight 3.00kg
Suits Hyundai Accent RB 2016–2020

Compatible Vehicles

  • Hyundai Accent 2016–2020 RB

Frequently Asked Questions

Does this kit retain the factory reverse camera?

Yes factory reverse camera retention is included via the SWC harness, for vehicles with a factory reverse camera in the OEM head unit. Retention is model dependent confirm your vehicle is equipped before purchasing.

Does this kit retain the factory USB input?

Yes the included USB retention adaptor retains the factory USB input. Note that USB input retention uses the rear USB input of the head unit.

Does this kit retain steering wheel controls?

Yes the included steering wheel control interface harness retains factory SWC function.

Does this suit Hyundai Accent models with a factory amplifier?

The kit specifications do not restrict amplified vs non-amplified variants for this model confirm fitment via the Aerpro What Fits Your Car Guide.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
