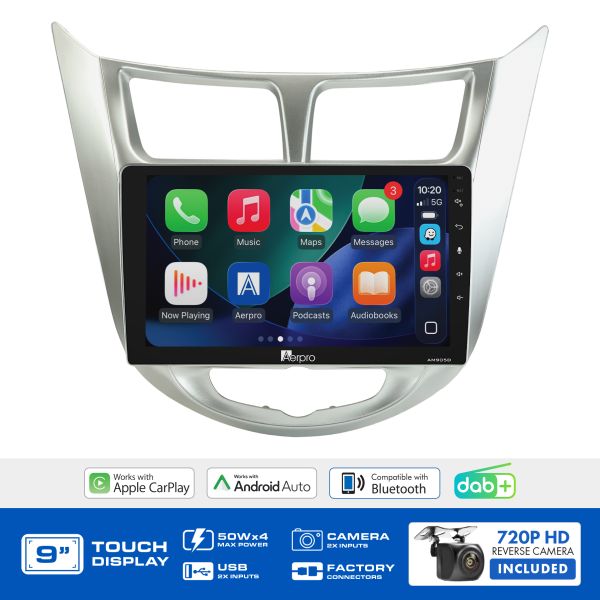

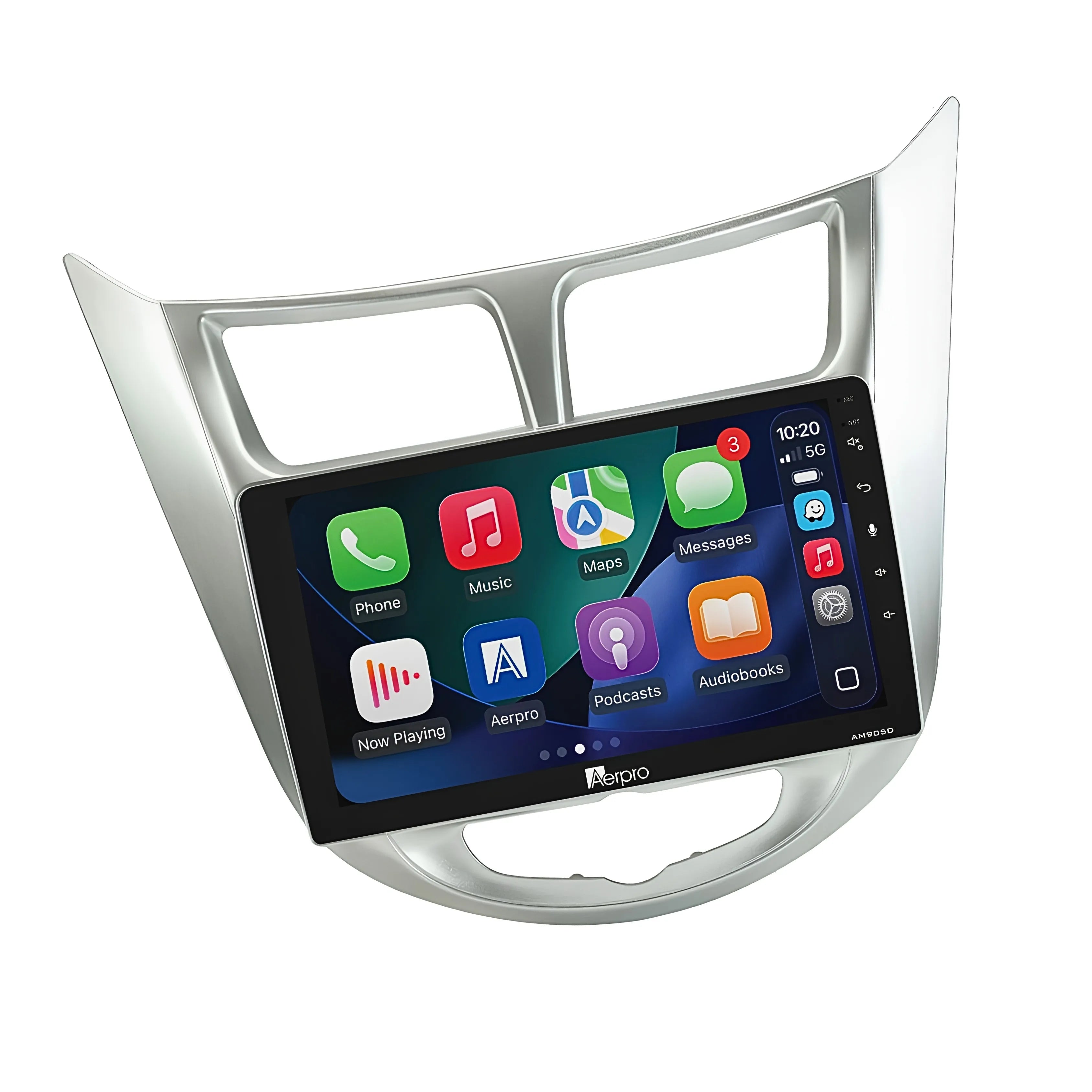

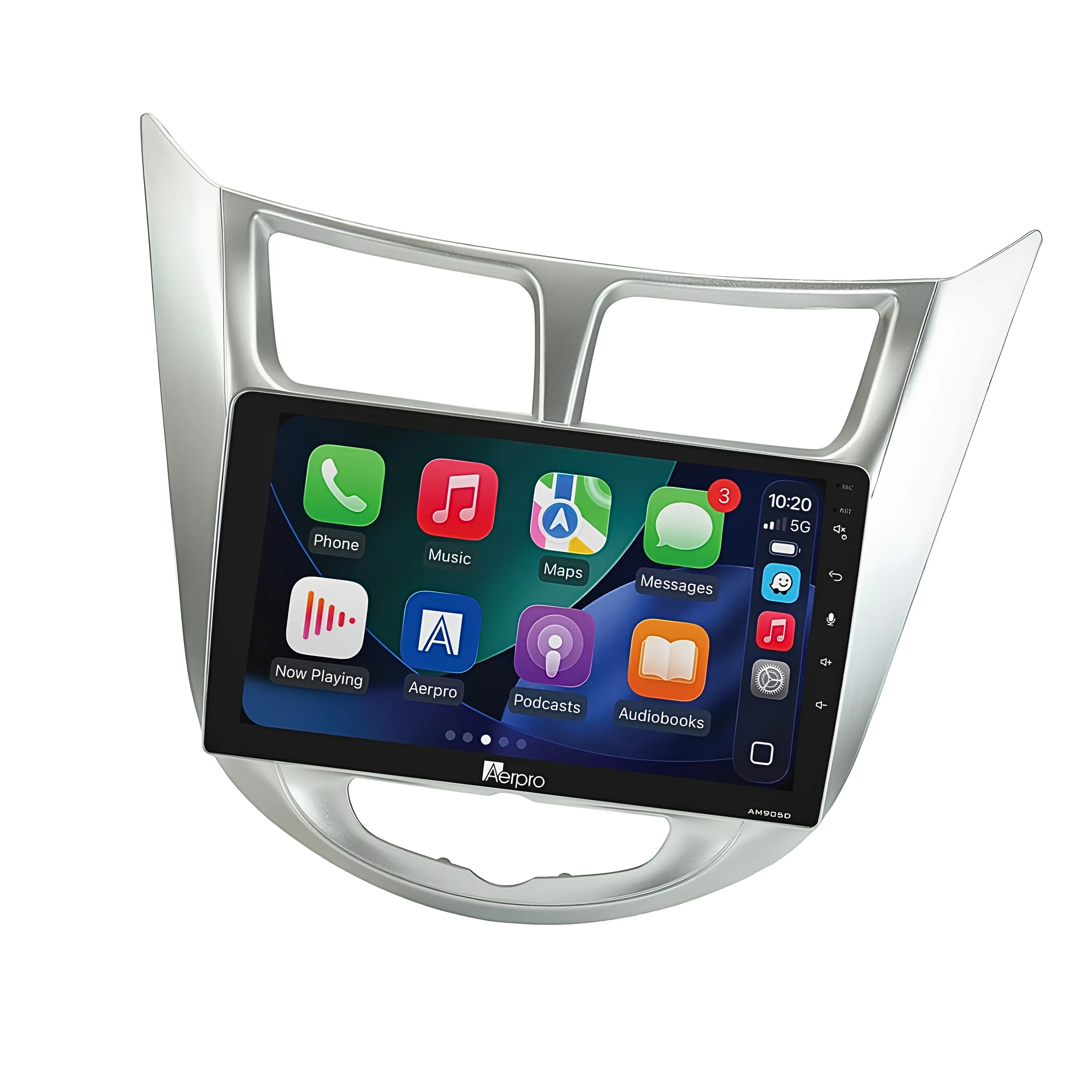

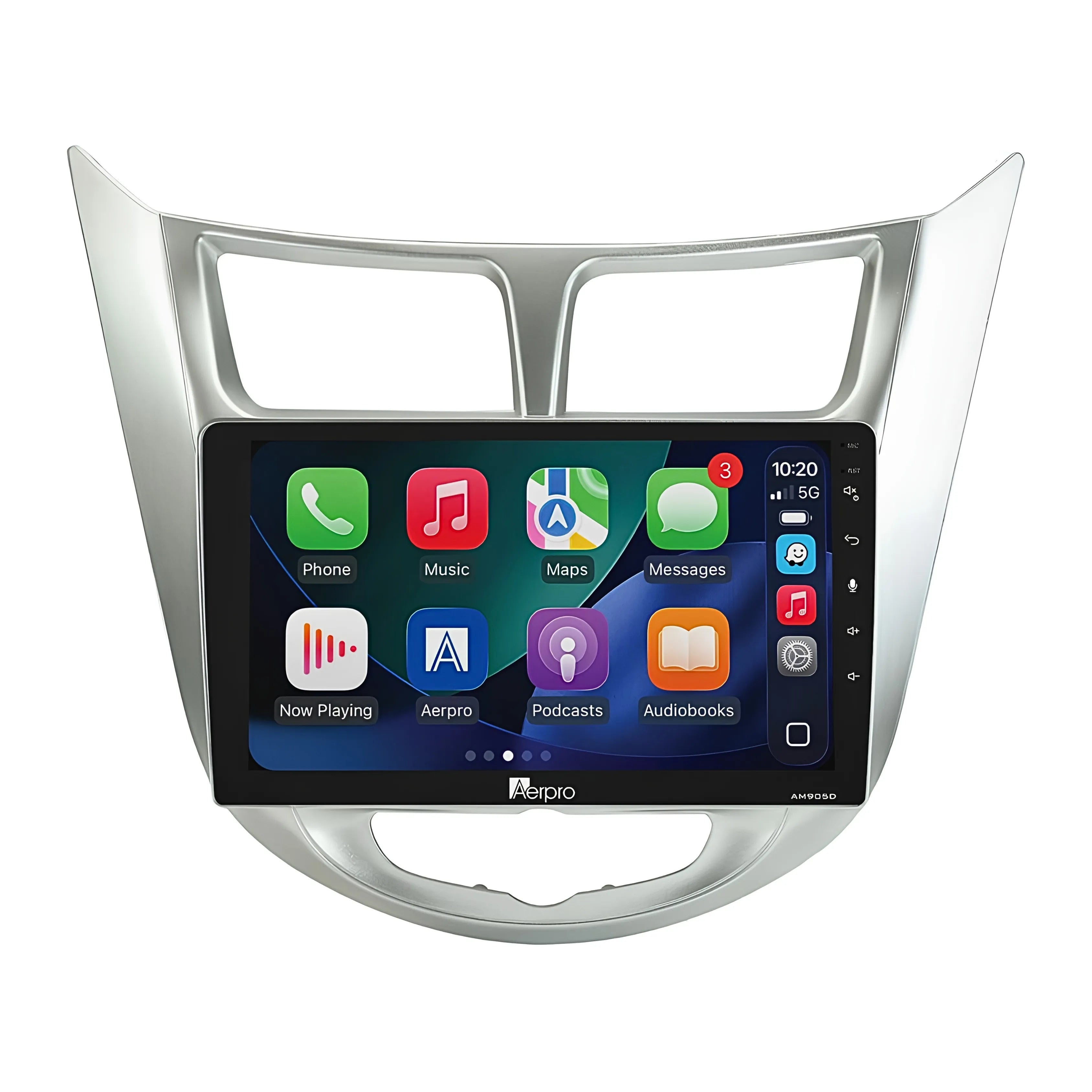

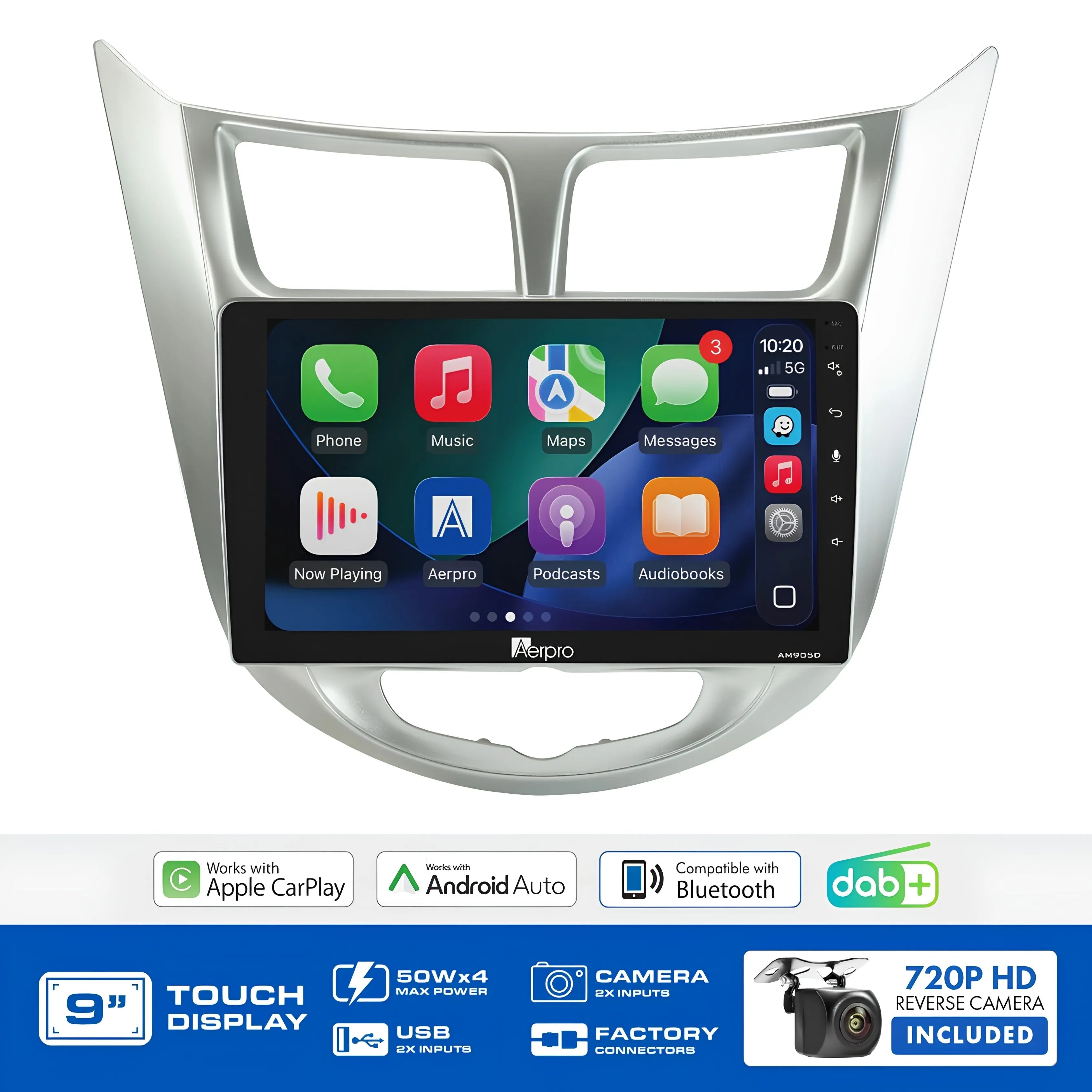

Aerpro AMDHY22 9" Multimedia Receiver Hyundai Accent 2011-15

SKU: AMDHY22
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

A Complete 9" Wireless CarPlay Upgrade for the Hyundai Accent RB Plug In and Drive Smarter

Product Overview

The Aerpro AMDHY22 is a complete head unit upgrade kit designed for the Hyundai Accent RB (2011–2015) without a factory reverse camera in the OEM head unit. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution and brings wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 to a vehicle that originally shipped without them while retaining the factory steering wheel controls.

The kit includes the AM905D multimedia receiver, a silver vehicle-specific facia kit, SWC interface harness, and a 720P AHD universal rear camera to add reversing visibility the factory unit never provided. Audio is covered by 4 x 50W max output, a 13-band EQ, time alignment, and 4V/5-channel RCA preouts for future amplifier integration.

Features & Benefits

  • Wireless Apple CarPlay & Android Auto — a significant capability upgrade for the Accent RB; connect over Wi-Fi for hands-free maps, music, calls, and messages without any cables; wired connection also supported for USB charging
  • 9" capacitive touchscreen at 1024x600 resolution — transforms the Accent's cabin with a large, responsive display for navigation, media, and Bluetooth management
  • Built-in DAB+ digital radio — digital audio quality and expanded station access that the factory Accent radio can't match; AM/FM with RDS and 18 FM / 12 AM presets also included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone options for clear call quality
  • Factory steering wheel controls retained — SWC interface harness included for seamless retention of the factory SWC buttons
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree wide-angle lens; adds a reversing view to an Accent model not equipped with factory reverse camera capability
  • Silver vehicle-specific facia kit — matched to the Accent RB interior for a clean factory-finish installation; all mounting hardware included
  • Second camera input available — additional AHD-compatible input for an optional front or towing camera
  • 4 x 50W max output with 5CH 4V RCA preouts — front, rear, and subwoofer channels at 4V peak for clean amplifier integration
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots; calibrate the soundstage to the Accent cabin
  • 6-colour button illumination — red, yellow, green, blue, purple, or white to suit your preference

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes
Factory reverse camera N/A (suits models without factory reverse camera)
Factory USB input Not retained
Factory AUX input Not retained
Factory amplifier N/A
Vehicle menu N/A

Compatible With / Goes Well With

  • Hyundai Accent RB (2011–2015) without factory reverse camera in OEM head unit
  • Not compatible with Accent RB variants that have a factory reverse camera integrated into the OEM head unit — a different kit is required for those models
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Which Hyundai Accent models does this fit?

The AMDHY22 suits the Hyundai Accent RB (2011–2015) in variants without a factory reverse camera integrated into the OEM head unit. Use the Aerpro What Fits Your Car Guide to confirm your specific build.

What if my Accent has a factory reverse camera in the OEM head unit?

A different kit is required for Accent RB models with a factory reverse camera in the OEM unit. The AMDHY22 is not compatible with those variants — check the Aerpro What Fits Your Car Guide for the correct match.

Does the kit add reverse camera capability to the Accent?

Yes — a 720P AHD universal rear camera is included and connects via the head unit's reverse camera input, adding reversing visibility to a model not originally equipped with it.

Are the factory USB and AUX inputs retained?

No — factory USB and AUX inputs are not retained on this kit. CarPlay, Android Auto, and the head unit's rear USB ports serve as the primary input options after installation.

Does it support wireless CarPlay or does the phone need to plug in?

Both — wireless Apple CarPlay and Android Auto connect over Wi-Fi without cables, or plug in via USB for wired operation and simultaneous phone charging.
