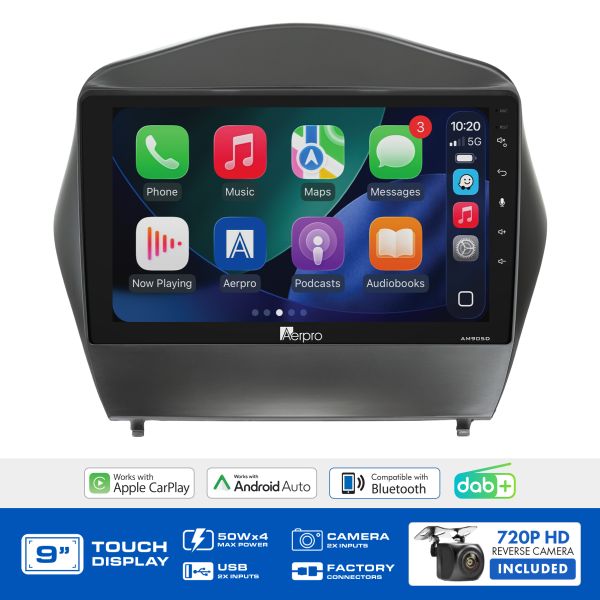

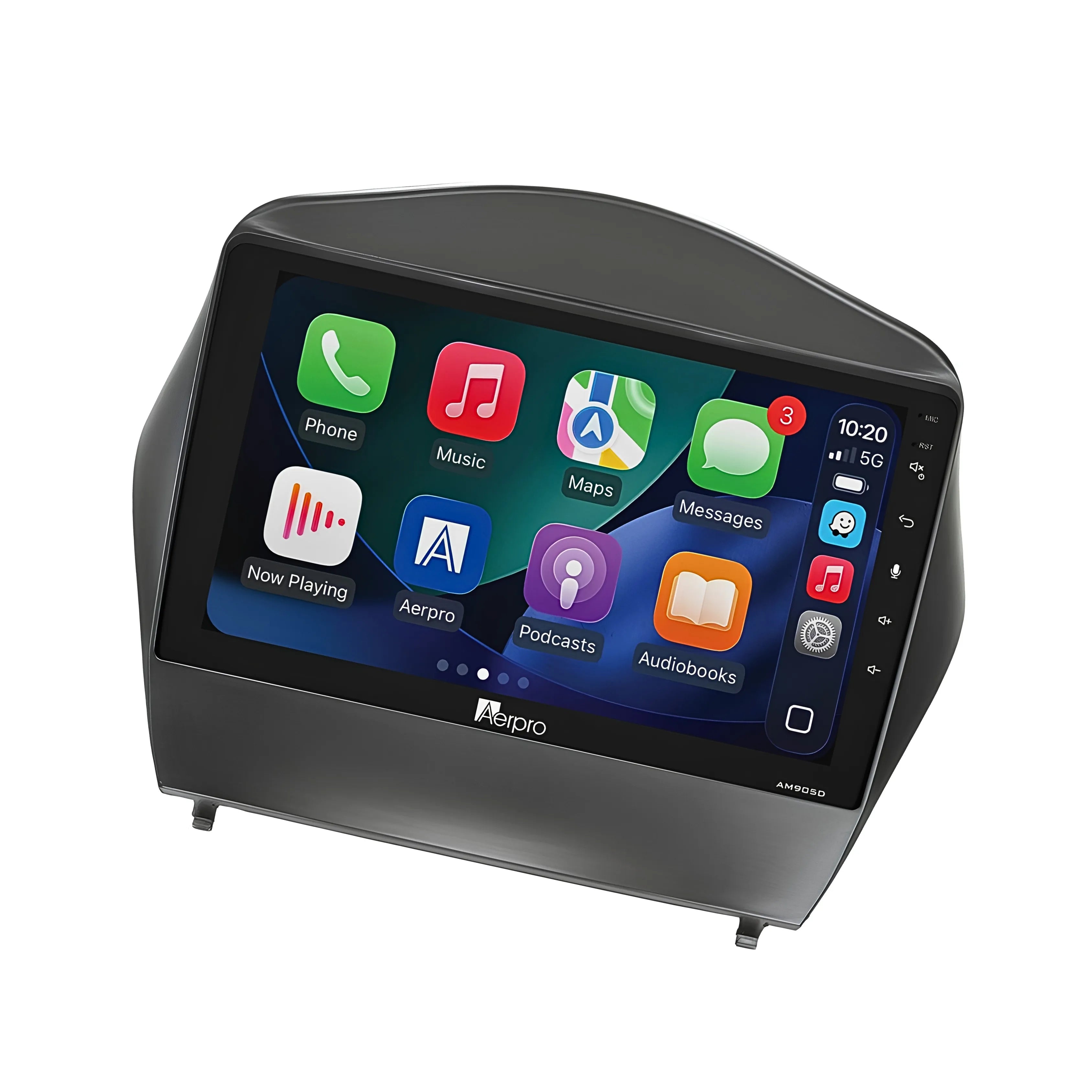

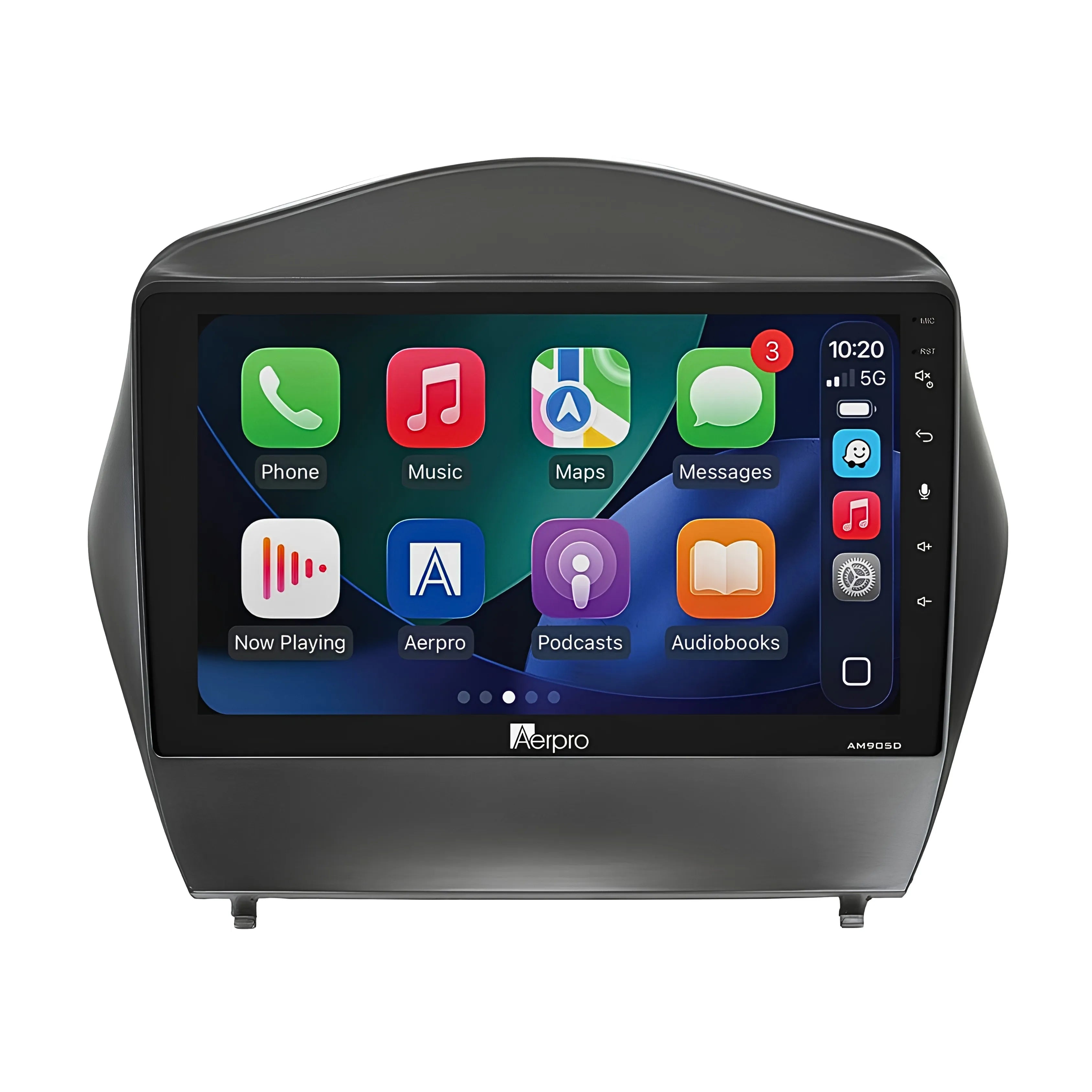

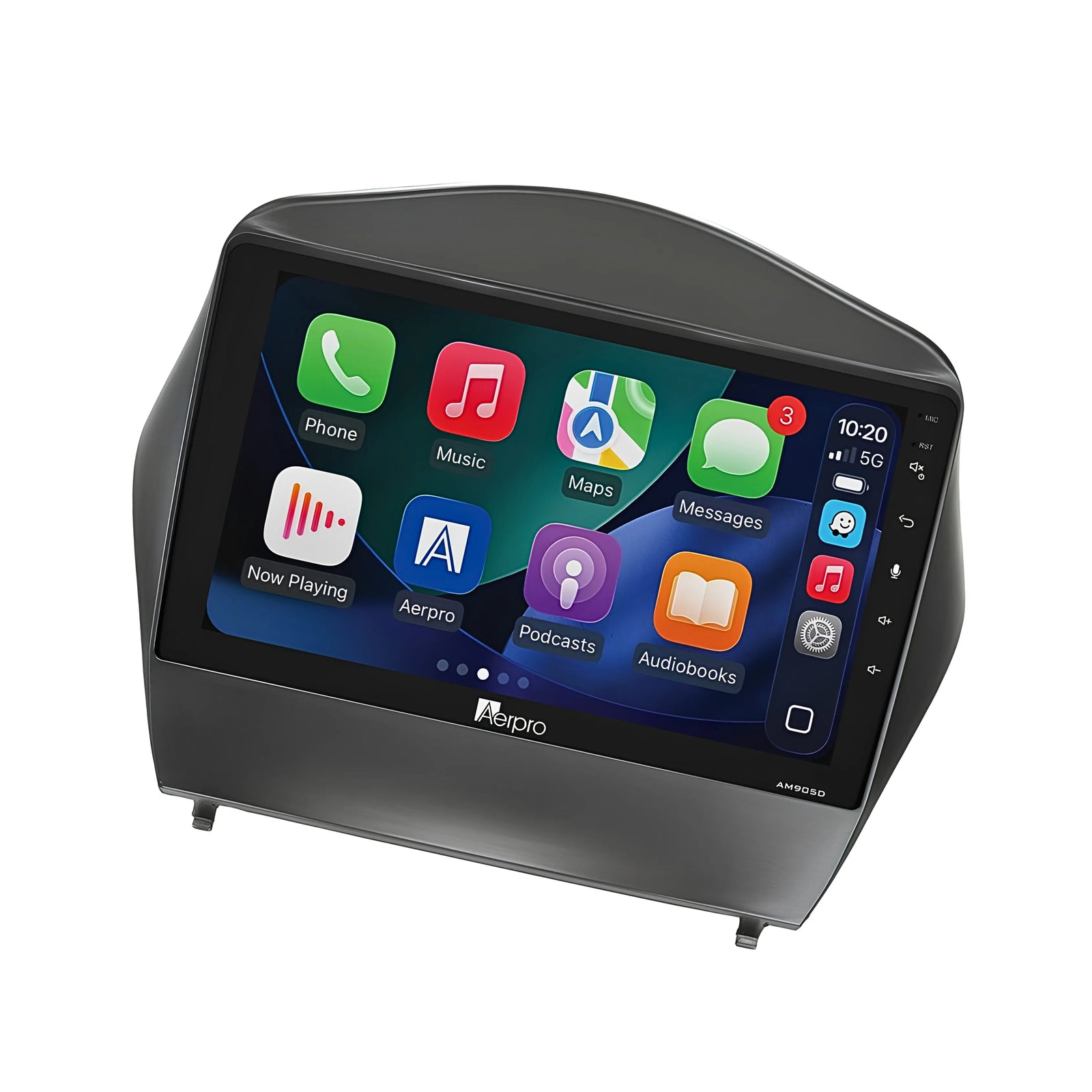

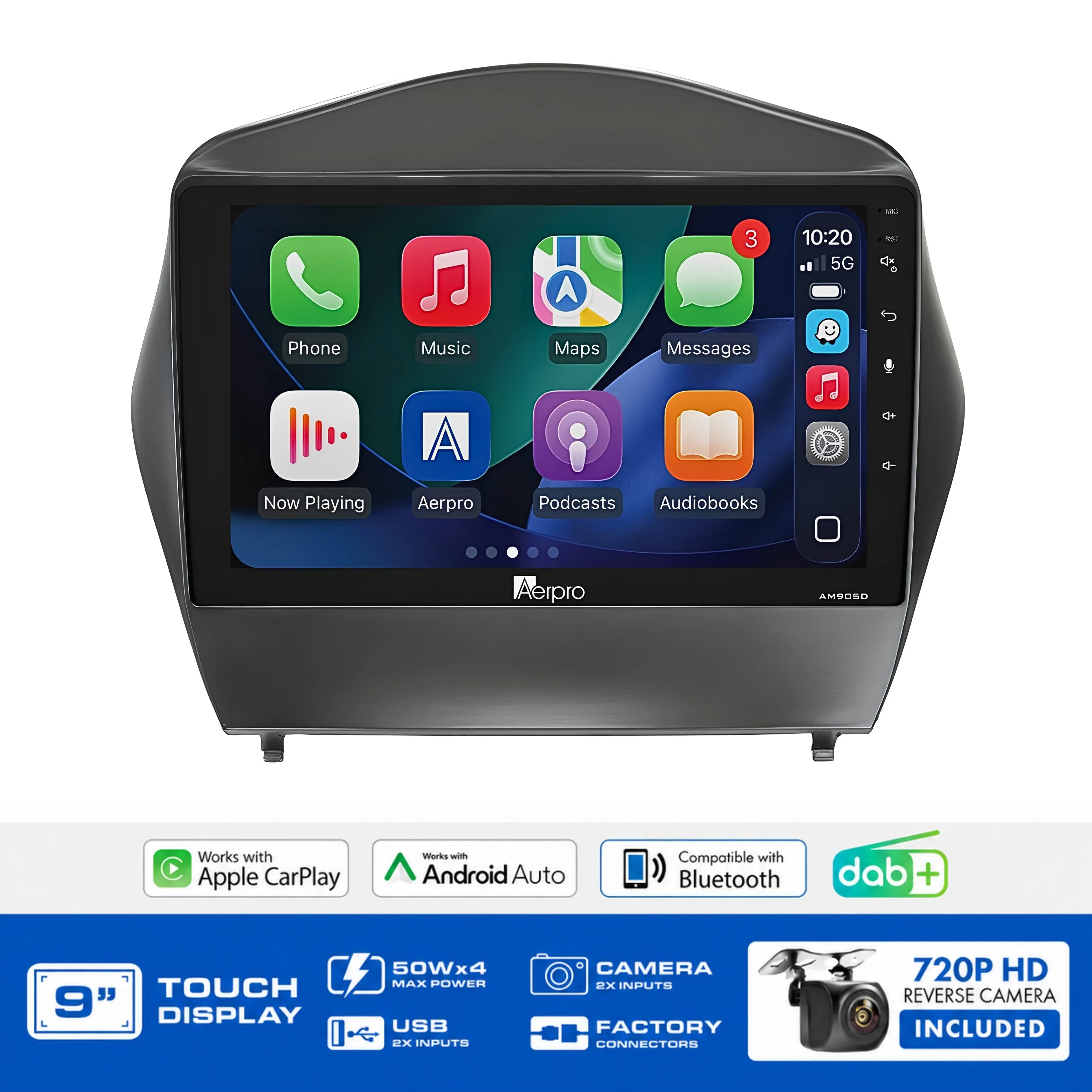

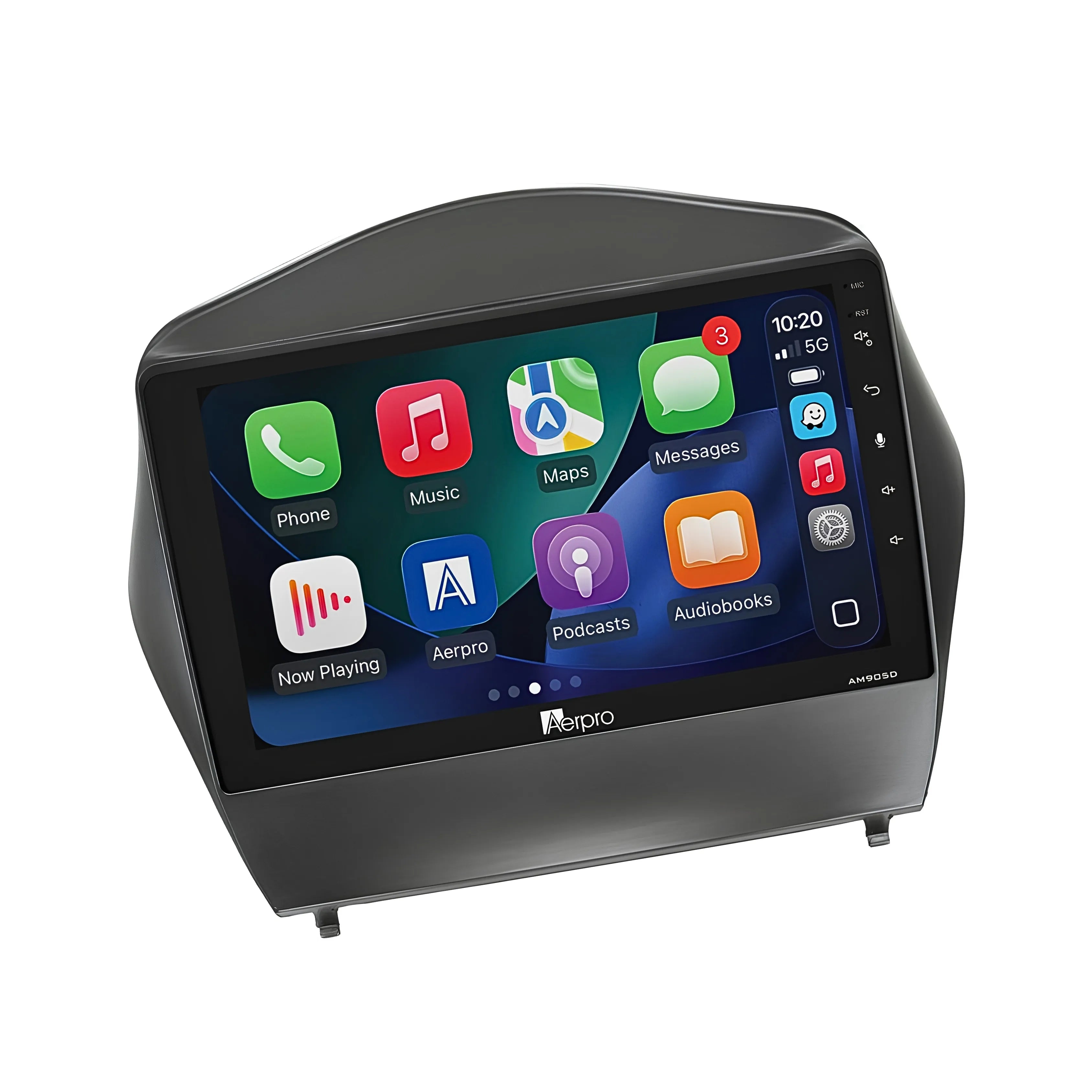

Aerpro AMDHY21 9" Multimedia Receiver Hyundai iX35 S2 2013-15

SKU: AMDHY21
Price
$899.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9" Wireless CarPlay for the Hyundai iX35 Series 2 Reverse Camera, Vehicle Menu, and a Clean Factory Fit

Product Overview

The Aerpro AMDHY21 is a complete head unit upgrade kit built for the Hyundai iX35 Series 2 (2013–2015) without a factory navigation system. It replaces the factory unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5. Of the iX35-specific Aerpro kits, the AMDHY21 offers the strongest factory feature retention for Series 2 models retaining steering wheel controls, the factory reverse camera (if equipped), and vehicle menu access on selected variants.

The kit includes the AM905D multimedia receiver, a matte black vehicle-specific facia kit, SWC interface harness, and a 720P AHD universal rear camera. Factory USB and AUX inputs are not retained and no external adaptor is available for this purpose on this kit. Audio is handled by 4 x 50W max output, a 13-band EQ, time alignment, and 4V/5-channel RCA preouts for amplifier integration.

Features & Benefits

  • Factory reverse camera retained (if equipped) — the AMDHY21 retains the iX35 Series 2 factory reverse camera via the head unit's reverse camera input, an advantage over the AMDHY17 which does not support camera retention on this platform
  • Vehicle menu access retained (selected models) — preserves iX35 vehicle menu access on compatible Series 2 variants, consistent with the AMDHY17 on supported models
  • Matte black vehicle-specific facia — matched to the iX35 Series 2 interior trim for a clean, factory-quality finish
  • Wireless Apple CarPlay & Android Auto — connect your phone over Wi-Fi for maps, music, calls, and messages; wired connection also supported for USB charging
  • 9" capacitive touchscreen at 1024x600 resolution — a major step up from the factory display with smooth, responsive touch across maps, media, and settings
  • Built-in DAB+ digital radio — digital sound clarity and expanded station access; AM/FM with RDS and 18 FM / 12 AM presets also included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and full phonebook access; internal and external microphone options for clear in-cabin audio
  • Steering wheel controls retained — SWC interface harness included for plug-and-play retention of the factory SWC buttons
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; works alongside the retained factory camera via the second camera input on compatible models
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via 4V front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for iX35 cabin-specific tuning

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes
Factory reverse camera Yes (if equipped)
Vehicle menu Yes (selected models only)
Factory USB input Not retained
Factory AUX input Not retained
Factory amplifier Not retained

Compatible With / Goes Well With

  • Hyundai iX35 Series 2 non-navigation (2013–2015)
  • Not compatible with iX35 LM1 / LM2 (2009–2013) — see AMDHY17 for those models
  • Not compatible with iX35 Series 2 navigation-equipped variants
  • Use the Aerpro What Fits Your Car Guide to confirm fitment between AMDHY17 and AMDHY21 for Series 2 non-nav models, as both cover overlapping year ranges with different factory head unit variants
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

How does the AMDHY21 differ from the AMDHY17 for the iX35?

Both kits cover iX35 Series 2 non-navigation models, but suit different factory head unit variants. The AMDHY21 also retains the factory reverse camera where equipped, which the AMDHY17 does not. Use the Aerpro What Fits Your Car Guide to confirm which is correct for your vehicle.

Does this retain the factory reverse camera?

Yes, if the iX35 Series 2 is factory-equipped with a reverse camera, the AMDHY21 retains it using the head unit's reverse camera input. The included AHD camera connects via the second camera input.

Is the vehicle menu still accessible after installation?

Yes, on selected compatible iX35 Series 2 models the factory vehicle menu is retained after installation.

Are the factory USB and AUX inputs retained?

No — factory USB and AUX inputs are not retained on this kit, and no external retention adaptor is available for this purpose. CarPlay, Android Auto, and the head unit's own USB ports are the primary input options.

Does it support wireless CarPlay or do I need a cable?

Both — wireless Apple CarPlay and Android Auto connect over Wi-Fi without any cables, or plug in via USB for wired operation and simultaneous phone charging.
