Aerpro AMDHY20 9" Wireless CarPlay Android Auto DAB+ Hyundai Santa Fe 2006-2009 Amplified

SKU: AMDHY20
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe CM 2006–2009 (Factory Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Factory Amplifier & SWC Retained, Rear Camera Included.

Product Overview

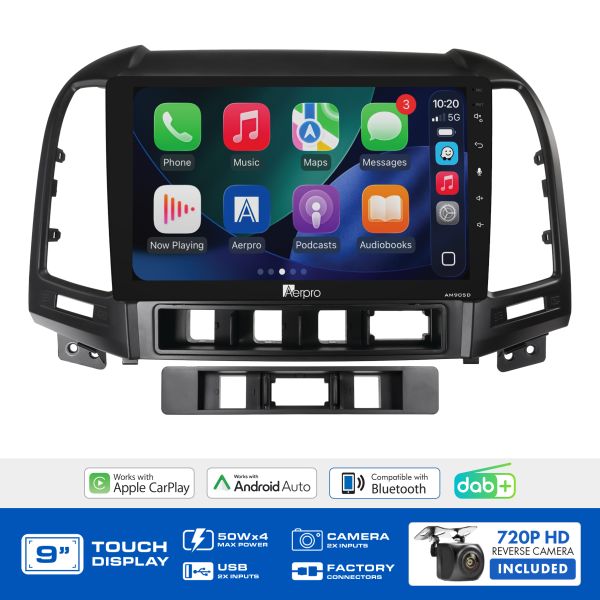

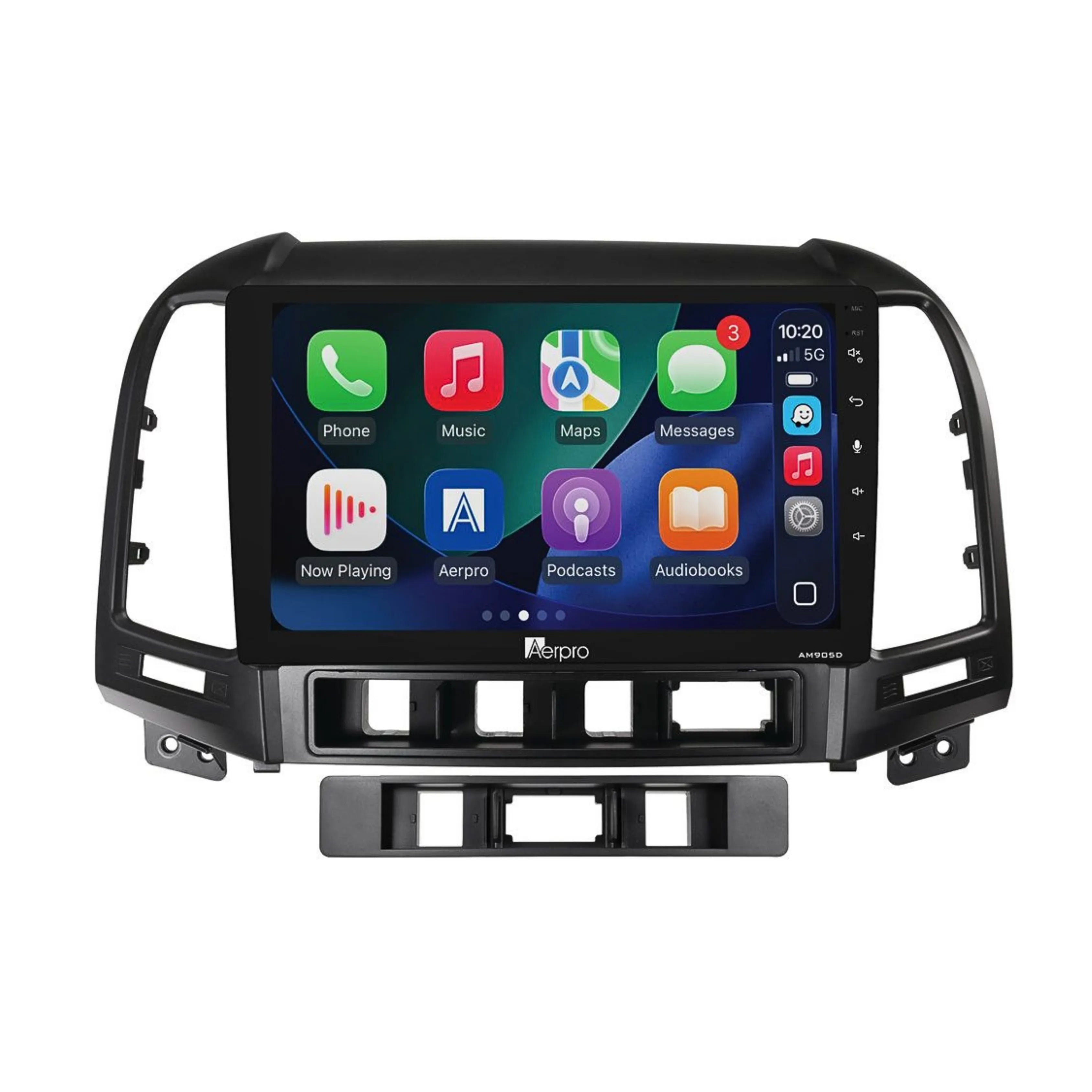

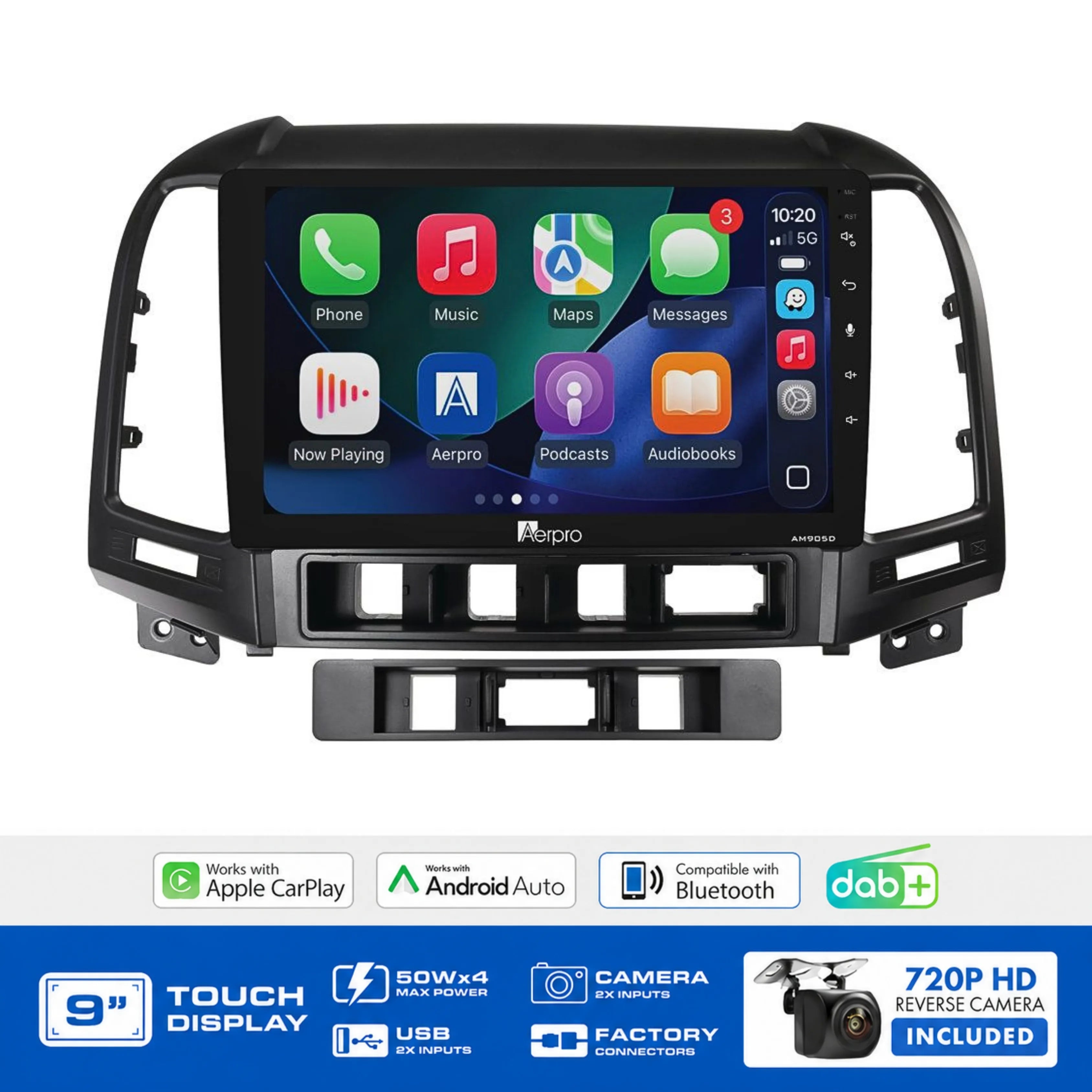

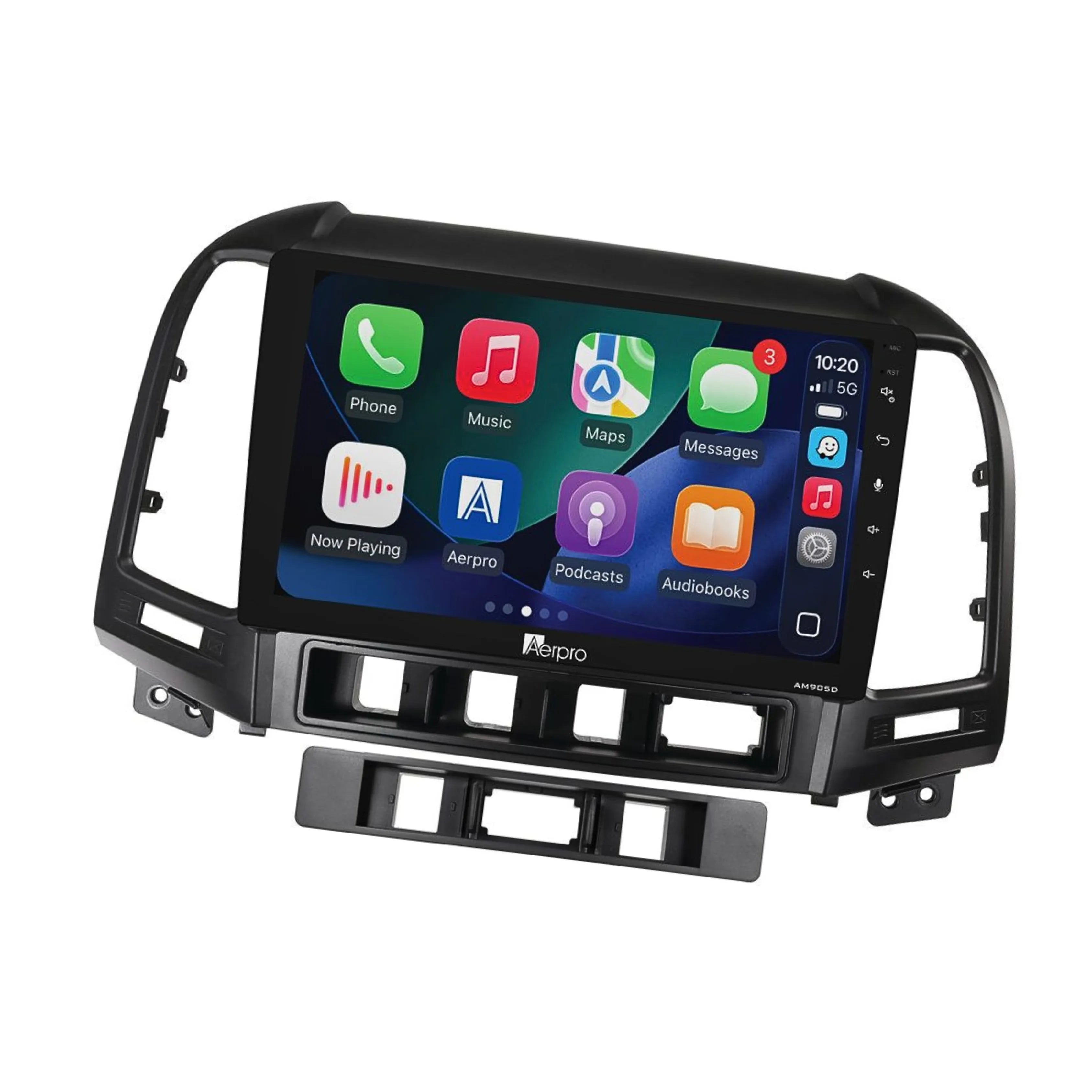

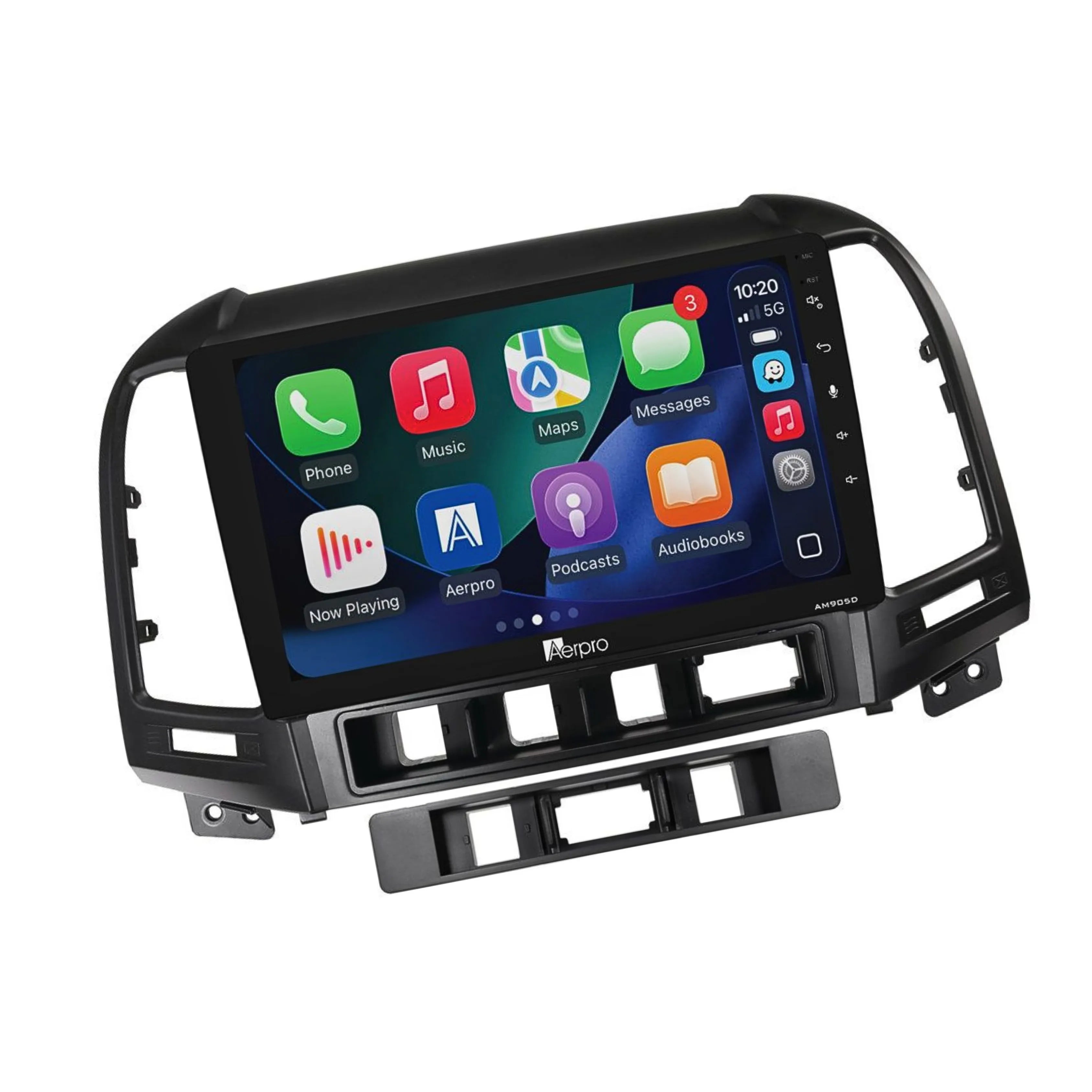

The Aerpro AMDHY20 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe CM (2006–2009) with a factory amplified system the amplified companion to the AMDHY19 (non-amplified, previously listed). Everything required for installation is included the AM905D multimedia receiver, matte black fascia kit, steering wheel control interface harness, and a 720P AHD universal rear camera. Steering wheel controls and the factory amplified system are retained.

The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

  • AM905D 9" Multimedia Receiver
  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ and time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Reverse camera input: Yes (720P AHD compatible)
  • Second camera input: Yes (720P AHD compatible)
  • LED button illumination: 6-colour selectable
  • Rear camera: 720P AHD universal included

Features & Benefits

  • Factory amplified system retained: The factory amplified audio system is fully retained the correct kit for amplified Santa Fe CM models
  • Steering wheel controls retained: Factory SWC retained via the included harness
  • Amplified variant distinction: For non-amplified Santa Fe 2006–2009, use the AMDHY19 instead
  • Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
  • DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
  • Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
  • 9" capacitive touchscreen: Large, smooth 1024x600 display
  • 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power audio with further amplifier expansion capability

Technical Specs

Specification Detail
SKU AMDHY20
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Factory Amplifier Retained Yes
Kit Includes Rear Camera Yes 720P AHD universal
Weight 3.00kg
Suits Hyundai Santa Fe CM 2006–2008 (amplified, headunit dependent)

Compatible Vehicles

  • Hyundai Santa Fe 2006–2008 CM (headunit dependent amplified only)

Frequently Asked Questions

How does the AMDHY20 differ from the AMDHY19?

Both suit the Hyundai Santa Fe CM 2006–2009, but for different audio configurations. The AMDHY20 is for vehicles with a factory amplified system, while the AMDHY19 is for non-amplified models. Confirm your Santa Fe's audio configuration before purchasing.

Does the factory amplified system remain functional?

Yes the factory amplified audio system is fully retained with the AMDHY20.

Does CarPlay require the park brake to be connected?

Yes the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included. An additional camera input is also available for a front or tow camera.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
