Aerpro AMDHY19 Hyundai Santa Fe 2006-2009 9" Head Unit Kit Wireless CarPlay DAB

SKU: AMDHY19
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Complete 9" Head Unit Upgrade Kit for Hyundai Santa Fe 2006–2009 (Non-Amplified) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, Rear Camera Included.

Product Overview

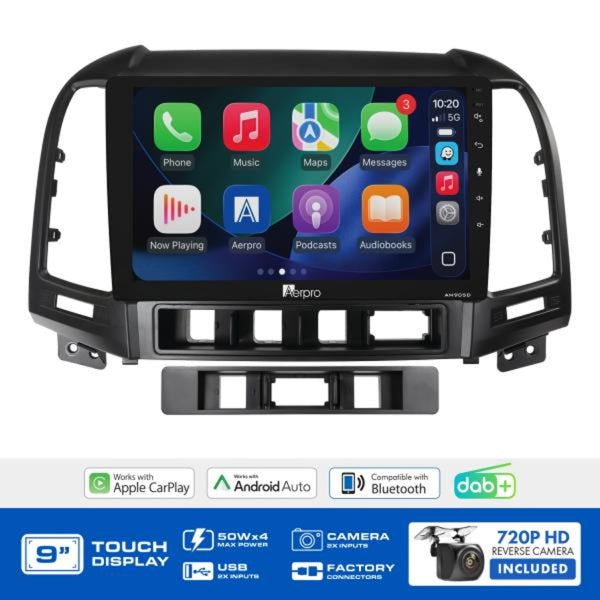

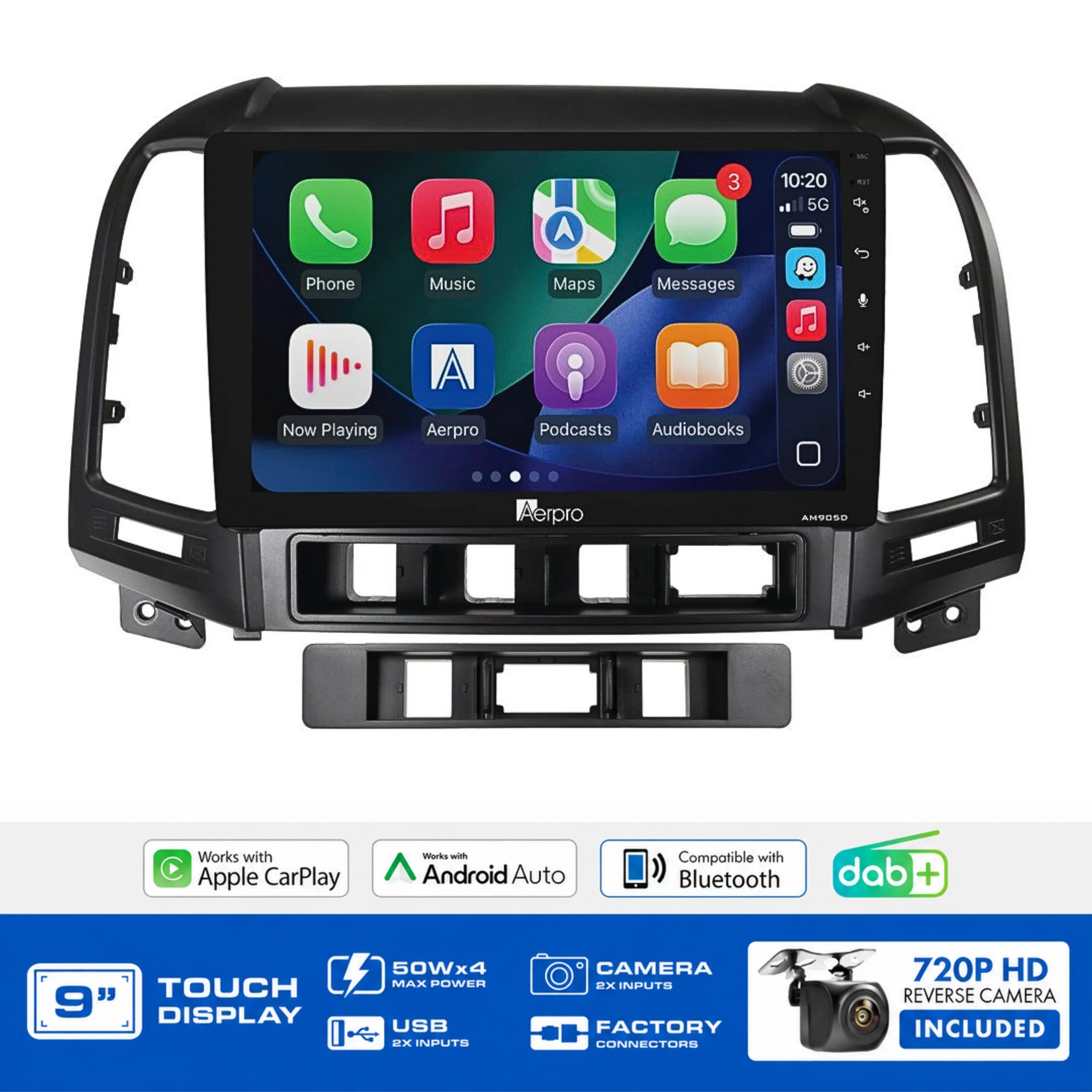

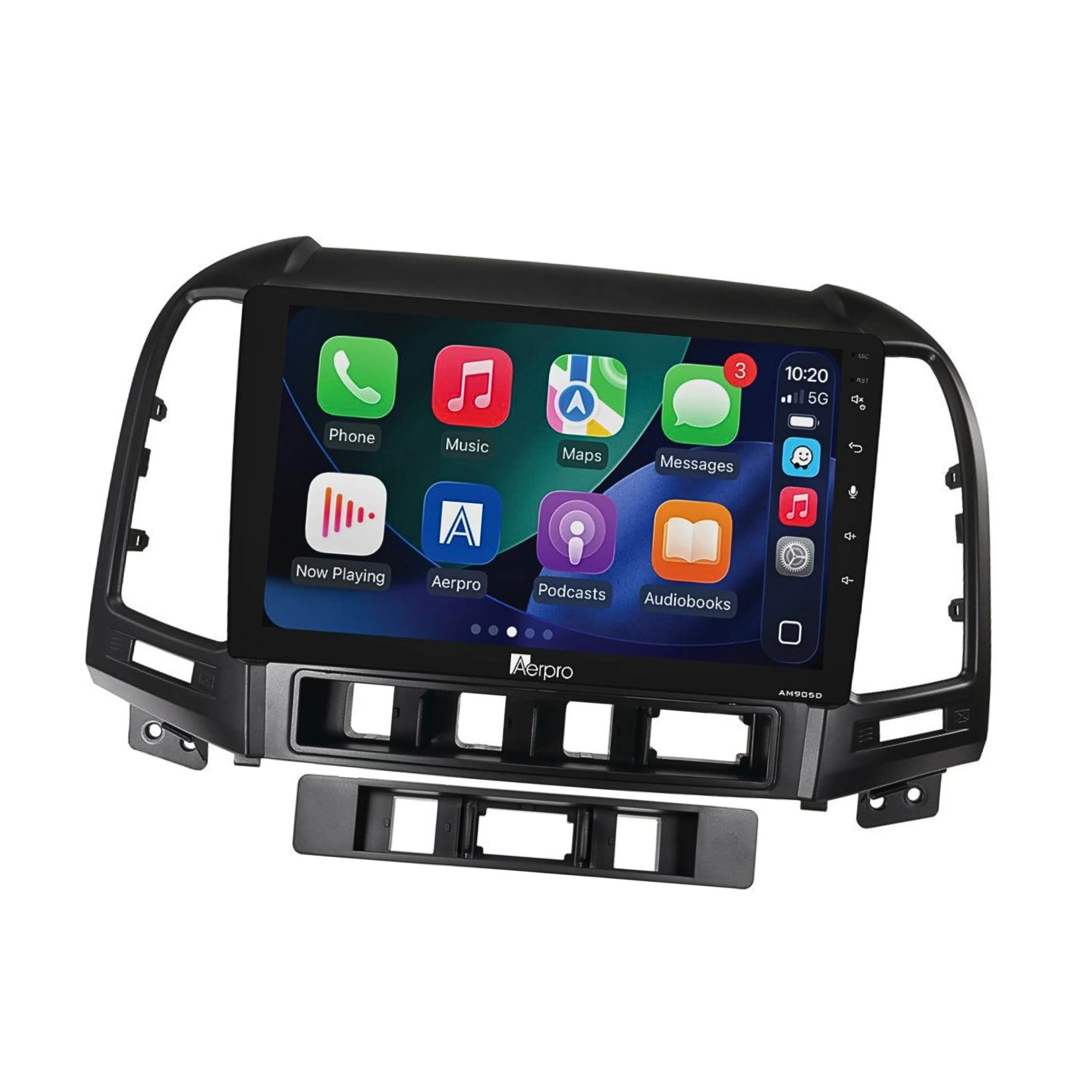

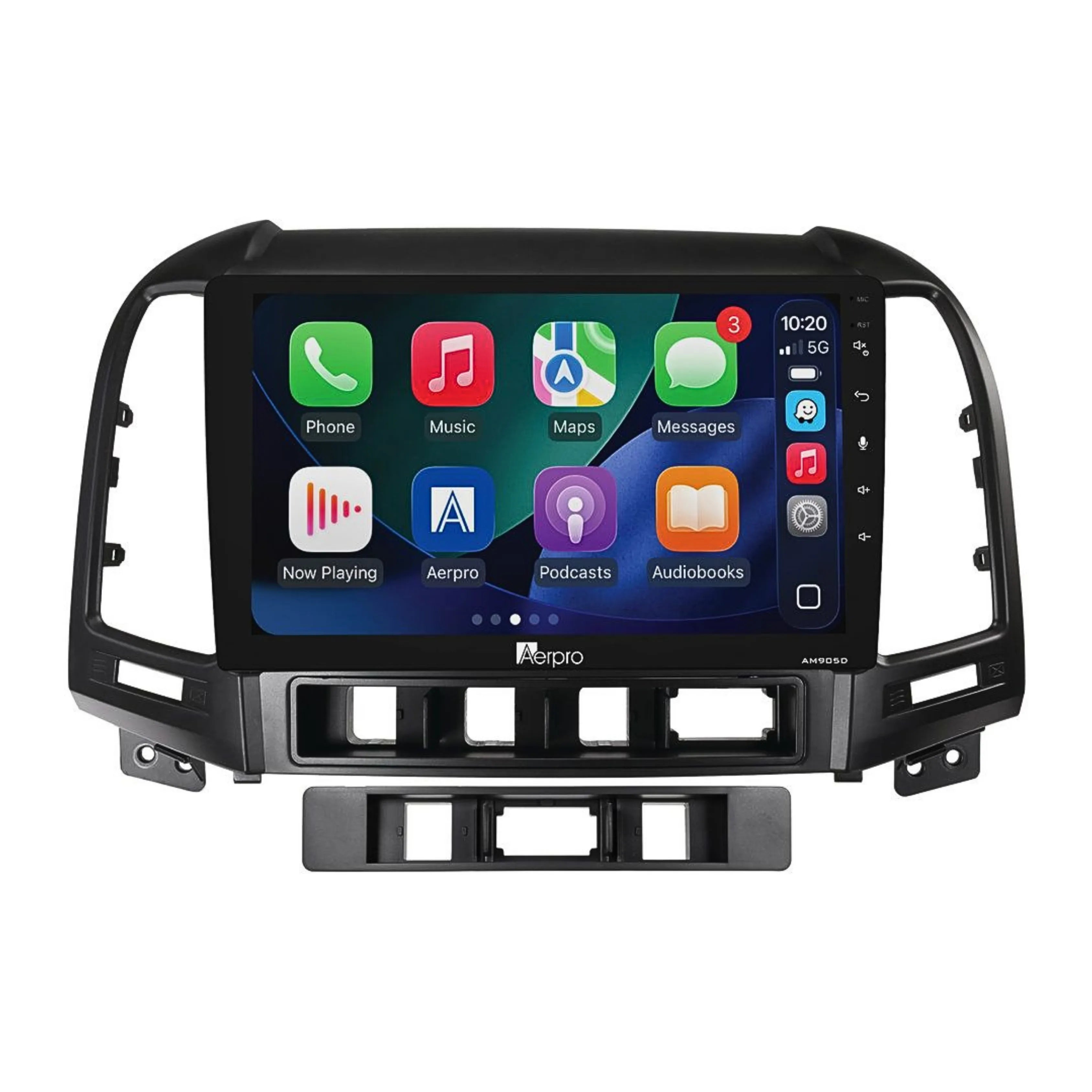

The Aerpro AMDHY19 is a complete head unit upgrade kit specifically designed for the Hyundai Santa Fe (2006–2009) without a factory amplified system. Everything required for a clean, professional installation is included in the box the AM905D multimedia receiver, a matte black fascia kit, steering wheel control interface harness, and a 720P AHD universal rear camera.

The centrepiece is the AM905D's large 9" capacitive touchscreen (1024x600 resolution) with wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and audio streaming, and a high-power 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion. Steering wheel controls are fully retained.

Kit Inclusions

  • AM905D 9" Multimedia Receiver

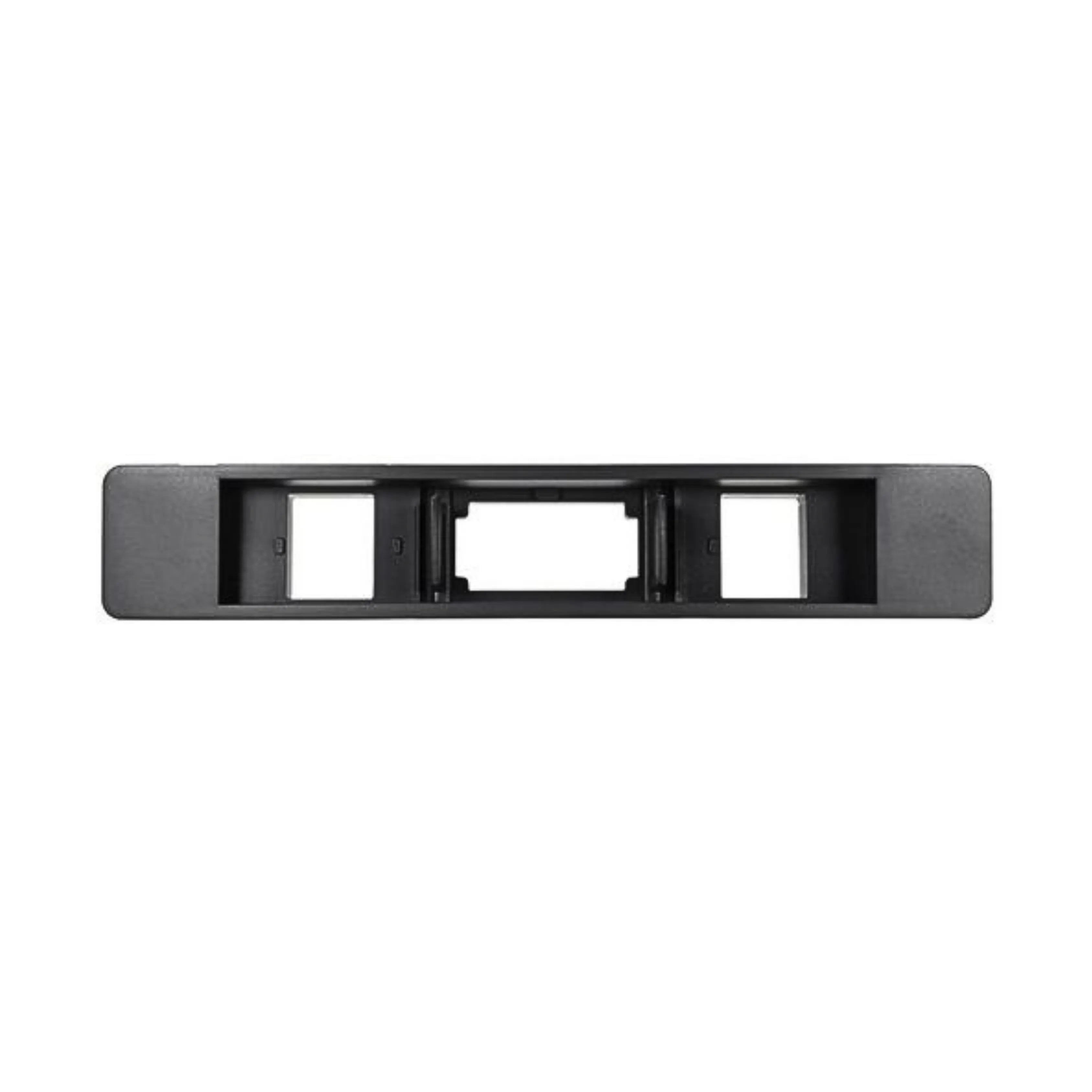

  • Matte Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • 720P AHD Universal Rear Camera

Key Specifications

  • Screen: 9" capacitive touchscreen 1024x600 resolution
  • Wireless CarPlay & Android Auto: Yes (wired also supported)
  • DAB+ digital radio: Yes (AM/FM with RDS also included)
  • Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
  • Max power output: 4 x 50W
  • RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
  • 13-band EQ: Yes
  • Time alignment: Yes
  • USB inputs: 2 x rear USB (FAT32 / 32GB max)
  • Steering wheel controls retained: Yes
  • Rear camera: 720P AHD universal included
  • LED button illumination: 6-colour selectable

Features & Benefits

  • Complete plug-and-play kit: Includes fascia, SWC harness, and rear camera no hunting for additional parts
  • Wireless Apple CarPlay & Android Auto: Use maps, music, and calls wire-free; wired connection also supported for charging while connected
  • DAB+ digital radio built-in: Clearer reception and a wider station range than FM plus AM/FM and RDS tuning
  • Bluetooth 5 with HD Voice: Crisp hands-free calling with HFP 1.6, plus wireless audio streaming via A2DP
  • 9" capacitive touchscreen: Large, smooth 1024x600 display for easy navigation of menus, maps, and media
  • Steering wheel controls retained: Factory SWC functionality preserved via the included harness
  • 720P AHD rear camera included: Improve reversing visibility immediately additional front or tow camera input also available
  • 4x50W output with 5-channel preouts: High-power output with 4V RCA preouts for adding amplifiers to the system
  • 13-band graphic EQ with time alignment: Precision audio tuning for your specific vehicle environment

Technical Specs

Specification Detail
SKU AMDHY19
Brand Aerpro
Screen Size 9"
Resolution 1024x600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen Trapezoid
Max Power 4CH x 50W
RCA Preouts 4V / 5-channel
Wireless CarPlay/Android Auto Yes
DAB+ Yes
AM/FM Presets AM 12 / FM 18
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
USB Inputs 2 x Rear (FAT32 / 32GB max)
Rear Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
EQ 13-band
Time Alignment Yes
LED Illumination 6-colour selectable
SWC Retained Yes
Kit Includes Rear Camera Yes 720P AHD universal
Weight 3.00kg
Suits Hyundai Santa Fe 2006–2009 (CM) Non-amplified only

Compatible Vehicles

  • Hyundai Santa Fe 2006–2008 CM (headunit dependent)

Frequently Asked Questions

Does this kit work with factory steering wheel controls?

Yes the included steering wheel control interface harness retains the factory SWC function.

Is a rear camera included?

Yes a 720P AHD universal rear camera is included in the kit. An additional camera input is also available for a front or tow camera.

Does wireless Apple CarPlay require anything special?

The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Does this suit Santa Fe models with a factory amplifier?

No the AMDHY19 suits Hyundai Santa Fe 2006–2009 without factory amplified systems only.

What is the return policy for this product?

Return eligibility is subject to the retailer's policy. Always verify vehicle and system compatibility before purchasing.
