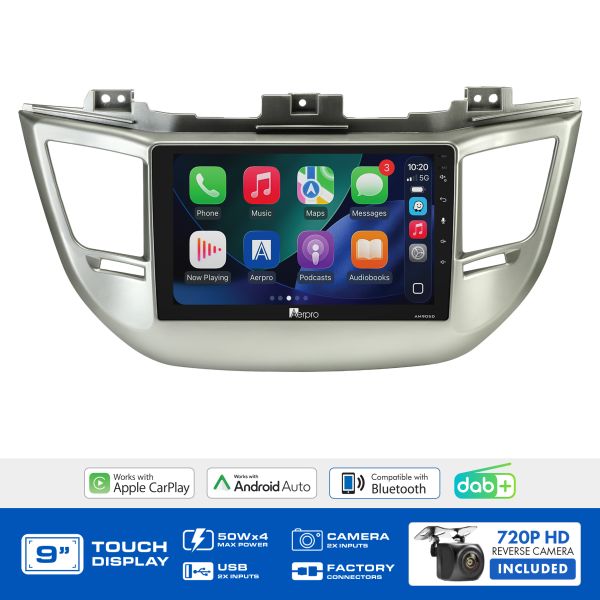

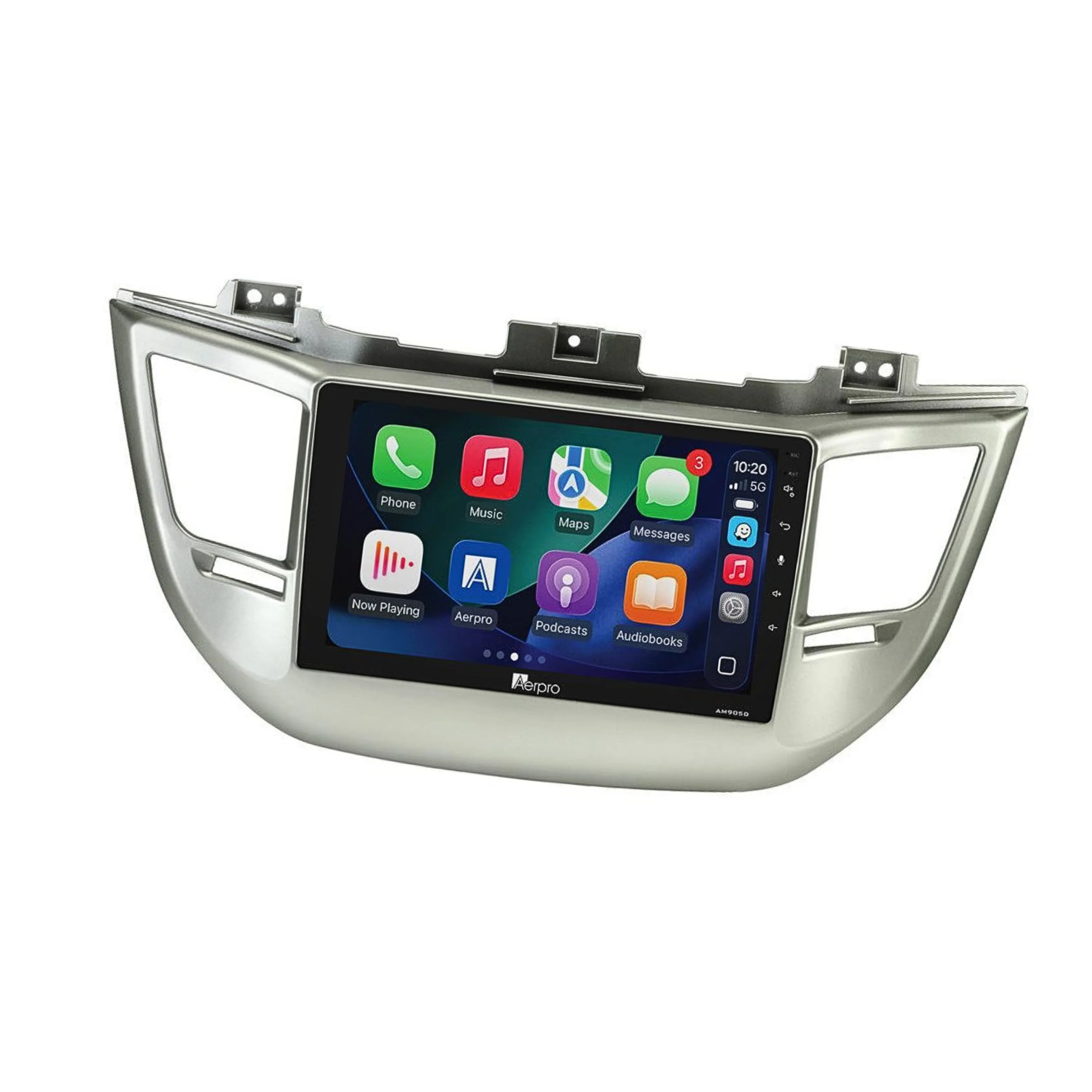

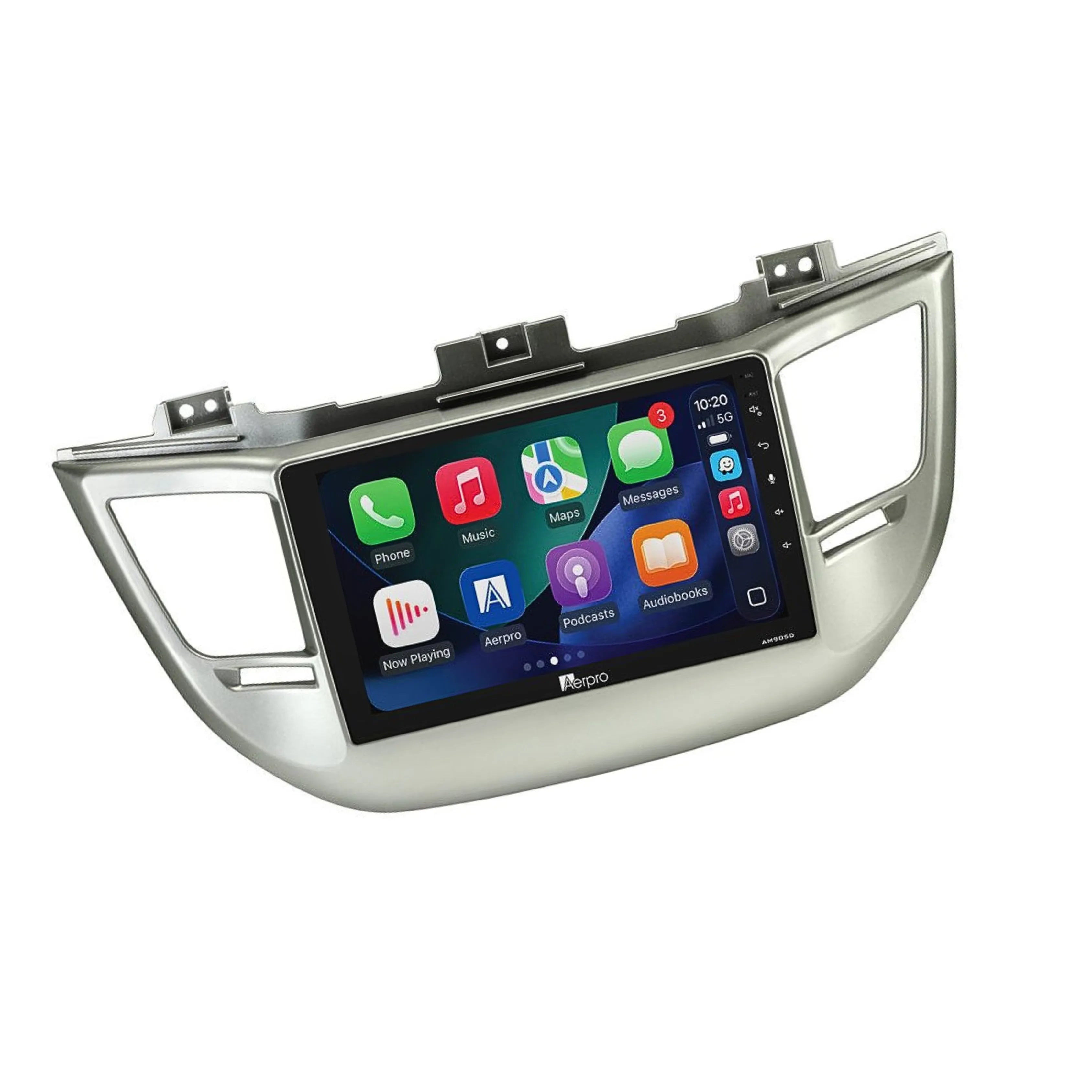

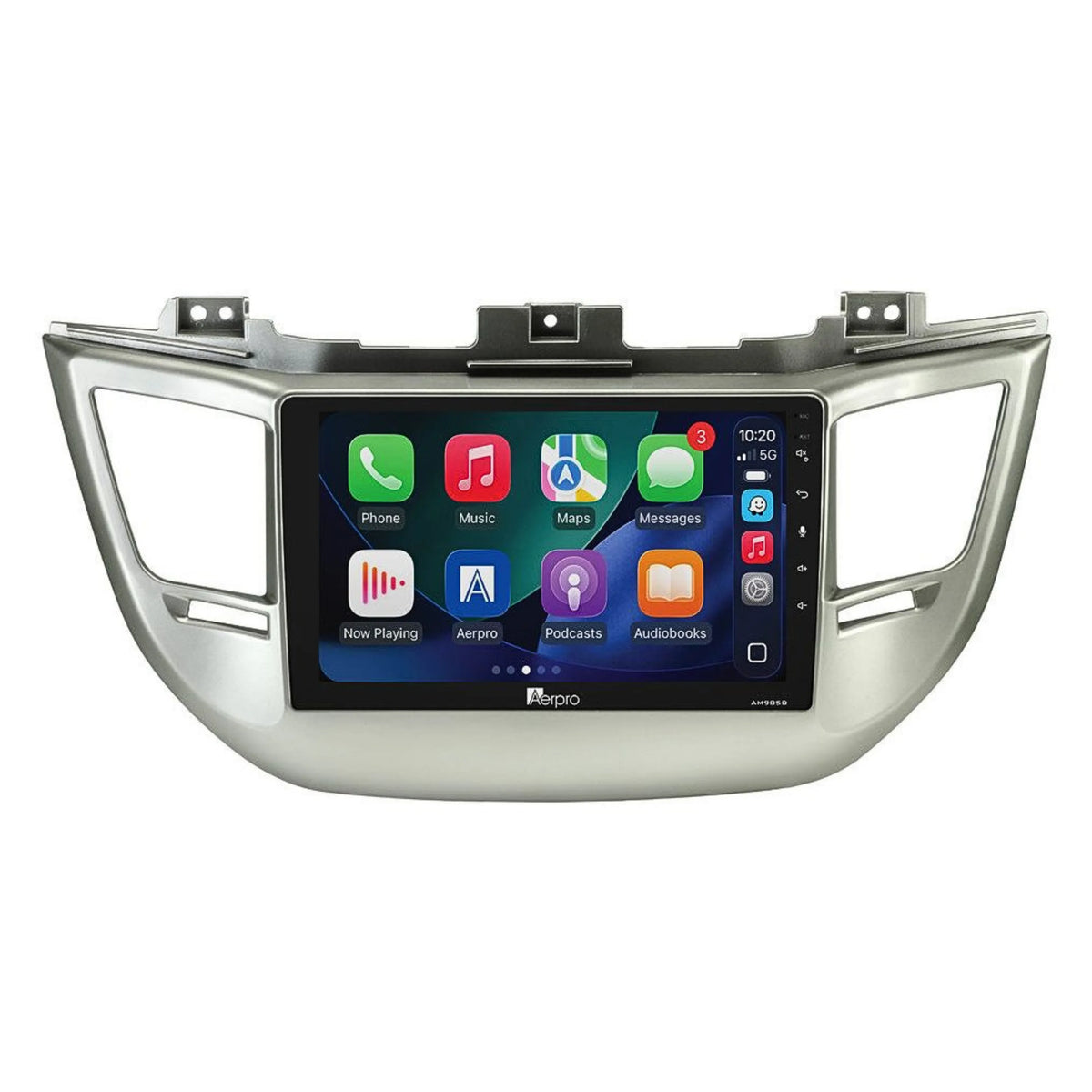

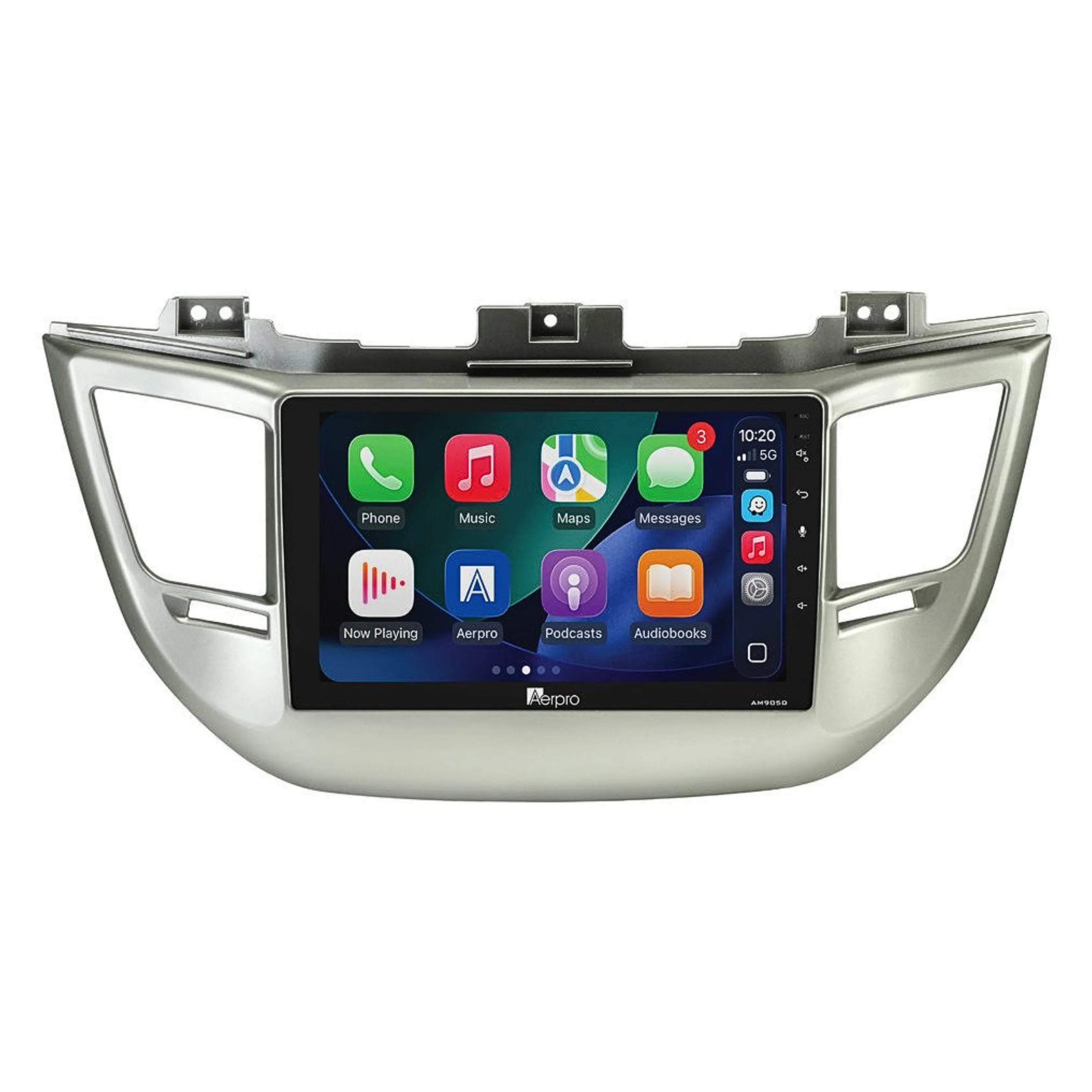

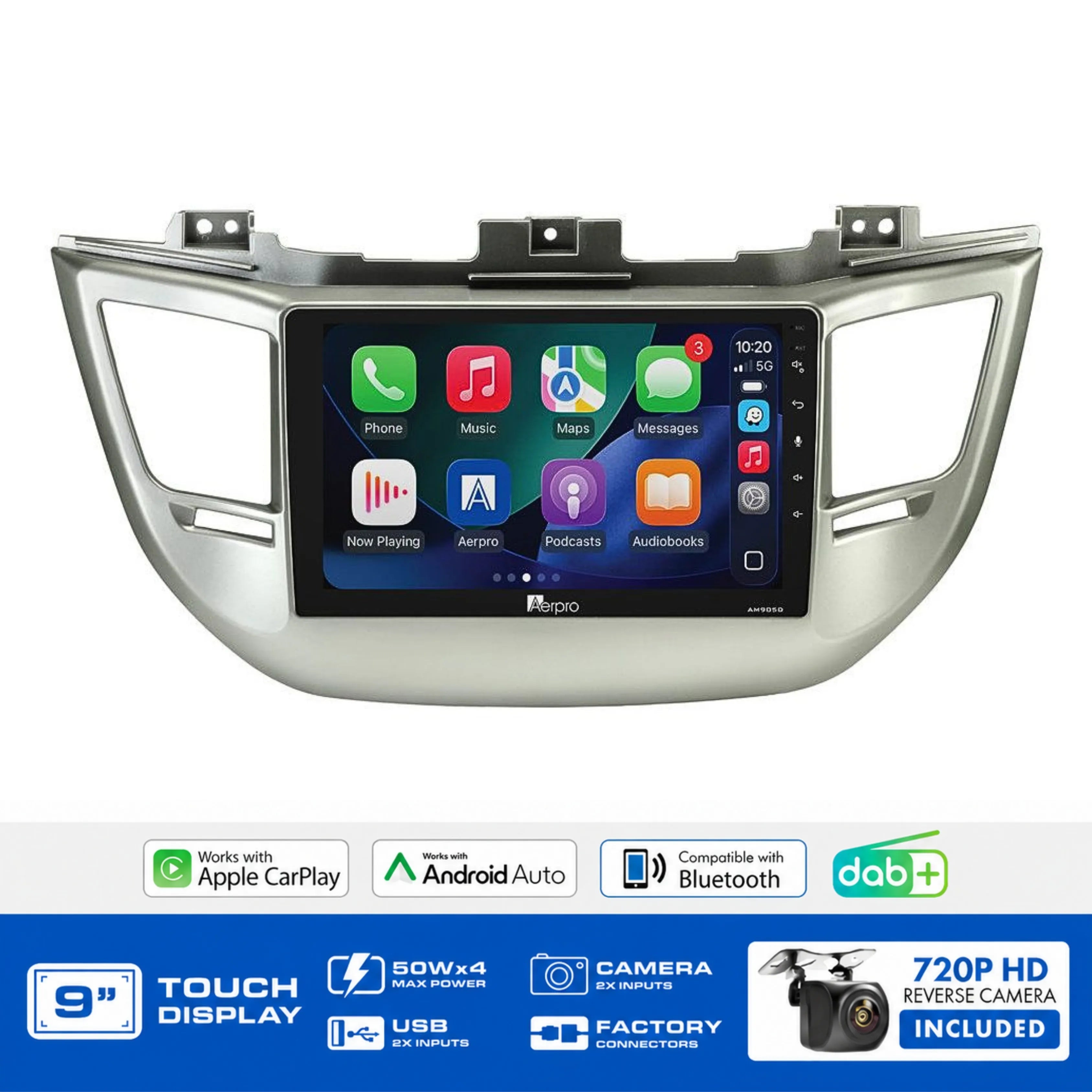

Aerpro AMDHY18 Hyundai Tucson 2015 to 2016 9" Head Unit Kit Wireless CarPlay DAB+ Nav

Complete 9" Head Unit Upgrade Kit for Hyundai Tucson 2015 to 2016 (Factory Navigation Models) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDHY18 is a complete head unit upgrade kit specifically designed for the Hyundai Tucson (2015 to 2016) with a factory navigation system the earlier navigation variant, with the AMDHY12 covering the 2017 to 2018 factory navigation Tucson. Everything required for installation is included the AM905D multimedia receiver, silver fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls, factory USB input, and factory reverse camera are all retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts.

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Silver Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Suits 2015 to 2016 factory navigation Tucson models: For 2017 to 2018 factory navigation Tucson, use the AMDHY12
• Factory reverse camera retained: Retained via the included camera retention adaptor uses the reverse camera input of the head unit
• Factory USB input retained: Retained via the included USB retention adaptor uses the rear USB input of the head unit
• Steering wheel controls retained: Full SWC retained via the included harness and patch lead
• Silver fascia kit: Silver finish matching the Tucson interior
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Tucson Navigation Kit Comparison

FAQ

What vehicles does the Aerpro AMDHY18 suit?

The Aerpro AMDHY18 suits the Hyundai Tucson (2015 to 2016) with a factory navigation system.

How does the AMDHY18 differ from the AMDHY12?

Both suit the Hyundai Tucson with factory navigation. The AMDHY18 suits 2015 to 2016 models while the AMDHY12 suits 2017 to 2018 models. The AMDHY18 also explicitly requires the park brake wire to be connected to the park brake for CarPlay/Android Auto to function. Use the Aerpro What Fits Your Car Guide to confirm which kit suits your vehicle.

Does the park brake wire need to be connected?

Yes, the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Does this kit retain the factory reverse camera?

Yes retained via the camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Is the AUX input retained?

No, AUX input retention is not supported by the AMDHY18.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
