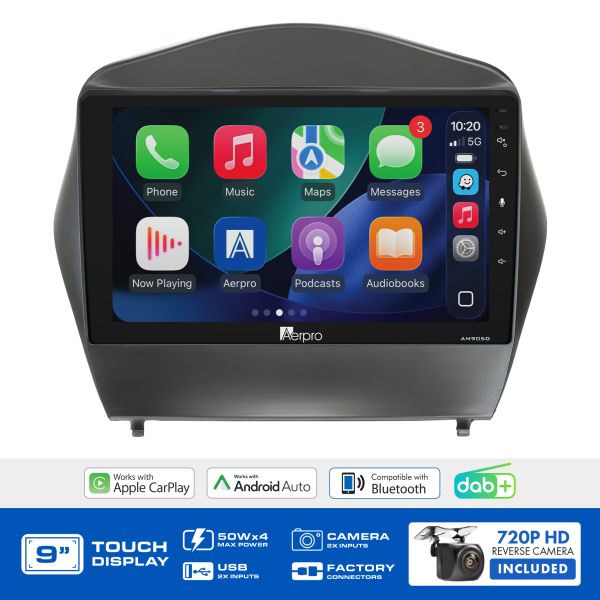

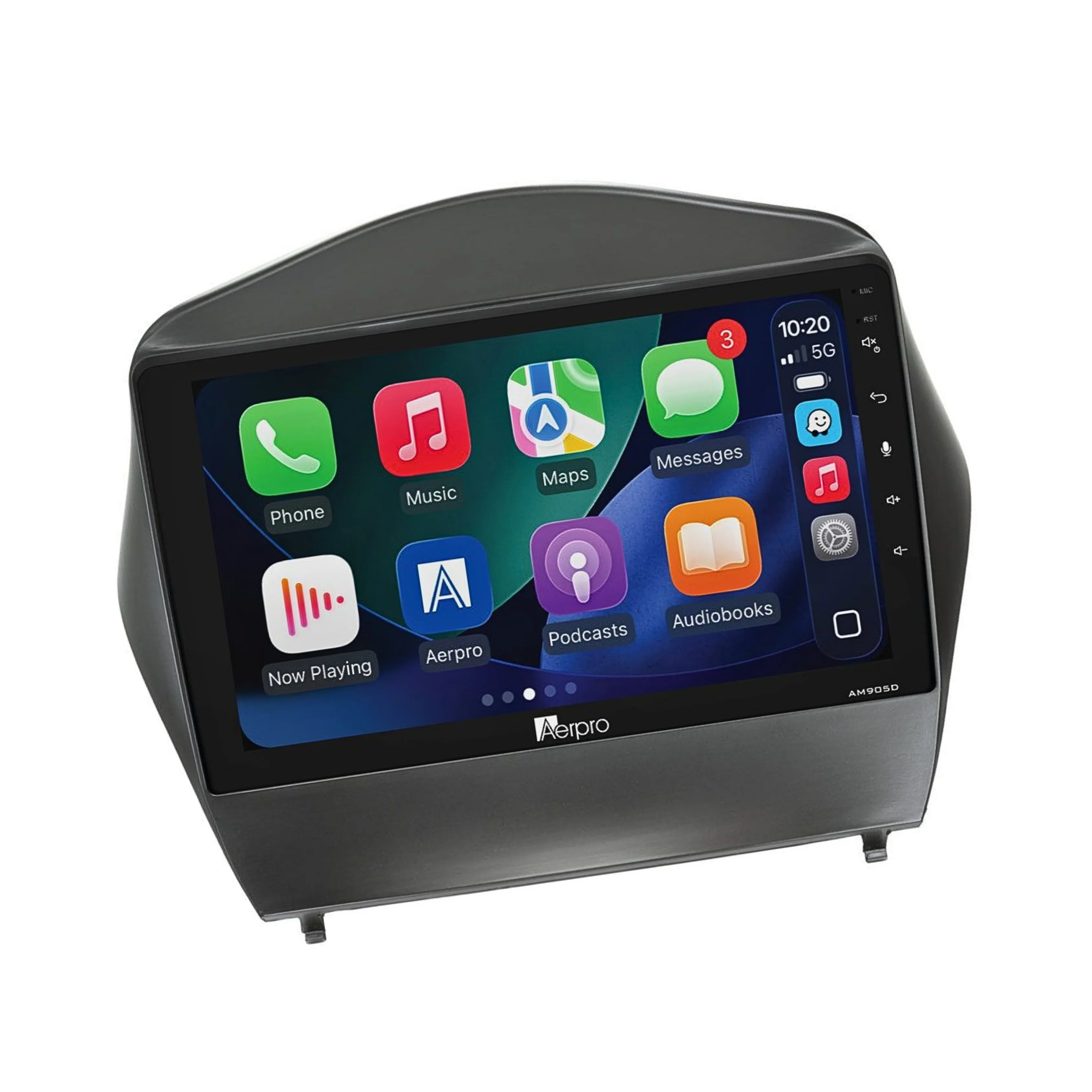

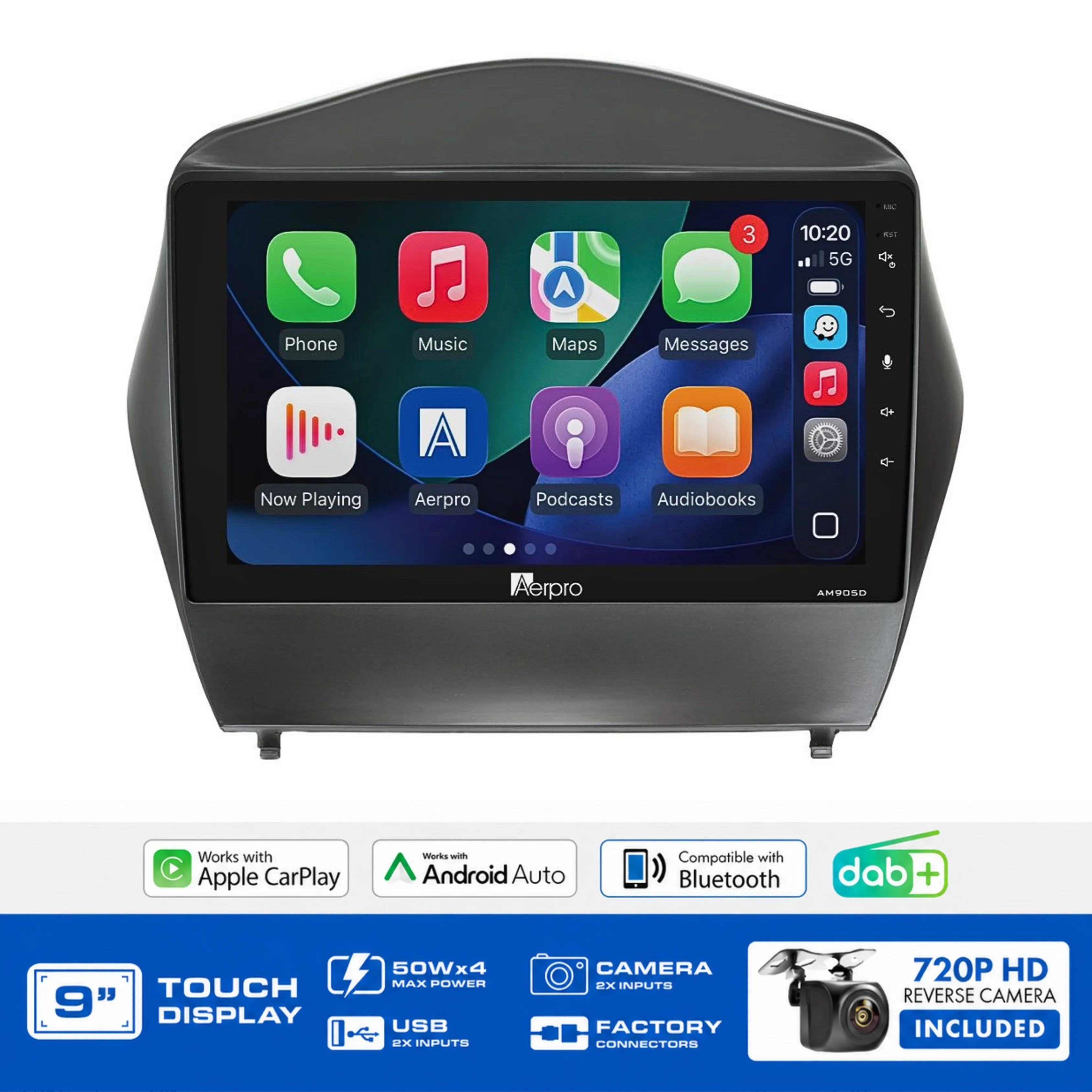

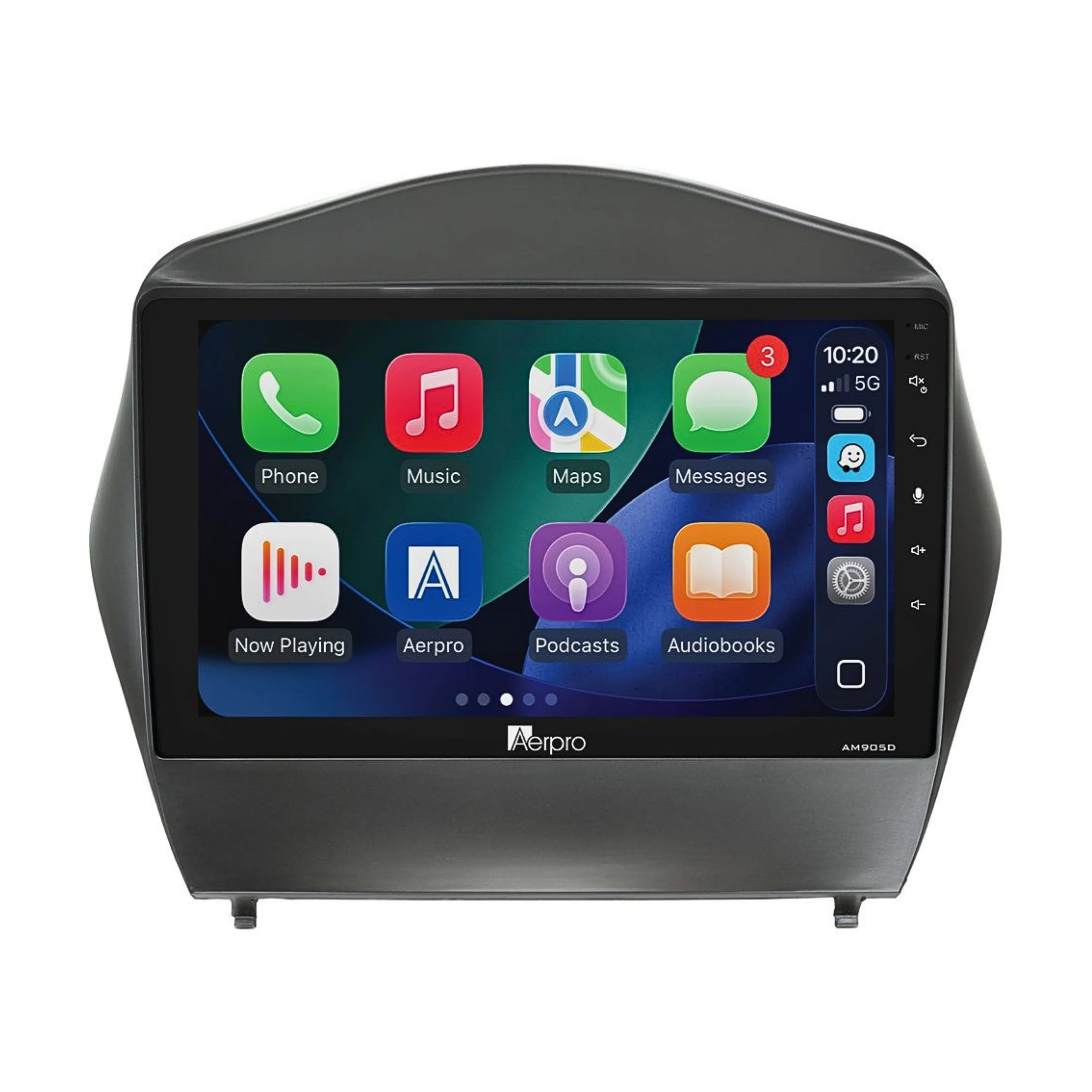

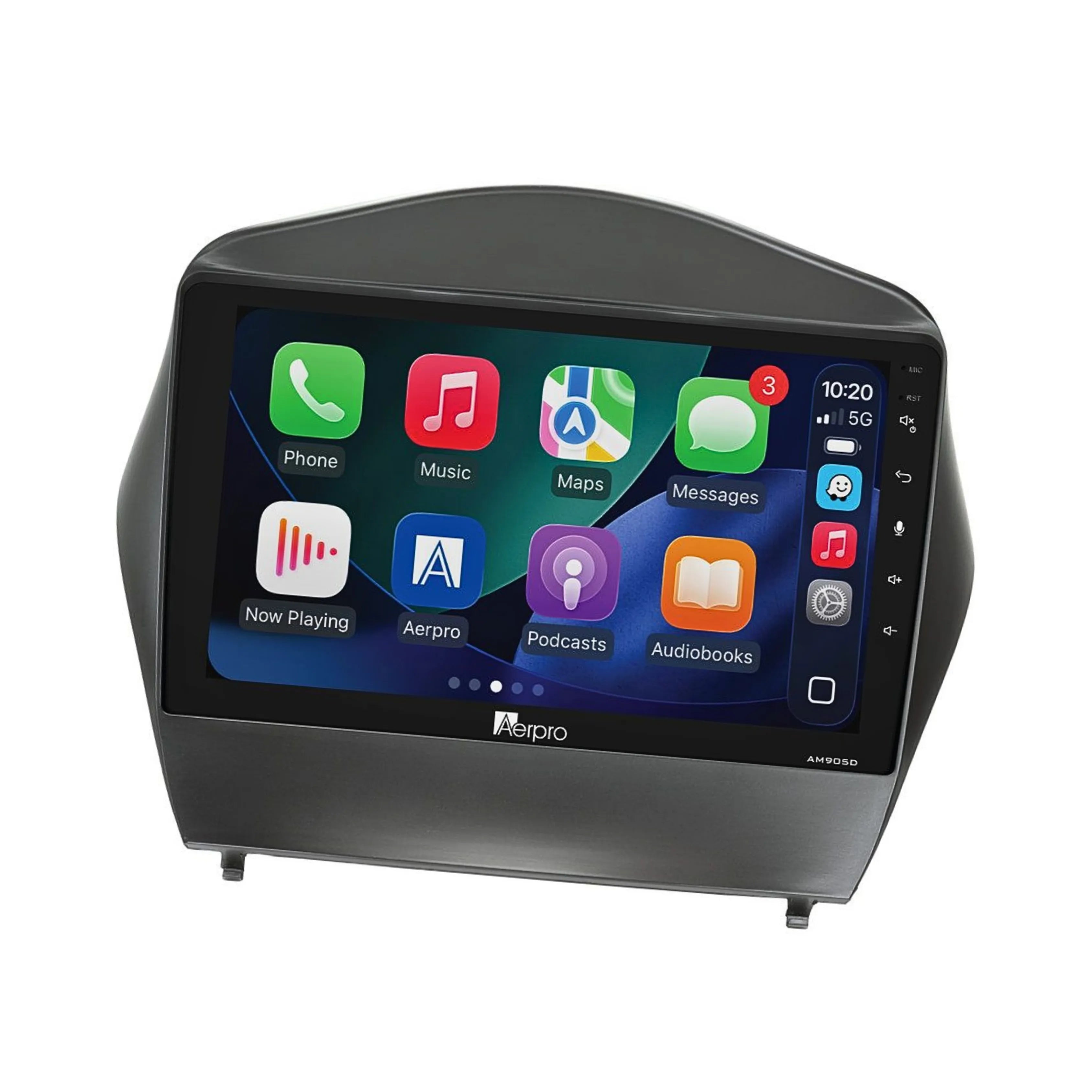

Aerpro AMDHY17 9" Multimedia Receiver Hyundai iX35 2009-2015

SKU: AMDHY17
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9" Wireless CarPlay Kit for the Hyundai iX35 Vehicle Menu Retention and a Clean Matte Black Finish

Product Overview

The Aerpro AMDHY17 is a complete head unit upgrade kit engineered for the Hyundai iX35 LM1 and LM2 (2009–2013) and iX35 Series 2 non-navigation variants (2013–2015). It replaces the factory Hyundai Mobis unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining steering wheel controls and vehicle menu access on compatible models.

The kit includes the AM905D multimedia receiver, a matte black vehicle-specific facia kit, SWC interface harness, SWC patch lead, and a 720P AHD universal rear camera. Note that factory USB and AUX input retention is not included in this kit the separately sold APHYUSB4 USB/AUX Retention Adaptor is required if you wish to retain those inputs. Audio performance is covered by 4 x 50W max output, a 13-band EQ, time alignment, and 4V/5-channel RCA preouts.

Features & Benefits

  • Vehicle menu access retained (selected models) — unlike most aftermarket installs, the AMDHY17 preserves access to the iX35 vehicle menu on compatible variants, a feature unique to this kit
  • Matte black vehicle-specific facia — matches the iX35 interior trim precisely; no universal adaptors or filler plates required
  • Wireless Apple CarPlay & Android Auto — connect your phone over Wi-Fi for maps, music, calls, and messages; wired connection also supported for simultaneous USB charging
  • 9" capacitive touchscreen at 1024x600 resolution — significantly larger and more responsive than the Hyundai Mobis factory display
  • Built-in DAB+ digital radio — digital audio quality with a wider station range; AM/FM with RDS and 18 FM / 12 AM presets also included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone for clear call quality in the iX35 cabin
  • Steering wheel controls retained — SWC interface harness and patch lead included; plug-and-play retention for the factory SWC buttons
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to an iX35 with no factory reverse camera
  • USB/AUX retention available separately — the APHYUSB4 USB/AUX Retention Adaptor (sold separately) is required to retain factory USB and AUX inputs if needed
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via clean 4V front/rear/sub preamp outputs
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots for precise cabin tuning

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes
Vehicle menu Yes (selected models only)
Factory reverse camera N/A
Factory USB input Not included — requires APHYUSB4 (sold separately)
Factory AUX input Not included — requires APHYUSB4 (sold separately)
Factory amplifier Not retained

Compatible With / Goes Well With

  • Hyundai iX35 LM1, LM2 (2009–2013)
  • Hyundai iX35 Series 2 non-navigation (2013–2015)
  • Suits vehicles fitted with Hyundai Mobis factory head units: 96160, LM01, LM02, LM03
  • Not compatible with iX35 Series 2 navigation-equipped variants
  • APHYUSB4 USB/AUX Retention Adaptor (sold separately) for factory USB and AUX input retention
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)

Weight

Not specified

Frequently Asked Questions

Which iX35 models does this kit fit?

The AMDHY17 suits the Hyundai iX35 LM1 and LM2 (2009–2013) and the iX35 Series 2 non-navigation variants (2013–2015) fitted with Hyundai Mobis factory head units (96160, LM01, LM02, LM03).

Does it retain the factory USB and AUX inputs?

Not out of the box — factory USB and AUX retention requires the separately sold APHYUSB4 USB/AUX Retention Adaptor, which is not included in this kit.

Is the vehicle menu still accessible after installation?

Yes, on selected compatible iX35 models the factory vehicle menu is retained, which is an uncommon feature for an aftermarket head unit install on this platform.

Does the iX35 have a factory reverse camera to retain?

No — the iX35 does not come with a factory reverse camera. A 720P AHD universal rear camera is included in the kit to add reversing visibility.

Does it support wireless CarPlay or do I need to plug my phone in?

Both — wireless Apple CarPlay and Android Auto connect over Wi-Fi without any cables, or connect via USB for wired operation and simultaneous phone charging.
