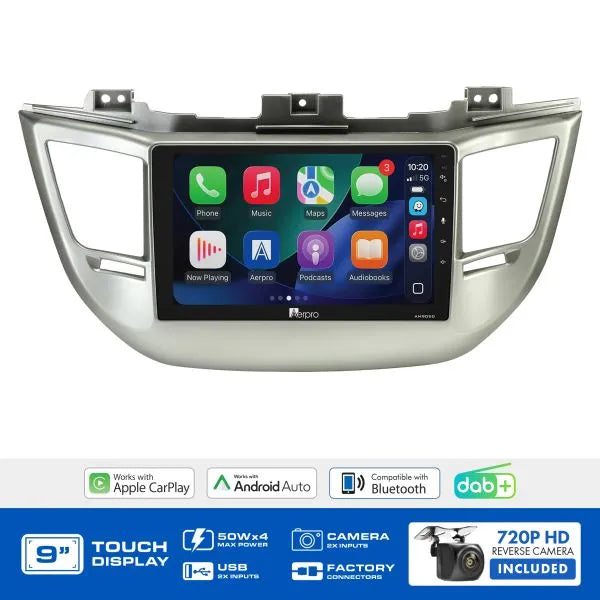

Aerpro AMDHY12 Hyundai Tucson 2017 to 2018 9" Head Unit Kit Wireless CarPlay DAB+ Nav

Complete 9" Head Unit Upgrade Kit for Hyundai Tucson 2017 to 2018 (Factory Navigation Models) Wireless Apple CarPlay, Android Auto, DAB+, Bluetooth 5, SWC, USB & Factory Reverse Camera Retained, Rear Camera Included.

Product Overview

The Aerpro AMDHY12 is a complete head unit upgrade kit specifically designed for the Hyundai Tucson (2017 to 2018) with a factory navigation system. Everything required for a clean, professional installation is included the AM905D multimedia receiver, silver fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, USB retention adaptor, and a 720P AHD universal rear camera.

Steering wheel controls, factory USB input, and factory reverse camera are all retained. The AM905D features a 9" capacitive touchscreen (1024x600), wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, Bluetooth 5 for hands-free calling and streaming, and 4x50W output with 13-band EQ and 4V/5CH RCA preouts for amplifier expansion.

Kit Inclusions

• AM905D 9" Multimedia Receiver
• Silver Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor
• 720P AHD Universal Rear Camera

Vehicle Feature Retention

Key Specifications

• Screen: 9" capacitive touchscreen 1024x600 resolution
• Wireless CarPlay & Android Auto: Yes (wired also supported)
• DAB+ digital radio: Yes (AM/FM with RDS also included)
• Bluetooth: V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
• Max power output: 4 x 50W
• RCA preouts: 4V / 5-channel (Front/Rear/Subwoofer)
• 13-band EQ and time alignment: Yes
• USB inputs: 2 x rear USB (FAT32 / 32GB max)
• Reverse camera input: Yes (720P AHD compatible)
• Second camera input: Yes (720P AHD compatible)
• LED button illumination: 6-colour selectable
• Rear camera: 720P AHD universal included

Features & Benefits

• Suits factory navigation Tucson models: Specifically designed for 2017 to 2018 Hyundai Tucson with factory navigation confirm your vehicle has the factory nav system before purchasing
• Factory reverse camera retained: Existing factory reverse camera retained via the included camera retention adaptor uses the reverse camera input of the head unit
• Factory USB input retained: Factory USB input retained via the included USB retention adaptor uses the rear USB input of the head unit
• Steering wheel controls retained: Full factory SWC retained via the included harness and patch lead
• Silver fascia kit: Silver finish to match the Tucson interior aesthetic
• Wireless Apple CarPlay & Android Auto: Wire-free phone integration; wired connection also supported
• DAB+ digital radio built-in: Crystal-clear digital radio plus AM/FM and RDS
• Bluetooth 5 with HD Voice: Crisp hands-free calling and wireless audio streaming
• 9" capacitive touchscreen: Large, smooth 1024x600 display
• 720P AHD rear camera included: Immediate reversing visibility additional front or tow camera input also available
• 4x50W output with 5-channel preouts: High-power audio with amplifier expansion capability

Technical Specs

Compatible Vehicles

• Hyundai Tucson 2015 to 2018 (factory navigation models)

FAQ

What vehicles does the Aerpro AMDHY12 suit?

The Aerpro AMDHY12 suits the Hyundai Tucson (2017 to 2018) with a factory navigation system.

Does this kit suit all Hyundai Tucson 2017 to 2018 models?

No, the AMDHY12 suits factory navigation models only. Confirm your Tucson has the factory navigation system before purchasing.

Does this kit retain the factory reverse camera?

Yes, the factory reverse camera is retained via the included camera retention adaptor. Reverse camera retention uses the reverse camera input of the head unit.

Does this kit retain the factory USB input?

Yes, the factory USB input is retained via the included USB retention adaptor. USB input retention uses the rear USB input of the head unit.

Is the AUX input retained?

No, AUX input retention is not supported by the AMDHY12.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
