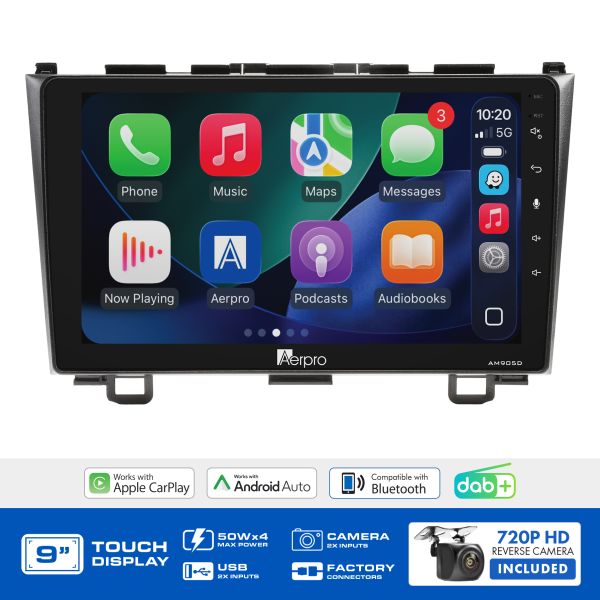

Aerpro AMDHO1 9" Multimedia Receiver Kit Honda CRV RE 2007-2011

SKU: AMDHO1
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMDHO1 9 Inch Multimedia Receiver Head Unit Upgrade Kit for Honda CRV RE 2007 to 2011 with Wireless CarPlay Android Auto DAB+ Bluetooth SWC Retention and AHD Rear Camera

The Aerpro AMDHO1 is a complete head unit upgrade kit for the Honda CRV RE (2007 to 2011). Includes the AM905D 9-inch multimedia receiver, black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera. Retains factory steering wheel audio controls (phone button not retained). Note: the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function.

Product overview

The AMDHO1 delivers a complete upgrade for the Honda CRV RE (2007 to 2011) with all installation hardware in the box. The AM905D receiver features a 9-inch 1024x600 capacitive touchscreen in a fixed trapezoid-style screen format. Wireless and wired Apple CarPlay and Android Auto are both supported. DAB+ digital radio is built in alongside AM/FM with RDS. Bluetooth 5.0 provides hands-free calling with HD Voice (HFP 1.6) and A2DP audio streaming. Internal and external microphone options are included.

Audio output is 4 x 50W peak into 4 ohms, with a 4V 5-channel RCA preamp output (front/rear/subwoofer), 13-band graphic EQ with 6+2 custom presets, time alignment, subwoofer level control, and LPF. Two rear USB ports support CarPlay/Android Auto with charging (USB1) and media playback (USB2), with FAT32 support up to 32GB. A rear A/V RCA input, composite video output (two), reverse camera input (720P AHD compatible), and second camera input (720P AHD compatible) are included. Button illumination is selectable across six colours.

The 720P AHD universal rear camera is a surface-mount unit with a Sony 225 1/3 CMOS sensor and a 150-degree lens angle.

Steering wheel controls are retained via the included SWC interface harness and patch lead. The phone button is not retained.

Features and benefits

Complete head unit upgrade kit for Honda CRV RE 2007 to 2011: AM905D receiver, black fascia, SWC interface harness, SWC patch lead, antenna adaptor, and 720P AHD rear camera all included.

9-inch 1024x600 capacitive touchscreen: Fixed trapezoid-style display with smooth, responsive touch.

Wireless and wired Apple CarPlay and Android Auto: Park brake wire must be connected to the park brake to enable these features.

Built-in DAB+ digital radio: DAB+ with AM/FM RDS tuning (AM 12 presets / FM 18 presets).

Bluetooth 5.0 with HD Voice: Hands-free calling (HFP 1.6), A2DP audio streaming, AVRCP, PBAP, internal and external microphone.

4 x 50W peak output with 5-channel 4V RCA preamp: Front/rear/subwoofer RCA outputs for external amplifier connection.

13-band EQ with time alignment and subwoofer control: Advanced audio tuning with 6+2 custom presets and LPF.

720P AHD universal rear camera included: Surface-mount, Sony 225 sensor, 150-degree lens angle. Second camera input also available.

SWC retention (phone button not retained): Factory steering wheel audio controls retained via included interface harness.

6-colour button illumination: Red, yellow, green, blue, purple, or white.

What's in the box

AM905D Multimedia Receiver:

  • 1x 9" Fixed Headunit (Trapezoid)
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

Kit Components:

  • Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera (wired)

Technical specs

AM905D Multimedia Receiver

Specification Detail
SKU AMDHO1
Brand Aerpro
Display Size 9 inch
Resolution 1024 x 600
Touchscreen Capacitive
Screen Style Fixed trapezoid
OS Linux
Max Power Output 4 x 50W (4 ohm)
RCA Preamp Output 4V, 5-channel (front/rear/subwoofer)
Subwoofer Level Control Yes
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K)
EQ Presets 6+2 custom
Time Alignment Yes
LPF Yes
Loudness Yes
Apple CarPlay Yes, wireless and wired
Android Auto Yes, wireless and wired
Bluetooth V5 (A2DP, AVRCP, HFP, PBAP)
HFP Profile HFP 1.6 (HD Voice)
Microphone Internal and external
DAB+ Yes
AM Tuner 522 to 1710kHz, 9kHz step, 12 presets
FM Tuner 87.5 to 108.0MHz, 0.05MHz step, 18 presets
RDS Yes
USB1 (Rear) CarPlay/Android Auto and charging, 5V/1.5A
USB2 (Rear) Media and charging, 5V/1.5A
USB Max FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V Input Yes, RCA (3 connectors)
Composite Video Output Yes, two
Reverse Camera Input Yes, 720P AHD compatible
Second Camera Input Yes, 720P AHD compatible
SWC Yes, via Aerpro SWC adaptor (phone button not retained)
Button Illumination 6-colour (red, yellow, green, blue, purple, white)
OSD Language English

720P AHD Universal Rear Camera

Specification Detail
Image Sensor Sony 225, 1/3 CMOS AHD
Resolution 720P
Lens Angle 150 degrees
Mount Type Surface mount
Camera Type Rear/Reverse
Connection Wired

Vehicle feature retention

Feature Retained
Steering Wheel Controls Yes (phone button not retained)
Factory Reverse Camera N/A
AUX Input N/A
USB Input N/A
Parking Tones N/A
Factory Amplifier N/A

Compatible with

Make Model Variant Years
Honda CRV RE 2007 to 2011

Frequently asked questions

What is included in the AMDHO1 kit? The kit includes the AM905D 9-inch multimedia receiver with all receiver accessories, a black fascia kit, steering wheel control interface harness, SWC patch lead, antenna adaptor, and a 720P AHD universal rear camera.

Does this kit support wireless CarPlay and Android Auto? Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto. The park brake wire must be connected to the park brake for these features to function.

Are factory steering wheel controls retained? Yes, factory steering wheel audio controls are retained via the included SWC interface harness and patch lead. The phone button is not retained.

Is the rear camera included? Yes. A 720P AHD universal rear camera is included. The receiver also has a second camera input for a front or towing camera.

Does the AM905D have DAB+ radio? Yes. DAB+ digital radio is built in alongside AM/FM with RDS. A DAB antenna is included with the receiver.
