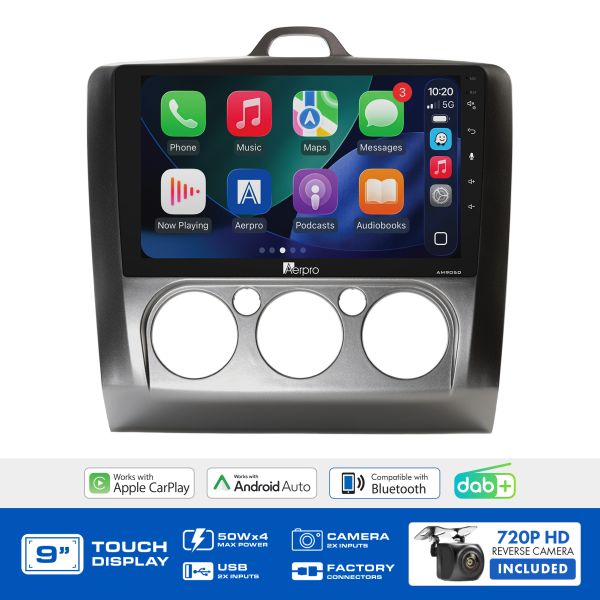

Aerpro AMDFO9 9" Multimedia Receiver Ford Focus 2005-2009 Manual

SKU: AMDFO9
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

9" Wireless CarPlay for the Ford Focus LS and LT Manual Climate Models Only, SWC Retained, Park Brake Required

Product Overview

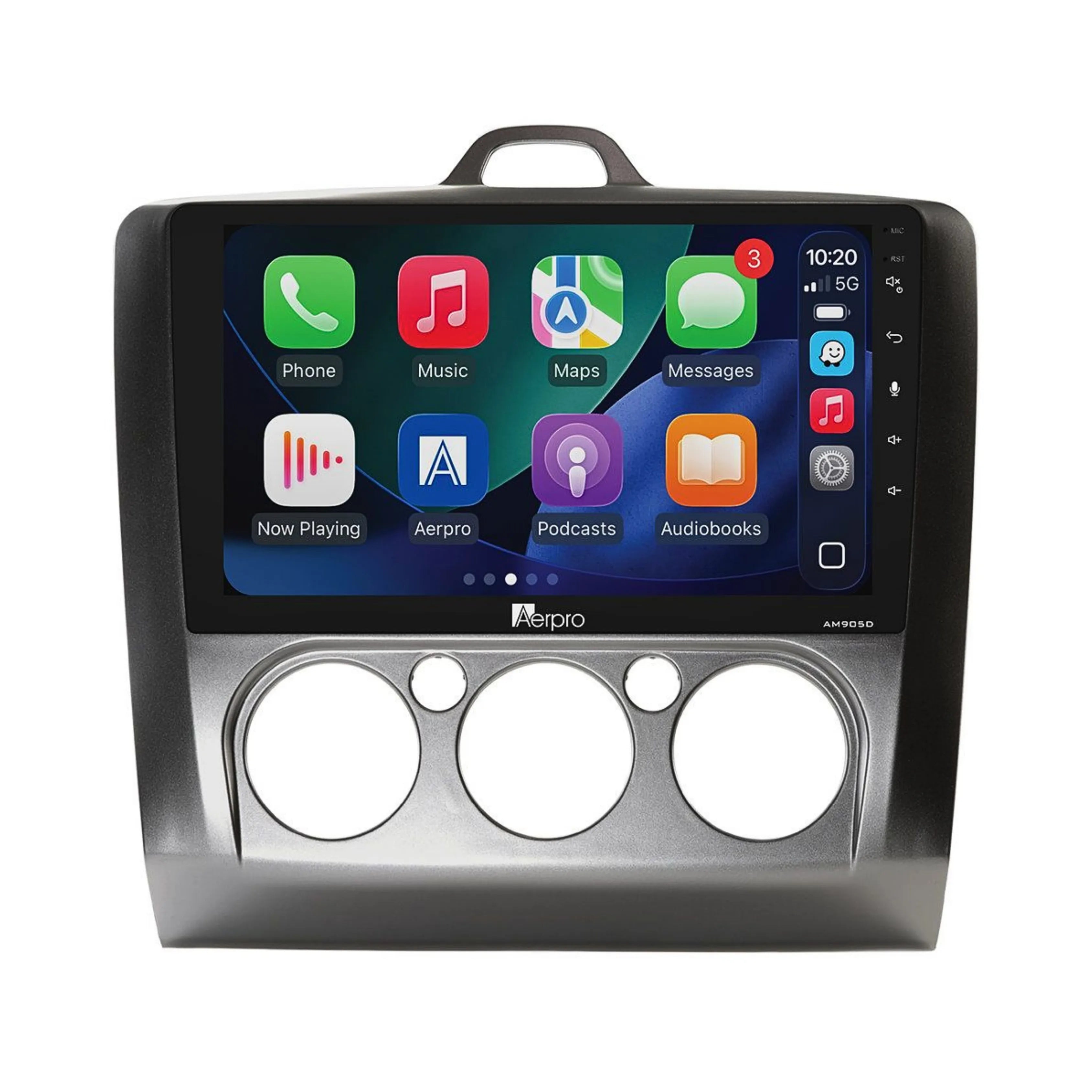

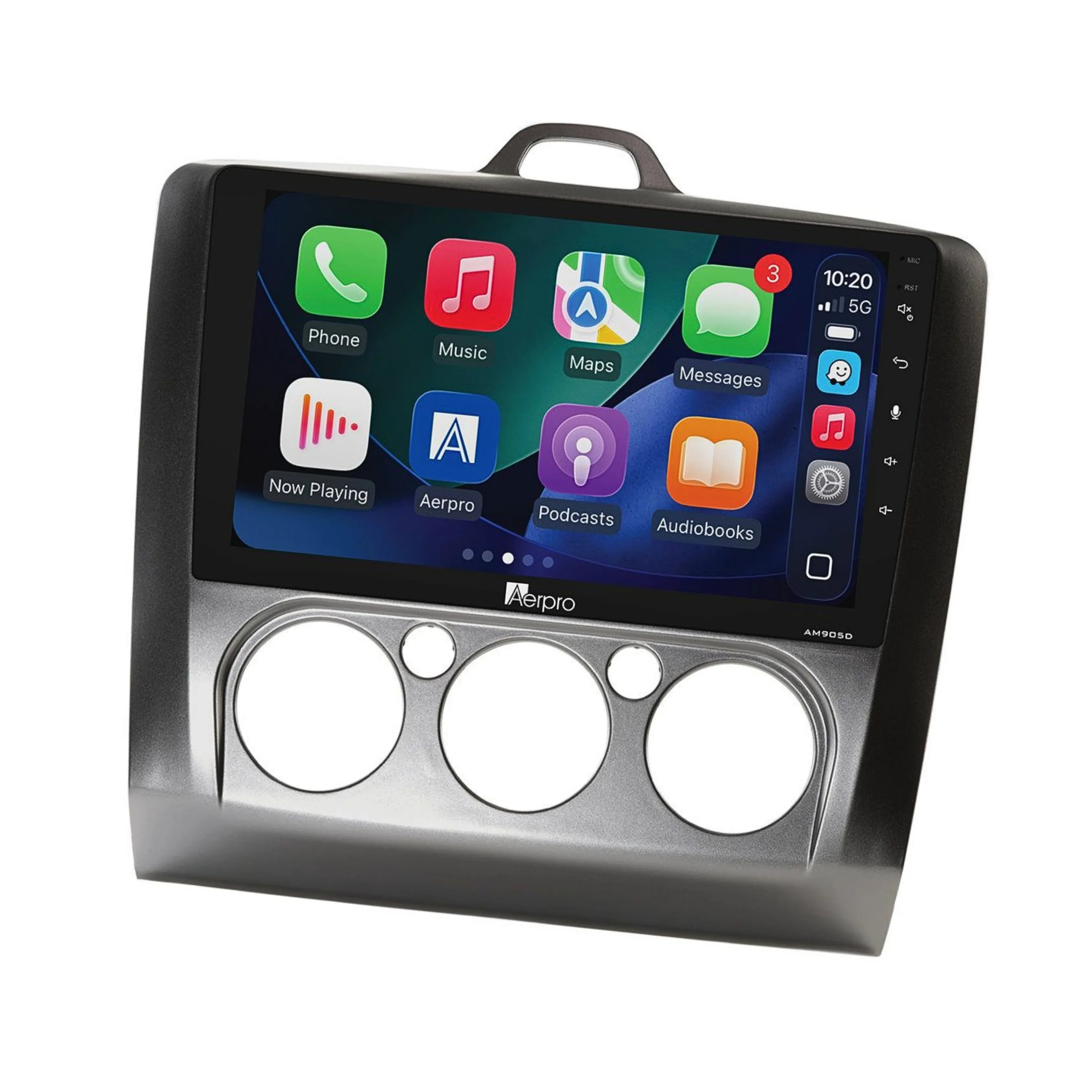

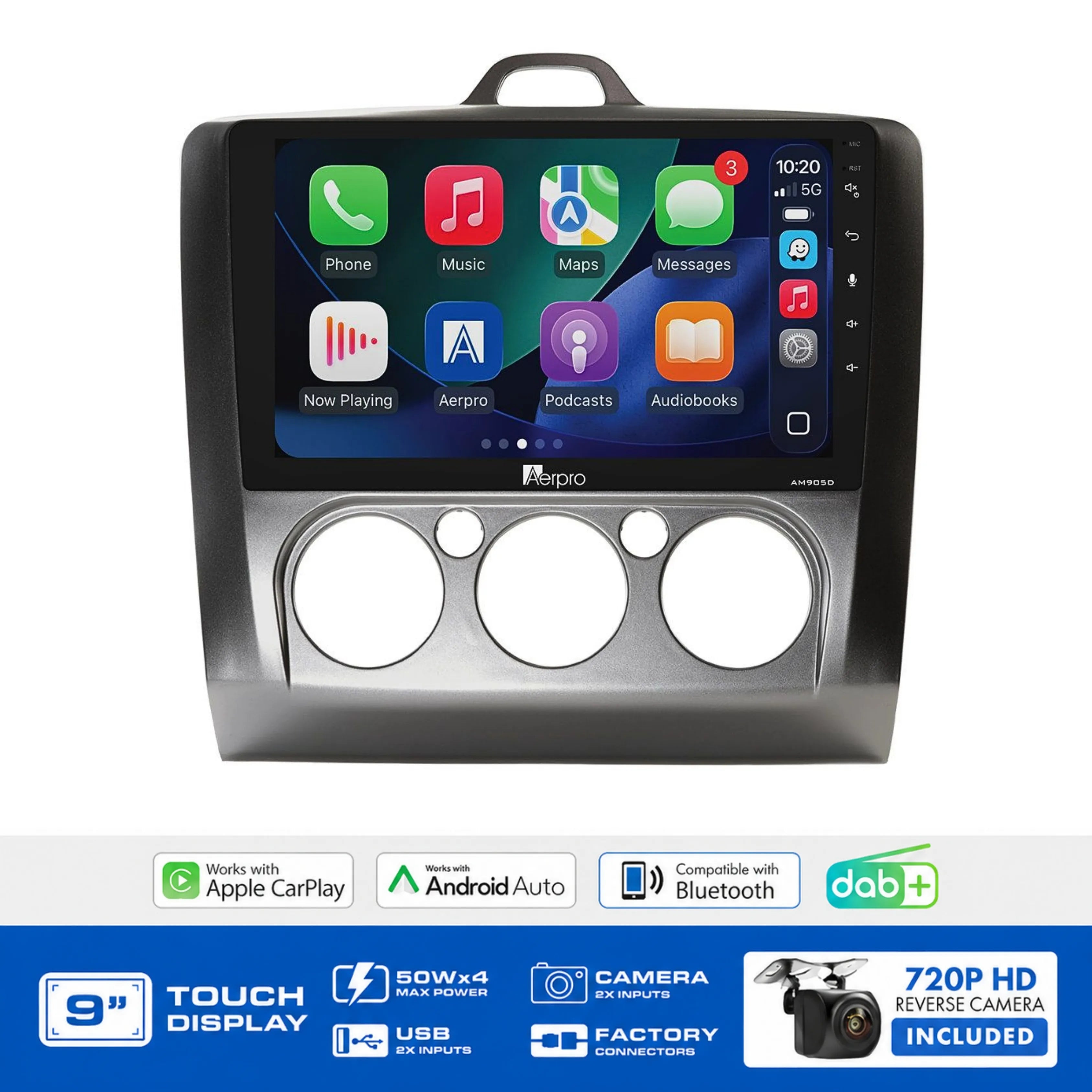

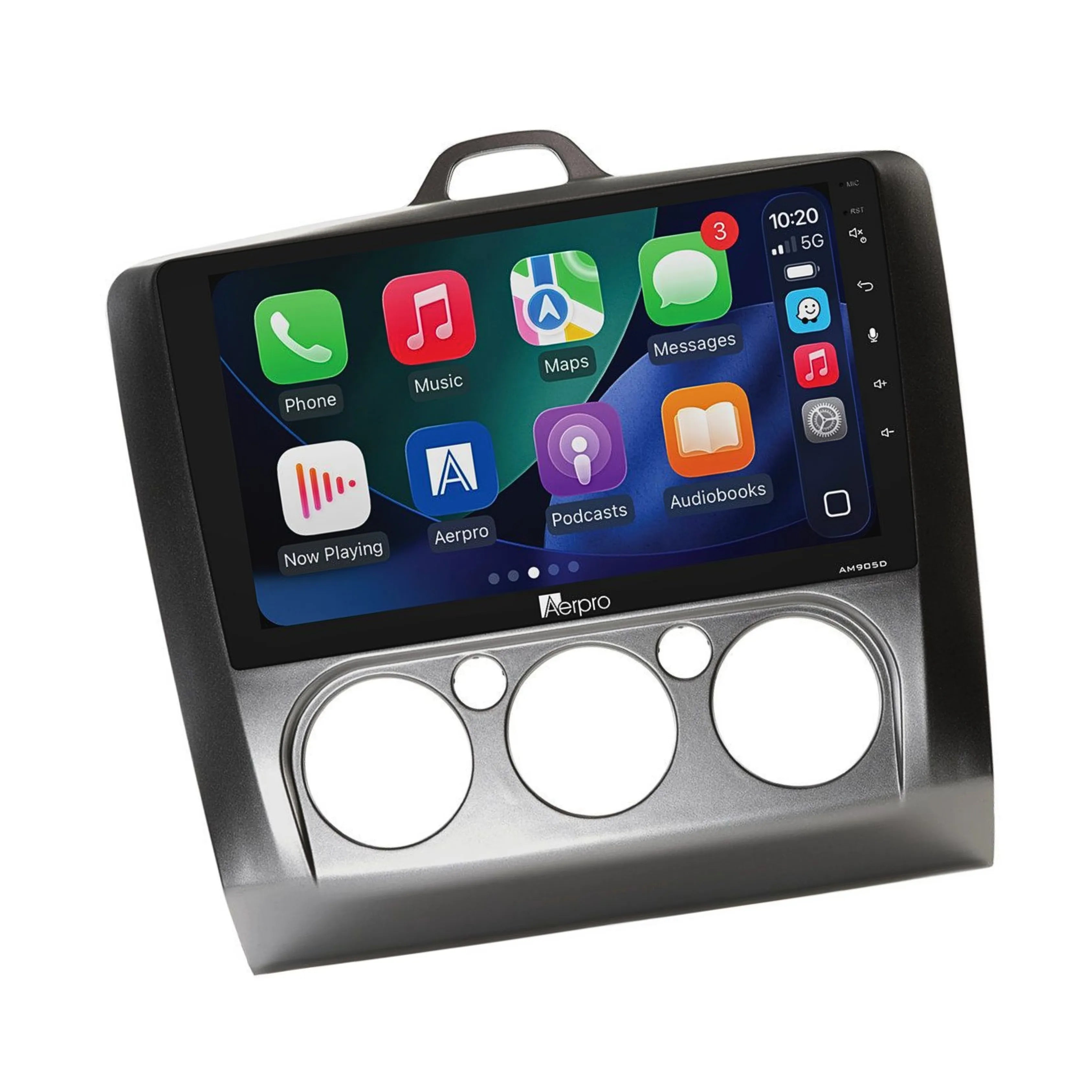

The Aerpro AMDFO9 is a complete head unit upgrade kit for the Ford Focus LS and LT (2005–2009) fitted with manual climate control. It replaces the factory head unit with a 9" capacitive touchscreen at 1024x600 resolution, adding wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining factory steering wheel controls.

The kit includes the AM905D multimedia receiver, silver facia kit, SWC interface harness, SWC patch lead, antenna adaptor, radio removal keys, and a 720P AHD universal rear camera. The Ford Focus LS/LT of this era does not have a factory reverse camera, USB input, AUX input, or factory amplifier to retain, so the installation is clean and straightforward beyond the SWC.

Features & Benefits

  • Manual climate control models only — auto climate control variants are not compatible with this kit; for 2007–2011 Focus with auto climate, see the Aerpro AMDFO8
  • SWC retained — the SWC interface harness and patch lead carry over factory steering wheel controls after installation
  • Radio removal keys included — purpose-made keys for extracting the factory Focus head unit cleanly without damage to the surrounding trim
  • Park brake wire connection required — Apple CarPlay and Android Auto will not activate unless the park brake wire is correctly connected to the park brake during installation
  • Silver vehicle-specific facia kit — matched to the Ford Focus LS/LT interior; consistent with the facia finish used on the auto climate AMDFO8 kit for Focus
  • Wireless Apple CarPlay & Android Auto — connect over Wi-Fi for maps, music, calls, and messages; wired USB also supported for simultaneous phone charging
  • 9" capacitive touchscreen at 1024x600 resolution — a large, responsive display upgrade over the factory Focus LS/LT unit
  • Built-in DAB+ digital radio — digital audio clarity and expanded station access; AM/FM with RDS, 18 FM and 12 AM presets included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone included
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree lens; adds reversing visibility to a vehicle not factory-equipped with a reverse camera
  • 4 x 50W max output with 5CH 4V RCA preouts — supports external amplifier integration via front/rear/sub preamp channels
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
Feature Retention
Steering wheel controls Yes
Factory reverse camera N/A — not factory equipped
Factory AUX / USB N/A
Factory amplifier N/A
Vehicle menu N/A
Park brake requirement Park brake wire must be connected for CarPlay/Android Auto
Climate control requirement Manual only — auto climate not compatible

Compatible With / Goes Well With

  • Ford Focus LS (2005–2007) with manual climate control
  • Ford Focus LT (2007–2009) with manual climate control
  • Not compatible with Ford Focus LS/LT fitted with auto climate control — see Aerpro AMDFO8 for Ford Focus 2007–2011 auto climate
  • Use the Aerpro What Fits Your Car Guide to confirm fitment before purchasing
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Does this suit the auto climate control Ford Focus?

No — the AMDFO9 suits manual climate control Focus LS/LT models only. For the Ford Focus with auto climate control (2007–2011), the Aerpro AMDFO8 is the correct kit.

Does the Ford Focus LS/LT have steering wheel controls?

Yes — the Focus LS and LT were available with factory SWC, and this kit retains those controls via the SWC interface harness and patch lead.

How does this differ from the AMDFO8?

The AMDFO8 covers the Ford Focus 2007–2011 with auto climate control; the AMDFO9 covers the Ford Focus LS/LT 2005–2009 with manual climate control. The AMDFO9 also includes a park brake wire requirement for CarPlay/Android Auto that the AMDFO8 does not specify. Both use a silver facia and radio removal keys.

Does the Ford Focus LS/LT have a factory reverse camera?

No — the Focus LS and LT are not factory-equipped with a reverse camera. The 720P AHD universal rear camera included in this kit adds reversing visibility from scratch.

Why is the park brake wire required for CarPlay to work?

The AM905D head unit includes a safety interlock that requires the park brake wire to be connected to the actual park brake. Without this connection, Apple CarPlay and Android Auto will not activate — this is a design requirement of the head unit, not a vehicle limitation.
