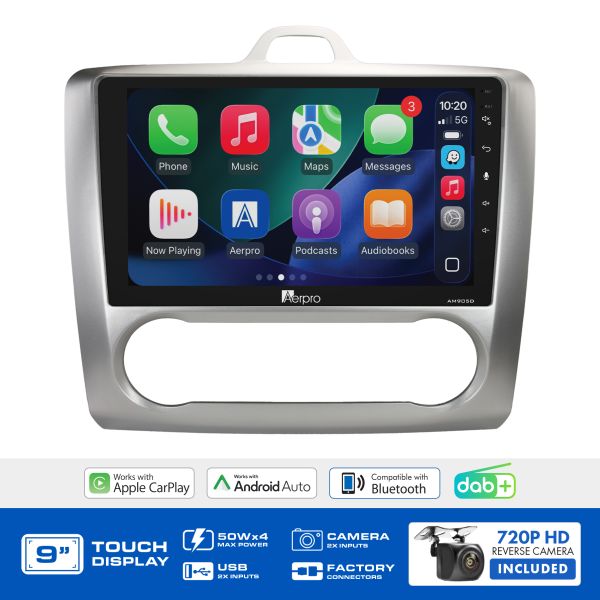

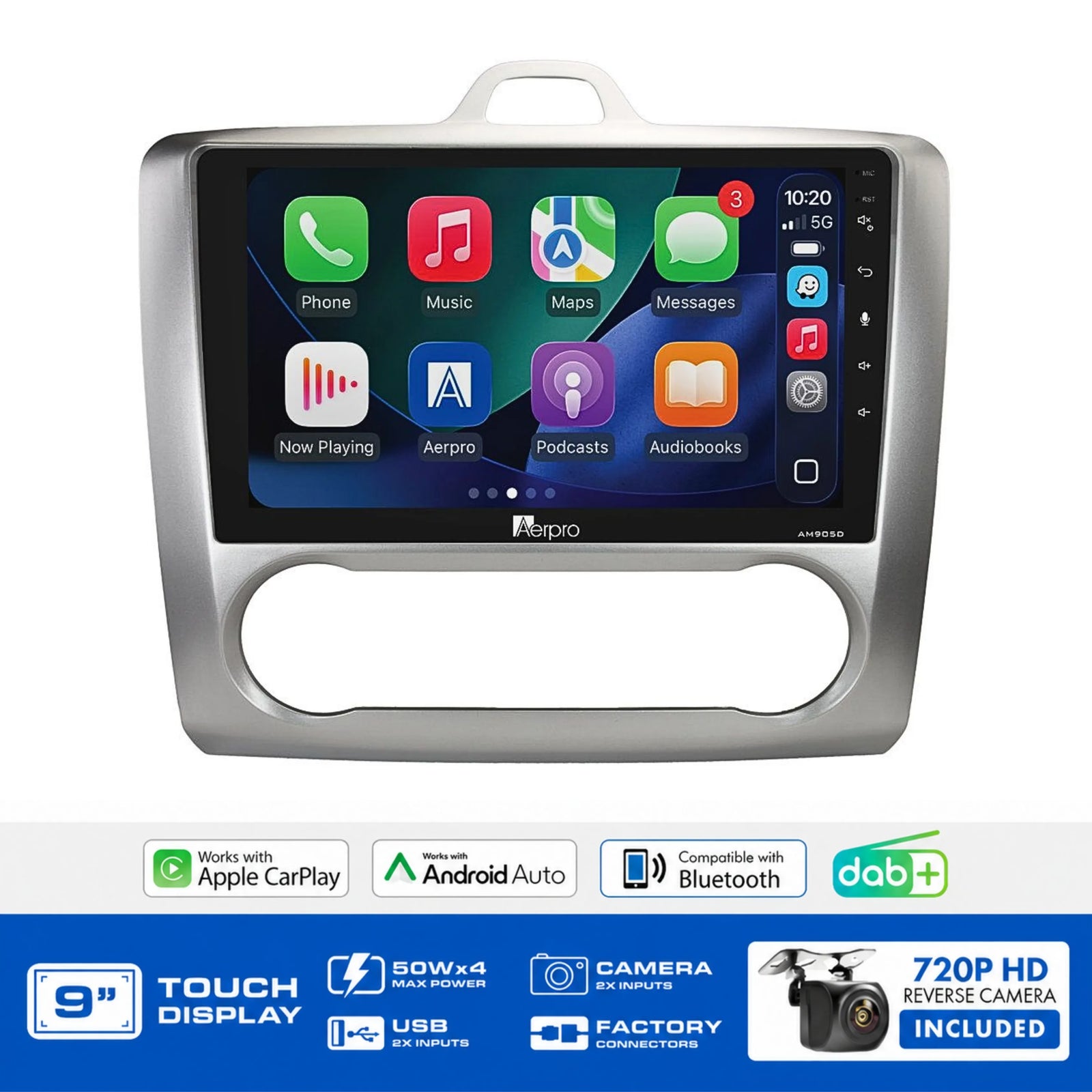

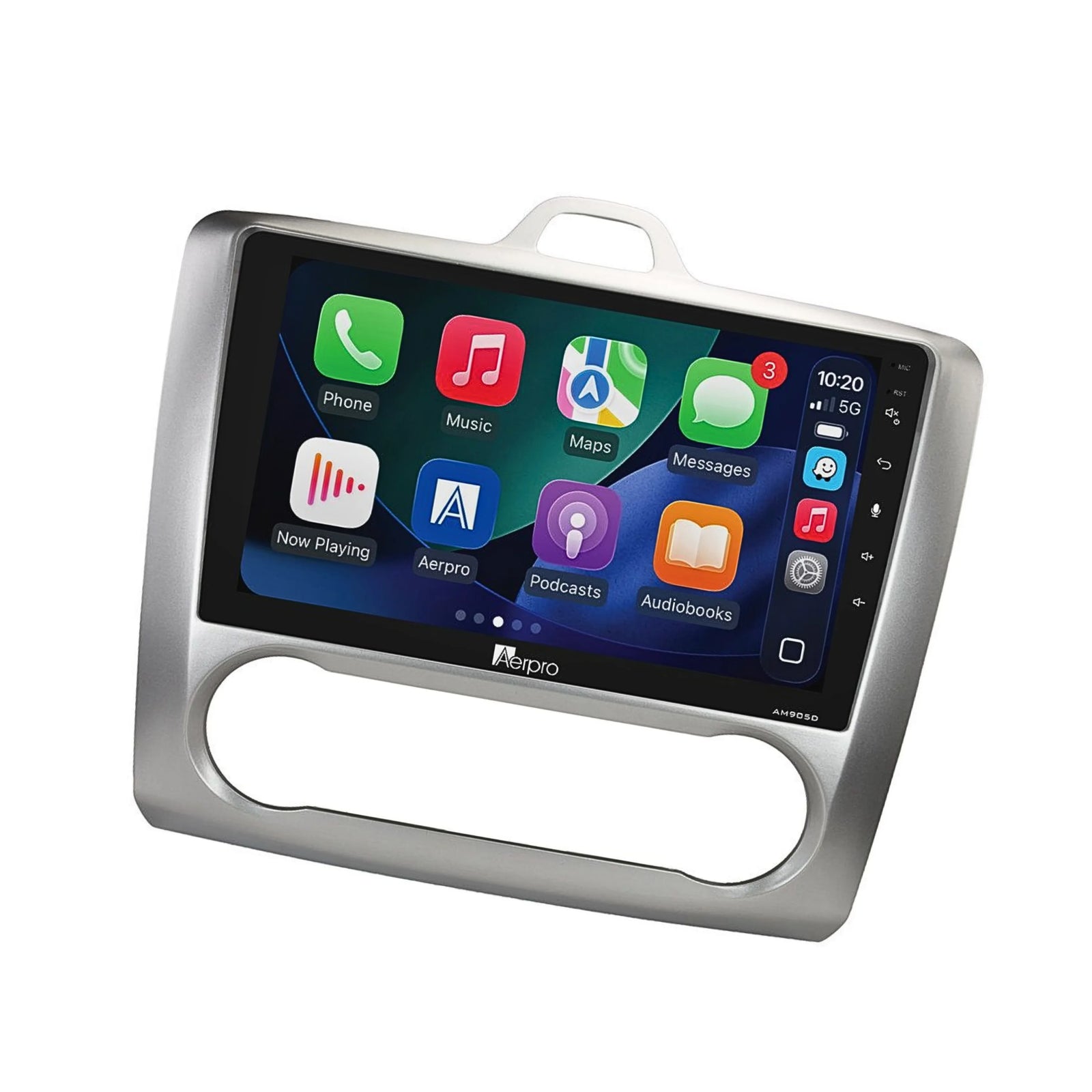

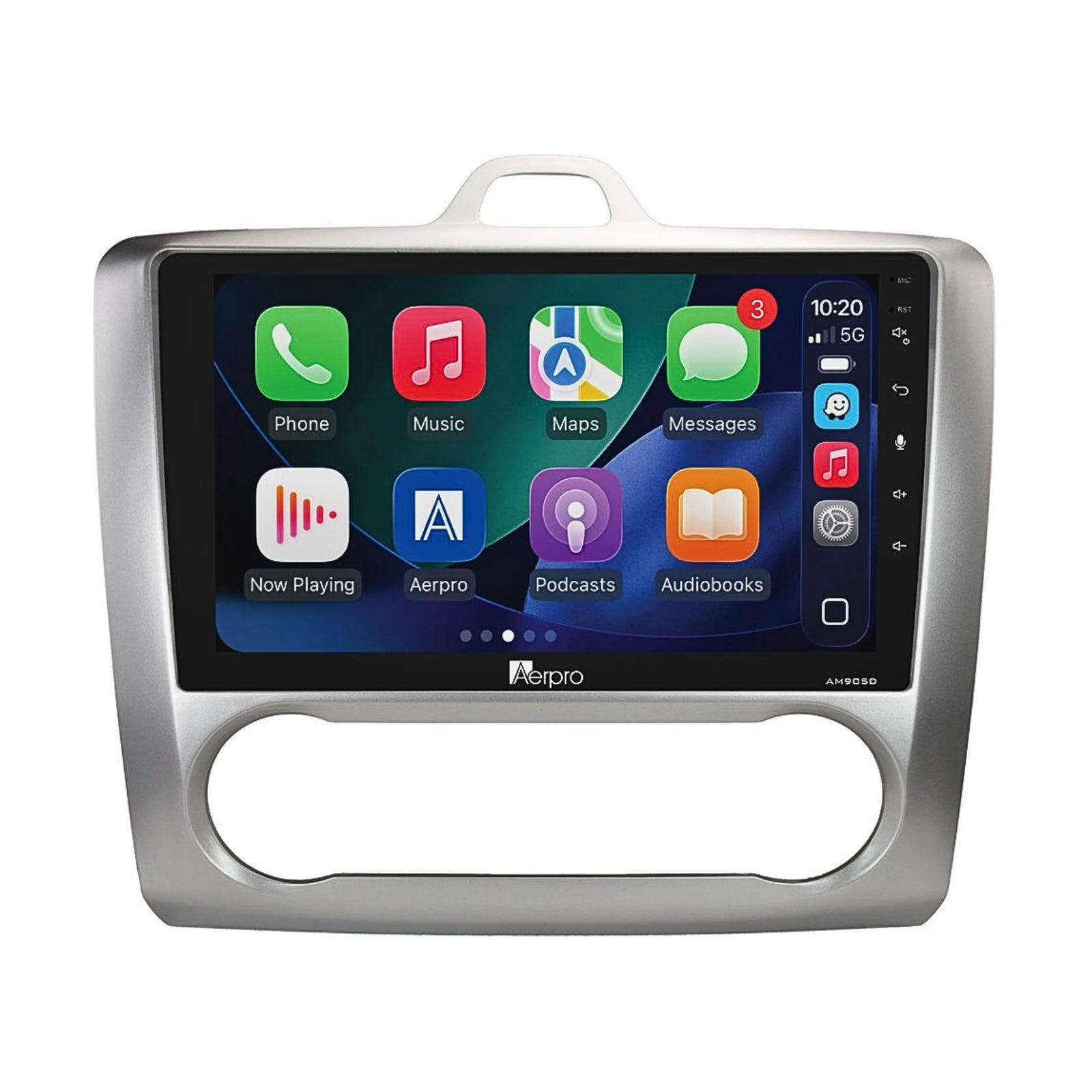

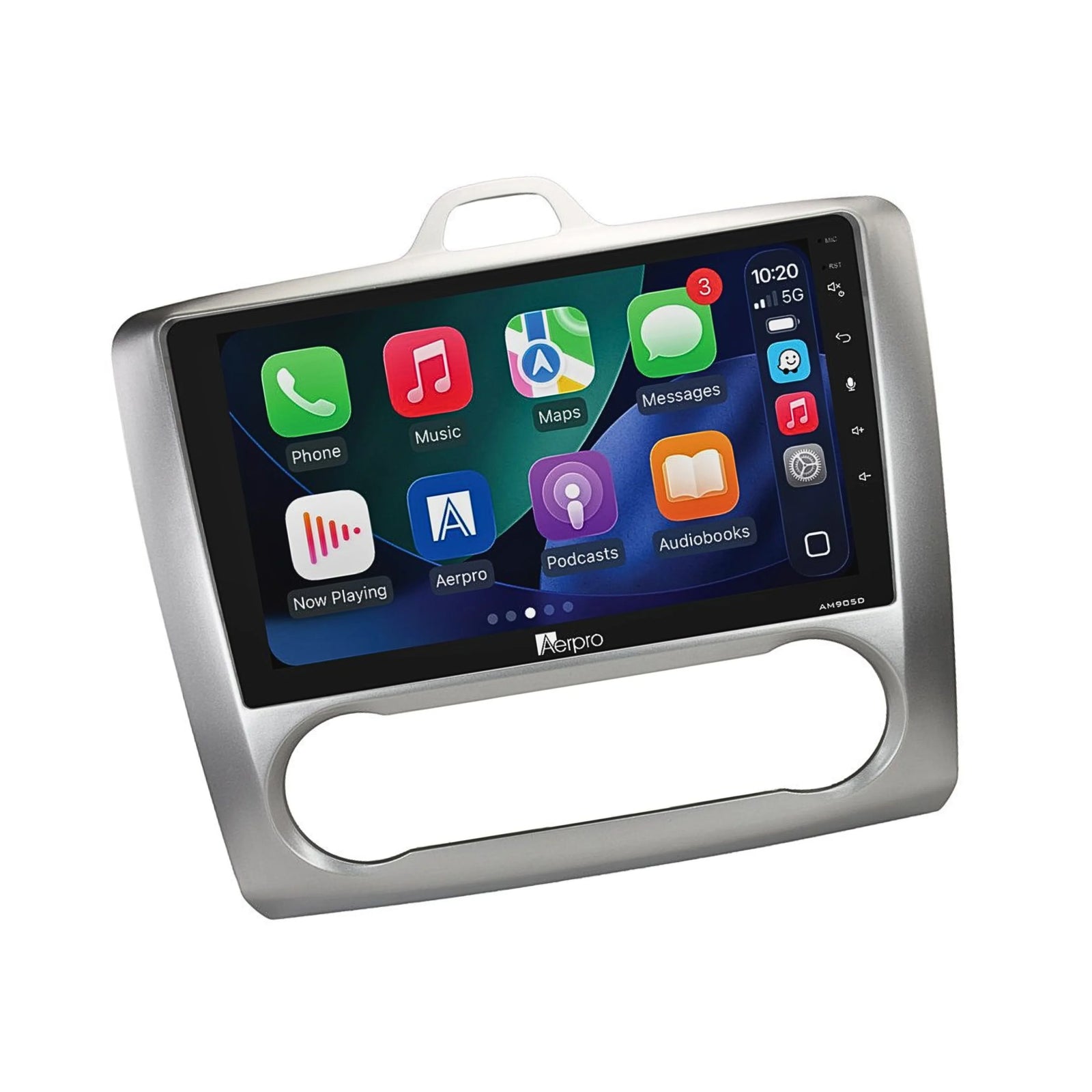

Aerpro AMDFO8 9" Multimedia Receiver Ford Focus 2007-2011 DAB+

SKU: AMDFO8
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

A Tailored 9" Wireless CarPlay Upgrade for the Ford Focus Plug-In Kit with Everything Included

Product Overview

The Aerpro AMDFO8 is a complete head unit upgrade kit designed specifically for the Ford Focus (2007–2011) fitted with auto climate control. It replaces the factory head unit with a 9" capacitive touchscreen at 1024x600 resolution and adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining the factory steering wheel controls.

Unlike a generic aftermarket install, the AMDFO8 comes with everything needed for a clean, vehicle-matched fit: the AM905D multimedia receiver, a silver facia kit, SWC interface harness, SWC patch lead, antenna adaptor, and radio removal keys. A 720P AHD universal rear camera is also included, adding reversing visibility to a vehicle that has no factory reverse camera. On the audio side, the unit delivers 4 x 50W max output with a 13-band EQ, time alignment, and 4V/5-channel RCA preouts for amplifier integration.

Features & Benefits

  • Vehicle-specific silver facia kit included — designed to match the Ford Focus interior trim, including radio removal keys for a clean extraction of the factory unit
  • Wireless Apple CarPlay & Android Auto — connect your phone over Wi-Fi for hands-free maps, music, calls, and messages; wired connection also supported for simultaneous USB charging
  • 9" capacitive touchscreen at 1024x600 resolution — a significant upgrade over the factory display with smooth, responsive touch control for maps, media, and settings
  • Built-in DAB+ digital radio — crystal-clear digital audio with a wider station range than standard FM; AM/FM tuning with RDS and 18 FM / 12 AM presets also included
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, and phonebook access; internal and external microphone options ensure clear call quality
  • Factory steering wheel controls retained — SWC interface harness and patch lead included in the kit for full compatibility
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree wide-angle lens, surface mount; adds reversing visibility to a model with no factory rear camera
  • Second camera input available — additional AHD-compatible input for an optional front or towing camera
  • 4 x 50W max output with 5CH 4V RCA preouts — front, rear, and subwoofer channels at 4V peak; cleanly supports external amplifier additions
  • 13-band EQ and time alignment — 6 preset EQ modes plus 2 custom slots; tune the soundstage specifically to the Focus cabin
  • 6-colour button illumination — red, yellow, green, blue, purple, or white to suit your interior preference

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
SWC & Feature Retention
Steering wheel controls Yes
Factory reverse camera N/A (not factory equipped)
Factory AUX / USB input N/A

Compatible With / Goes Well With

  • Ford Focus (2007–2011) with auto climate control
  • Not compatible with Ford Focus models fitted with manual climate control
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Will this kit fit my Ford Focus?

The AMDFO8 suits Ford Focus models from 2007–2011 fitted with auto climate control only. Use the Aerpro What Fits Your Car Guide to confirm your specific variant before purchasing.

Does it work with manual climate control models?

No — this kit is designed for auto climate control models only and is not compatible with Ford Focus vehicles fitted with manual climate control.

Will my steering wheel controls still work?

Yes — the SWC interface harness and patch lead are included in the kit and retain full steering wheel control functionality.

Does the Ford Focus have a factory reverse camera to retain?

No — the Ford Focus (2007–2011) does not have a factory reverse camera. A 720P AHD universal rear camera is included in the kit to add reversing visibility.

Does it support wireless CarPlay or do I need to plug in?

Both — wireless Apple CarPlay and Android Auto connect over Wi-Fi, or plug in via USB for wired operation with simultaneous phone charging.
