Aerpro AMDFO4 9" Multimedia Receiver Kit Ford Ranger PX3 2018-2019

SKU: AMDFO4
Regular price
$799.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

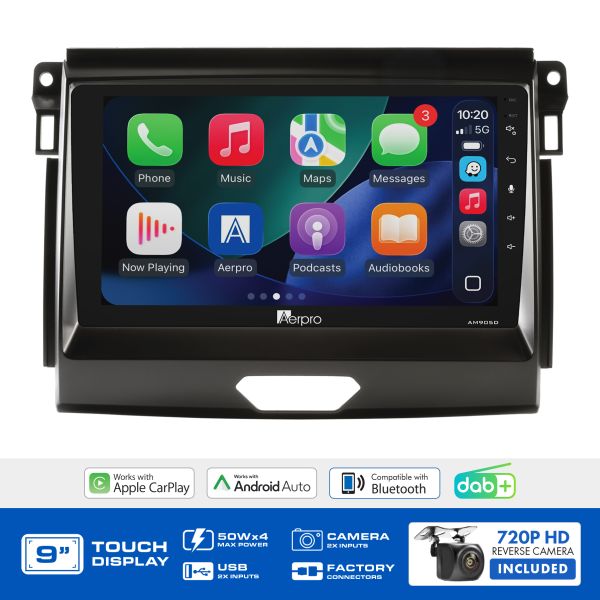

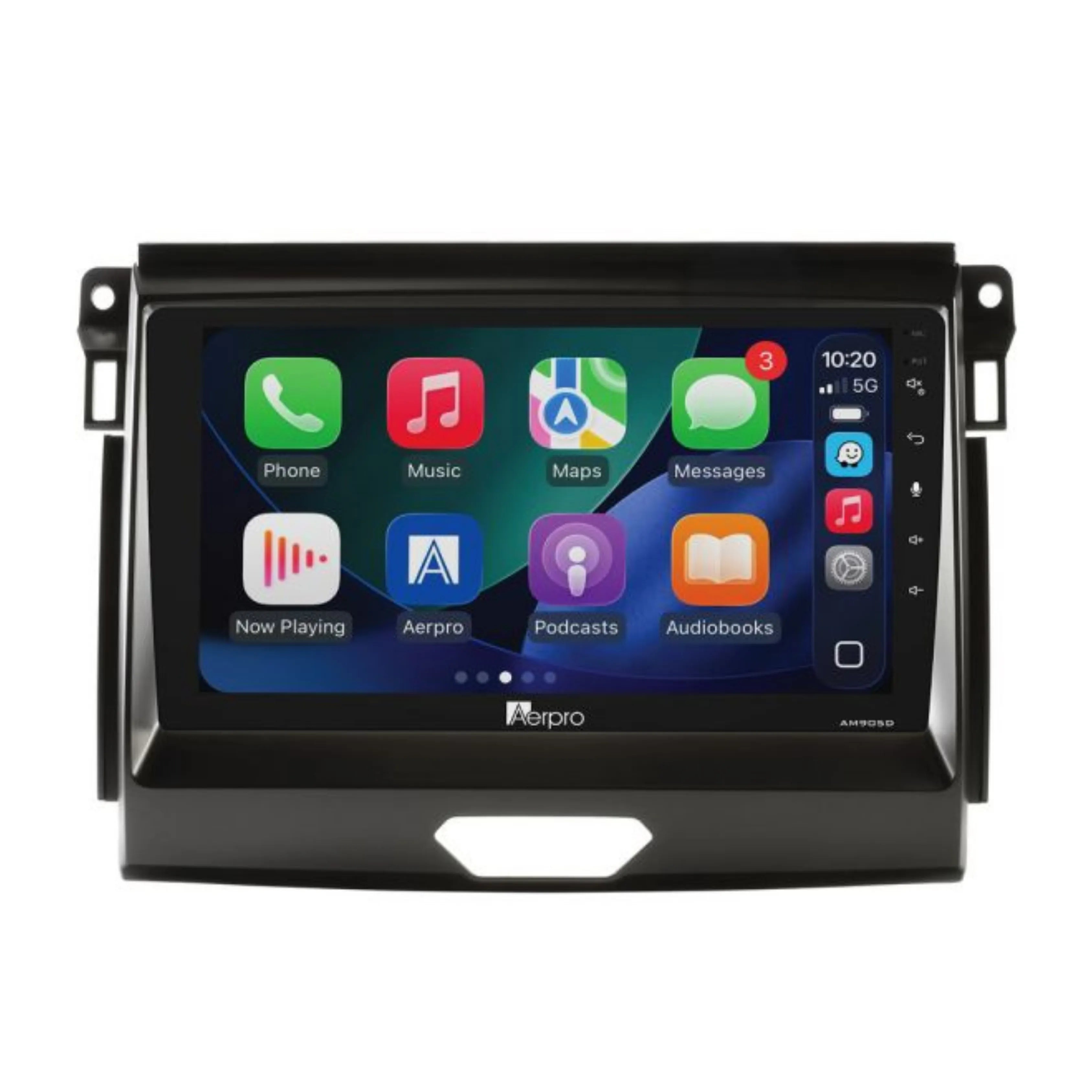

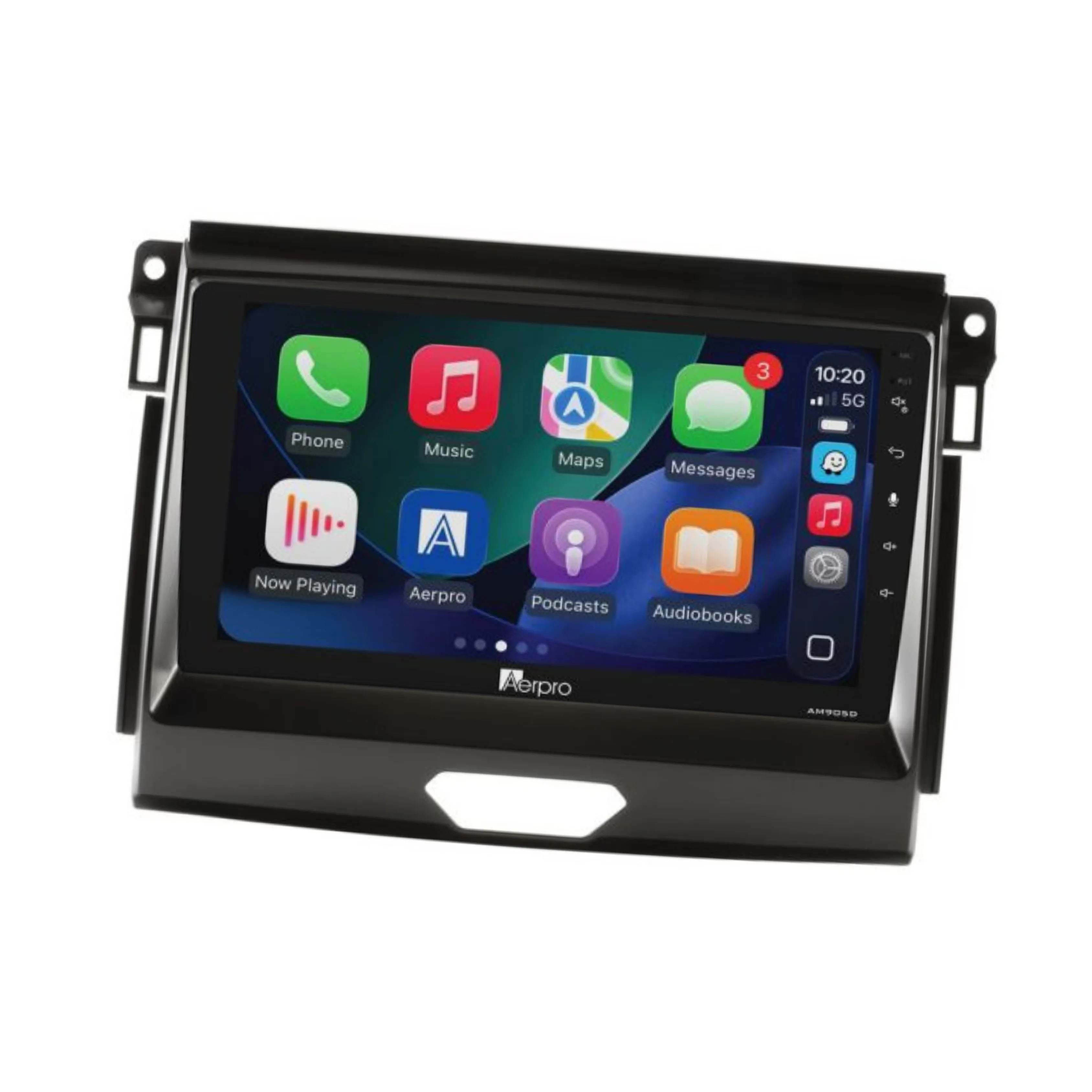

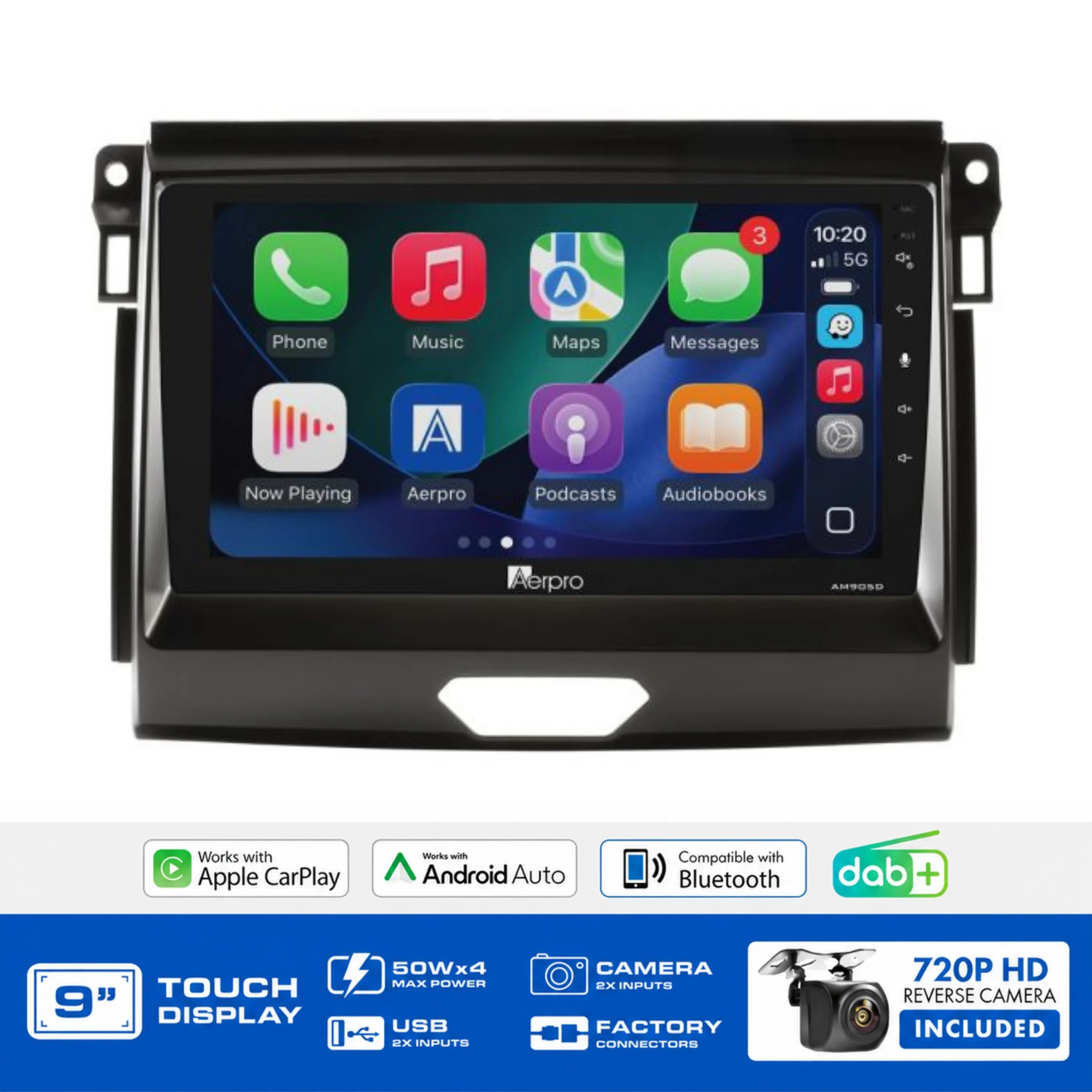

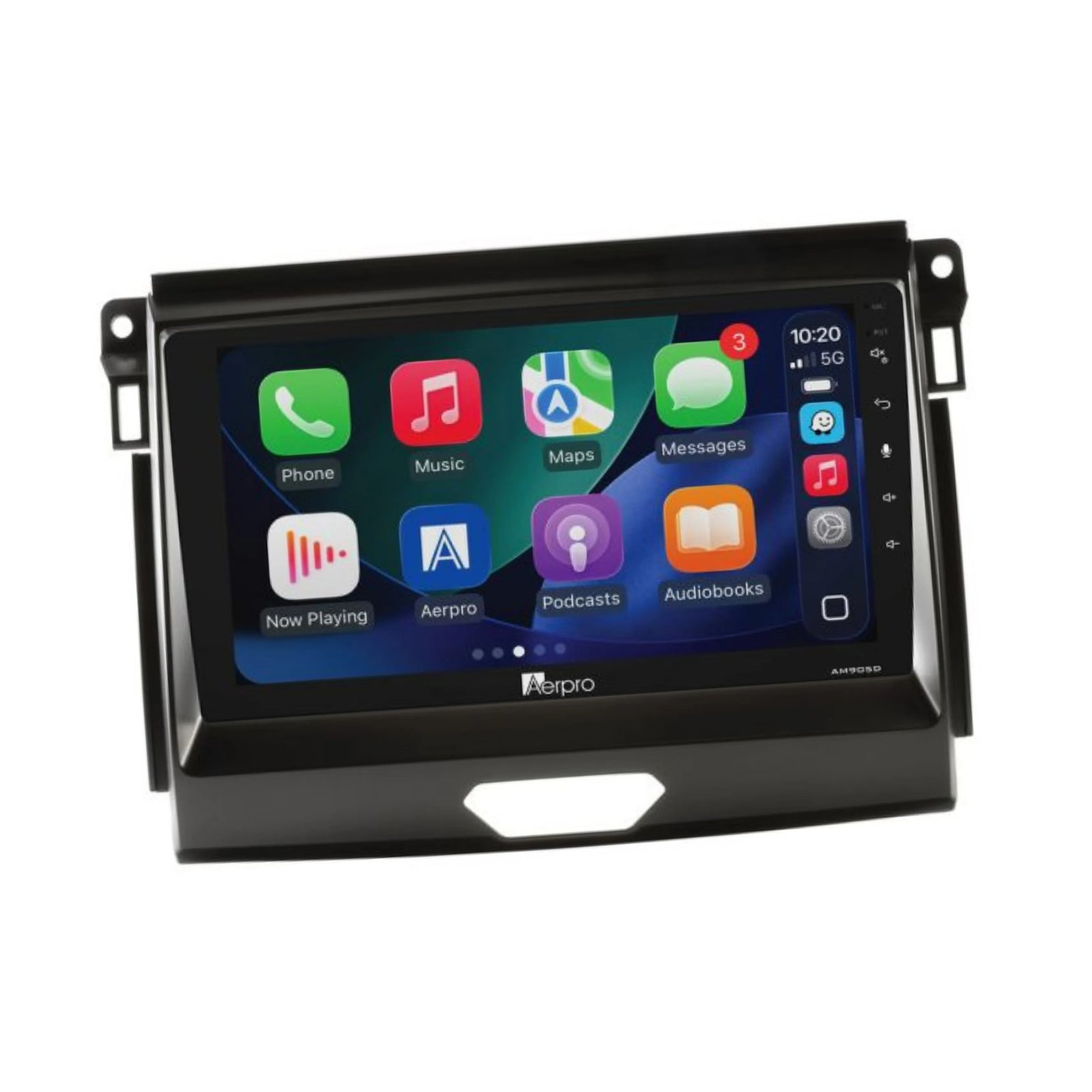

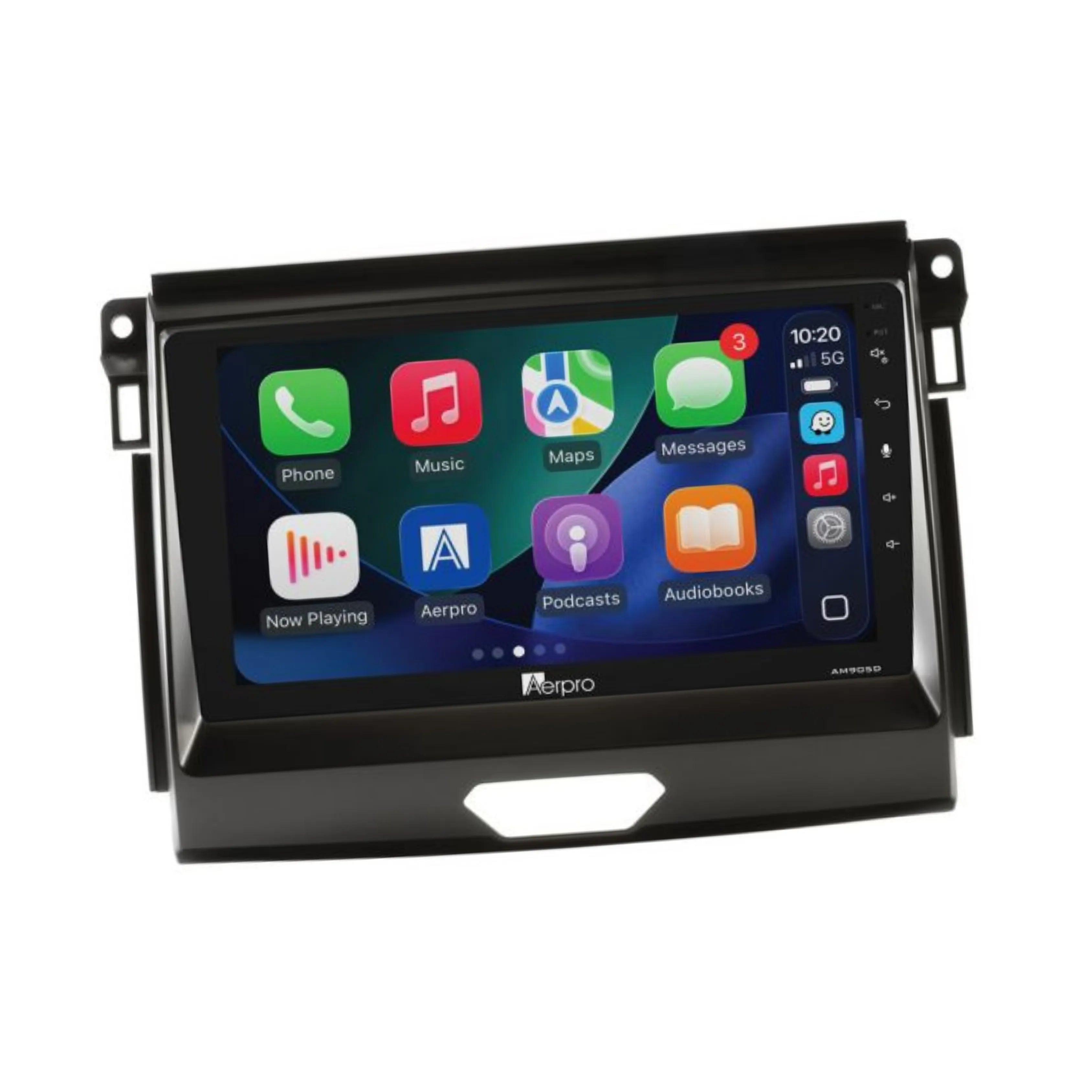

Aerpro AMDFO4 9" Multimedia Receiver Complete Kit Ford Ranger PX3 2018-2019

A complete 9" head unit upgrade kit from Aerpro for Ford Ranger PX MkIII (2018-2019) vehicles with 4.2" factory display, the AMDFO4 includes the AM905D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a black fascia kit, SWC interface harness, antenna adaptor, camera retention adaptor, and 720P AHD universal rear camera. Retains steering wheel controls, factory reverse camera, USB input, and AUX input (where equipped). Suits 4.2" factory display models only.

Product Overview

The Aerpro AMDFO4 is a vehicle-specific complete head unit upgrade kit for Ford Ranger PX MkIII (2018-2019) fitted with the 4.2" factory display. This kit is not compatible with Ford Ranger PX3 models fitted with the factory 8" SYNC 3 display. The included AM905D multimedia receiver features a 9" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included.

Vehicle feature retention covers steering wheel controls (phone button requires manual programming in the aftermarket head unit), factory reverse camera (if equipped), USB input (if equipped), and AUX input (if equipped). A camera retention adaptor is included for factory reverse camera connection. USB retention uses the USB input on the rear of the head unit. AUX retention uses the RCA AUX input on the rear of the head unit.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDFO4 includes the AM905D multimedia receiver, black fascia kit, SWC interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and 720P AHD universal rear camera.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

9" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included. A second camera input is available for a front or towing camera (not included).

Steering Wheel Control Retention - Phone Button Requires Manual Programming: The SWC interface harness and patch lead retain the factory steering wheel controls. The phone button function requires manual programming in the aftermarket head unit after installation.

Factory Reverse Camera, USB, and AUX Input Retention: Camera retention adaptor is included to retain the factory reverse camera (if equipped). USB input retention uses the USB input on the rear of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit.

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

  • AM905D 9" Fixed Multimedia Receiver (Trapezoid)
  • Black Fascia Kit
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • Camera Retention Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • Wiring Harness with ISO Connection
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDFO4
Brand Aerpro
Compatible Vehicle Ford Ranger PX MkIII (2018-2019)
Compatible Configuration 4.2" Factory Display Models Only
Head Unit Model AM905D
Screen Size 9"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
SWC Retention Yes (Phone Button Requires Manual Programming)
Reverse Camera Retention Yes (If Equipped)
USB Input Retention Yes (If Equipped)
AUX Input Retention Yes (If Equipped)
Factory Amplifier Retention N/A
Barcode 9317114955654

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes
Phone Button Yes (Manual Programming Required)
Factory Reverse Camera Yes (If Equipped)
USB Input Yes (If Equipped)
AUX Input Yes (If Equipped)
Factory Amplifier N/A
Parking Tones N/A
Vehicle Menu N/A

Compatible With

Make Model Variant Years
Ford Ranger PX MkIII - 4.2" Factory Display 2018-2019

Note: Suits 4.2" factory display models only. Not compatible with Ford Ranger PX3 models fitted with the factory 8" SYNC 3 display. Phone button function requires manual programming in the aftermarket head unit after installation. Confirm your specific Ranger variant and factory display type using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Is the AMDFO4 compatible with Ford Ranger models with the factory 8" SYNC 3 screen?

No. The AMDFO4 suits Ford Ranger PX MkIII (2018-2019) models with the 4.2" factory display only. Models fitted with the factory 8" SYNC 3 display are not compatible with this kit.

Does the AMDFO4 retain the factory USB and AUX inputs?

Yes. USB input retention uses the USB input on the rear of the head unit, and AUX input retention uses the RCA AUX input on the rear of the head unit (both if equipped).

Does the phone button on the steering wheel work with the AMDFO4?

Yes, but the phone button requires manual programming in the aftermarket head unit after installation. Confirm programming procedure with your installer before purchase.

Is a rear camera included with the AMDFO4?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available for a front or towing camera (not included).

Does the AMDFO4 support wireless CarPlay and Android Auto?

Yes. The AM905D supports both wireless and wired Apple CarPlay and Android Auto.
