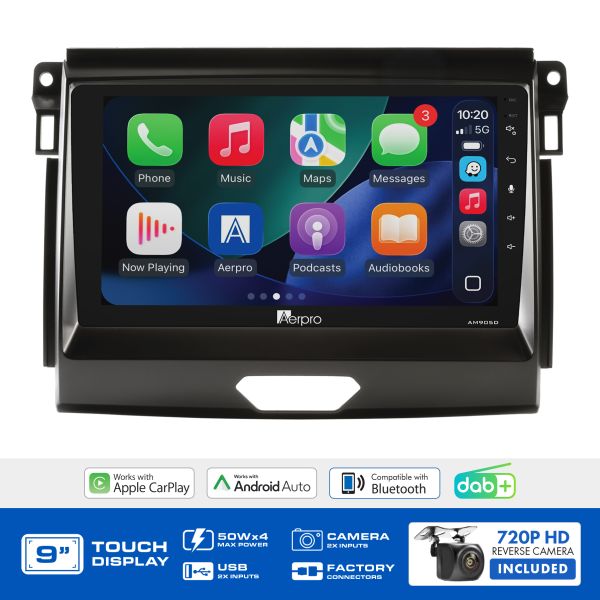

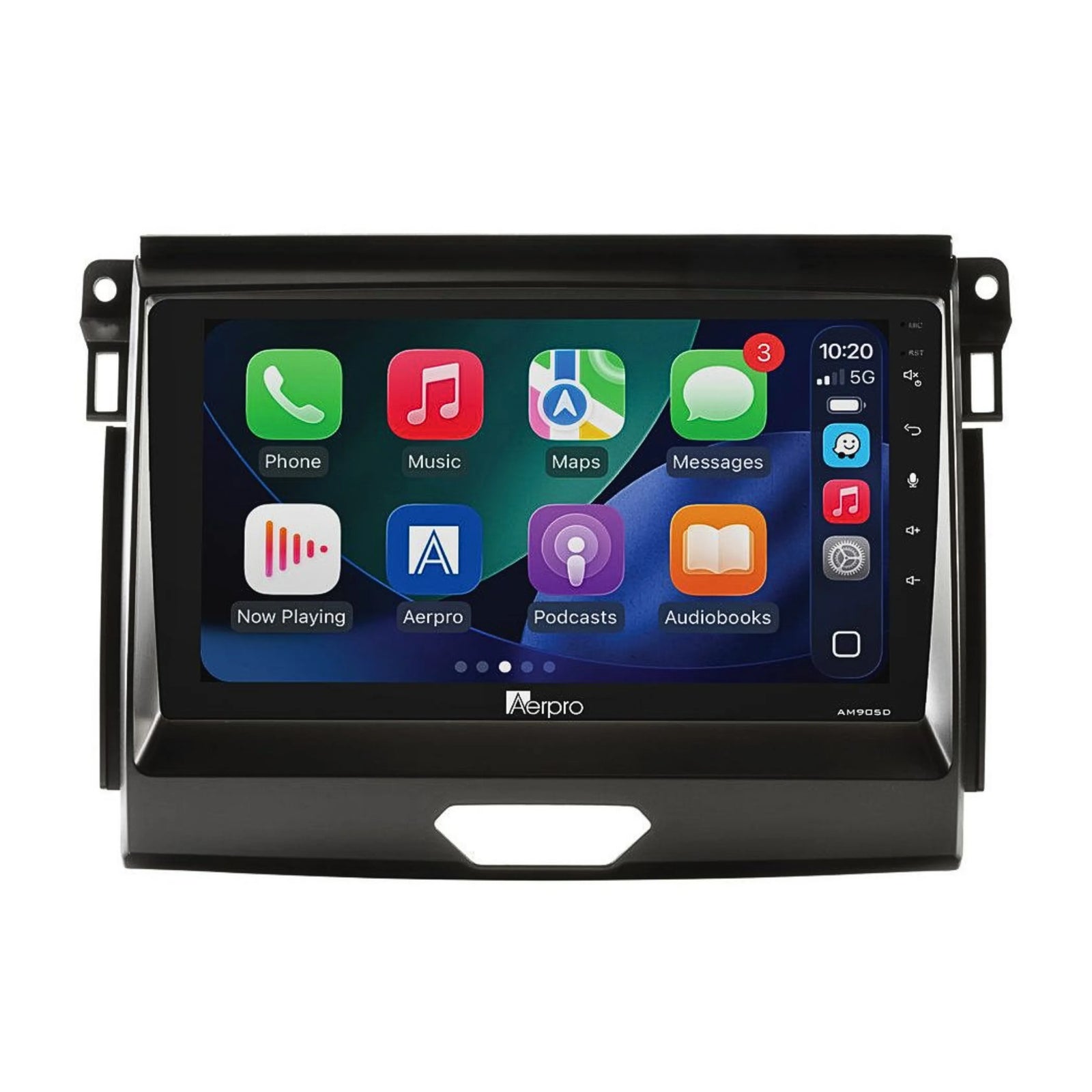

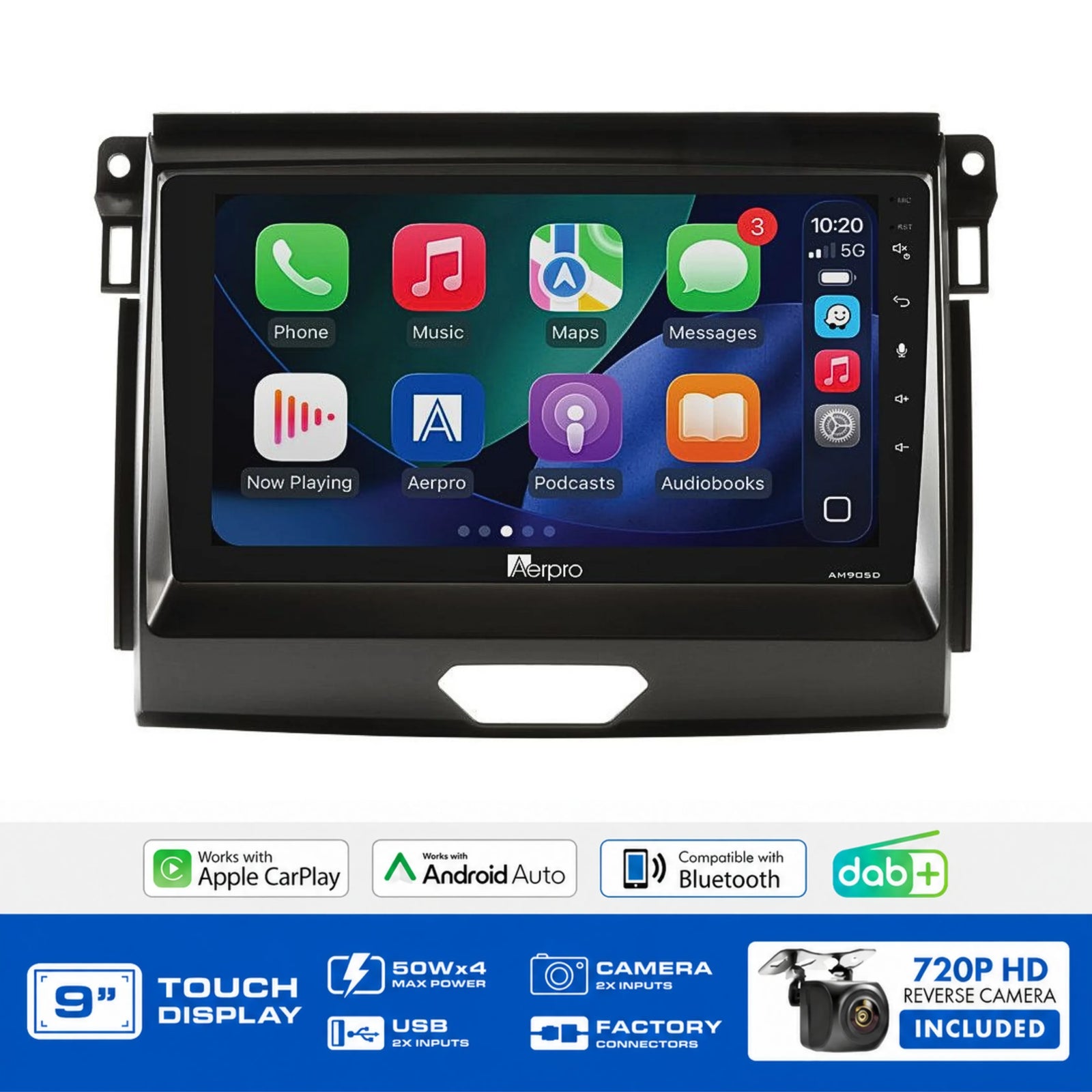

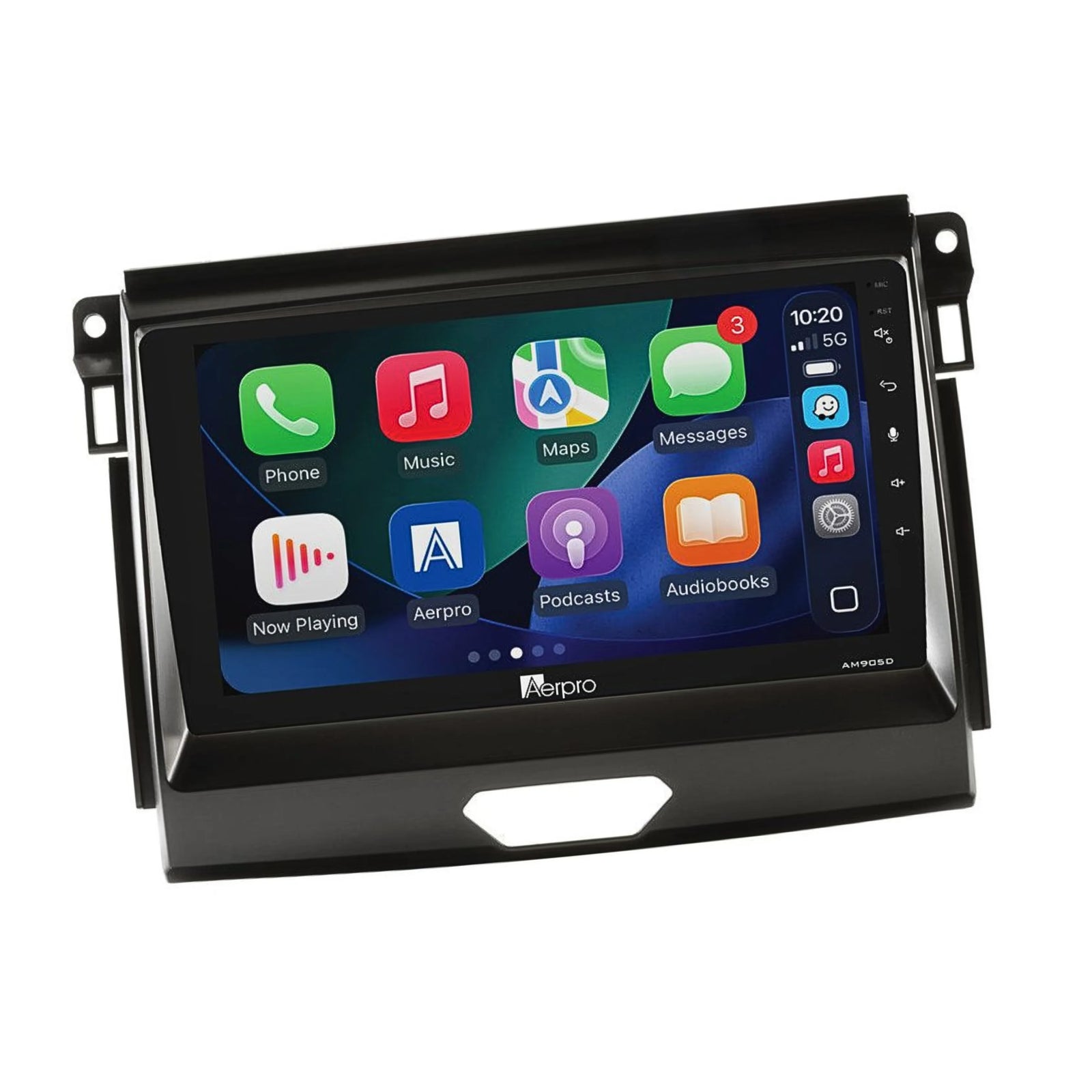

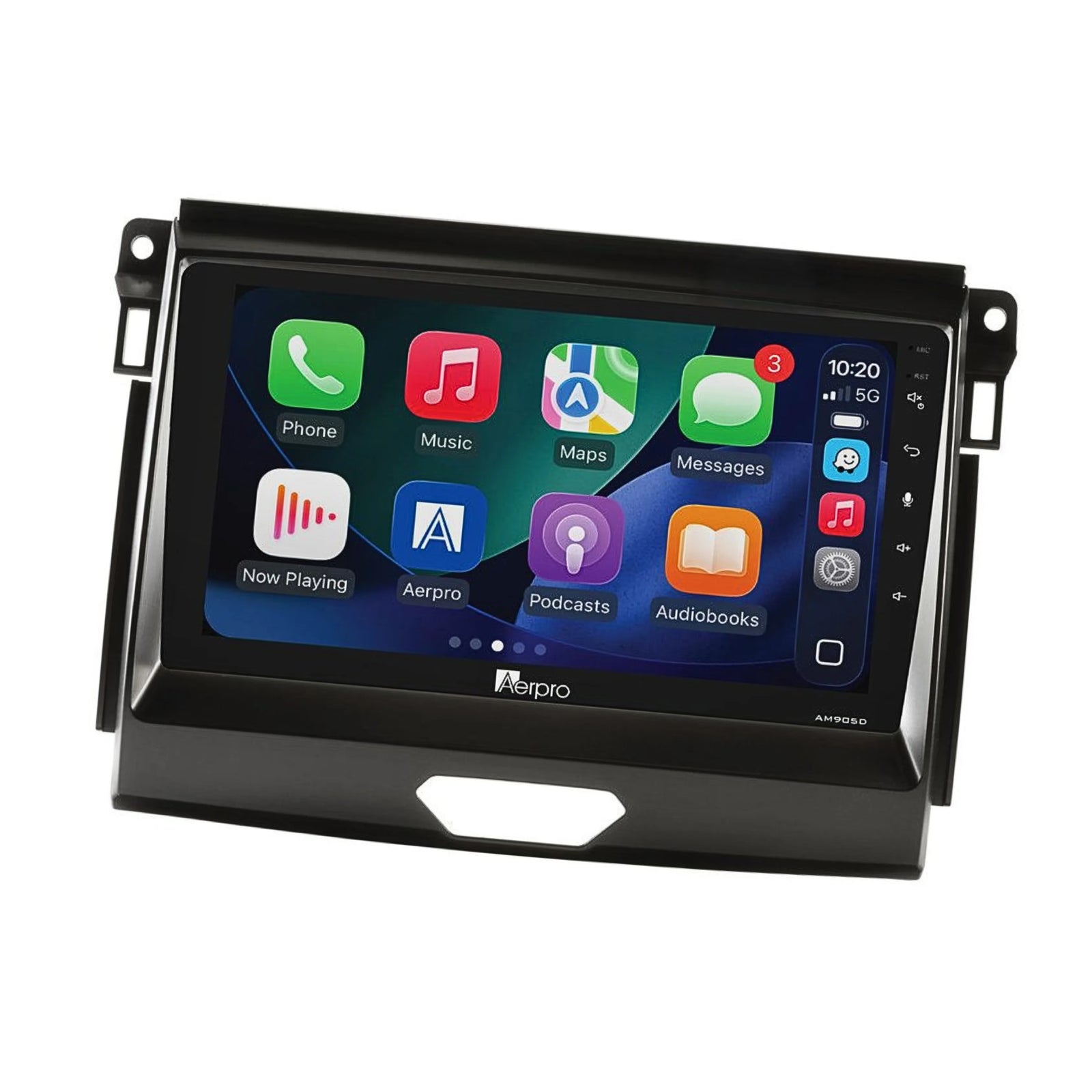

Aerpro AMDFO3 9" Wireless CarPlay Ford Ranger Everest 2015-18

SKU: AMDFO3
Price
$799.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

The Complete 9" Wireless CarPlay Upgrade Built Specifically for Ford Ranger PX2 and Everest UA

Product Overview

The Aerpro AMDFO3 is a complete head unit upgrade kit engineered for the Ford Ranger PX2 (2015–2018) and Everest UA (2015–2017) fitted with a 4.2" factory display. It replaces the factory screen with a large 9" capacitive touchscreen running at 1024x600 resolution and adds wireless Apple CarPlay and Android Auto, built-in DAB+ digital radio, and Bluetooth V5 while retaining steering wheel controls and the factory reverse camera (if equipped).

Supplied as a full kit, the AMDFO3 includes the AM905D multimedia receiver, a vehicle-specific black facia kit, SWC interface harness, SWC patch lead, antenna adaptor, camera retention adaptor, and a 720P AHD universal rear camera. On the audio side, the receiver delivers 4 x 50W max output with a 13-band graphic EQ, time alignment, and 4V/5-channel RCA preouts for adding external amplifiers. Everything needed for a clean, factory-integrated installation is in the box.

Important: This kit suits models with the 4.2" factory display only. Time/date display and trip computer are not supported. Factory USB and AUX inputs are not retained. Phone button support requires manual programming in the aftermarket head unit.

Features & Benefits

  • Wireless Apple CarPlay & Android Auto — connect your phone via Wi-Fi for maps, music, messaging, and calls without plugging in, or use wired for simultaneous charging
  • 9" capacitive touchscreen at 1024x600 resolution — larger, sharper, and more responsive than the factory 4.2" display; easy to navigate on the move
  • Built-in DAB+ digital radio — crystal-clear digital audio quality and access to a wider range of stations, plus AM/FM tuning with RDS and 18 FM / 12 AM presets
  • Bluetooth V5 with HD Voice — hands-free calling, audio streaming, phonebook access, and full A2DP/AVRCP/HFP/PBAP profile support; internal and external microphone included
  • Retains factory steering wheel controls — SWC interface harness and patch lead included; phone button requires manual programming
  • Retains factory reverse camera — camera retention adaptor included; reverse camera input accepts 720P AHD signal; second camera input also available
  • 720P AHD universal rear camera included — Sony 225 1/3" CMOS sensor, 150-degree wide-angle lens, surface mount; adds a backup camera to vehicles not equipped from factory
  • 4 x 50W max output with 5CH 4V RCA preouts — front, rear, and subwoofer preout pairs at 4V peak; supports external amplifier add-ons via clean preamp signal
  • 13-band graphic EQ and time alignment — fine-tune the soundstage to the Ranger/Everest cabin with 6 preset EQ modes plus 2 custom slots
  • 6-colour button illumination — choose from red, yellow, green, blue, purple, or white to match or complement the factory interior lighting

Technical Specs

Specification Detail
Display size 9"
Resolution 1024x600
Touchscreen type Capacitive
OS Linux
DIN size Fixed Screen Style (Trapezoid)
Max power output 4CH x 50W (4 ohm)
RCA preouts 4V, 5-channel (Front / Rear / Subwoofer)
Preamp voltage 4V p-p
EQ 13-band (32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K Hz)
Preset EQs 6 + 2 custom
Time alignment Yes
Subwoofer level control Yes
Smartphone connectivity Apple CarPlay & Android Auto (wireless and wired)
Bluetooth version V5 (A2DP, AVRCP, HFP 1.6 HD Voice, PBAP)
Microphone Internal + external (with mount)
DAB Yes
FM tuner range 87.5–108.0MHz (0.05MHz step) / 18 presets
AM tuner range 522–1710KHz (9KHz step) / 12 presets
RDS Yes
USB1 (rear) CarPlay / Android Auto + charging (5V / 1.5A)
USB2 (rear) Media playback + charging (5V / 1.5A)
USB max capacity FAT32 / 32GB
Media formats MP3, MP4, MKV, FLAC, Xvid
Rear A/V input RCA type (3 pcs)
Composite video output Yes (x2)
Reverse camera input Yes (720P AHD compatible)
Second camera input Yes (720P AHD compatible)
Button illumination 6-colour (Red, Yellow, Green, Blue, Purple, White)
OSD language English
Rear Camera (AHD)
Image sensor Sony 225, 1/3" CMOS AHD
Lens angle 150°
Mount type Surface mount
SWC Retention
Steering wheel controls Yes (phone button requires manual programming)
Factory reverse camera Yes (if equipped)
Factory USB / AUX input Not retained
Trip computer / time-date Not supported

Compatible With / Goes Well With

  • Ford Ranger PX2 (2015–2018) with 4.2" factory display
  • Ford Everest UA (2015–2017) with 4.2" factory display
  • Not compatible with models featuring a factory display other than 4.2"
  • Pairs well with external amplifiers via 4V 5-channel RCA preouts (front/rear/sub)
  • Second camera input supports an optional front or towing camera (720P AHD compatible)

Weight

Not specified

Frequently Asked Questions

Will this kit fit my Ford Ranger or Everest?

The AMDFO3 suits Ford Ranger PX2 (2015–2018) and Everest UA (2015–2017) models with a 4.2" factory display. Use the Aerpro What Fits Your Car Guide to confirm your specific build before purchasing.

Do my steering wheel controls still work after installation?

Yes — the SWC interface harness and patch lead retain steering wheel controls. The phone button is retained but requires manual programming in the aftermarket head unit.

What happens to my factory reverse camera?

The camera retention adaptor retains your factory reverse camera using the head unit's reverse camera input. A 720P AHD universal rear camera is also included in the kit.

Does it support wireless CarPlay or do I need to plug my phone in?

Both — wireless Apple CarPlay and Android Auto work over Wi-Fi, or you can connect via USB for wired operation and simultaneous phone charging.

Are there any factory features that won't carry over?

Yes — time/date display and trip computer are not supported. Factory USB and AUX inputs are not retained. All other noted features including SWC and reverse camera (if equipped) are retained.
