Aerpro AMDFO2 9" Multimedia Receiver Kit Ford Ranger PX 2012-2015

SKU: AMDFO2
Regular price
$899.99
Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

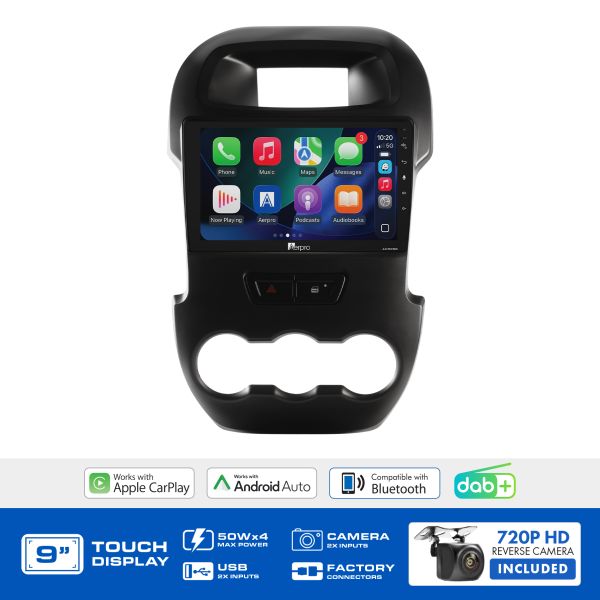

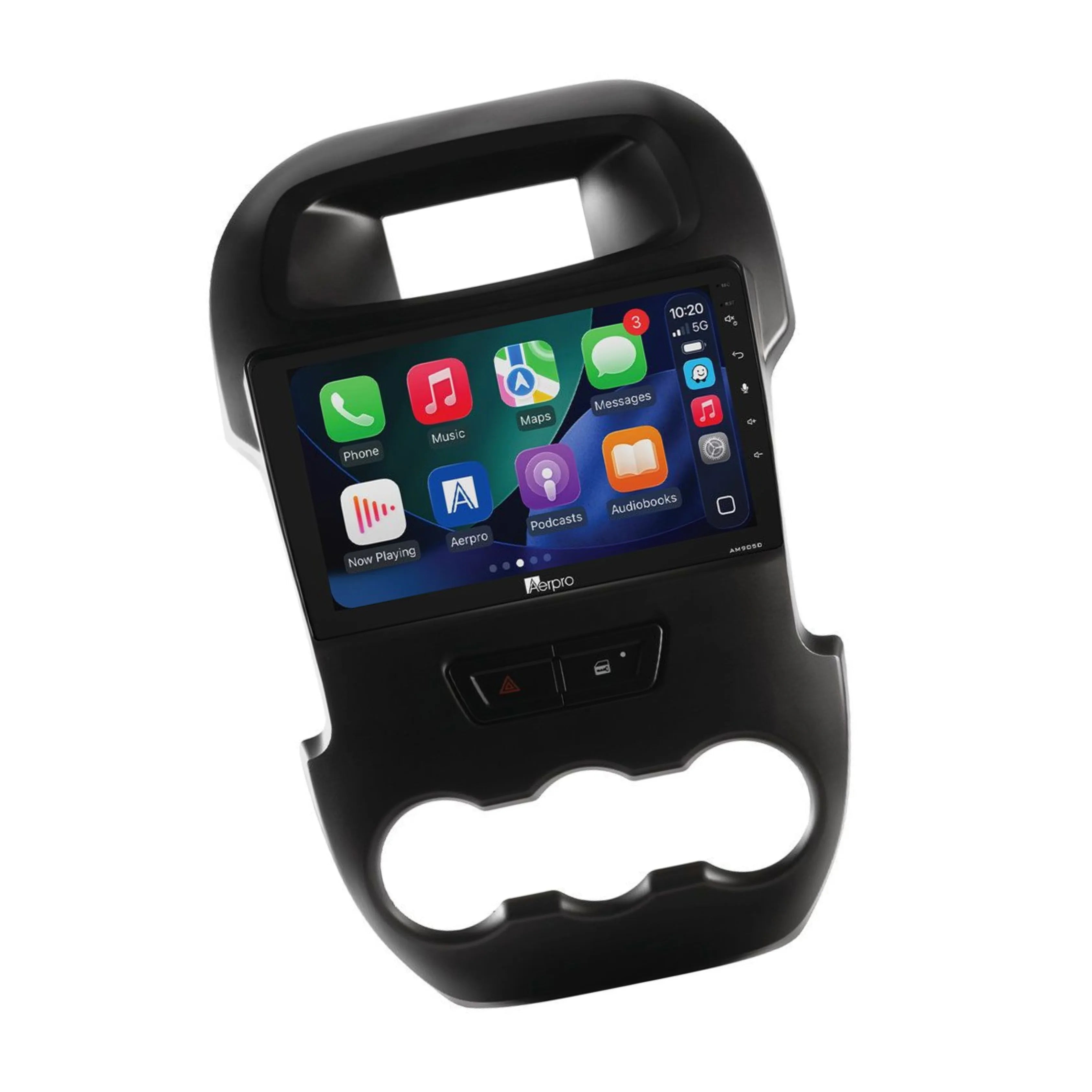

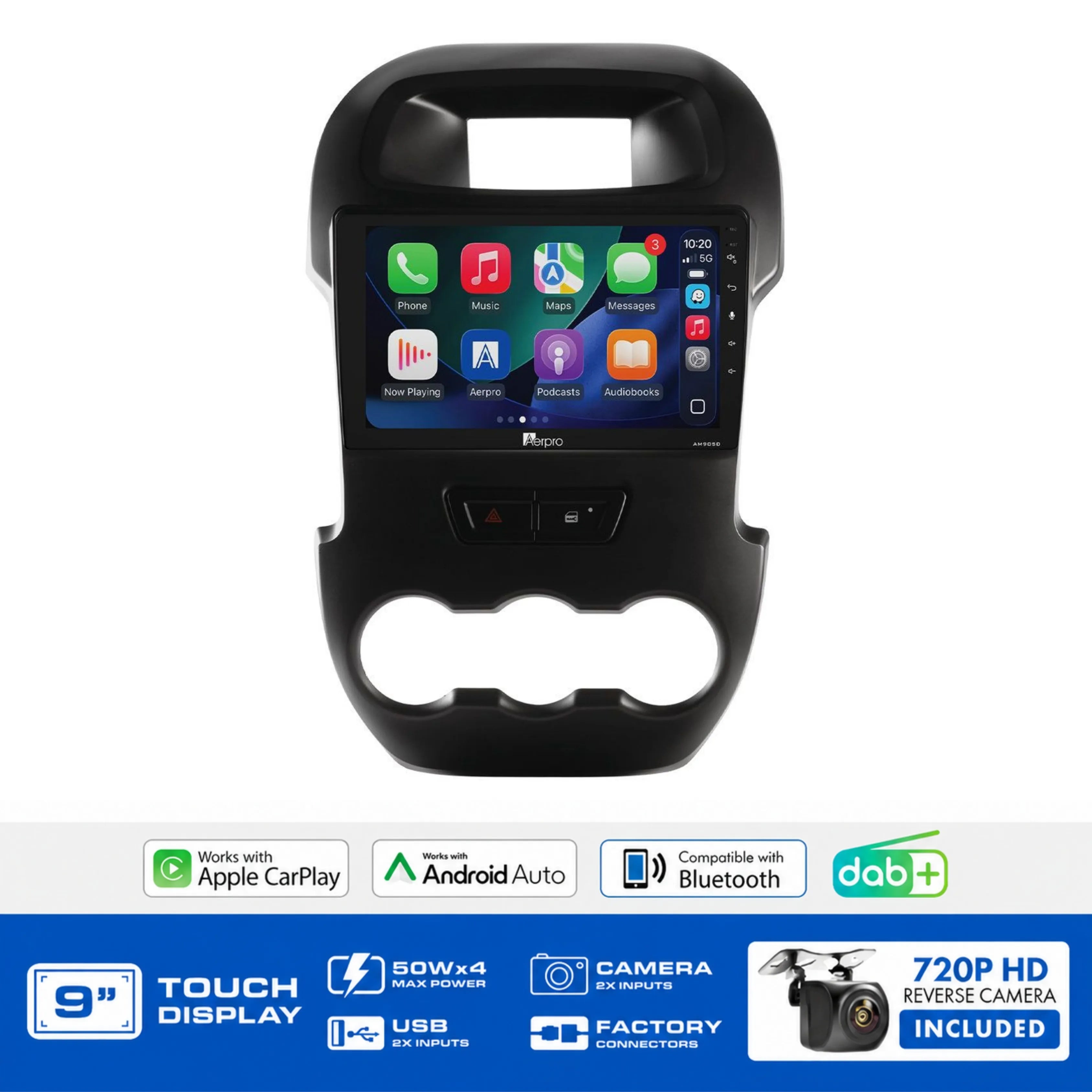

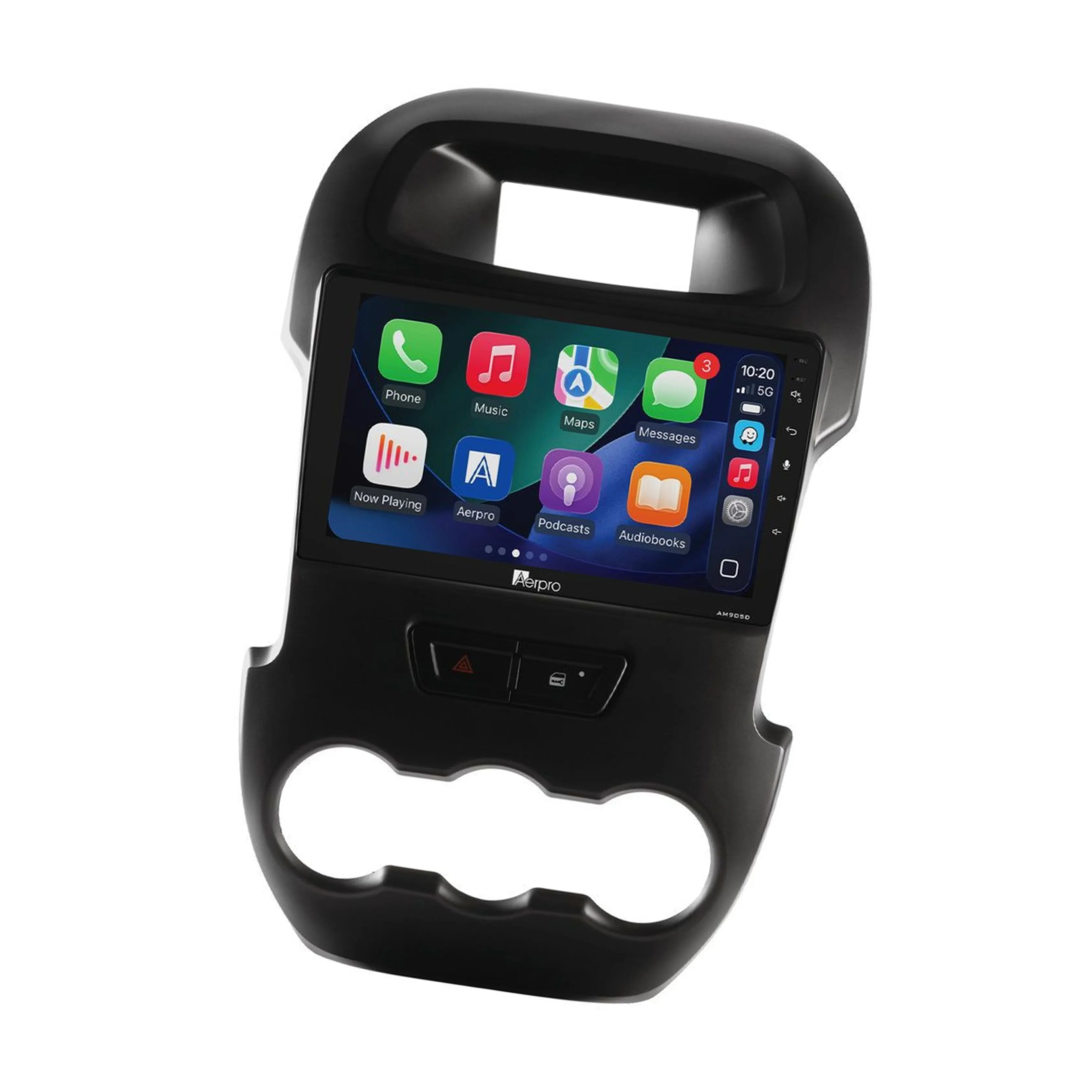

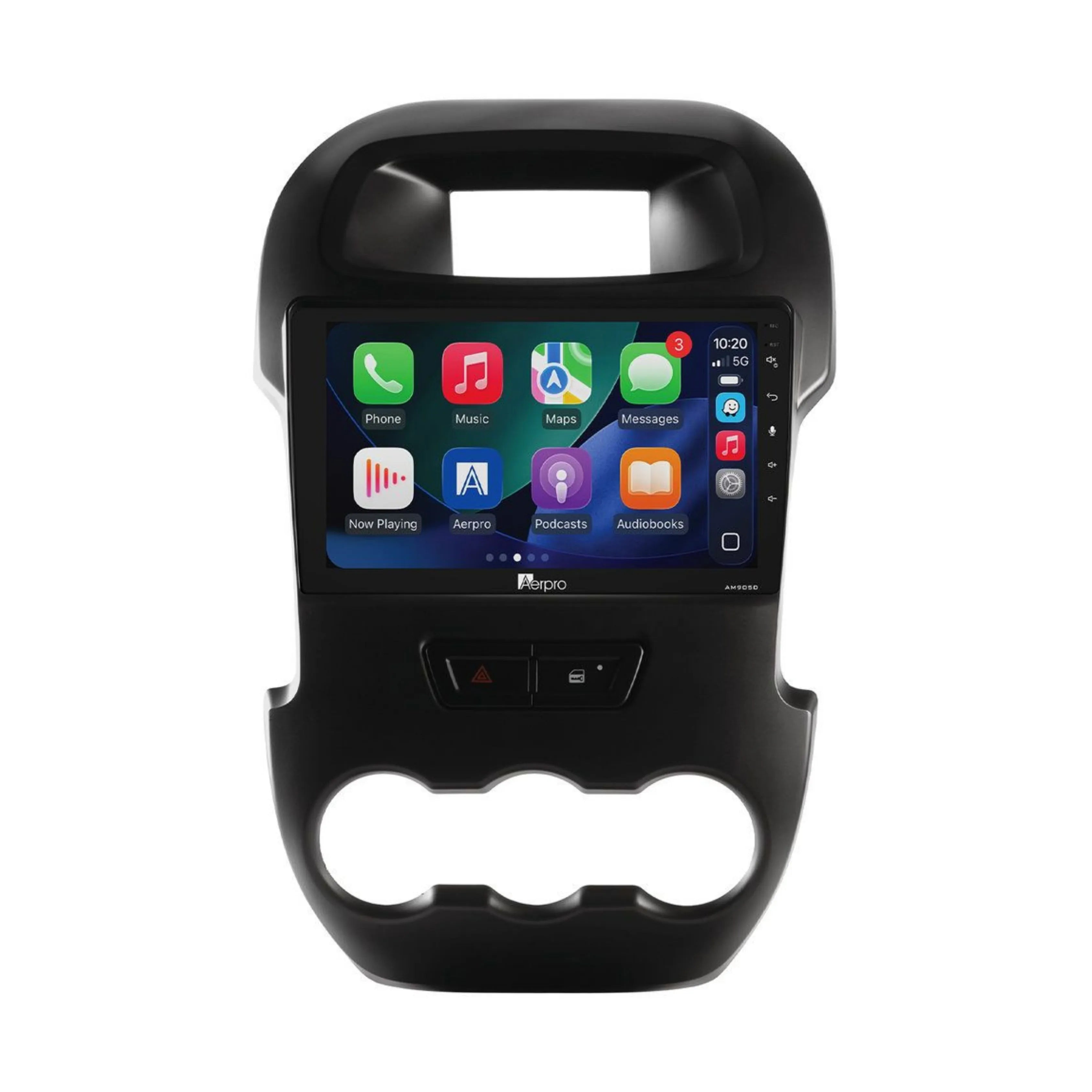

Aerpro AMDFO2 9" Multimedia Receiver Complete Kit Ford Ranger PX 2012-2015

A complete 9" head unit upgrade kit from Aerpro for Ford Ranger PX (2012-2015) vehicles, the AMDFO2 includes the AM905D multimedia receiver with wireless Apple CarPlay, Android Auto, DAB+, Bluetooth V5, and 50W x 4 output, plus a black fascia kit, blanking plate for the factory top display, SWC interface harness, antenna adaptor, and 720P AHD universal rear camera. Retains steering wheel controls including phone button, AUX input, and parking tones (where equipped).

Product Overview

The Aerpro AMDFO2 is a vehicle-specific complete head unit upgrade kit for Ford Ranger PX (2012-2015), supplied with everything required to complete the installation and retain important factory vehicle features. The included AM905D multimedia receiver features a 9" capacitive touchscreen at 1024 x 600 resolution, wireless and wired Apple CarPlay and Android Auto, Bluetooth V5 with HD Voice (HFP 1.6), built-in DAB+ digital radio, AM/FM with RDS, 50W x 4 maximum output, 5-channel 4V RCA preouts, 13-band graphic EQ, time alignment, and subwoofer level control. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included.

Vehicle feature retention covers steering wheel controls including phone button (requires manual programming in the aftermarket head unit), AUX input (if equipped), and parking tones (if equipped). Factory reverse camera and USB input retention are not applicable for this vehicle. A blanking plate is included for installations where the factory top display is not required. Note: the phone button function requires manual programming in the aftermarket head unit after installation.

Features & Benefits

Complete Head Unit Upgrade Kit - All Installation Parts Included: The AMDFO2 includes the AM905D multimedia receiver, black fascia kit, blanking plate for top display, SWC interface harness, SWC patch lead, antenna adaptor, and 720P AHD universal rear camera.

Wireless Apple CarPlay and Android Auto: Access maps, music, calls, and messages via the touchscreen without plugging in the phone. Wired connection is also supported for simultaneous charging.

Built-In DAB+ Digital Radio: Crystal-clear digital radio with a wider range of stations, plus AM/FM tuning with RDS. DAB antenna included.

Bluetooth V5 with HD Voice - Hands-Free Calling and Audio Streaming: Bluetooth V5 supports A2DP, AVRCP, HFP 1.6 (HD Voice), and PBAP for hands-free calling, wireless audio streaming, and phonebook access. Both internal and external microphones are included.

9" Capacitive Touchscreen - 1024x600 Resolution: Smooth, responsive touch control for navigation, media, and settings.

50W x 4 Maximum Output with 5-Channel 4V RCA Preouts: 50W x 4 maximum output with 5-channel 4V RCA preouts for connection of aftermarket amplifiers.

13-Band Graphic EQ with Time Alignment and Subwoofer Control: 13-band graphic EQ from 32Hz to 16kHz with 6 preset EQ modes plus 2 custom presets, time alignment, and subwoofer LPF control.

720P AHD Universal Rear Camera Included: Sony 225 1/3 CMOS 720P AHD surface mount camera with 150-degree lens angle included. A second camera input is available for a front or towing camera (not included).

Steering Wheel Control Retention Including Phone Button: The SWC interface harness and patch lead retain factory steering wheel controls including the phone button. Note: phone button function requires manual programming in the aftermarket head unit after installation.

AUX Input and Parking Tones Retention: AUX input is retained via the RCA AUX input on the rear of the head unit (if equipped). Parking tones are retained where the vehicle is equipped with this feature.

Blanking Plate Included for Factory Top Display: A blanking plate is included for installations where the factory top display location is not required, providing a clean finish to the dashboard.

6-Colour Button Illumination: Customisable key illumination in red, yellow, green, blue, purple, or white.

GPS Antenna and External Microphone Included: GPS antenna with adhesive pad and external microphone with mount are included.

What's in the Box

  • AM905D 9" Fixed Multimedia Receiver (Trapezoid)
  • Black Fascia Kit
  • Blanking Plate for Top Display
  • Steering Wheel Control Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • 720P AHD Universal Rear Camera (Surface Mount, Sony 225, 150°)
  • Mounting Hardware and Screws
  • Wiring Harness with ISO Connection
  • AV, USB, and Camera Harnesses
  • DAB Antenna
  • GPS Antenna with Adhesive Pad
  • External Microphone with Mount
  • QR Digital Manual Leaflet

Technical Specs

Specification Detail
SKU AMDFO2
Brand Aerpro
Compatible Vehicle Ford Ranger PX (2012-2015)
Head Unit Model AM905D
Screen Size 9"
Resolution 1024 x 600
Touchscreen Capacitive
OS Linux
DIN Format Fixed Screen (Trapezoid)
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
DAB+ Yes (Antenna Included)
AM/FM Presets AM 12 / FM 18
FM Range 87.5-108.0MHz (0.05MHz Step)
AM Range 522-1710KHz (9KHz Step)
RDS Yes
Bluetooth V5 (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone Internal and External
Max Power Output 4 x 50W
RCA Preouts 4V, 5-Channel (Front/Rear/Subwoofer)
EQ 13-Band (32Hz-16kHz)
Preset EQs 6 + 2 Custom
Time Alignment Yes
Subwoofer LPF Yes
USB1 (Rear) CarPlay/Android Auto + Charging (5V/1.5A)
USB2 (Rear) Media + Charging (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Formats MP3, MP4, MKV, FLAC, Xvid
Reverse Camera Input Yes (720P AHD Compatible)
Second Camera Input Yes (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 Piece)
Composite Video Output Yes (x2)
Button Illumination 6-Colour (Red, Yellow, Green, Blue, Purple, White)
GPS Yes (Antenna Included)
Camera Included 720P AHD Universal Rear Camera
Camera Sensor Sony 225, 1/3 CMOS AHD
Camera Lens Angle 150 Degrees
Camera Mount Surface Mount
SWC Retention Yes (Including Phone Button - Manual Programming Required)
AUX Input Retention Yes (If Equipped)
Parking Tones Retention Yes (If Equipped)
Reverse Camera Retention N/A
USB Input Retention N/A
Factory Amplifier Retention N/A
Barcode 9317114955678

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes
Phone Button Yes (Manual Programming Required)
AUX Input Yes (If Equipped)
Parking Tones Yes (If Equipped)
Factory Reverse Camera N/A
USB Input N/A
Factory Amplifier N/A
Vehicle Menu N/A

Compatible With

Make Model Variant Years
Ford Ranger PX 2012-2015

Note: Phone button function requires manual programming in the aftermarket head unit after installation. A blanking plate is included for installations where the factory top display is not required. Confirm your specific Ranger variant using the Aerpro What Fits Your Car Guide before purchase.

Frequently Asked Questions

Does the AMDFO2 retain the factory USB input?

No. Factory USB input retention is not applicable for the Ford Ranger PX (2012-2015). The AMDFO2 retains steering wheel controls including phone button, AUX input, and parking tones (all where equipped).

Does the phone button work immediately after installing the AMDFO2?

The phone button function is retained but requires manual programming in the aftermarket head unit after installation. Confirm the programming procedure with your installer before purchase.

What is the blanking plate included in the AMDFO2 kit for?

The blanking plate covers the factory top display location in the dashboard for installations where the top display is not required, providing a clean finish to the surrounding trim.

Does the AMDFO2 retain parking tones?

Yes, parking tones are retained where the vehicle is equipped with this feature.

Is a rear camera included with the AMDFO2?

Yes. A 720P AHD universal rear camera with Sony 225 image sensor and 150-degree lens angle is included. A second camera input is also available on the head unit for a front or towing camera (not included).
