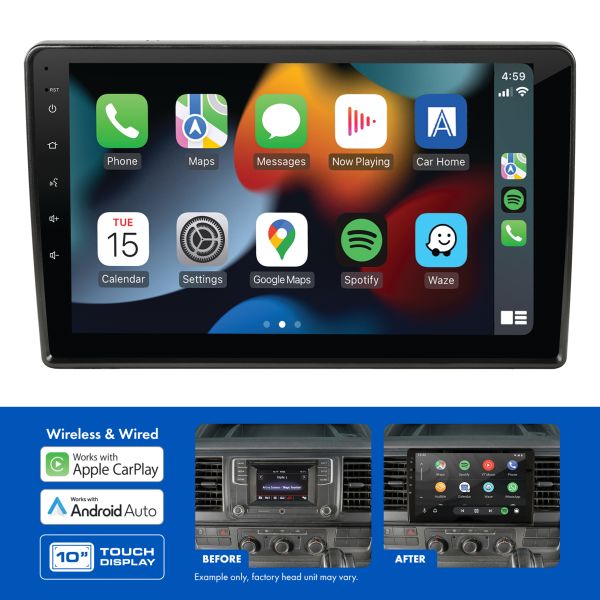

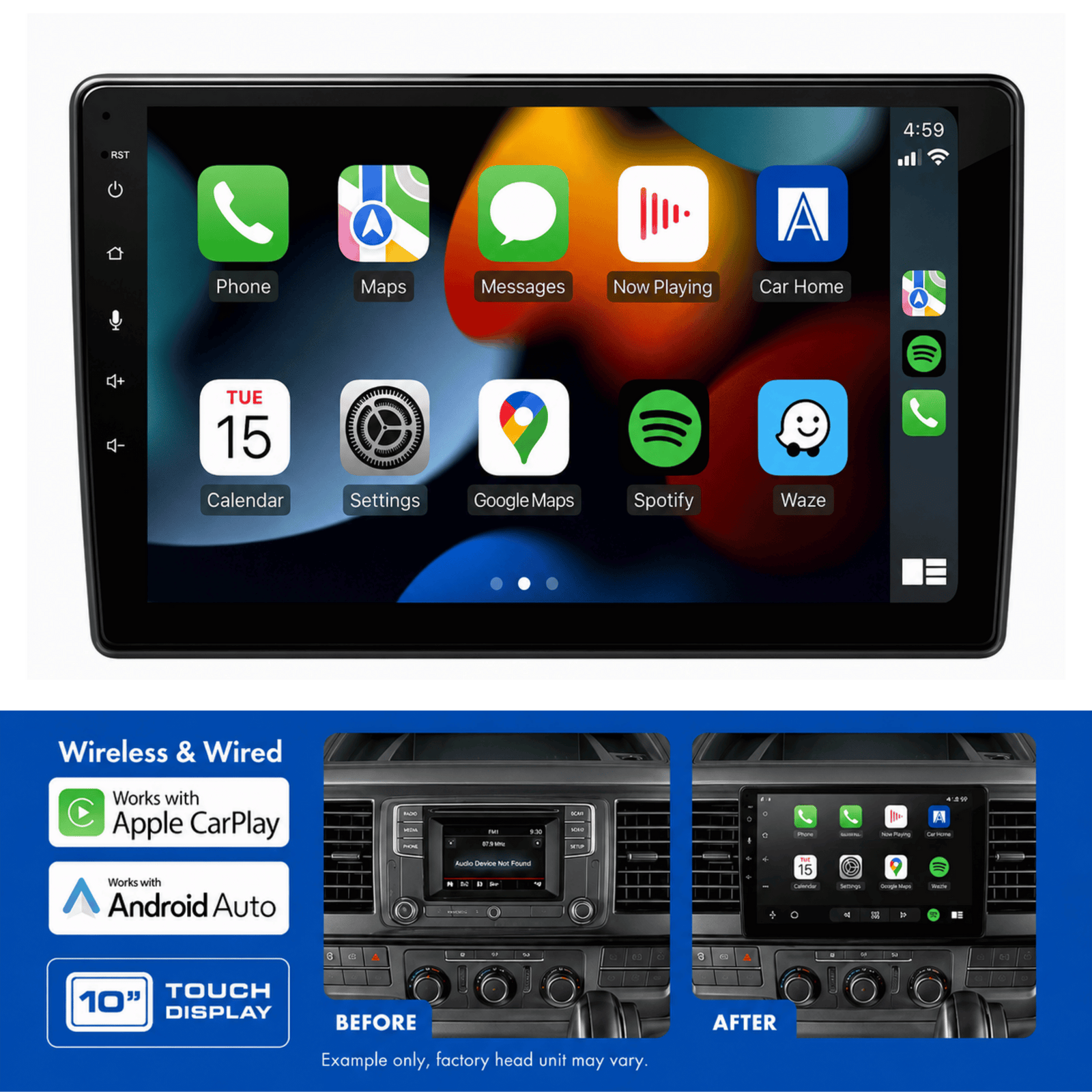

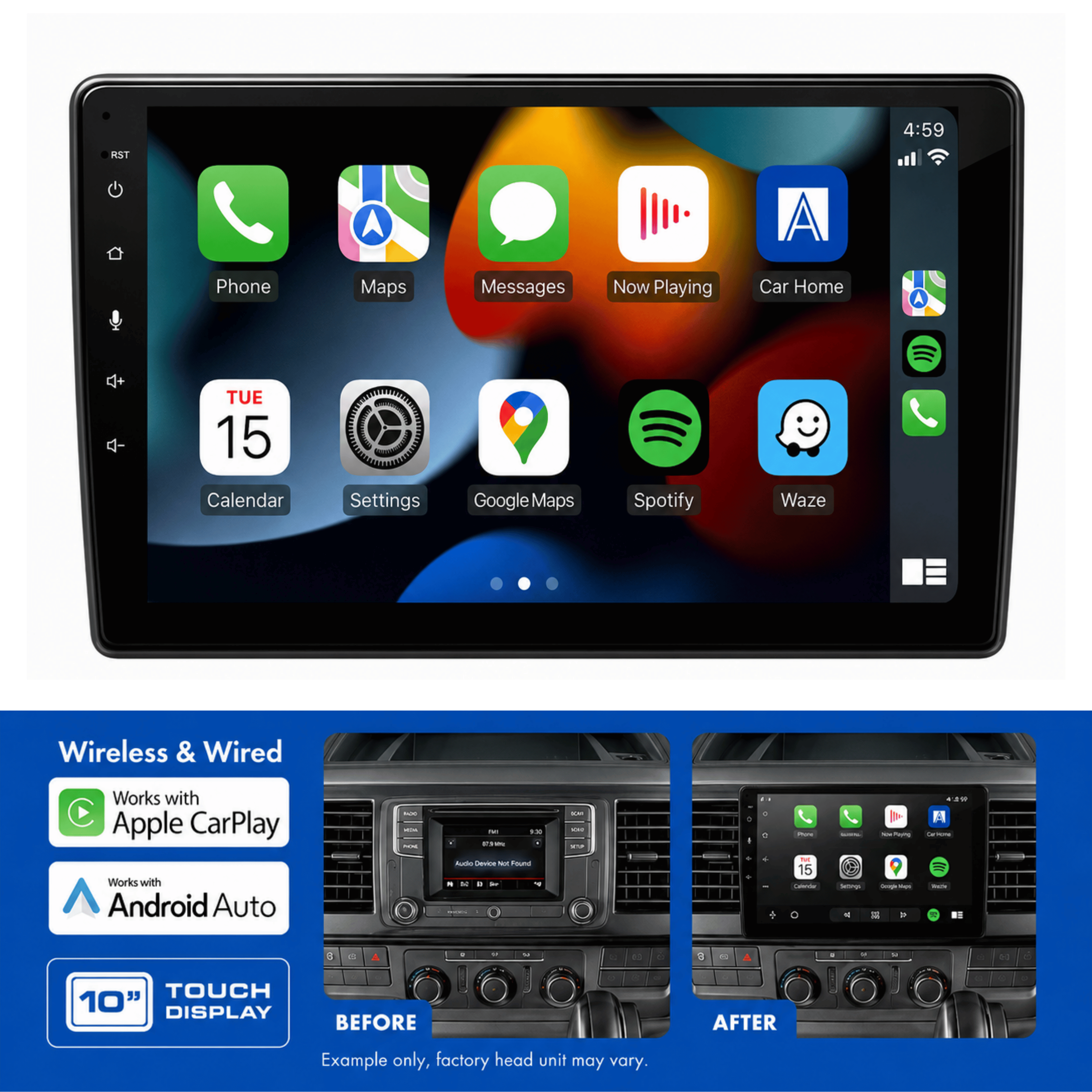

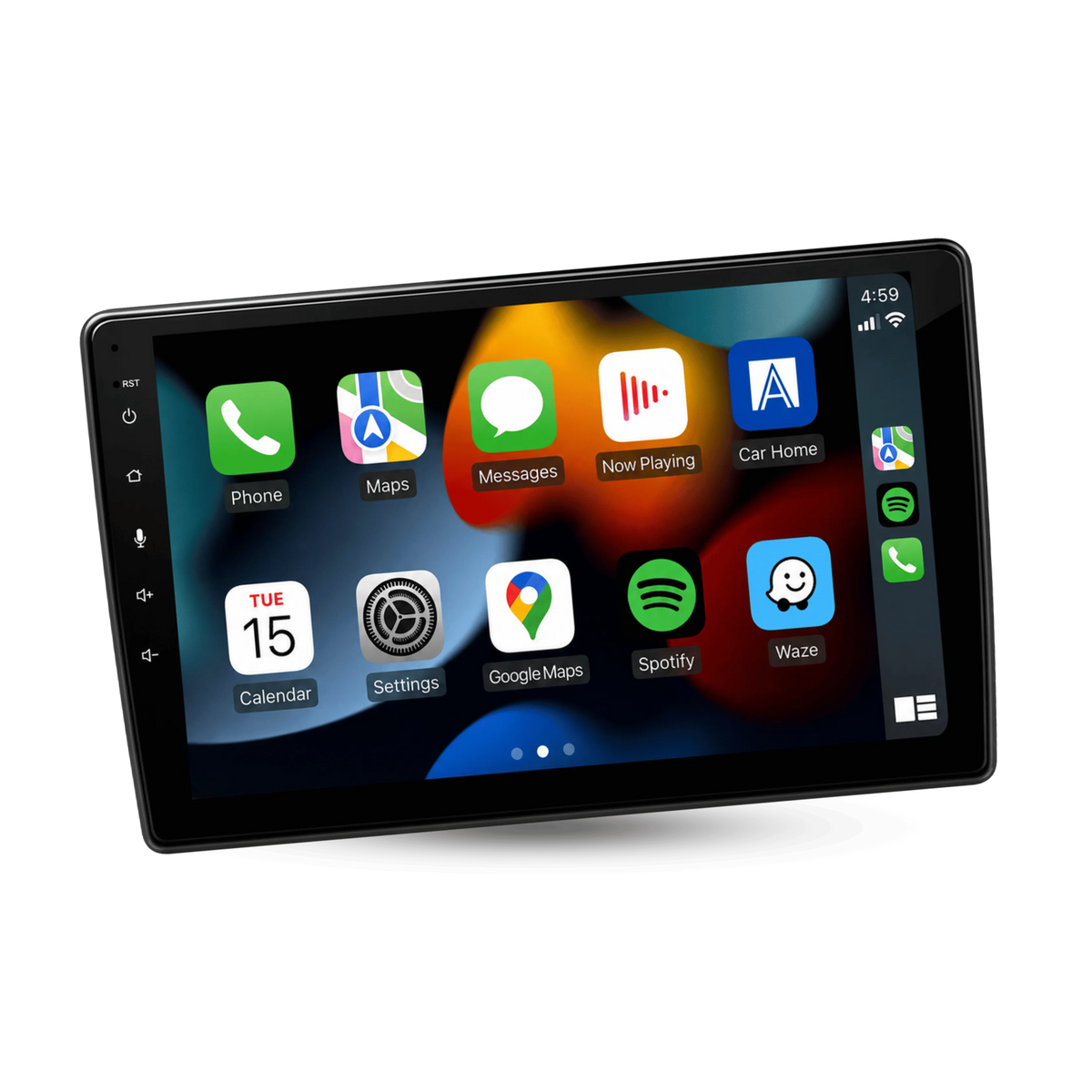

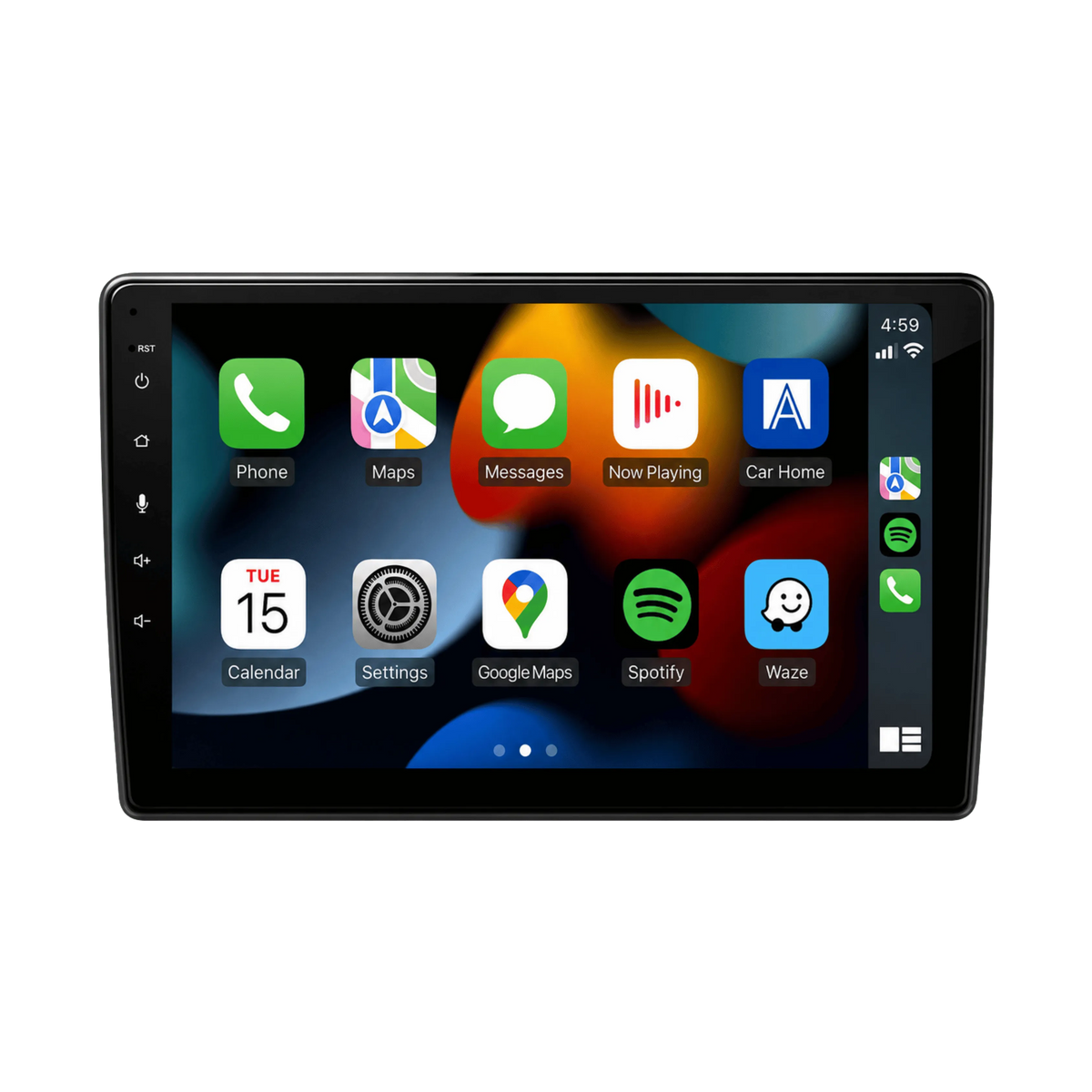

Aerpro AMAVW5 10" Multimedia Receiver Kit Volkswagen MIB-PQ

SKU: AMAVW5
Price
$1,099.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMAVW5 10" Multimedia Receiver Kit Volkswagen Various MIB-PQ

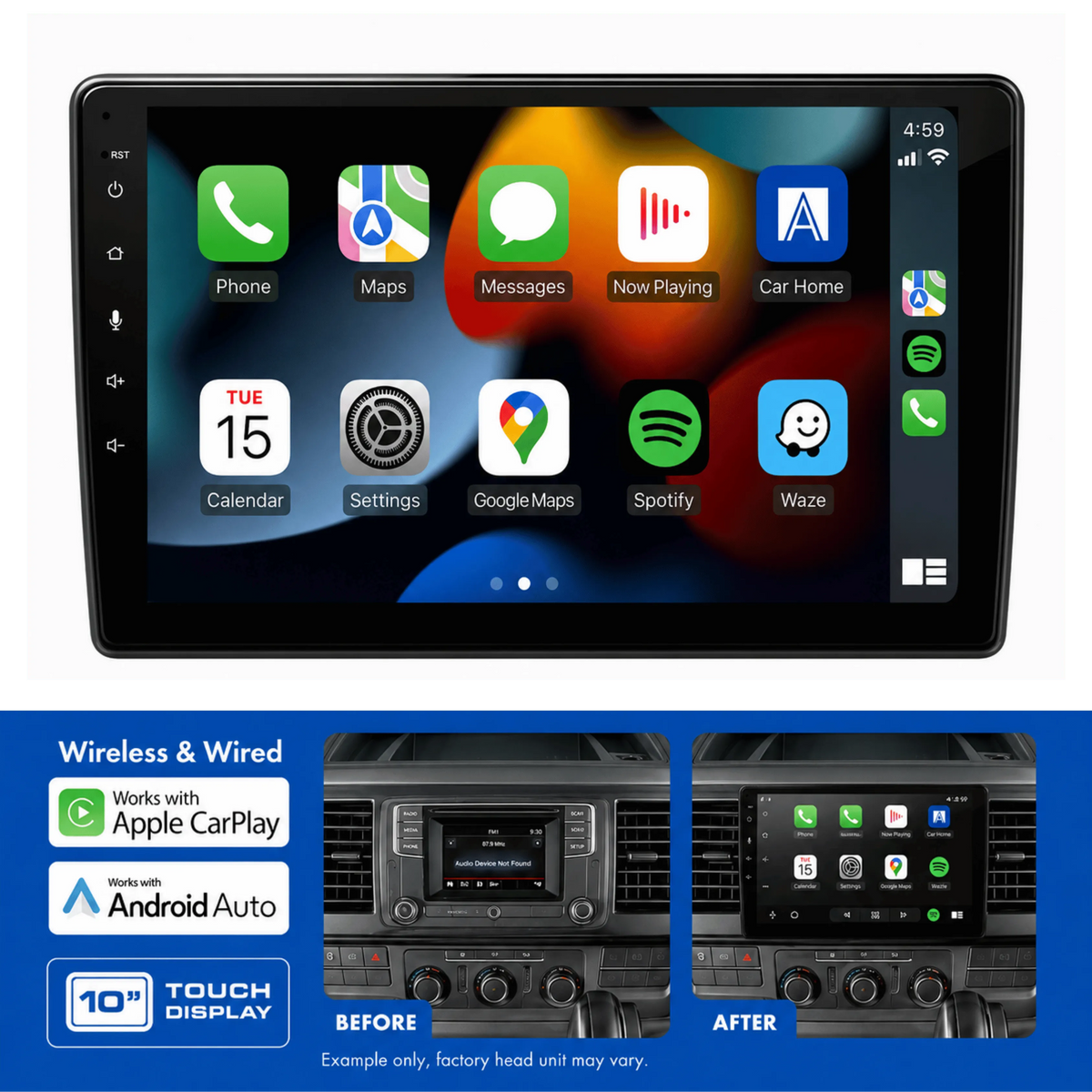

A complete 10" head unit upgrade kit for Volkswagen Amarok (2016-on), Beetle (2015-2016), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), and Transporter (2016-2019) vehicles fitted with a factory MIB-PQ unit, the AMAVW5 includes the AM10X Multimedia Receiver with wireless Apple CarPlay and Android Auto, matte black fascia kit, Infodaptor Interface harness, SWC patch lead, and antenna adaptor, retaining steering wheel controls, factory amplified system, parking tones, and vehicle menu access.

Product Overview

The Aerpro AMAVW5 is a 10" multimedia receiver upgrade kit designed for Volkswagen Amarok (2016-on), Beetle (2015-2016), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), and Transporter (2016-2019) vehicles fitted with the factory MIB-PQ unit. The kit is built around the Aerpro AM10X Multimedia Receiver, which features a 10" 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles, AM/FM tuner with RDS, dual rear USB inputs, 50W x 4 maximum power output, 8-band graphic EQ with time alignment, and 4V 5-channel RCA pre-outs including a subwoofer output.

The included Infodaptor Interface harness enables vehicle information including climate control and parking visualisation to be displayed and accessed on the aftermarket head unit, retains steering wheel controls, the factory amplified system, parking tones, and vehicle menu access. The Interface connects to the rear camera input on the AM10X; output for this kit will be low resolution.

Factory reverse camera retention requires the Aerpro APVVW03 camera retention adaptor (sold separately, not included). An ignition stabiliser (Aerpro APIGNSTB, sold separately, not included) may be required for stop-start models. The factory Bluetooth module fuse may need to be removed for the phone button to function correctly after installation. Tiguan (2015-2016): the kit partially covers the hazard button due to the size of the 10" head unit.

Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.

Features & Benefits

Complete Head Unit Upgrade Kit for VW Amarok, Beetle, Caddy, Multivan, Tiguan, and Transporter with Factory MIB-PQ: The AMAVW5 includes all components required to complete a 10" head unit installation in the supported Volkswagen models with factory MIB-PQ unit in a single purchase.

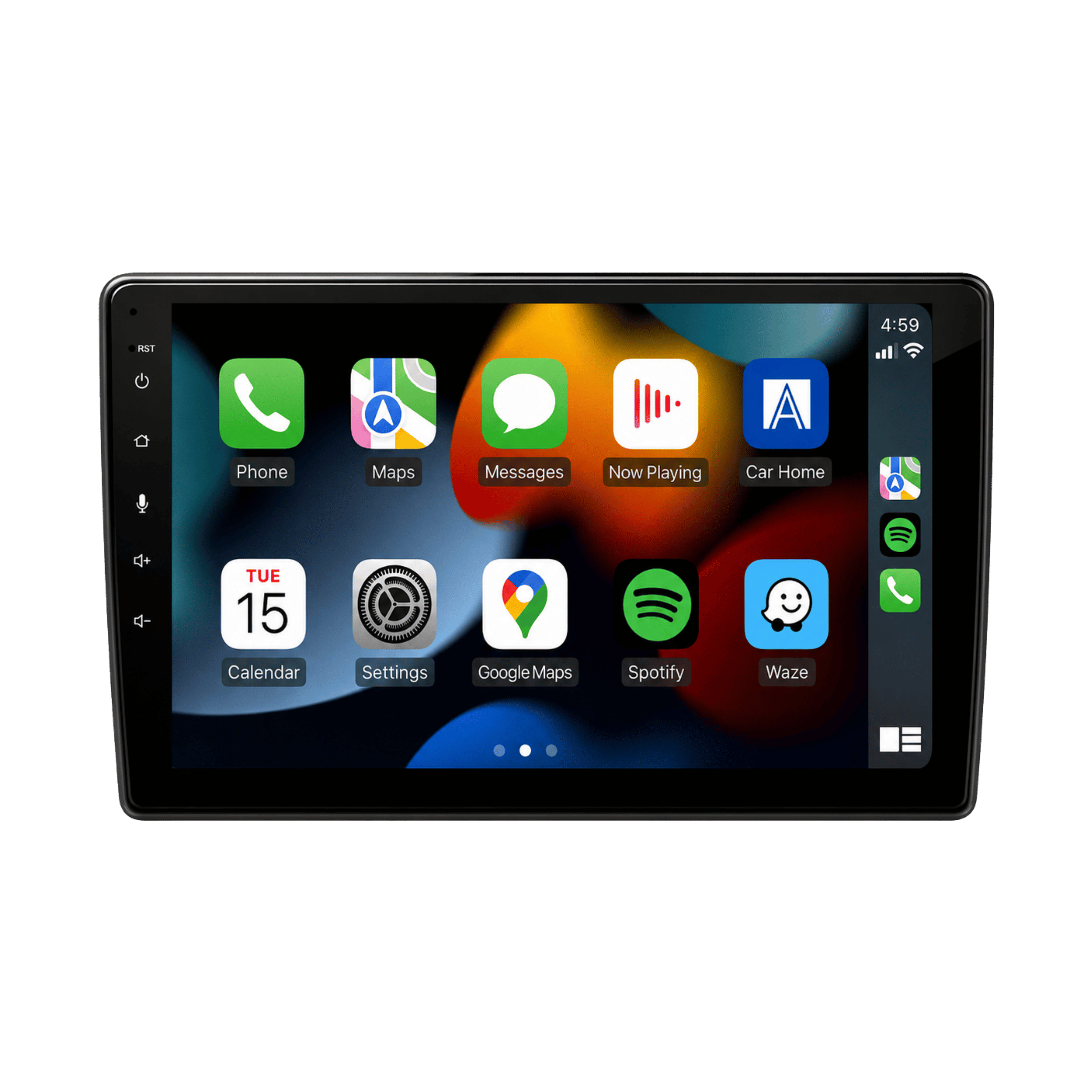

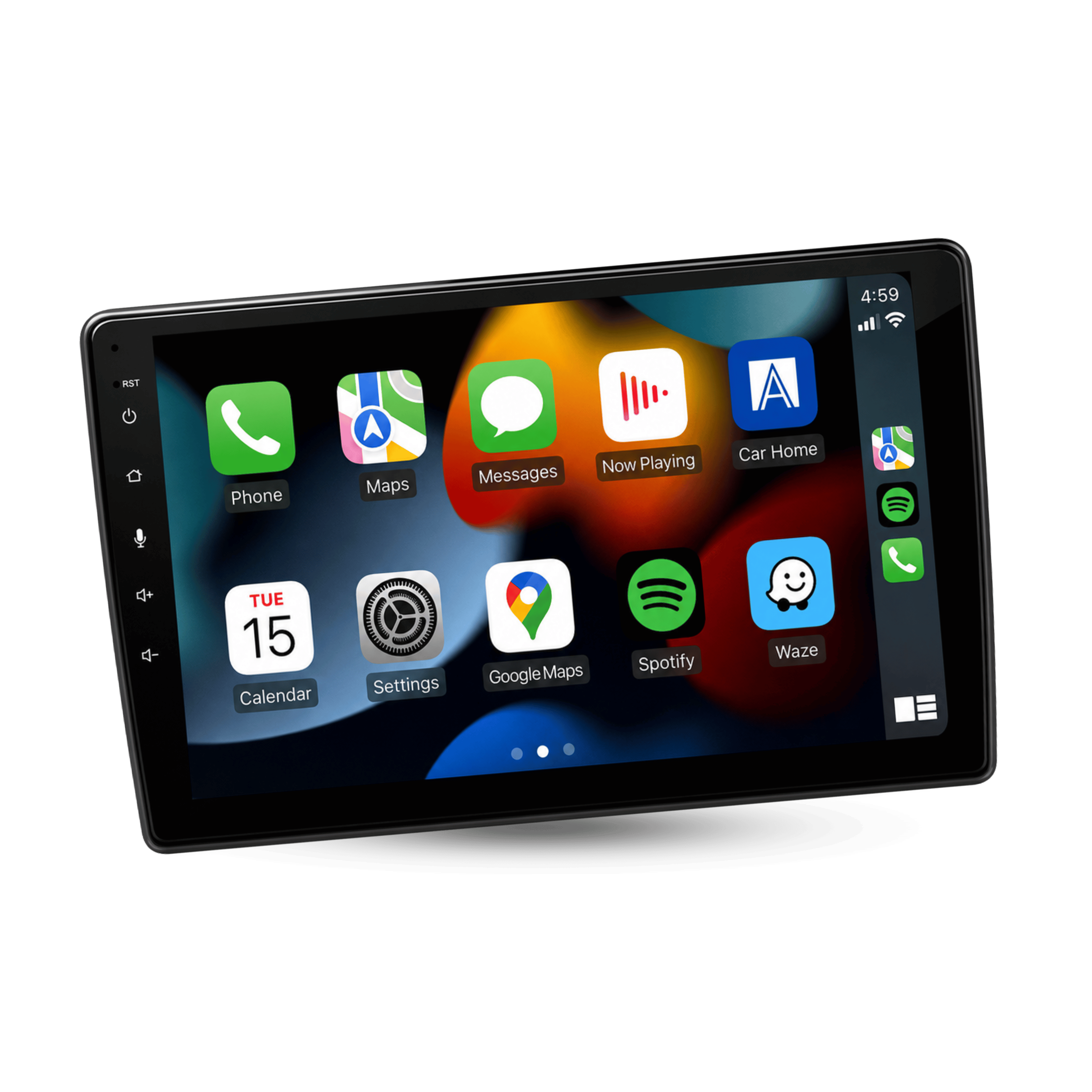

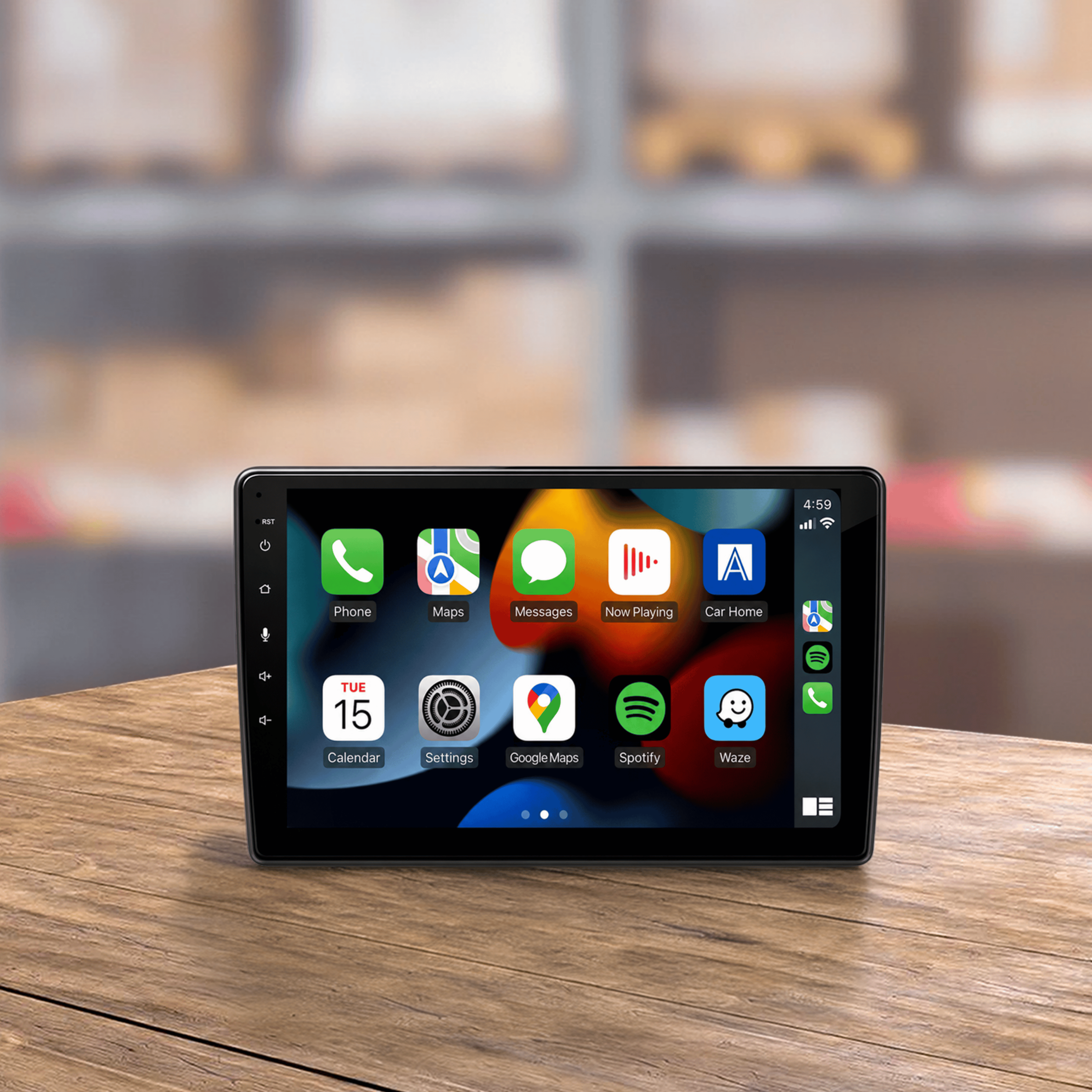

10" Capacitive Touchscreen Display at 1024x600: The AM10X features a 10" G+G capacitive touchscreen at 1024x600 resolution for accurate touch response and clear display across all connected functions including CarPlay, Android Auto, and the native head unit interface.

Wireless and Wired Apple CarPlay and Android Auto: The AM10X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.

Infodaptor Interface - Vehicle Feature Retention: The included Infodaptor Interface harness retains steering wheel controls, factory amplified system, parking tones, and vehicle menu access. Climate control and parking visualisation are displayed on the aftermarket head unit where equipped. The Interface connects via the rear camera input and output will be low resolution.

Factory Reverse Camera Retention - APVVW03 Required: Factory reverse camera retention is possible but requires the Aerpro APVVW03 camera retention adaptor, which is not included in the AMAVW5 kit and must be purchased separately.

Steering Wheel Control Retention: Factory steering wheel audio controls are retained via the Infodaptor Interface harness and included SWC patch lead. The factory Bluetooth module fuse may need to be removed for the phone button to function correctly after installation.

Factory Amplified System Retention: The Infodaptor Interface retains the factory amplified system in the vehicle, preserving the factory speaker and amplifier configuration after the head unit upgrade.

Ignition Stabiliser Note for Stop-Start Models: An ignition stabiliser (Aerpro APIGNSTB, sold separately) may be required for Volkswagen models fitted with stop-start systems. Confirm whether your specific vehicle requires this accessory before installation.

50W x 4 Maximum Power with 8-Band Graphic EQ and Time Alignment: The AM10X delivers 25W x 4 RMS at 10% THD and 50W x 4 maximum output at 4 ohms, with an 8-band graphic EQ at 50Hz, 200Hz, 400Hz, 800Hz, 1kHz, 3kHz, 7kHz, and 15kHz, eight preset EQ profiles, loudness, and time alignment.

4V 5-Channel RCA Pre-Outs with Subwoofer Output: The AM10X provides 4V 5-channel RCA pre-outs including front, rear, and subwoofer outputs with adjustable subwoofer level control for external amplifier integration.

Bluetooth V4.2 with External Microphone: Built-in Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles supports wireless audio streaming, hands-free calling, and phone book access. An external microphone is included alongside the built-in microphone.

Dual Rear USB Inputs with Media Playback: Two rear USB inputs support MP3, AAC, FLAC, Xvid, and MPEG 1/2/4 media playback. USB 1 supports CarPlay, Android Auto, and media playback; USB 2 supports media playback. Both provide 5V/1.5A charging output. Maximum USB capacity is FAT32 32GB.

Dual AHD 720P Camera Inputs: The AM10X provides two camera inputs compatible with 720P AHD cameras and a reverse camera input with 12V power supply output for the camera.

AM/FM Tuner with RDS: An AM/FM tuner with RDS provides 18 FM presets (6x3) and 12 AM presets (6x2) across standard Australian frequency ranges.

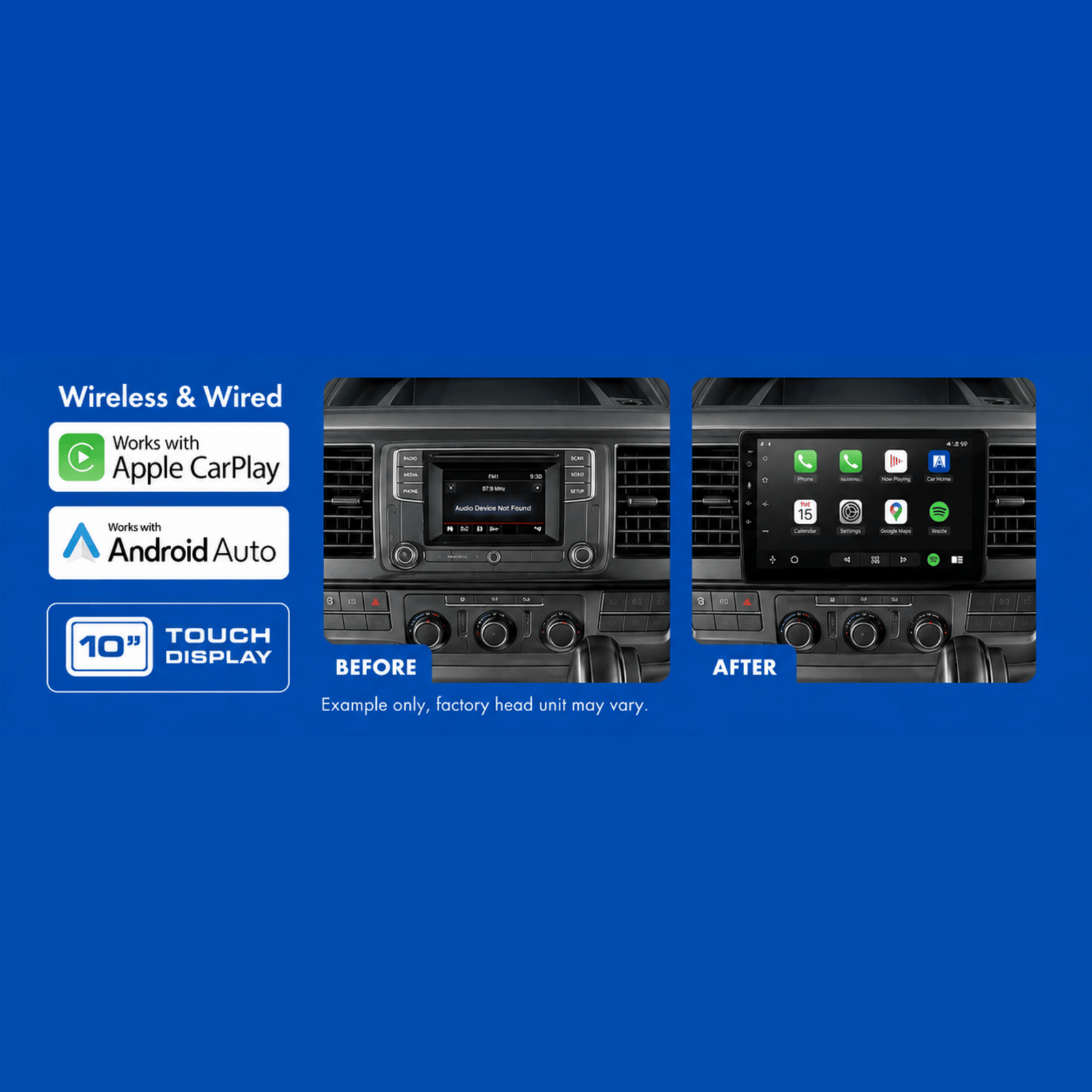

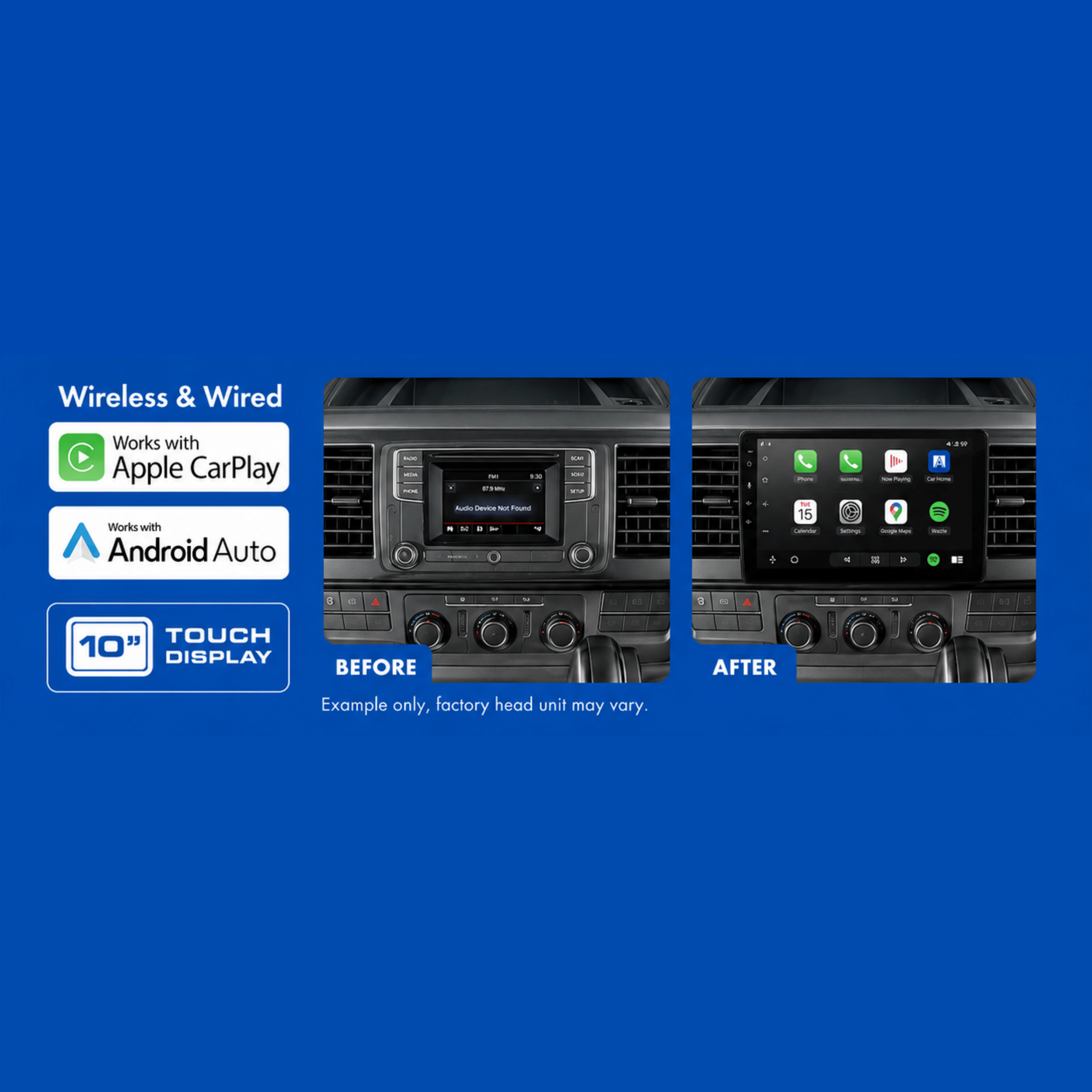

Matte Black Fascia Kit and Antenna Adaptor Included: The included matte black fascia kit provides a factory-fit appearance around the AM10X in the supported Volkswagen dashboard, and the antenna adaptor ensures correct connection between the factory antenna and the AM10X.

Technical Specs

Specification Detail
SKU AMAVW5
Brand Aerpro
Compatible Vehicles VW Amarok 2016-On, VW Beetle 2015-2016, VW Caddy 2015-2020, VW Multivan 2016-2019, VW Tiguan 2015-2016, VW Transporter 2016-2019
Factory Unit Requirement MIB-PQ Unit Only
Head Unit Model AM10X
Display Size 10"
Display Resolution 1024 x 600
Touchscreen Capacitive G+G
OS / CPU Linux 3.4.5 / SPHE8368U
RAM / Flash Memory 128MB / 256MB
DIN Size 2 DIN Short Body
Rated Power 25W x 4 (4 Ohm, 1kHz, 10% THD)
Max Power 50W x 4 (4 Ohm)
RCA Pre-Outs 4V, 5-Channel (Front, Rear, Subwoofer)
EQ 8-Band Graphic (50/200/400/800/1K/3K/7K/15KHz)
EQ Presets 8 (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft)
Time Alignment Yes
Apple CarPlay Yes (Wireless and Wired)
Android Auto Yes (Wireless and Wired)
Bluetooth Version V4.2 + EDR
Bluetooth Profiles A2DP, AVRCP, HFP 1.6, PBAP
Microphone Built-In and External (included)
USB 1 (Rear) CarPlay, Android Auto, Media Playback (5V/1.5A)
USB 2 (Rear) Media Playback (5V/1.5A)
USB Max Capacity FAT32 32GB
Media Formats MP3, AAC, FLAC, Xvid, MPEG 1/2/4
Reverse Camera Input Yes (720P AHD compatible, 12V power output)
Second Camera Input Yes (720P AHD compatible)
Rear A/V Input Yes (RCA, 3-piece)
Composite Video Output Yes
AM/FM Tuner Yes, with RDS
FM Presets 18 (6x3)
AM Presets 12 (6x2)
FM Range 87.5-108.0MHz (0.05MHz steps)
AM Range 529-1629kHz (9kHz steps)
Infodaptor Interface Yes (vehicle info, SWC, amp retention, parking tones, vehicle menu)
SWC Retention Yes
Factory Amp Retention Yes
Parking Tones Yes
Vehicle Menu Yes
Factory Camera Retention Yes (Aerpro APVVW03 required, sold separately)
Camera Output Resolution Low resolution (Infodaptor Interface via rear camera input)
Ignition Stabiliser Note May be required for stop-start models (Aerpro APIGNSTB, sold separately)
Phone Button Note Factory Bluetooth module fuse may need to be removed
Fascia Colour Matte Black
Antenna Adaptor Included

What's in the Box

  • AM10X Multimedia Receiver
  • Matte Black Fascia Kit
  • Infodaptor Interface Harness
  • SWC Patch Lead
  • Antenna Adaptor
  • External Microphone
  • Power Harness (ISO/3.5mm jack)
  • AV-In Cable (RCA with Audio L/R and Video In)
  • 4.1CH Audio Out Cable

Compatible With

The AMAVW5 is designed for Volkswagen Amarok (2016-on), Beetle (2015-2016), Caddy (2015-2020), Multivan (2016-2019), Tiguan (2015-2016), and Transporter (2016-2019) vehicles fitted with the factory MIB-PQ unit only. Tiguan (2015-2016) models: the kit partially covers the hazard button. Factory reverse camera retention requires the Aerpro APVVW03 camera retention adaptor (sold separately). An ignition stabiliser (Aerpro APIGNSTB, sold separately) may be required for stop-start models. The factory Bluetooth module fuse may need to be removed for the phone button to function. The Infodaptor Interface output connects via the rear camera input and will be low resolution. Use the Aerpro What Fits Your Car Guide to confirm the correct parts for your specific vehicle before purchase.

Frequently Asked Questions

Does the AMAVW5 suit all factory Volkswagen head unit types?

No. The AMAVW5 suits only Volkswagen vehicles fitted with the factory MIB-PQ unit. Vehicles with a different factory unit require a different kit. Use the Aerpro What Fits Your Car Guide to confirm the correct kit for your specific vehicle before purchase.

Does the AMAVW5 retain the factory reverse camera?

Factory reverse camera retention is possible but requires the Aerpro APVVW03 camera retention adaptor, which is not included in the AMAVW5 kit and must be purchased separately.

What is the Infodaptor Interface and what does it retain?

The Infodaptor Interface is a vehicle-specific harness that enables vehicle information including climate control and parking visualisation to be displayed and accessed on the AM10X. It retains steering wheel controls, the factory amplified system, parking tones, and vehicle menu access. The Interface connects to the rear camera input on the AM10X and output will be low resolution.

Is an ignition stabiliser required for my vehicle?

An ignition stabiliser (Aerpro APIGNSTB, sold separately) may be required for Volkswagen models fitted with stop-start systems. Confirm whether your specific vehicle requires this accessory with your installer before purchase.

Does the AMAVW5 support wireless CarPlay and Android Auto?

Yes. The AM10X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
