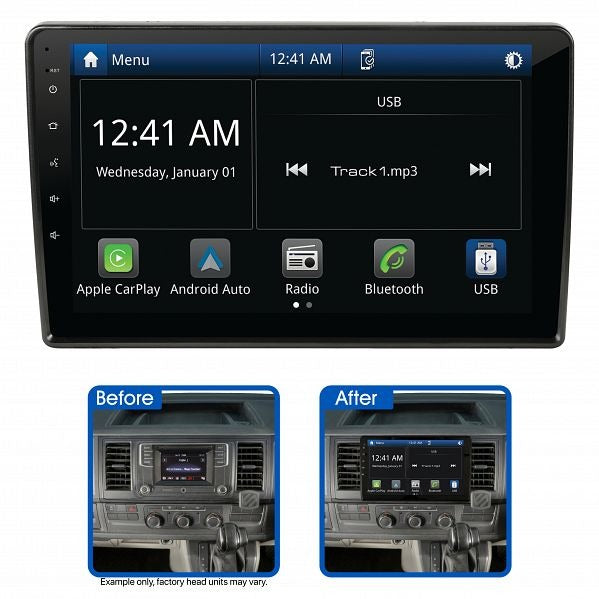

Aerpro AMAVW4 10" Multimedia Receiver Suit Volkswagen Various Models (With Factory MIB-PQ Unit)

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

10" Multimedia Receiver With Wireless Apple CarPlay & Android Auto
The Aerpro AMAVW4 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Volkswagen Amarok (2016 onwards), Caddy (2015 to 2020), Multivan (2016 to 2019), Tiguan (2015 to 2016)* and Transporter (2016 to 2019) vehicles (with factory MIB-PQ unit). Featuring a large 10" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.

Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAVW4 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Only suits vehicles with MIB-PQ unit from factory.
• (*) Due to the size of the head unit, please be aware in Tiguan (2015 to 2016) vehicles the kit partially covers hazard button.
• Ignition Stabiliser may be required for stop-start models (Aerpro APIGNSTB, not included).
• Camera retention adaptor required to retain factory camera (Aerpro APVVW03, not included).
• May need to remove fuse from factory Bluetooth module for phone button to work.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: Yes (Aerpro APVVW03 required, not included).
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: No
• Other: N/A

Aerpro AMAVW4 Features:

• To suit Volkswagen Amarok (2016 onwards), Caddy (2015 to 2020), Multivan (2016 to 2019), Tiguan (2015 to 2016)* and Transporter (2016 to 2019) vehicles (with factory MIB-PQ unit)
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (wireless / wired)
• Large 10" capacitive touchscreen display
• Steering wheel control retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Aerpro AMAVW4 Specifications:

• LCD Display:
  Size: 10"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP,AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power, Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type, 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5 to 108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF, Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Volkswagen Amarok 2017 onwards
• Volkswagen Caddy 2015 to 2020
• Volkswagen Multivan 2016 to 2019
• Volkswagen Tiguan 2015 to 2016
• Volkswagen Transporter T6 2016 to 2019

Kit Inclusions:

• AM10X Multimedia Receiver
• Matte Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor

FAQ

What vehicles does the Aerpro AMAVW4 suit?

The Aerpro AMAVW4 suits Volkswagen Amarok (2016 onwards), Caddy (2015 to 2020), Multivan (2016 to 2019), Tiguan (2015 to 2016) and Transporter (2016 to 2019) fitted with the factory MIB-PQ unit. Tiguan is marked with an asterisk on the listing, so check your variant with the F.A.E. team.

Does it run wireless Apple CarPlay and Android Auto?

Yes. The 10 inch touchscreen runs Apple CarPlay and Android Auto wireless or wired, and has built-in Bluetooth for hands-free calls and music.

Will I keep my steering wheel controls?

Yes. The kit is supplied to retain the factory steering wheel controls.

Will it fit my car?

Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
