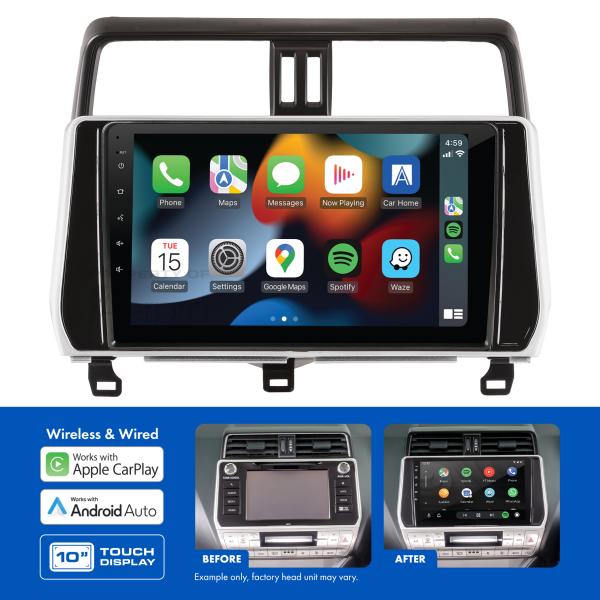

Aerpro AMATO22 10" Multimedia Head Unit Upgrade Kit Toyota Prado GXL

SKU: AMATO22
Price
$1,099.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AMATO22 10" Multimedia Head Unit Upgrade Kit Toyota Prado GXL

A complete, vehicle-specific head unit upgrade for the Toyota Prado GXL (2017-2020), the AMATO22 delivers a 10" wireless CarPlay and Android Auto multimedia receiver with full retention of steering wheel controls, factory amplifier, reverse camera, USB, and AUX.

Product Overview

The AMATO22 is Aerpro's complete head unit upgrade kit engineered specifically for the Toyota Prado GXL from 2017-2020. Rather than a standalone head unit requiring separate accessory sourcing, the AMATO22 is supplied as a matched kit containing all components required for a complete, OEM-quality installation that retains the vehicle's important factory features. The kit centres on the AM10X 10" multimedia receiver, featuring a large 1024x600 capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth V4.2+EDR with HFP 1.6 HD Voice, AM/FM tuning with RDS, dual rear USB inputs, and dual AHD 720P-compatible camera inputs. Audio performance is handled by 4 x 50 watts maximum power output, an 8-band graphic EQ with time alignment, and 4V 5-channel RCA preouts covering front, rear, and subwoofer channels for external amplifier integration.

The kit includes a gloss black and silver fascia kit, steering wheel control interface harness (including phone button support), antenna adaptor, camera retention adaptor, and USB retention adaptor, ensuring the factory steering wheel controls, OEM amplifier, factory reverse camera, USB input, and AUX input are all retained after installation. Note that Toyota Connect features including calendar and trip information displayed on the factory screen are not retained. The AMATO22 is supplied with an external microphone, and the head unit includes both built-in and external microphone support. Weight is 4.00kg.

Features & Benefits

Complete Vehicle-Specific Upgrade Kit: The AMATO22 includes every component needed for a complete, OEM-quality installation in the Toyota Prado GXL 2017-2020, including the head unit, fascia kit, steering wheel control harness, antenna adaptor, camera retention adaptor, and USB retention adaptor. No additional accessories need to be sourced separately for a standard installation.

Large 10" Capacitive Touchscreen: The 10" G+G capacitive touchscreen at 1024x600 resolution provides a large, responsive display for navigation, media, and menus that fills the factory dashboard opening cleanly with the included gloss black and silver fascia kit.

Wireless and Wired Apple CarPlay and Android Auto: Both Apple CarPlay and Android Auto are supported wirelessly and via wired connection, providing immediate access to navigation, music, calls, and messages from the moment the driver enters the vehicle.

Full OEM Feature Retention: The kit retains factory steering wheel controls (including phone button), the factory OEM amplifier, factory reverse camera, factory USB input, and factory AUX input, preserving the driving experience and functionality of the original vehicle setup.

Bluetooth V4.2+EDR with HFP 1.6 HD Voice: Bluetooth V4.2 with Enhanced Data Rate supports A2DP audio streaming, AVRCP media control, PBAP phonebook access, and HFP 1.6 HD Voice quality hands-free calling, with both built-in and external microphone support.

Dual AHD 720P Camera Inputs: Two independent AHD 720P-compatible camera inputs support the retained factory reverse camera on the first input and an additional front or towing camera on the second input simultaneously.

4V 5-Channel RCA Preouts: Five RCA preamp output channels at 4V covering front, rear, and subwoofer allow direct connection to external amplifiers with high output voltage for low-noise system integration.

8-Band Graphic EQ with Time Alignment: The 8-band EQ covering 50Hz, 200Hz, 400Hz, 800Hz, 1kHz, 3kHz, 7kHz, and 15kHz, combined with time alignment and 8 preset EQ modes, provides comprehensive acoustic tuning from the head unit.

Gloss Black and Silver Fascia Kit Included: The vehicle-specific fascia kit is finished in gloss black and silver to match the Toyota Prado GXL interior trim, providing a factory-quality fit and finish around the 10" head unit.

AM/FM Tuner with RDS: AM tuning covers 529-1629kHz with 12 presets, and FM covers 87.5-108.0MHz with 18 presets and RDS support.

Technical Specs

Specification Detail
SKU AMATO22
Brand Aerpro
Compatible Vehicle Toyota Prado GXL, 2017-2020 (150 Series)
Head Unit Included AM10X Multimedia Receiver
Display Size 10"
Display Resolution 1024 x 600
Touchscreen Type Capacitive (G+G)
OS / CPU Linux 3.4.5 / SPHE8368U
RAM / Flash 128MB / 256MB
DIN Size 2 DIN Short Body
Rated Power (4 Ohm, 14.4V, 1kHz, THD 10%) 25W x 4
Max Power (4 Ohm) 50W x 4
RCA Preamp Outputs 4V, 5-channel (Front / Rear / Subwoofer)
Subwoofer Level Control Yes
EQ 8-Band (50/200/400/800/1K/3K/7K/15KHz)
EQ Presets 8 (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft)
Loudness Yes
Low-Pass Filter (Sub) Yes
Time Alignment Yes
Smartphone Connectivity Wireless and Wired Apple CarPlay, Wireless and Wired Android Auto
Bluetooth Version V4.2+EDR
Bluetooth Profiles A2DP, AVRCP, HFP, PBAP
HFP Profile HFP 1.6 (HD Voice)
Microphone Built-in and External (included)
ID3 Tag Display Yes
USB 1 (Rear) CarPlay, Android Auto, Media Playback (5V/1.5A)
USB 2 (Rear) Media Playback (5V/1.5A)
USB Max Capacity FAT32, 32GB
Media Playback Formats MP3, AAC, FLAC, Xvid, MPEG 1/2/4
Camera Input 1 Reverse Camera (720P AHD Compatible)
Camera Input 2 Second Camera (720P AHD Compatible)
Rear A/V Input Yes (RCA, 3 connectors)
Composite Video Output Yes
AM Tuner 529-1629kHz, 9kHz step, 12 presets
FM Tuner 87.5-108.0MHz, 0.05MHz step, 18 presets
FM Antenna Connector Motorola, 50 Ohm
RDS Yes
Button Illumination White
OSD Language English
Weight 4.00kg

Vehicle Feature Retention

Feature Retained
Steering Wheel Controls Yes (including phone button)
Factory Reverse Camera Yes
AUX Input Yes
USB Input Yes
Factory Amplifier Yes
Parking Tones N/A
Vehicle Menu (Toyota Connect calendar, trip info) No

What's in the Box

  • 1x AM10X 10" Multimedia Receiver
  • Gloss Black and Silver Fascia Kit
  • Steering Wheel Control Interface Harness
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
  • Power Harness (ISO/3.5mm jack)
  • AV-In Cable (RCA with Audio L/R and Video In)
  • Reverse Camera Input Cable (with 12V power supply)
  • 4.1CH Audio Out Cable
  • External Microphone

Frequently Asked Questions

Does the AMATO22 retain all factory Toyota Prado features?

The AMATO22 retains steering wheel controls (including phone button), factory OEM amplifier, factory reverse camera, factory USB input, and factory AUX input. Toyota Connect features that appear on the factory screen, including calendar and trip information, are not retained after installation. All retained features require connection using the included adaptor harnesses.

Is a separate fascia kit or steering wheel control interface required?

No. The AMATO22 is a complete kit that includes the gloss black and silver fascia kit and the steering wheel control interface harness alongside all other required adaptors. No additional accessories need to be purchased separately for a standard installation in the Toyota Prado GXL 2017-2020.

Does wireless CarPlay require any initial setup?

On first connection, wireless CarPlay and Android Auto require a one-time pairing between the smartphone and the AM10X head unit via Bluetooth and Wi-Fi. Once paired, the smartphone connects automatically each time it is brought within range of the vehicle. Wired connection via the rear USB input is also available as an alternative or for first-time setup.

Will the factory reverse camera display on the AMATO22?

Yes. The included camera retention adaptor connects the factory reverse camera to the AM10X head unit's reverse camera input, allowing the factory camera to display on the 10" screen when reverse gear is selected. The camera retention uses the reverse camera input on the head unit.

Can external amplifiers be added to the AMATO22 system?

Yes. The AM10X provides 4V 5-channel RCA preouts covering front, rear, and subwoofer channels, allowing external amplifiers to be added to the system for higher output power or a dedicated subwoofer channel. The 4V output voltage provides a strong signal level for low-noise amplifier integration.
