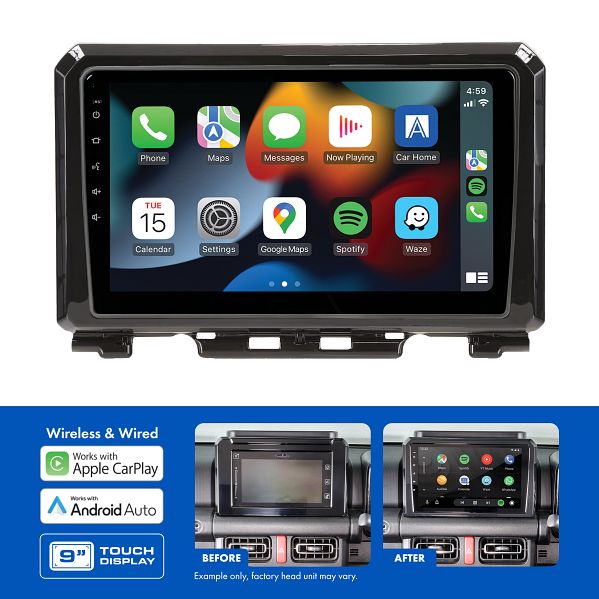

A complete head unit upgrade kit for the Suzuki Jimny (2018 onwards), featuring the Aerpro AM9X 9 inch wireless Apple CarPlay and Android Auto multimedia receiver with full factory feature retention including steering wheel controls, reverse camera if equipped, AUX input if equipped, and USB input if equipped.
The Aerpro AMASZ7 is a complete head unit upgrade kit engineered specifically for the Suzuki Jimny (2018 onwards). The kit centres on the Aerpro AM9X 9 inch multimedia receiver featuring wireless and wired Apple CarPlay and Android Auto, a large 9 inch capacitive touchscreen, built-in Bluetooth with A2DP, AVRCP, HFP, and PBAP profiles, AM/FM tuner with RDS, 50W x 4 max power output, 8 band graphic EQ with time alignment, and 4V 5-channel RCA preouts for amplifier integration.
All components required for a complete installation are included in the kit. Factory feature retention covers steering wheel controls including the phone button, factory reverse camera if equipped, AUX input if equipped, and USB input if equipped. Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit.
Wireless Apple CarPlay and Android Auto: The AM9X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.
Large 9 Inch Capacitive Touchscreen: A 1024 x 600 resolution glass-on-glass capacitive touchscreen delivers a responsive, high-clarity display for navigation, media, and connectivity.
Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness and SWC patch lead retain full factory steering wheel control functionality including the phone button.
Retains Factory Reverse Camera, AUX and USB (If Equipped): Camera retention adaptor, antenna adaptor, and the kit's harness configuration retain the factory reverse camera, AUX input, and USB input for Jimny vehicles equipped with these features. Feature retention is radio dependent.
50W x 4 Max Power with 8 Band EQ and Time Alignment: The AM9X delivers 50W x 4 max power output with an 8 band graphic EQ, time alignment capabilities, and 4V 5-channel RCA preouts for connecting external amplifiers.
Built-In Bluetooth with External Microphone Included: Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles provides hands-free calling and wireless audio streaming. An external microphone is included in the kit.
| Specification | Detail |
|---|---|
| SKU | AMASZ7 |
| Brand | Aerpro |
| Compatible Vehicle | Suzuki Jimny 2018 onwards |
| Kit Inclusions | AM9X Multimedia Receiver, Gloss Black Fascia Kit, SWC Interface Harness, SWC Patch Lead, Antenna Adaptor, Camera Retention Adaptor |
| Display | |
| Screen Size | 9 inch |
| Resolution | 1024 x 600 |
| Touchscreen | Capacitive (G+G) |
| System | |
| OS / CPU | Linux 3.4.5 / SPHE8368U |
| RAM / Flash Memory | 128MB / 256MB |
| DIN Size | 2 DIN Short Body |
| Power | |
| Rated Power | 4CH x 25W (4 Ohm, 14.4V, 1kHz, THD 10%) |
| Max Power | 4CH x 50W (4 Ohm) |
| Connectivity | |
| Apple CarPlay / Android Auto | Yes, Wireless and Wired |
| Bluetooth | Yes, V4.2+EDR (A2DP, AVRCP, HFP 1.6, PBAP) |
| Microphone | Built-in and External (included) |
| USB 1 (Rear) | CarPlay, Android Auto and Media |
| USB 2 (Rear) | Media |
| USB Power Output | 5V / 1.5A each |
| USB Max Capacity | FAT32 32GB |
| Rear A/V Input | Yes (RCA, 3 pieces) |
| Reverse Camera Input | Yes (720P AHD compatible) |
| Second Camera Input | Yes (720P AHD compatible) |
| Tuner | |
| AM / FM Tuner | Yes, AM 12 presets (6x2), FM 18 presets (6x3) |
| FM Frequency Range | 87.5 to 108.0MHz (0.05MHz step) |
| AM Frequency Range | 529-1629KHz (9KHz step) |
| RDS | Yes |
| FM Antenna Connector | Motorola / 50 Ohm |
| RCA Preouts | |
| Preamp Outputs | 2 pair (Front / Rear) |
| Subwoofer Output | Yes |
| Subwoofer Level Control | Yes |
| Preamp Voltage | 4V p-p |
| Audio | |
| EQ | 8 Band (50/200/400/800/1K/3K/7K/15K Hz) |
| EQ Presets | Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft |
| Loudness | Yes |
| LPF (Subwoofer) | Yes |
| Media Playback | |
| Audio Formats | MP3, AAC, FLAC |
| Video Formats | Xvid, MPEG 1/2/4 |
| Feature Retention | |
| Steering Wheel Controls | Yes (including phone button) |
| Factory Reverse Camera | Yes (if equipped, uses reverse camera input) |
| AUX Input | Yes (if equipped, uses rear RCA AUX input) |
| USB Input | Yes (if equipped, uses rear USB input) |
| Parking Tones | N/A |
| Factory Amplifier | N/A |
| Vehicle Menu | N/A |
| Other | |
| LED Button Colour | White |
| OSD Language | English |
| Barcode | 9317114940872 |
The Aerpro AMASZ7 suits the Suzuki Jimny (2018 onwards).
Yes, for vehicles equipped with these features. Reverse camera retention uses the reverse camera input of the head unit. USB input retention uses the rear USB input of the head unit. AUX input retention uses the RCA AUX input on the rear of the head unit. Feature retention is radio dependent.
Yes. The AM9X supports both wireless and wired Apple CarPlay and Android Auto, allowing full smartphone integration without a cable connection for compatible devices.
Yes. The included steering wheel control interface harness and SWC patch lead retain full factory steering wheel control functionality including the phone button. Feature retention is radio dependent.
Yes. The AM9X features 4V 5-channel RCA preouts including a dedicated subwoofer output, allowing external amplifiers to be added to the system. Subwoofer level control is also available.
The AM9X power harness with ISO connector is included in the kit. Please contact us if you are unsure whether any additional harness is required for your specific vehicle before purchasing.
Send the F.A.E. team your make, model, year and trim, plus whether you have factory navigation, a premium amplifier or a reverse camera, and we will confirm fitment before you order.
