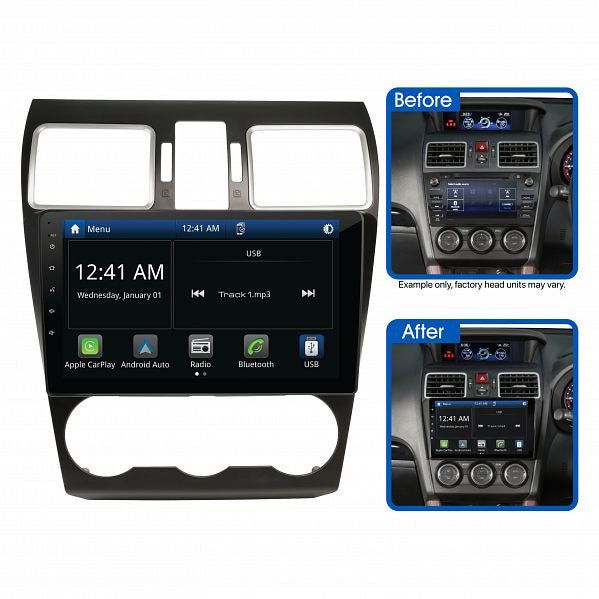

Aerpro AMASU3 9" Multimedia Receiver Suit Subaru Various Models (Without Navigation)

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto
The Aerpro AMASU3 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Subaru Forester SJ (2015-2018), Impreza GP, GJ (2015-2016), Levorg VM (2016-2020), WRX VA (2016-2021) and XV GP (2016-2017) vehicles without factory navigation. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.

Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMASU3 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (if equipped).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• Suits models without factory navigation.
• Disregard 5 pin camera plug if not present in vehicle as camera signal is also wired though main plug.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: No
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Subaru Forester SJ (2015-2018), Impreza GP, GJ (2015-2016), Levorg VM (2016-2020), WRX VA (2016-2021) and XV GP (2016-2017) vehicles without factory navigation
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Large 9" capacitive touchscreen display
• Steering wheel control and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 50W
  Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP,AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Subaru Forester (2015 - 2018 SJ)
• Subaru Impreza (2015 - 2016 GP, GJ)
• Subaru Levorg (2016 - 2020 VM)
• Subaru WRX (2015 - 2021)
• Subaru XV (2016 - 2017 GP)

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Hazard Button Surrounds
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
