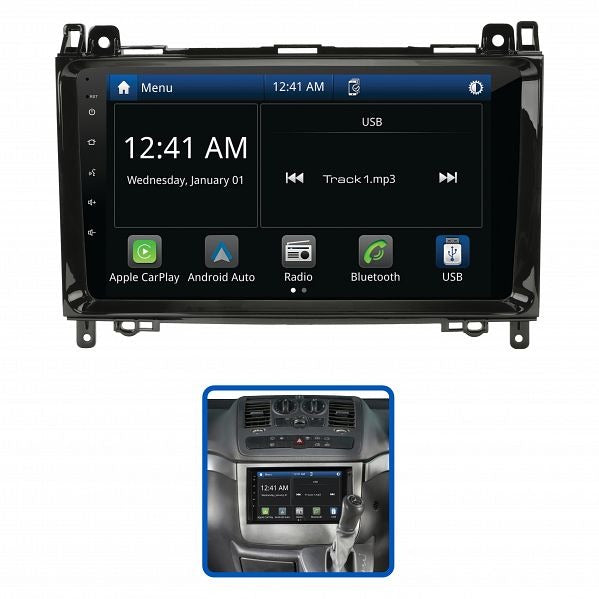

Aerpro AMAMC2 9" Multimedia Receiver Suit Mercedes & Volkswagen Various Models 2005 - 2018 (Non-Amplified)

Complete the Installation & Retain Important Features Such as Steering Wheel Controls!

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto
The Aerpro AMAMC2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Mercedes A-Class W169 (2005-2011)*, B-Class W245 (2005-2011), Sprinter (2007-2018), Viano (2008-2011), Vito W639 (2006-2014) and Volkswagen Crafter (2007-2013) non-amplified vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.

Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAMC2 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and access to vehicle settings.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• *Will not suit Mercedes A-Class with single din unit.
• Suits non-amplified vehicles only.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: No
• AUX Input: No
• USB Input: No
• Parking Tones: N/A
• Factory Amplifier: No
• Vehicle Menu: Yes
• Other: N/A

Features:

• To suit Mercedes A-Class W169 (2005-2011)*, B-Class W245 (2005-2011), Sprinter (2007-2018), Viano (2008-2011), Vito W639 (2006-2014) and Volkswagen Crafter (2007-2013) non-amplified vehicles
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Large 9" capacitive touchscreen display
• Steering wheel control and access to vehicle menu retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP,AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input (with 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle Compatibility:

• Mercedes A-Class W169 (2005 - 2011)
• Mercedes B-Class W245 (2005 - 2011)
• Mercedes Sprinter (2007 - 2018)
• Mercedes Viano (2008 - 2011)
• Mercedes Vito W639 (2006 - 2014)
• Volkswagen Crafter (2007 - 2013)
  * Non-Amplified Vehicles

Kit Inclusions:

• AM9X Multimedia Receiver
• Gloss Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptors
