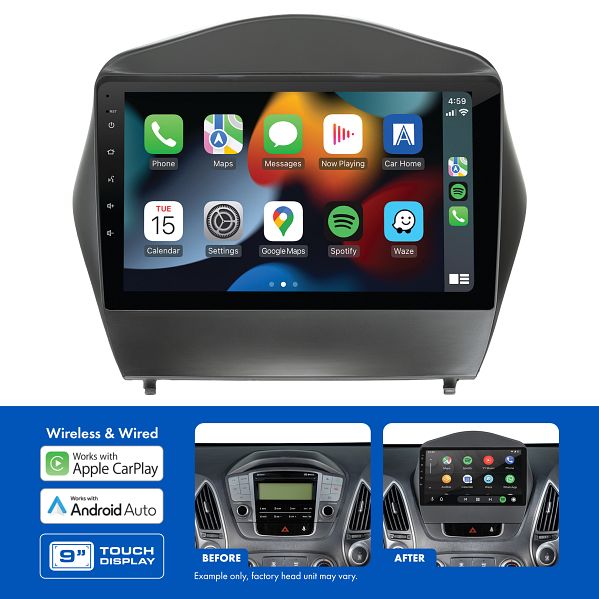

Aerpro AMAHY8 Hyundai iX35 LM1 LM2 2009-2013 9 Inch Multimedia Receiver Kit

Aerpro AMAHY8 Hyundai iX35 LM1 LM2 2009-2013 9 Inch Multimedia Receiver Kit

A complete head unit upgrade kit for the Hyundai iX35 LM1 and LM2 (2009-2013) digitally amplified vehicles, featuring the Aerpro AM9X 9 inch wireless Apple CarPlay and Android Auto multimedia receiver with factory steering wheel control and digital amplified system retention.

Product Overview

The Aerpro AMAHY8 is a complete head unit upgrade kit engineered specifically for the Hyundai iX35 LM1 and LM2 (2009-2013) in digitally amplified vehicles fitted with a Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. The kit centres on the Aerpro AM9X 9 inch multimedia receiver featuring wireless and wired Apple CarPlay and Android Auto, a large 9 inch capacitive touchscreen, built-in Bluetooth with A2DP, AVRCP, HFP, and PBAP profiles, AM/FM tuner with RDS, 50W x 4 max power output, 8 band graphic EQ with time alignment, and 4V 5-channel RCA preouts for amplifier integration.

All components required for a complete installation are included in the kit. Factory feature retention covers steering wheel controls including the phone button and the factory digital amplified system. Please note AUX and USB input retention are not included in this kit - the Aerpro APHYUSB4 USB/AUX Retention Adaptor is available separately for customers who require these features. This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.

Features & Benefits

Wireless Apple CarPlay and Android Auto: The AM9X supports both wireless and wired Apple CarPlay and Android Auto, providing full smartphone integration without requiring a cable connection for compatible devices.

Large 9 Inch Capacitive Touchscreen: A 1024 x 600 resolution glass-on-glass capacitive touchscreen delivers a responsive, high-clarity display for navigation, media, and connectivity.

Retains Steering Wheel Controls Including Phone Button: The included steering wheel control interface harness with SWC patch lead retains full factory steering wheel control functionality including the phone button.

Retains Factory Digital Amplified System: The AMAHY8 is engineered for digitally amplified iX35 LM1/LM2 vehicles, retaining the factory digital amplified system after the head unit upgrade.

50W x 4 Max Power with 8 Band EQ and Time Alignment: The AM9X delivers 50W x 4 max power output with an 8 band graphic EQ, time alignment capabilities, and 4V 5-channel RCA preouts for connecting external amplifiers.

Built-In Bluetooth with External Microphone Included: Bluetooth V4.2 with A2DP, AVRCP, HFP 1.6, and PBAP profiles provides hands-free calling and wireless audio streaming. An external microphone is included in the kit.

Technical Specs

What's in the Box

• AM9X Multimedia Receiver
• Matte Black Fascia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Power Harness (with ISO / 3.5mm jack)
• AV-In Cable (RCA with Audio L/R, Video In)
• 4.1CH Audio Out Cable
• External Microphone

Compatible With

• Hyundai iX35 LM1 2009-2013 (digitally amplified)
• Hyundai iX35 LM2 2009-2013 (digitally amplified)

Suits vehicles fitted with the Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. Please confirm your vehicle's factory configuration before purchasing.

Goes Well With

• Aerpro APHYUSB4 USB/AUX Retention Adaptor (sold separately - required to retain factory USB and AUX inputs)

Frequently Asked Questions

Does this kit retain factory AUX and USB inputs?

No, not in the base kit. AUX and USB input retention are not included with the AMAHY8. The Aerpro APHYUSB4 USB/AUX Retention Adaptor is available separately for customers who require these features. We recommend adding it to your order if you use the factory AUX or USB input regularly.

Does Apple CarPlay and Android Auto work straight away after installation?

The AM9X supports wireless and wired Apple CarPlay and Android Auto, however the park brake wire must be connected to the park brake for these features to function. Please ensure this step is completed during installation.

How do I know if my iX35 is a digitally amplified model?

The AMAHY8 is designed for Hyundai iX35 LM1 and LM2 (2009-2013) vehicles fitted with a Hyundai Mobis 96170 (6 stacker) or LM01 factory head unit. If you are unsure whether your vehicle is a digitally amplified variant, please contact us before purchasing to confirm the correct kit for your model.

Can I connect an external amplifier to this head unit?

Yes. The AM9X features 4V 5-channel RCA preouts including a dedicated subwoofer output, allowing external amplifiers to be added to the system. Subwoofer level control is also available.

Is an additional antenna adaptor required for installation?

An antenna adaptor is not listed in the kit inclusions for the AMAHY8. Please contact us before purchasing to confirm whether an additional antenna adaptor is required for your specific vehicle.
