Aerpro AMAHY25 9″ Multimedia Receiver for Hyundai Santa Fe 2013-2018 – Wireless CarPlay & Android Auto Upgrade

Aerpro AMAHY25 9″ Multimedia Receiver Upgrade Kit for Hyundai Santa Fe (2013–2018)

Upgrade your Hyundai Santa Fe with the Aerpro AMAHY25 9″ Multimedia Receiver Kit, the complete solution for modern connectivity, crystal-clear audio, and seamless integration — all while retaining your vehicle’s factory features.

Key Benefits:

• Wireless Apple CarPlay & Android Auto – Access maps, music, calls, and messages safely from the large 9″ capacitive touchscreen, either wired or wireless.
• Hands-Free Driving & Streaming – Built-in Bluetooth with an external microphone lets you make calls and stream audio effortlessly, keeping your focus on the road.
• Retain Factory Features – Keep steering wheel controls, reverse camera, and USB port functionality, ensuring a factory-like experience.
• Premium Audio Experience – 50Wx4 max output, 8-band graphic EQ, and time alignment give you concert-quality sound, with RCA preouts to expand with amplifiers or subwoofers.
• Dual Camera Inputs – Compatible with AHD 720P cameras, perfect for front and rear camera setups for added safety.
• Easy Installation – Complete head unit upgrade kit includes matte black facia, SWC interface harness, antenna adapter, USB & camera retention adapters.

Feature Highlights:

• To suit Hyundai Santa Fe (2013-2018)
• Includes all the parts required to complete the installation
• Apple CarPlay & Android Auto (wireless / wired)
• Large 9" capacitive touchscreen display
• Steering wheel control, reverse camera and USB port retention
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Rear USB input (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control

AMAHY25 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

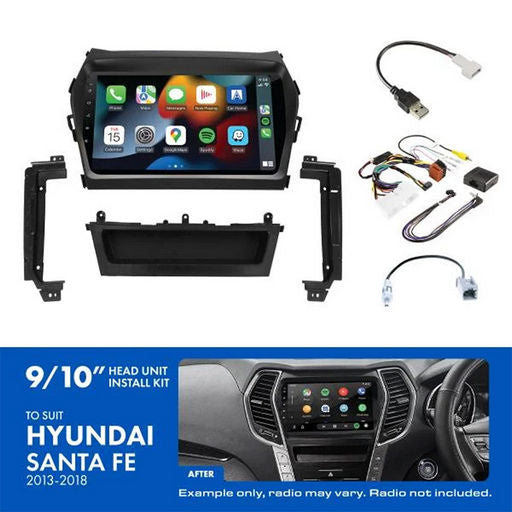

• Kit Inclusions:
  • AM9X Multimedia Receiver
  • Matte Black Facia Kit
  • Steering Wheel Control Interface Harness
  • Antenna Adaptor
  • Camera Retention Adaptor
  • USB Retention Adaptor
• Vehicle Feature Retention:
  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes
  • AUX Input: N/A
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: No
  • Vehicle Menu: No
  • Other: N/A

AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB 1 (Rear) Playback Formats: CP,AA & Media
  • USB 2 (Rear) Playback Formats: Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included

IMPORTANT INFORMATION:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Input Retention uses the USB input on the rear of the head unit.

Why Choose Aerpro for Your Hyundai Santa Fe?

The Aerpro AMAHY25 isn’t just a replacement head unit — it’s a complete technology upgrade. Bring modern smartphone integration, premium sound, and convenience features to your Santa Fe while keeping the factory look and feel.

Compatible with:

•  Hyundai Santa Fe 2013–2018 DM
