Aerpro AMAHY23 9" Multimedia Receiver Suit Hyundai Accent RB 2016 - 2020

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto

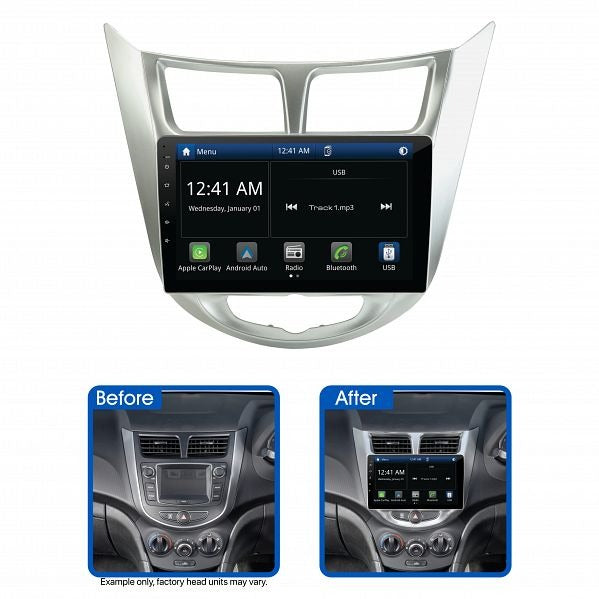

The Aerpro AMAHY23 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Hyundai Accent RB (2016 - 2020) vehicles with factory reverse camera in OEM head unit. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner.

Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAHY23 includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls, USB input and factory reverse camera (If Equipped, Model Dependent).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• USB Input Retention uses the USB input on the rear of the head unit.
• Reverse Camera Retention uses the reverse camera input of the head unit. Reverse camera retention suits vehicles with factory reverse cameras in the OEM head unit.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes
• Factory Reverse Camera: Yes (If Equipped, Model Dependent)
• AUX Input: No
• USB Input: Yes
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

Features:

• To suit Hyundai Accent RB (2016-2020) vehicles with factory reverse cameras in OEM head unit.
• Includes all the parts required to complete the installation and to retain important vehicle features.
• Apple CarPlay & Android Auto (Wireless / Wired)
• Large 9" Capacitive Touchscreen Display
• Steering Wheel Control, USB Input & Factory Reverse Camera Retention (If Equipped, Model Dependent)
• Bluetooth With External Microphone Included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner With RDS & Presets (18FM/12AM)
• Dual Rear USB Inputs (1.5A Max Charging)
• Dual Camera Inputs (AHD 720P Compatible) & Rear A/V Input.
• 50W x 4 Max With 8 Band Graphic EQ & Time Alignment Capabilities.
• 4V/5CH RCA Preout & Subwoofer Level Control.

Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024 x 600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4-Ohm @ 14.4V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4-Ohm): 4CH x 50W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports:
  USB 1 (Rear) Playback Formats: CP, AA & Media
  USB 2 (Rear) Playback Formats: Media
  USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3Pcs.): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-In & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50-Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, With Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO / SWC Plug
  AV-In Cable (RCA With Audio L/R, Video In): Yes
  Reverse Camera Input (With 12V power supply to the camera): Yes
  4.1CH Audio Out Cable: Yes
  External Microphone: Included
• Vehicle Compatibility: Hyundai Accent RB (2016 - 2020)
• Weight: 2.00kg

Kit Inclusions:

• AM9X Multimedia Receiver
• Silver Facia Kit
• Steering Wheel Control Interface Harness (Includes Camera Retention)
• USB Retention Adaptor
