Aerpro AM9XFW 9" Floating Capacitive Touch Screen Display Multimedia Receiver With Wireless Apple CarPlay & Android Auto

Aerpro AM9XFW: Built-In Bluetooth Enables Hands-Free Phone Calls & Wireless Audio Streaming!

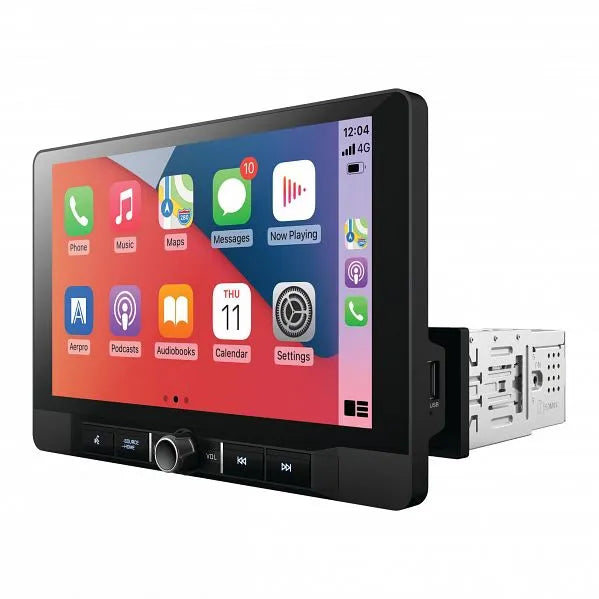

The Aerpro AM9XFW Multimedia Receiver with Wireless Apple CarPlay & Android Auto features a large 9" floating capacitive touch screen display with 4-way position adjustment (height, depth, tilt & pivot). The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal-clear communications. It has dual USB inputs, one at the front for charging and USB media playback and one in the rear for wired Apple CarPlay and Android Auto connection.

Sound quality is superb with a built-in 40Wx4 amplifier, 8-band graphic EQ, and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/6CH RCA pre-outs (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has a 720P AHD compatible reverse camera input.

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• This head unit has a single DIN chassis.
• Aerpro Steering Wheel Control Interface and patch lead required for steering wheel control integration (Sold Separately).

Aerpro AM9XFW Features:

• Large 9" Floating Capacitive Touchscreen LCD (1024 x 600)
• Floating display with 4-way adjustment: height, depth, tilt, and pivot
• Works with Apple CarPlay (Wireless or Wired)
• Supports Android Auto (Wireless or Wired)
• Built-In Bluetooth (A2DP, AVRCP, HFP, PBAP)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• AM / FM Tuner with 30 presets (18FM/12AM)
• Reverse Camera Input (AHD 720P Compatible)
• Rear A/V Input
• 4V / 6CH RCA Preout (Front + Rear + Subwoofer)
• MP3 / MP4 / Xvid / FLAC Media Formats
• Dual USB Inputs (Front 2.1A, Rear 1.5A)
• 8 Band Graphic EQ
• 8 EQ Presets
• Time Alignment Capabilities
• Subwoofer Level Control
• 40W x 4 Max Built-In Amplifier
• Single DIN Chassis Mounting Design
• Steering Wheel Control Ready (SWC interface and patch lead required, not included)
• External Microphone Included

Aerpro AM9XFW Specifications:

• LCD Display:
  Size: 9"
  Resolution: 1024 x 600
  Touch Screen: Capacitive (G+G)
  Screen Adjustment: Height 1.5" (Down), Depth 0", 0.5", 1" (Forward), Tilt 25 Degrees (Forward & Back), Pivot 12 Degrees (Side to Side)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 1 DIN Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  Max Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / MP4 / Xvid / FLAC
• Device Ports:
  Front USB: 5V / 2.1A, Media/Charging
  Rear USB: 5V / 1.5A, CP/AA/USB media
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Composite Video Outputs: Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: External Microphone Included
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# Of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 531-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Dual Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC interface and patch lead (Not Included)
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO/3.5mm Jack
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input: Yes
  4.2CH Audio Out Cable: Yes
  External Microphone: Included
• Dimensions: N/A
• Weight: 2.78kg

Aerpro AM9XFW Vehicle Compatibility:

• Alfa Romeo Giulietta 2010-2014 (940)
• Alfa Romeo Giulietta 2014
• Alfa Romeo GT 2003-2010
• Alfa Romeo MiTo 2008-2013
• Audi A3 2003-2007 (8P)
• Audi A3 2006-2012 (8P)
• Audi A4 2008-2013 (B8)
• Audi A4 2012-2016 (B8)
• Audi A5 2007-2016 (8T)
• Audi Q5 2009-2016 (8R)
• Audi R8 2007-2015
• Audi TT 2007-2014 (8J)
• BMW 3 Series 1990-1999 E36
• BMW 3 Series 1998-2005 E46
• BMW 5 Series 1996-2004 E39
• BMW X5 2000-2006 E53
• BMW Z4 2003-2008 E85, E86
• Chevrolet Blazer 1981-2005
• Chevrolet Corvette 1997-2002
• Chevrolet Pontiac Firebird 1993-2002
• Chevrolet Silverado 2007-2013
• Chevrolet Suburban 1995-1999
• Chrysler Grand Voyager 2008-2011
• Chrysler Sebring 2007-2010
• Chrysler Voyager 1997-2000
• Citroen Berlingo 2008-2015
• Citroen C1 2005-2014
• Citroen C5 2005-2010
• Daihatsu Sirion (Boon) 2004
• Dodge Avenger 2007-2009
• Dodge Caliber 2006-2008 PM
• Dodge Caliber 2009-2011
• Dodge Journey 2012-2016
• Dodge Nitro 2007-2011
• Fiat 500 2008-2014
• Fiat 500 2014
• Fiat 500X 2014
• Fiat Ducato 2006-2012
• Fiat Ducato 2012-2014
• Fiat Ducato 2015
• Fiat Freemont 2012-2016
• Fiat Panda 2013-2018
• Fiat Scudo 2007-2011
• Ford Courier 1999-2006 PE, PG, PH
• Ford EcoSport 2013-2017 BK
• Ford Escape 2006-2012 MY10
• Ford Escape 2016-2019 ZG
• Ford Explorer 1996-2001
• Ford Explorer 2002-2005 U152 3rd Gen
• Ford F150 1992-1996
• Ford F150 1997-1998
• Ford F150 1999-2002
• Ford F150 2001-2002 4 Door Pick Up
• Ford F250 1992-1996 2 Door Pick Up
• Ford F250 1992-1996 4 Door Pick Up
• Ford F250 1998
• Ford F250 1999-2002
• Ford F250 2006-2012
• Ford F350 1992-1996
• Ford F350 1999-2002
• Ford F350 2006
• Ford Fairlane 1988-1994 NA, NC
• Ford Fairlane 1995-1998 NF, NL
• Ford Falcon 1972-1988 XA, XB, XC, XD, XE, XF
• Ford Falcon 1994-1998 EF, EL
• Ford Fiesta 2008-2012 WS, WT
• Ford Fiesta 2012-2018 WT, WZ
• Ford Focus 2012-2014 LW, LWII
• Ford Focus 2015-2018 LZ (New Zealand)
• Ford KA 1999-2002
• Ford Kuga 2013- TF
• Ford Mustang 2015
• Ford Probe 1993-1997
• Ford Transit 1996-2006 VF, VG, VH, VJ
• Ford Transit 2007-2013 VM
• Ford Transit 2013-2017 Custom
• Ford Transit 2014-2017 VO
• Ford Transit 2020-VO
