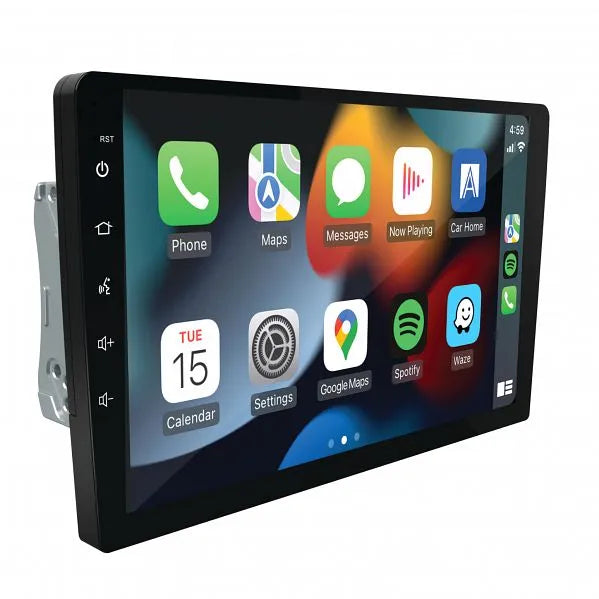

Aerpro AM9X 9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto

Built-In Bluetooth Enables Hands-Free Phone Calls & Wireless Audio Streaming!

Multimedia Receiver with Wireless Apple CarPlay & Android Auto
The Aerpro AM9X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 9" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal-clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built-in AM/FM tuner with RDS and presets.

Sound quality is superb with a built-in 40W x 4 amplifier, 8-band graphic EQ, and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA pre-outs (front + rear + subwoofer). The unit is OEM steering wheel remote-ready and has a reverse camera input (720P AHD Compatible).

Hema Maps Ready
Experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 Hema Maps On-Road / Off-Road Navigation Module (Sold Separately).

Important Information:

• This head unit is not sold separately, it is sold as part of a complete vehicle-specific installation kit.
• This head unit is a short chassis double din unit with a fixed face design. It is compatible for use with Aerpro 9" Facia Kits only. It is not designed to fit into a standard double din facia kit.

Features:

• Large 9" Capacitive Touchscreen LCD (1024 x 600)
• Works with Apple CarPlay (Wireless or Wired)
• Supports Android Auto (Wireless or Wired)
• Built-In Bluetooth (A2DP, AVRCP, HFP, PBAP)
• Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
• AM / FM Tuner with RDS & Presets (18FM/12AM)
• Reverse Camera Input (AHD 720P Compatible)
• Rear A/V Input
• 4V / 5CH RCA Preout
• MP3 / AAC / FLAC / MPEG 1,2,4 Media Formats
• Rear USB Input (1.5A Max Charging)
• 8 Band Graphic EQ
• 8 EQ Presets
• Time Alignment Capabilities
• Subwoofer Level Control
• 40W x 4 Max Built-In Amplifier
• Shallow 2-DIN Chassis Mounting Design
• Steering Wheel Control Ready
• External Microphone Included

Specifications:

• LCD Display:
  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive (G+G)
• System Specifications:
  • OS System / CPU: Linux 3.4.5 / SPHE8368U
  • RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output
  • Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  • MAX Power (4 Ohm): 4CH x 40W
• Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports
  • USB (Rear) Playback Formats: CPAA & Media
  • USB (Rear) Power - Voltage/Amps: 5V/1.5A
  • USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  • Rear A/V Input (RCA Type - 3pcs): Yes
  • Composite Video Outputs: Yes
  • Reverse Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V4.2+EDR
  • Microphone: Built-in & External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  • AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  • FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  • RDS: Yes
  • FM Antenna Connector Impedance: 50 Ohm
  • FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  • RCA Preamp Output: 2-Pair (Front / Rear)
  • Subwoofer RCA Output: Yes
  • Subwoofer Level Control: Yes
  • Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  • 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  • Loudness: Yes
  • LPF - Frequencies (Sub): Yes
  • 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): White
• Accessories:
  • Power Harness: Yes with ISO/3.5mm jack
  • AV-In Cable (RCA with Audio L/R, Video In): Yes
  • Reverse Camera Input (with 12V power supply to the camera): Yes
  • 4.1CH Audio Out Cable: Yes
  • External Microphone: Included
• Packaging Type: Giftbox
• Weight: 1.70kg
