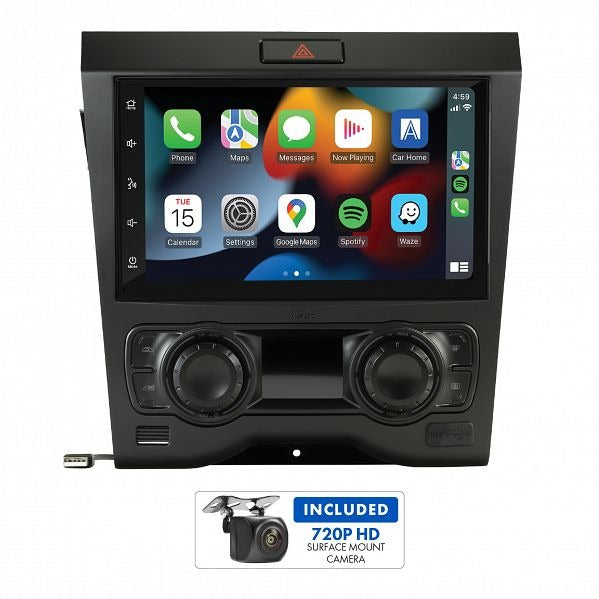

Aerpro AM9355BK 7" Multimedia Receiver Suit Holden VE Series 1 (Single Zone) - Black

Complete the Installation & Retain Important Features Such as Steering Wheel Controls!

7" Multimedia Receiver with Wireless CarPlay & Android Auto
The Aerpro AM9355BK package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit, and a 720P AHD universal reverse camera. The kit suits Holden Commodore VE Series 1 (2006-2011), designed specifically for models with single zone climate control, including Omega, V, Lumina, International, SV6, SS, and the 60th Anniversary Edition, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

The Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built-in AM/FM tuner with RDS and presets. Sound quality is superb with a built-in 45W x 4 amplifier, 8-band graphic EQ, and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA pre-outs (front + rear + subwoofer). The unit is OEM steering wheel remote-ready and has dual reverse camera inputs (720P AHD compatible).

Vehicle-Specific Installation Kit
The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in Holden Commodore VE Series 1 (2006-2011) vehicles. The kit contains all necessary components for a successful double din installation, The kit includes a back facia kit with a built-in H-VAC controller and display, a steering wheel control interface, a mounting cradle, a vehicle-specific wiring loom, a remote temperature sensor, a universal patch lead, and an antenna adapter.

720P AHD Surface Mount Camera
The Aerpro 720P AHD Surface Mount Camera produces high-definition picture quality. The camera can be used as a front, rear, or reverse camera. It features a 150-degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to be mounted on a flat surface and has an adjustable bracket to enable angle adjustment.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  *Not compatible with OEM Dual Zone Climate Control Vehicles

Features:

• Includes all the parts required to complete the installation
• Retains steering wheel control functionality including phone button
• Includes digital climate control, soft touch rotary dials with spin, tap or hold dial functions, multi-function digital display, capacitive touch buttons, auto climate control
• Built-in USB charging port for convenient device charging in the vehicle
• 7" Capacitive touch display
• Works with Apple CarPlay and Android Auto (wireless and wired)
• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A + 1.5A max charging)
• Dual camera input with 1 Aerpro 720P AHD Camera included
• Rear A/V input (RCA)
• 4V / 6CH RCA Preout
• MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
• 8 Band graphic EQ
• 8 EQ Presets
• Subwoofer level control
• 45W x 4 Max built-in amplifier
• Shallow 2-DIN chassis mounting design
• External microphone included

AM7X Specifications:

• LCD Display:
  Size: 7"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 45W
• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input: Yes
  4.2CH Audio Out Cable: Yes
  External Microphone: Included
• Vehicle Compatibility: Holden Commodore - VE Series I (2006 - 2011)
• Weight: 350kg

AHD Camera Specifications:

• Mount Type: Surface Mount
• Camera Type: Front, Rear or Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree
• Inclusions:
  720P AHD Surface Mount Camera (Wired)
  6M of Video Cable (RCA) With In-Line Reverse Trigger

Vehicle-Specific Installation Kit Inclusions:

• Facia Kit (Black)
• Includes digital climate control to retain factory HVAC
• Steering Wheel Control Interface
• Universal Patch Lead

Kit Includes:

• Aerpro AM7X 7" Multimedia Receiver With Wireless CarPlay & Android Auto
• Vehicle-Specific Installation Kit
• 720P AHD Surface Mount Camera
  * If installing a single din, use the Aerpro FP6405 pocket in conjunction with this kit (Sold Separately)
