Aerpro AM9226K 7" Multimedia Receiver Suit Chrysler/Dodge/Jeep Various Models

Complete the Installation & Retain Important Features Such as Steering Wheel Controls!

7" Multimedia Receiver Upgrade Solution

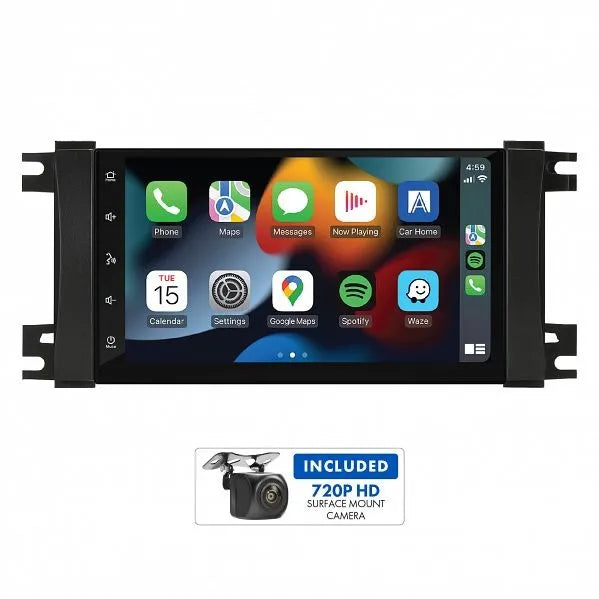

The Aerpro AM9226K package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit and a 720P AHD universal reverse camera. Designed to suit various Chrysler, Dodge and Jeep vehicles, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

Aerpro AM7X 7" Multimedia Receiver With Wireless CarPlay & Android Auto
The Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built in AM/FM tuner with RDS and presets. Sound quality is superb with a built in 45W x 4 amplifier, 8 band graphic EQ and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA preouts (front + rear + subwoofer). The unit is OEM steering wheel remote ready and has dual reverse camera inputs (720P AHD compatible).

Vehicle-Specific Installation Kit
The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in various Chrysler, Dodge and Jeep vehicles. The kit contains all necessary components for a successful double din installation, including a black facia kit, plastic mounting brackets, steering wheel control interface, antenna adapter and universal SWC patch lead.

720P AHD Surface Mount Camera
The Aerpro 720P AHD Surface Mount Camera produces high definition picture quality. The camera can be used as a front, rear or reverse camera. It features a 150 degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to mount on a flat surface and has an adjustable bracket to enable angle adjustment.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

Features:

• Includes all the parts required to complete the installation
• Retains important vehicle features including steering wheel controls and amplifier when applicable
• 7" Capacitive touch display
• Works with Apple CarPlay (wireless and wired)
• Supports Android Auto (wireless and wired)
• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A + 1.5A max charging)
• Dual camera input with 1 Aerpro 720P AHD Camera included
• Rear A/V input (RCA)
• 4V / 6CH RCA Preout
• MP3 / AAC / FLAC / MPEG 1,2,4 Media formats
• 8 Band graphic EQ
• 8 EQ Presets
• Subwoofer level control
• 45W x 4 Max built-in amplifier
• Shallow 2-DIN chassis mounting design

Aerpro AM7X Specifications:

• LCD Display:
  Size: 7"
  Resolution: 1024x600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 45W
• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-in & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input: Yes
  4.2CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle-Specific Installation Kit Inclusions:

• Facia Kit (Black)
• Steering Wheel Control Interface
• Antenna Adapter
• Universal Patch Lead

AHD Camera Specifications:

• Inclusions:
  720P AHD Surface Mount Camera (wired)
  6M of Video Cable (RCA) With In-Line Reverse Trigger
• Mount Type: Surface Mount
• Camera Type: Front, Rear Or Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle 150 Degree

Aerpro AM9226K Vehicle Compatibility:

• Chrysler 300C 2008 - 2011
• Chrysler Sebring 2007 - 2010
• Dodge Avenger 2007 - 2009
• Dodge Caliber 2009 - 2011
• Dodge Journey 2008 - 2011
• Dodge Nitro 2007 - 2011
• Jeep Cherokee 2008 - 2011 KK
• Jeep Commander 2009 - 2010 XK
• Jeep Compass 2010 - 2016 MK
• Jeep Grand Cherokee 200 9- 2011 WH
• Jeep Patriot 2009 - MK
• Jeep Wrangler 2007 - 2015
• Jeep Wrangler 2015 - 2018

Aerpro AM9226K Kit Inclusions:

• Aerpro AM7X 7" Multimedia Receiver With Wireless CarPlay & Android Auto
• Vehicle-Specific Installation Kit
• 720P AHD Surface Mount Camera
