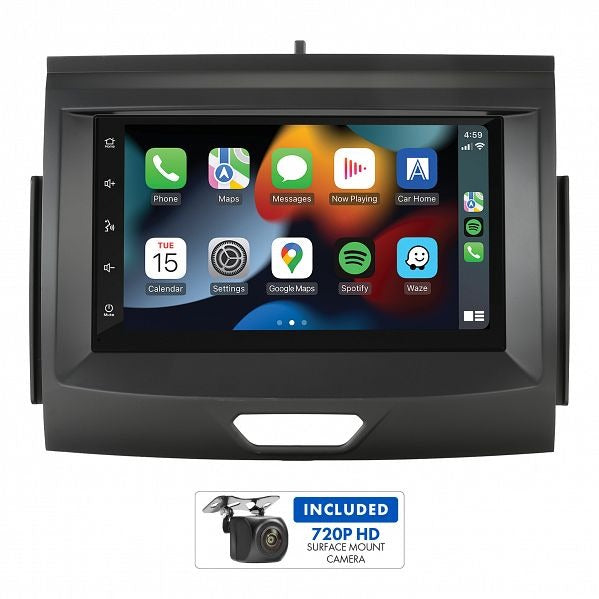

Aerpro AM9129CT 7" Multimedia Receiver Suit Ford Everest UA MKII & Ranger PX MKII/MKIII

Contains All Necessary Components For A Successful Double DIN Installation!

7" Multimedia Receiver Upgrade Solution
The Aerpro AM9129CT package offers a comprehensive head unit upgrade solution that includes an Aerpro AM7X Double DIN 7" Mechless AV Receiver, a Vehicle Specific Installation Kit, and a 720P AHD universal reverse camera. Designed specifically for Ford Everest UA (2015 - 2017) and Ranger PX2-PX3 (2015 - 2021) vehicles with factory 8" SYNC3 display, this package comes with all the necessary parts to complete the installation and retain important features such as steering wheel controls.

Aerpro AM7X 7" Multimedia Receiver With Wireless CarPlay & Android Auto
The Aerpro AM7X Multimedia Receiver with Wireless Apple CarPlay and Android Auto features a large 7" capacitive touch screen display. The built-in Bluetooth enables hands-free phone calls and wireless audio streaming and the included external microphone provides crystal-clear communications. It has a rear USB input which works with Apple CarPlay and Android Auto, as well as a built-in AM/FM tuner with RDS and presets. Sound quality is superb with a built-in 45W x 4 amplifier, 8-band graphic EQ, and time alignment capabilities for precise sound adjustment. If more sound is desired, an amplifier can be added to the system via the 4V/5CH RCA pre-outs (front + rear + subwoofer). The unit is OEM steering wheel remote-ready and has dual reverse camera inputs (720P AHD Compatible).

Vehicle-Specific Installation Kit
The Aerpro Vehicle Specific Installation Kit is designed to provide a complete solution for upgrading the head unit in Ford Everest UA (2015-2017) and Ranger PX2-PX3 (2015-2021) vehicles with factory 8" SYNC3 display. The kit contains all necessary components for a successful double din installation, including a black double din facia kit, mounting brackets, infodaptor interface, vehicle-specific harness, USB/AUX/HDMI input panel mount, antenna adaptor, and universal SWC patch lead.

720P AHD Surface Mount Camera
The Aerpro 720P AHD Surface Mount Camera produces high-definition picture quality. The camera can be used as a front, rear or reverse camera. It features a 150-degree field of view, optional parking guidelines and is IP67 rated. The camera is designed to be mounted on a flat surface and has an adjustable bracket to enable angle adjustment.

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Not suitable for base model 8" screens seen on series XL, XL Hi-Rider 2020 -
• To use the included USB/AUX/HDMI input panel mount the aftermarket head unit requires USB, AUX (RCA), and HDMI rear inputs. The panel is designed as an exact replica of select Ford vehicles. For vehicles that don’t feature a passenger airbag button aperture, this will need to be placed within the glovebox.
• The use of the eject button gives access to the configuration menu.

Aerpro AM9129C Features:

• Includes all the parts required to complete the installation.
• Retains Important Vehicle Features Including:
  Steering Wheel Controls
  Re-creates the climate control system, and uses the previous dashboard control (Volume Knob) to control all via the new head unit display.
  Retains the factory camera feed or allows the addition of a new aftermarket camera.
  Re-creates the original Park Pilot system, with the ability to control view alongside the factory camera.
  Retains and re-creates the original park assist system.
  Allows adjustment of vehicle settings including ambient lighting, time/date, enhanced park pilot, climate control overlap timeout, climate control screen timeout, camera delay, reverse priority, and time format.
• 7" Capacitive Touch Display
• Works With Apple CarPlay (Wireless & Wired)
• Supports Android Auto (Wireless & Wired)
• Built-In Bluetooth (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner With RDS & Presets (18FM/12AM)
• Dual Rear USB inputs (1.5A + 1.5A Max Charging)
• Dual Camera Input With 1 Aerpro 720P AHD Camera Included
• Rear A/V Input (RCA)
• 4V / 6CH RCA Pre-Out
• MP3 / AAC / FLAC / MPEG 1,2,4 Media Formats
• 8 Band Graphic EQ
• 8 EQ Presets
• Subwoofer Level Control
• 45W x 4 Max Built-In Amplifier
• Shallow 2-DIN Chassis Mounting Design
• External Microphone Included

Aerpro AM7X Specifications:

• LCD Display:
  Size: 7"
  Resolution: 1024 x 600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4V, 1 kHz, THD 10 %): 4CH x 25W
  MAX Power (4 Ohm): 4CH x 45W
• Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports:
  USB (Rear) Playback Formats: CPAA & Media
  USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3 Pcs): Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-In & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5 - 108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529 - 1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50-Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, With Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes With ISO
  AV-In Cable (RCA With Audio L/R, Video In): Yes
  Reverse Camera Input: Yes
  4.2CH Audio Out Cable: Yes
  External Microphone: Included

Vehicle-Specific Installation Kit Inclusions:

• Facia Kit (Black)
• Infodaptor Interface
• Vehicle-Specific Harness
• USB/AUX/HDMI Input Panel Mount
• Antenna Adaptor
• Universal Patch Lead

AHD Camera Specifications:

• Inclusions:
  720P AHD Surface Mount Camera (Wired)
  6M of Video Cable (RCA) With In-Line Reverse Trigger
• Mount Type: Surface Mount
• Camera Type: Front, Rear or Reverse
• Image Sensor: Sony 225, 1/3 CMOS AHD
• Lens Angle: 150 Degree

Aerpro AM9129C Vehicle Compatibility:

• Ford Everest UA MKII (2015 - 2022)
• Ford Ranger PX MKII (2015 - 2018)
• Ford Ranger PX MKIII (2018 - 2021)

Aerpro AM9129C Kit Inclusions:

• Aerpro AM7X 7" Multimedia Receiver With Wireless Carplay & Android Auto
• Vehicle-Specific Installation Kit
• 720P AHD Surface Mount Camera
