Product features

Aerpro AM8343K Hyundai i30 GD 2012-2017 Factory Navigation 7 Inch Multimedia Receiver Kit with 720P AHD Camera

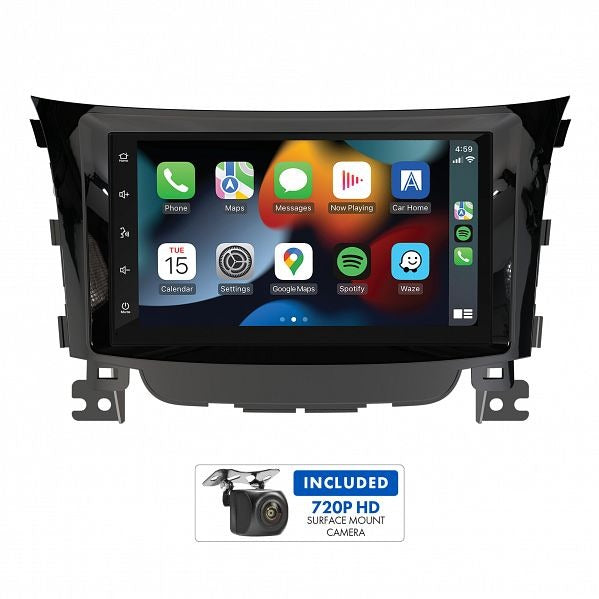

A complete 7 inch head unit upgrade kit for the Hyundai i30 GD (2012-2017) with factory navigation, including the Aerpro AM7X wireless Apple CarPlay and Android Auto multimedia receiver, a vehicle-specific installation kit retaining steering wheel controls, factory USB, and factory reverse camera, plus a 720P AHD surface mount camera. Suits factory navigation models only.

Product Overview

The Aerpro AM8343K is a complete head unit upgrade package designed specifically for the Hyundai i30 GD (2012-2017) in vehicles fitted with factory navigation. The kit centres on the Aerpro AM7X 7 inch multimedia receiver featuring wireless and wired Apple CarPlay and Android Auto, a 7 inch capacitive touchscreen (1024 x 600), built-in Bluetooth with A2DP, AVRCP, HFP 1.6, and PBAP, AM/FM tuner with RDS, 45W x 4 max power output, 8 band graphic EQ with time alignment, and 4V 5-channel RCA preouts for amplifier integration.

The vehicle-specific installation kit includes a gloss black fascia kit, plastic mounting brackets, steering wheel control interface, USB retention harness, factory camera retention interface, antenna adaptor, and universal SWC patch lead - retaining steering wheel controls, factory USB, and factory reverse camera where applicable. A 720P AHD surface mount camera with Sony 225 1/3 CMOS sensor, 150° field of view, 6m video cable, and IP67 rating is also included.

Please note this kit is designed for Hyundai i30 GD (2012-2017) vehicles with factory navigation only. Feature retention is head unit dependent.

Features & Benefits

Wireless Apple CarPlay and Android Auto: The AM7X supports both wireless and wired Apple CarPlay and Android Auto for full smartphone integration without a cable connection on compatible devices.

7 Inch Capacitive Touchscreen: A 1024 x 600 resolution glass-on-glass capacitive touchscreen provides a responsive, high-clarity display for navigation, media, and connectivity.

Retains Steering Wheel Controls, Factory USB, and Factory Reverse Camera: The vehicle-specific installation kit includes a SWC interface, USB retention harness, and factory camera retention interface to preserve factory features after the head unit upgrade.

720P AHD Surface Mount Camera Included: A 720P AHD surface mount camera with a Sony 225 1/3 CMOS sensor, 150° field of view, and IP67 water resistance rating is included. The camera can be used as a front, rear, or reverse camera and features an optional parking guidelines overlay.

45W x 4 Max Power with 8 Band EQ and Time Alignment: The AM7X delivers 45W x 4 max power with an 8 band graphic EQ, time alignment, and 4V 5-channel RCA preouts for external amplifier connection.

Factory Navigation Models Only: The AM8343K is designed exclusively for Hyundai i30 GD (2012-2017) vehicles fitted with factory navigation. It is not suitable for non-navigation models.

Technical Specs

Specification Detail
SKU AM8343K
Brand Aerpro
Compatible Vehicle Hyundai i30 GD 2012-2017 (factory navigation models only)
Kit Inclusions AM7X Multimedia Receiver, Vehicle Specific Installation Kit, 720P AHD Surface Mount Camera
Display
Screen Size 7 inch
Resolution 1024 x 600
Touchscreen Capacitive (G+G)
System
OS / CPU Linux 3.4.5 / SPHE8368U
RAM / Flash Memory 128MB / 256MB
DIN Size 2 DIN Short Body
Power
Rated Power 4CH x 25W (4 Ohm, 14.4V, 1kHz, THD 10%)
Max Power 4CH x 45W (4 Ohm)
Connectivity
Apple CarPlay / Android Auto Yes - Wireless and Wired
Bluetooth Yes - V4.2+EDR (A2DP, AVRCP, HFP 1.6, PBAP)
Microphone External (included)
USB 1 (Rear) CarPlay, Android Auto and Media
USB 2 (Rear) Media / Charging - 5V / 1.5A
USB Max Capacity FAT32 32GB
Rear A/V Input Yes (RCA, 3 pieces)
Reverse Camera Input Yes (720P AHD compatible)
Second Camera Input Yes (720P AHD compatible)
Tuner
AM / FM Tuner Yes - AM 12 presets (6x2), FM 18 presets (6x3)
FM Frequency Range 87.5-108.0MHz (0.05MHz step)
AM Frequency Range 529-1629KHz (9KHz step)
RDS Yes
FM Antenna Connector Motorola / 50 Ohm
RCA Preouts
Preamp Outputs 2 pair (Front / Rear)
Subwoofer Output Yes
Subwoofer Level Control Yes
Preamp Voltage 4V p-p
Audio
EQ 8 Band (50/200/400/800/1K/3K/7K/15K Hz)
EQ Presets Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Loudness Yes
LPF (Subwoofer) Yes
Media Playback
Audio Formats MP3, AAC, FLAC
Video Formats Xvid, MPEG 1/2/4
Installation Kit
Fascia Kit Gloss Black
Inclusions SWC Interface, USB Retention Harness, Factory Camera Retention Interface, Antenna Adaptor, Universal SWC Patch Lead, Plastic Mounting Brackets
Steering Wheel Control Retention Yes
Factory USB Retention Yes
Factory Camera Retention Yes (where applicable)
Feature Retention Head unit dependent
720P AHD Camera
Image Sensor Sony 225 1/3 CMOS AHD
Resolution 720P AHD
Lens Angle 150°
Mount Type Surface Mount (adjustable bracket)
Camera Use Front, Rear or Reverse
Parking Guidelines Optional
IP Rating IP67
Cable 6m video cable (RCA) with in-line reverse trigger

What's in the Box

  • Aerpro AM7X 7 inch Multimedia Receiver
  • Gloss Black Fascia Kit
  • Steering Wheel Control Interface
  • USB Retention Harness
  • Factory Camera Retention Interface
  • Antenna Adaptor
  • Universal SWC Patch Lead
  • Plastic Mounting Brackets
  • 720P AHD Surface Mount Camera
  • 6m Video Cable (RCA) with In-Line Reverse Trigger
  • Power Harness (with ISO)
  • AV-In Cable (RCA with Audio L/R, Video In)
  • Reverse Camera Input Cable
  • 4.2CH Audio Out Cable
  • External Microphone

Compatible With

  • Hyundai i30 GD 2012-2017 (factory navigation models only)

This kit is not suitable for Hyundai i30 GD (2012-2017) models without factory navigation. Feature retention is head unit dependent.

Frequently Asked Questions

Is the AM8343K suitable for Hyundai i30 models without factory navigation?

No. The AM8343K is designed exclusively for Hyundai i30 GD (2012-2017) vehicles fitted with factory navigation. A different kit is required for non-navigation models. Please contact us to confirm the correct kit for your vehicle.

Does this kit include a reverse camera?

Yes. A 720P AHD surface mount camera is included in the kit. The camera features a Sony 225 1/3 CMOS sensor, 150° field of view, IP67 water resistance, optional parking guidelines, and a 6m video cable with in-line reverse trigger. It can be used as a front, rear, or reverse camera.

Does the AM8343K retain steering wheel controls?

Yes. The vehicle-specific installation kit includes a steering wheel control interface and universal SWC patch lead that retains factory SWC functionality. Feature retention is head unit dependent.

Can I connect an external amplifier to the AM7X?

Yes. The AM7X features 4V 5-channel RCA preouts including a dedicated subwoofer output, allowing external amplifiers to be connected to the system. Subwoofer level control is also available.

Does the kit retain the factory USB input?

Yes. A USB retention harness is included in the vehicle-specific installation kit to retain factory USB input functionality. Feature retention is head unit dependent.
