Aerpro AM7X 7" Multimedia Receiver with Wireless Apple CarPlay & Android Auto

Ensures A Superb Audio Experience with Precise Customisation Options!

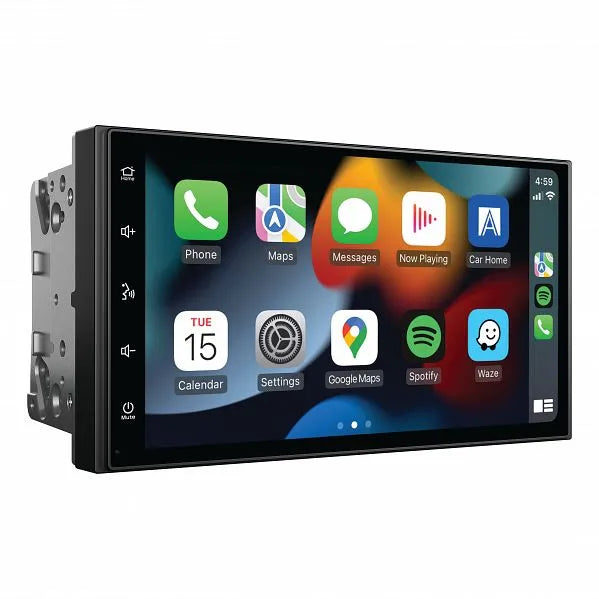

Aerpro AM7X Double DIN Multimedia Receiver
The Aerpro AM7X is a cutting-edge 7" Multimedia Receiver designed to elevate your in-car entertainment experience. This sleek unit boasts a vibrant 7" capacitive touch display, ensuring a user-friendly interface for seamless control. Compatible with both Apple CarPlay and Android Auto, this receiver offers wireless and wired connectivity, providing versatility for your preferred device.

Stay connected with the built-in Bluetooth feature that supports A2DP, AVRCP, HFP, and PBAP, facilitating hands-free calling and audio streaming. The AM/FM Tuner with RDS and presets (18-FM/12-AM) ensures you never miss a beat, while dual rear USB inputs enable connection of your smartphone or USB media device.

The dual camera inputs with individual triggers are 720P AHD compatible, allowing for high-definition cameras to be installed on the vehicle to provide crystal clear vision. Connect a reverse camera and an extra rear, side, towing, or front camera for convenient parking and enhanced safety (Cameras are sold separately).

Equipped with a 4V/6CH RCA preout, 8-band graphic EQ, and 8 EQ presets, the AM7X delivers unparalleled audio customisation. Manage your subwoofer effortlessly with the subwoofer level control and enjoy a powerful 45W x 4 max built-in amplifier. Designed with convenience in mind, the shallow 2-DIN chassis mounting design and steering wheel control readiness make installation and operation a breeze. Elevate your driving experience with the Aerpro AM7X – where innovation meets entertainment.

Features:

• 7" Capacitive Touch Display
• Works with Apple CarPlay (Wireless & Wired)
• Supports Android Auto (Wireless & Wired)
• Built-in Bluetooth (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & Presets (18-FM/12-AM)
• Dual rear USB Inputs (USB1: CP/AA, USB2: USB Media)
• Dual Camera Inputs (720P AHD Compatible)
• Rear A/V Input (RCA)
• 4V / 6CH RCA Preout
• MP3 / AAC / FLAC / MPEG 1,2,4 Media Formats
• 8 Band Graphic EQ
• 8 EQ Presets
• Subwoofer Level Control
• 45W x 4 Max Built-In Amplifier
• Shallow 2-DIN Chassis Mounting Design
• Steering Wheel Control Ready (3 Wire Learning SWC)
• External Microphone Included

Specifications:

• LCD Display:
  Size: 7"
  Resolution: 1024 x 600
  Touch Screen: Capacitive (G+G)
• System Specifications:
  OS System / CPU: Linux 3.4.5 / SPHE8368U
  RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output:
  Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
  Max Power (4 Ohm): 4CH x 45W
  Media Playback: MP3 / MP4 / AAC / FLAC / Xvid
• Device Ports
• USB (Rear) Playback Formats: CP/AA & Media
  USB2 (Rear) USB Media / Charging - Voltage/Amps: 5V/1.5A
  USB Max Capability: FAT32_32GB
• Aux Inputs / Outputs:
  Rear A/V Input (RCA Type - 3pcs): Yes
  Reverse Camera Input: Yes (720P AHD Compatible)
  Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless & Wired)
• Bluetooth:
  Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  Bluetooth Version: V4.2+EDR
  Microphone: Built-In & External Microphone
  ID3 Tag/Information (Artist, Album, Song): Yes
  HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner:
  AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
  FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
  AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
  RDS: Yes
  FM Antenna Connector Impedance: 50 Ohm
  FM Tuner Connector: Motorola
• RCA Preamp Outputs:
  RCA Preamp Output: 2-Pair (Front / Rear)
  Subwoofer RCA Output: Yes
  Subwoofer Level Control: Yes
  Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control:
  8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
  Loudness: Yes
  LPF - Frequencies (Sub): Yes
  8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features:
  Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  OSD Language: English
  LED Colour (Buttons / Keys): White
• Accessories:
  Power Harness: Yes with ISO
  AV-In Cable (RCA with Audio L/R, Video In): Yes
  Reverse Camera Input: Yes
  4.2CH Audio Out Cable: Yes
  External Microphone: Included
