Aerpro AM7514K 7" Multimedia Receiver Kit to Suit Mazda 3 2009-2013

Aerpro AM7514K 7" Multimedia Receiver Kit to Suit Mazda 3 2009-2013

Everything you need to upgrade your Mazda 3 in one box — the Aerpro AM7514K combines the AM7X 7" wireless CarPlay and Android Auto receiver with a vehicle-specific installation kit and a 720P AHD reverse camera for a complete, clean headunit upgrade with steering wheel control retention.

Product Overview

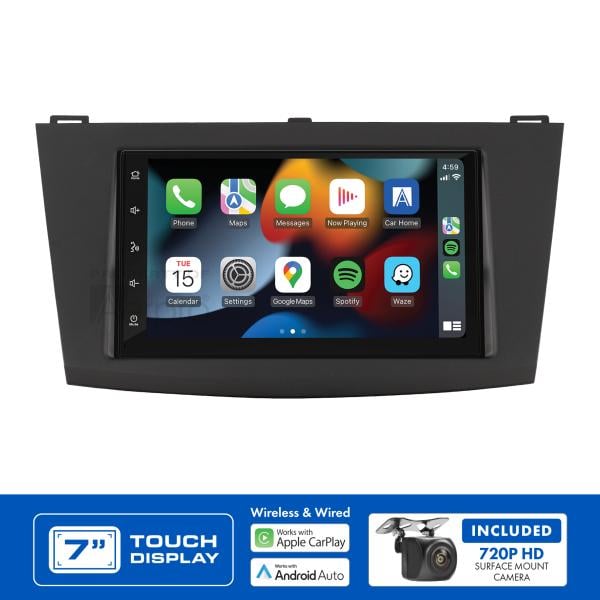

The Aerpro AM7514K is a complete headunit upgrade package engineered specifically for the Mazda 3 (Axela) 2009-2013 BL. The kit combines three key components into a single purchase: the Aerpro AM7X 7" Multimedia Receiver, a Mazda 3-specific installation kit, and a 720P AHD surface mount reverse camera — providing everything required for a professional double DIN installation without sourcing parts separately.

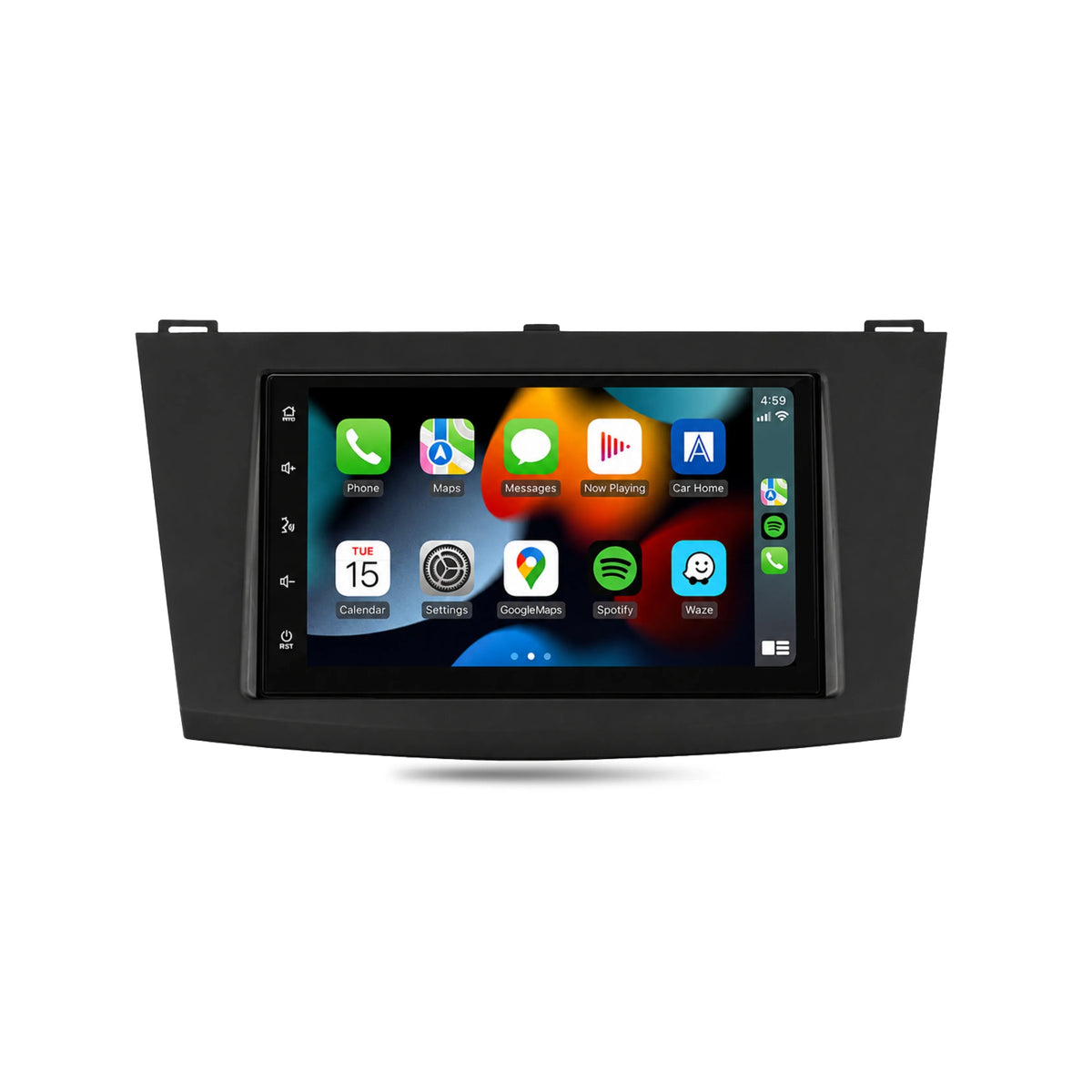

The AM7X receiver features a 7" capacitive touchscreen (1024x600) with wireless Apple CarPlay and Android Auto, built-in Bluetooth 4.2 for hands-free calling and audio streaming, and dual rear USB inputs for media playback and device charging. Sound performance is delivered by a 45W x 4 built-in amplifier with an 8-band graphic EQ, time alignment, and 4V 6-channel RCA preouts for future amplifier expansion.

The vehicle-specific installation kit includes a matte black facia kit, plastic mounting brackets, steering wheel control interface, antenna adaptor, and universal SWC patch lead — retaining the Mazda 3's factory steering wheel controls after installation. Dual reverse camera inputs (720P AHD compatible) are supported on the AM7X, and the included 720P AHD surface mount camera features a Sony 225 CMOS sensor with a 150-degree field of view, IP67 rating, and optional parking guidelines.

Note: Head unit upgrade kits can vary between vehicle models. Use the Aerpro What Fits Your Car Guide to confirm compatibility for your specific Mazda 3 variant before purchase.

Features & Benefits

• Complete three-piece kit including AM7X receiver, Mazda 3-specific installation kit, and 720P AHD reverse camera — everything required for a full double DIN upgrade in one purchase
• 7" capacitive touchscreen (1024x600, G+G) delivering a large, responsive display for CarPlay, Android Auto, and media browsing
• Wireless Apple CarPlay and Android Auto with wired connection also supported for maximum smartphone compatibility
• Built-in Bluetooth 4.2 with A2DP, AVRCP, HFP 1.6, and PBAP for hands-free calls, HD voice, and wireless audio streaming
• Steering wheel control retention via the included SWC interface and universal patch lead, maintaining factory Mazda 3 SWC functionality
• 45W x 4 MAX built-in amplifier with 4V 6-channel RCA preouts (front, rear, subwoofer) for clean audio and easy future amplifier integration
• 8-band graphic EQ with 8 presets and time alignment for precise, customisable sound tuning
• Dual rear USB inputs (1.5A + 1.5A) for media playback and device charging with FAT32 up to 32GB support
• Dual reverse camera inputs (720P AHD compatible) with one 720P AHD surface mount camera included

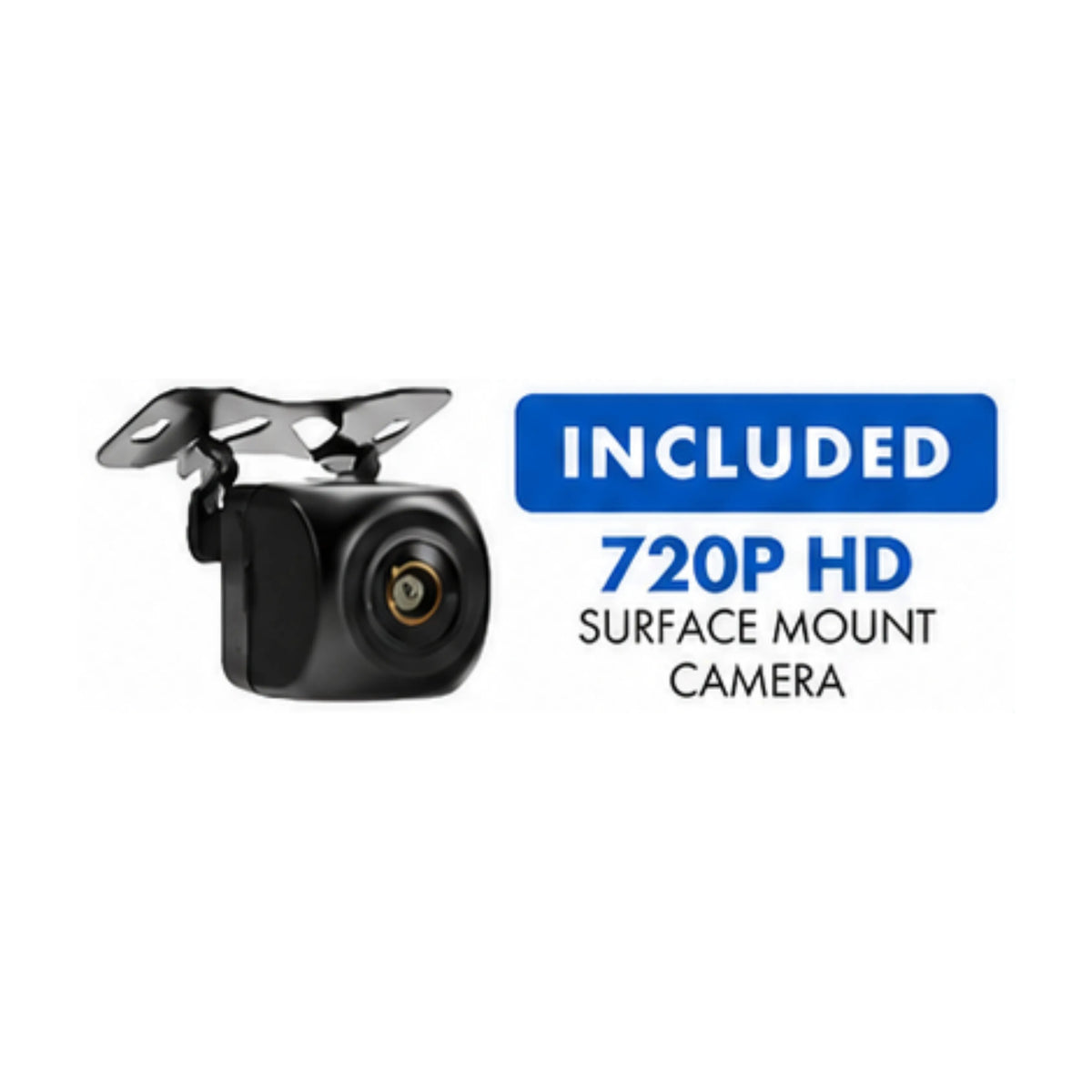

• 720P AHD surface mount camera with Sony 225 1/3" CMOS sensor, 150-degree field of view, optional parking guidelines, IP67 rating, and 6m video cable with inline reverse trigger
• AM/FM tuner with RDS and 18FM/12AM presets for comprehensive local radio reception
• Shallow 2-DIN short body chassis with matte black facia for a factory-matched finish in the Mazda 3 dash
• External microphone included for clear, hands-free call quality

Technical Specs

Compatible With / Goes Well With

The Aerpro AM7514K is specifically designed for:

• Mazda 3 (Axela) BL 2009-2013

Important: This kit is configured specifically for the Mazda 3 BL 2009-2013. It is not suited for Mazda 3 models outside this generation. Use the Aerpro What Fits Your Car Guide or contact F.A.E. to confirm compatibility for your specific variant before purchase.

Goes well with:

• Aerpro or compatible amplifiers (connected via the 4V 6CH RCA preouts for system audio upgrades)
• Aerpro or compatible component speakers (to complement the AM7X's 8-band EQ and time alignment)
• Aerpro APP8RK reverse camera power kit (for clean reverse trigger wiring integration)

Frequently Asked Questions

Q: What is included in the Aerpro AM7514K kit?

A: The AM7514K includes the Aerpro AM7X 7" multimedia receiver with wireless CarPlay and Android Auto, a Mazda 3-specific vehicle installation kit (matte black facia, plastic mounting brackets, steering wheel control interface, antenna adaptor, and universal SWC patch lead), and a 720P AHD surface mount reverse camera with 6m video cable and inline reverse trigger. All components required for a complete double DIN installation are included.

Q: Will the factory Mazda 3 steering wheel controls work after installation?

A: Yes. The vehicle-specific installation kit includes a steering wheel control interface and universal SWC patch lead designed to retain the factory Mazda 3 steering wheel controls with the AM7X receiver. SWC retention functionality may vary depending on the specific Mazda 3 variant and trim level — contact F.A.E. if you need confirmation for your specific vehicle.

Q: Does wireless CarPlay and Android Auto require any additional hardware?

A: No additional hardware is required. The AM7X supports wireless CarPlay and Android Auto natively via Bluetooth and Wi-Fi pairing. Wired connection via the rear USB input is also supported for devices that prefer a wired connection or for faster initial setup.

Q: Can I add an external amplifier to the AM7514K system?

A: Yes. The AM7X features 4V 6-channel RCA preouts covering front, rear, and subwoofer channels, making it straightforward to integrate an external amplifier for improved system power and audio quality. The subwoofer level control and 8-band EQ with time alignment provide flexible tuning to get the most from an upgraded amplifier and speaker setup.

Q: Is the included reverse camera suitable for permanent rear mounting on the Mazda 3?

A: Yes. The included 720P AHD surface mount camera features an adjustable bracket for angle adjustment, IP67 water resistance rating, and a 6m video cable with inline reverse trigger for clean installation. The 150-degree field of view provides broad rear coverage suitable for parking and reversing. The camera connects directly to the AM7X's 720P AHD-compatible reverse camera input and activates automatically when reverse gear is engaged via the inline trigger.
