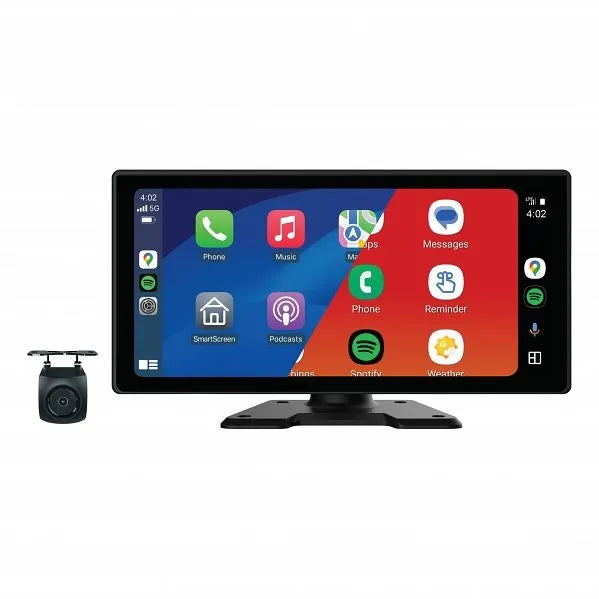

Aerpro AM10M04 10.36" Wireless Smartphone Quad View Monitor With Reverse Camera (Adhesive Mount)

AERPRO AM10M04 - 10.36" Wireless Smartphone Quad View Monitor with Reverse Camera Adhesive Mount | Complete Safety & Entertainment Hub

Professional 10.36" AHD quad view smart monitor with wireless smartphone integration and comprehensive camera system for enhanced safety and infotainment

Product Overview

The AERPRO AM10M04 delivers comprehensive safety and entertainment performance through precision-engineered 10.36" AHD Quad View Smart Monitor designed to eliminate blind spots while providing seamless smartphone connectivity. This professional monitor combines wireless Apple CarPlay and Android Auto integration with real-time quad camera viewing capability, featuring high-resolution 1600x720 IPS touchscreen with adhesive mounting system that provides flexible installation across cars, utes, 4WDs, motorhomes, vans, and trucks for enhanced visibility and modern infotainment functionality.

What Makes This Monitor Special

• Real-Time Quad View Safety System – Displays up to four AHD 1080P camera feeds simultaneously for comprehensive surrounding visibility, eliminating blind spots and enhancing driver awareness with customizable viewing modes including single, dual, and quad camera displays for maximum safety control
• Wireless Smartphone Integration Hub – Features seamless wireless or wired Apple CarPlay and Android Auto connectivity, transforming the monitor into complete infotainment center with access to apps, contacts, and navigation through intuitive 10.36" touchscreen interface while maintaining road focus
• Heavy-Duty Construction Design – Built with IP67-rated camera compatibility and robust 4-pin connectors for reliable performance in any weather condition, featuring durable construction designed for demanding automotive environments with 12/24V DC compatibility for versatile vehicle applications
• Flexible Installation & Display Options – Includes adhesive mounting system for easy installation with full and split screen customization options, adjustable parking guidelines, and latching camera triggers for turn signal integration, providing professional installation flexibility across vehicle types

Technical Specs

• Display Type: 10.36" IPS high-resolution touchscreen
• Resolution: 1600 x 720 pixels for crystal-clear visuals
• Camera Inputs: 4 AHD camera inputs (720P HD and 1080P AHD compatible)
• Video Triggers: 3 triggers (CH1 priority) with latching capability
• Smartphone Connection: Wireless Apple CarPlay and Android Auto support
• Audio Output: Bluetooth, FM transmitter, built-in speaker
• Video System: PAL/NTSC auto detection
• Display Modes: Single camera, dual camera, quad camera, CarPlay full screen, CarPlay split screen
• Guidelines: Selectable on/off (CH2 only) with adjustable parking assist
• Power Supply: 11-30V DC (hardwired installation required)
• Monitor Dimensions: 265 x 131 x 68mm (excluding mount)
• Weight: 1.54kg total system weight
• Vehicle Compatibility: 12/24V DC systems (cars, trucks, commercial vehicles)
• Construction: Heavy-duty 4-pin connectors, IP67-rated camera compatibility

Frequently Asked Questions

Does this monitor work wirelessly without any connections?

The smartphone connection is wireless for CarPlay/Android Auto, but the monitor requires hardwired connection to vehicle power (11-30V DC). Cameras also require wired connections to the display and reverse trigger in the vehicle.

Can I mix different camera resolutions with this monitor?

The monitor accepts both 720P HD and 1080P AHD cameras, but they must be consistent throughout the system. You cannot mix 720P and 1080P cameras - all cameras must be the same resolution for proper operation.

What vehicles is this monitor suitable for?

The AM10M04 is ideal for 4WDs, motorhomes, commercial vans, trucks, cars, and many other vehicles with 12/24V DC electrical systems. The versatile mounting and power compatibility make it suitable for both personal and commercial applications.

How many cameras are included with this monitor?

This kit includes the monitor and mounting hardware only. Cameras are sold separately (Model: AVC0). The monitor supports up to 4 camera inputs for complete surrounding visibility.

Does this support both Apple and Android smartphones?

Yes, the monitor supports both wireless Apple CarPlay and Android Auto connectivity, allowing seamless integration with iOS and Android smartphones for complete infotainment functionality.

Can I use this for parking assistance?

Yes, the monitor features adjustable parking guidelines (CH2 only) and latching camera triggers that work with turn signals for improved side visibility during parking and maneuvering.

How It Works

Professional Quad View Safety & Entertainment System – Mount the AM10M04 using the included adhesive mount system and connect to 11-30V vehicle power. Connect up to four AHD cameras (sold separately) to the monitor inputs and vehicle reverse/trigger circuits. Pair your smartphone wirelessly for CarPlay/Android Auto functionality. The system provides real-time quad camera viewing with customizable display modes while maintaining full smartphone integration for navigation, apps, and entertainment.

Compatible With

Camera Compatibility: Aerpro AHD cameras (Model: AVC0) in 720P or 1080P resolution (must be consistent)

Vehicle Integration: 12/24V DC electrical systems, reverse trigger circuits, turn signal integration

Smartphone Compatibility: iOS devices with CarPlay, Android devices with Android Auto

Professional Installation: Authorized automotive electrical installers, commercial vehicle specialists, caravan/motorhome installation experts
