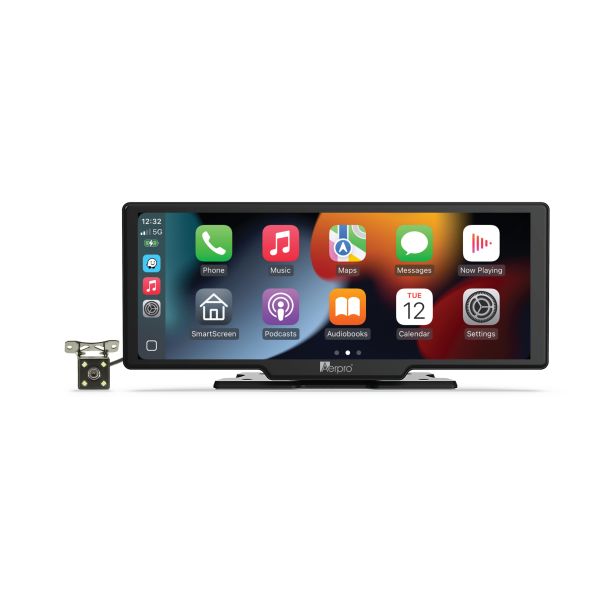

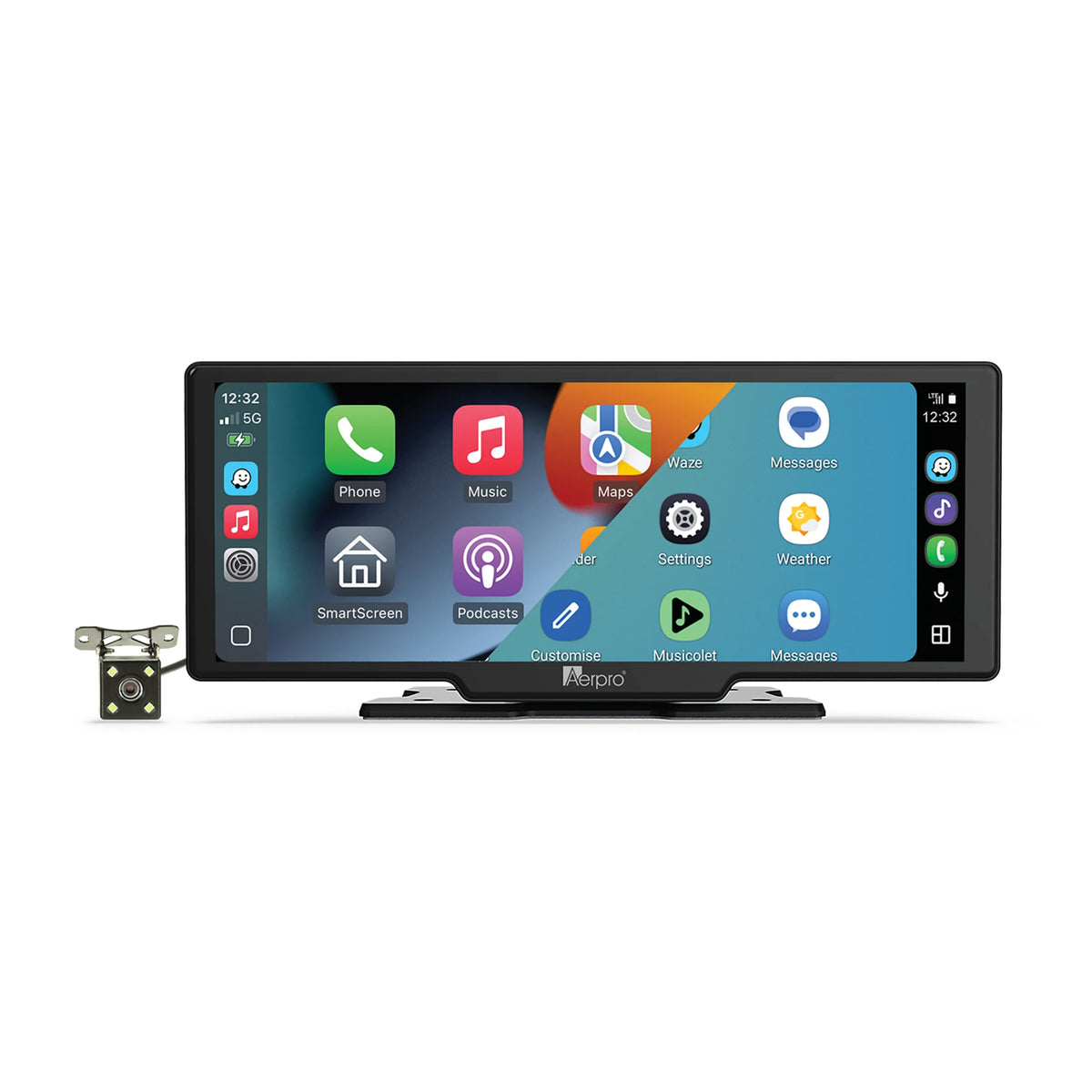

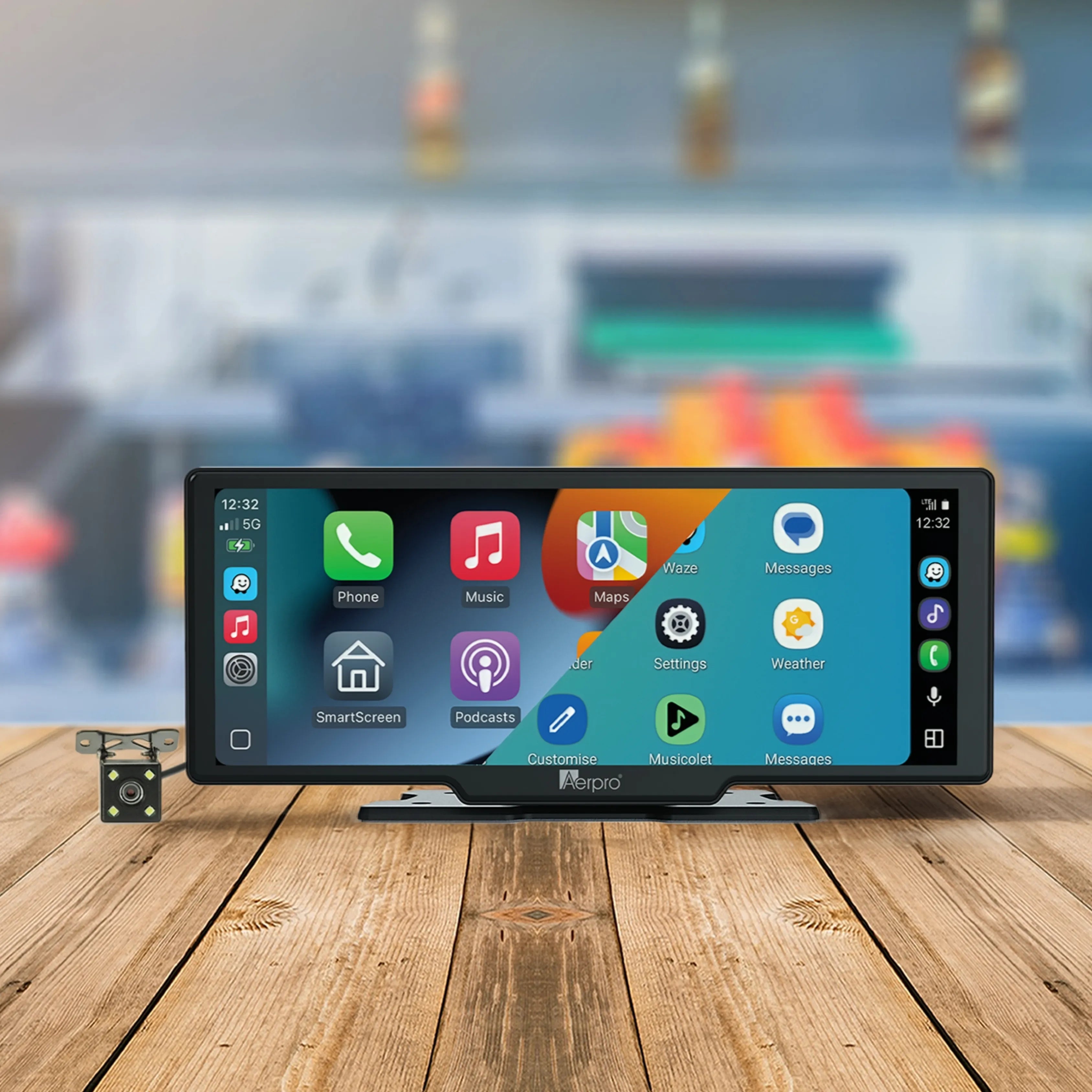

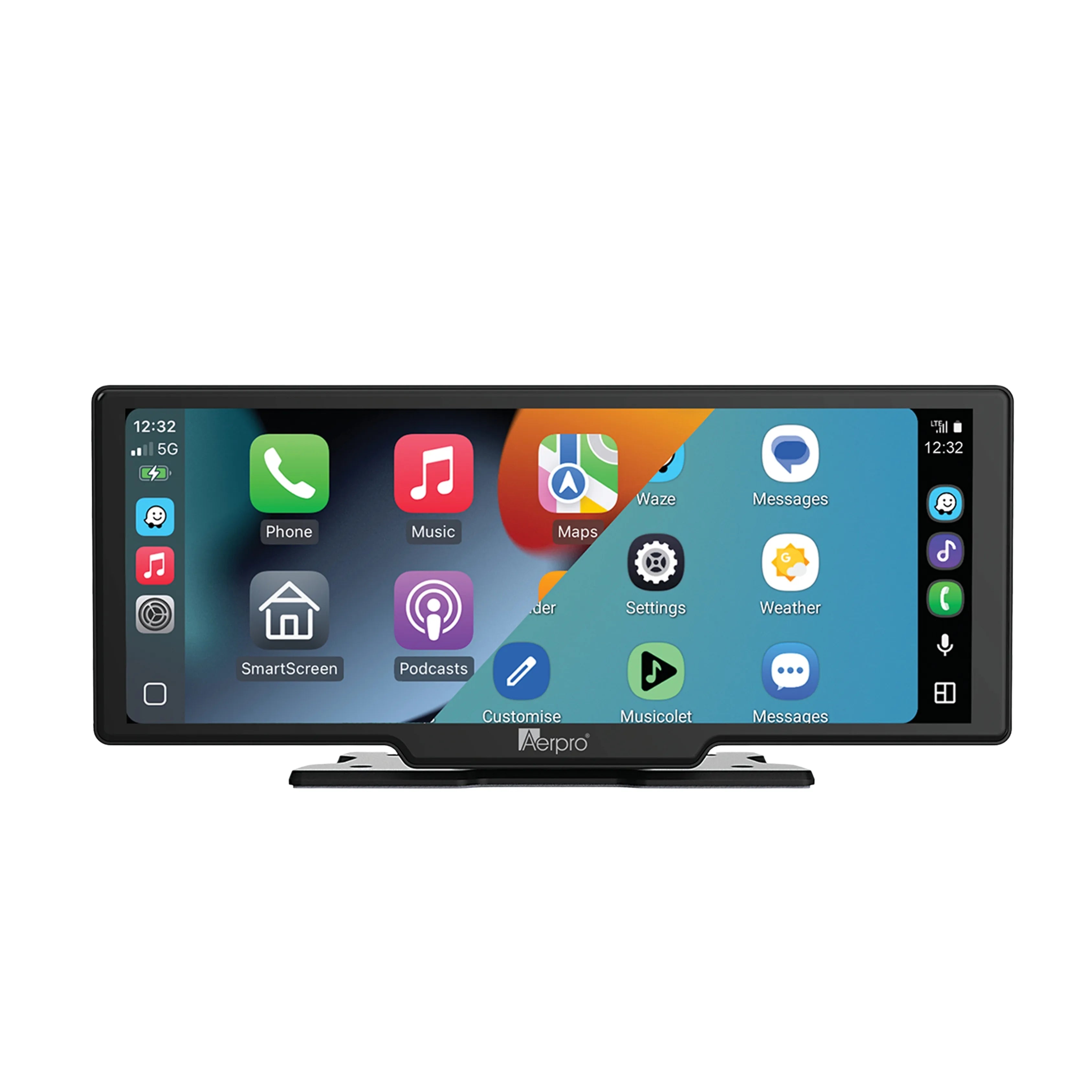

Aerpro AM10M02R 10" Wireless CarPlay Android Auto Monitor with Camera

SKU: AM10M02R
Price
$249.99
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Aerpro AM10M02R 10" Wireless Smartphone Monitor with Reverse Camera

A plug-and-play 10" wireless smartphone monitor for the dash, the AM10M02R brings wireless Apple CarPlay, Android Auto, AirPlay, and Android Mirror Cast to virtually any vehicle via an adhesive dash mount, with a reverse camera, Bluetooth, FM transmitter, AUX out, and built-in speaker and microphone included.

Product Overview

The Aerpro AM10M02R is a 10" HD IPS capacitive touchscreen dash monitor with wireless smartphone connectivity. It supports wireless Apple CarPlay, Android Auto, Apple AirPlay, and Android Mirror Cast, providing access to maps, calls, music, and apps through the 1600x600 touchscreen without requiring head unit replacement or vehicle-specific installation. The display is mounted via an adhesive dash mount and powered via the included 12/24V DC Type-C car accessory socket power adaptor, making it compatible with a wide range of vehicles.

Audio output is available via Bluetooth, FM transmitter, AUX out, or the built-in speaker, with the Bluetooth connection operating directly between the smartphone and the vehicle head unit. A built-in microphone provides voice control support and hands-free calling functionality. A Micro SD card slot supports up to 256GB for music playback (Micro SD card not included). Power protection circuitry covers power, surge, overload, over voltage, under voltage, and short circuit conditions.

The included reverse camera mounts via an adhesive camera mount and connects to the display via a 6-metre cable, providing a rear view when reversing. Wired connections are required for the display and reverse camera. The AM10M02R is a display-and-mount solution; it does not replace the vehicle's head unit. A compatible smartphone is required to enable smartphone connectivity features and is not included.

Features & Benefits

Wireless Apple CarPlay and Android Auto: The AM10M02R supports wireless Apple CarPlay and Android Auto, allowing maps, calls, music, and apps to be accessed through the 10" touchscreen without physically connecting the smartphone. Wireless refers to the smartphone connection; wired connections are required for the display power and reverse camera.

Apple AirPlay and Android Mirror Cast: In addition to CarPlay and Android Auto, the AM10M02R supports Apple AirPlay and Android Mirror Cast for wireless screen mirroring of iOS and Android smartphones directly to the display.

10" HD IPS Capacitive Touchscreen at 1600x600: The 10" IPS capacitive touchscreen provides a large, high-definition display with smooth touch response for navigation, media, and app interaction, suited to dash-mounted placement across a wide range of vehicle interiors.

Adhesive Dash Mount with Adjustable Angle: The display is supplied with an adjustable angle adhesive dash mount for tool-free installation on the vehicle's dashboard surface. No permanent modification to the vehicle is required.

Plug-and-Play Power via Type-C Car Adaptor: The AM10M02R is powered by the included 12/24V DC compatible Type-C car accessory socket power adaptor, making it compatible with a wide range of vehicles with a 12V or 24V accessory socket without requiring hardwired installation. Plug-and-Play refers to the display power adaptor only.

Multiple Audio Output Options: Audio from the AM10M02R can be output via Bluetooth to a compatible head unit, via FM transmitter to the vehicle's FM radio, via the included AUX cable to the vehicle's AUX input, or through the integrated built-in speaker. This provides audio flexibility across vehicles with varying audio system configurations.

Built-In Speaker and Microphone: The integrated speaker and microphone allow hands-free calling and voice control directly from the AM10M02R without requiring additional accessories. The Bluetooth connection for audio operates directly between the smartphone and vehicle head unit.

Reverse Camera with Adhesive Mount and 6-Metre Cable Included: The included reverse camera mounts via an adhesive camera mount and connects to the AM10M02R display's AV input via a 6-metre cable, providing a rear view with guideline support when reversing. A wired connection is required for the reverse camera.

Micro SD Card Support up to 256GB: The built-in Micro SD card slot supports cards up to 256GB for music playback directly from the display. Micro SD card is not included.

Built-In Power Protection: The AM10M02R includes power, surge, overload, over voltage, under voltage, and short circuit protection for reliable operation across a range of vehicle electrical environments.

Technical Specs

Specification Detail
SKU AM10M02R
Brand Aerpro
Display Size 10"
Display Resolution 1600 x 600
Display Type HD IPS Capacitive Touchscreen
Smartphone Connectivity Wireless Apple CarPlay, Wireless Android Auto, Apple AirPlay, Android Mirror Cast
Audio Output Bluetooth, FM Transmitter, AUX Out, Built-In Speaker
Microphone Built-In (voice control support)
Micro SD Card Up to 256GB (card not included)
Reverse Camera Input AV-In (included camera)
Camera Cable Length 6 metres
Camera Mount Type Adhesive
Display Mount Type Adjustable Angle Adhesive Dash Mount
Power Supply 12/24V DC Type-C Car Accessory Socket Power Adaptor (included)
Power Protection Power, Surge, Overload, Over Voltage, Under Voltage, Short Circuit
Unit Dimensions 240 x 95 x 77mm
Wireless Connection Note Wireless refers to smartphone connection only; wired connections required for display and reverse camera
Bluetooth Note Bluetooth connection is directly between smartphone and vehicle head unit
Compatible Smartphone Required Yes (not included)

What's in the Box

  • 1x 10" Display
  • 1x Adhesive Display Mount
  • 1x 12/24V DC Compatible Type-C Car Accessory Socket Power Adaptor
  • 1x Reverse Camera and 6-Metre Cable
  • 1x Adhesive Camera Mount
  • 1x AUX Cable

Compatible With

The AM10M02R is compatible with virtually any vehicle with a 12V or 24V accessory socket and a flat dashboard surface suitable for adhesive mounting. A compatible smartphone is required to enable CarPlay, Android Auto, AirPlay, and Mirror Cast features. Audio output via FM transmitter is compatible with vehicles with a working AM/FM radio. Audio output via AUX requires the vehicle to have an accessible AUX input. Bluetooth audio output requires the vehicle's head unit to support Bluetooth audio input. The AM10M02R does not replace the vehicle's existing head unit.

Frequently Asked Questions

Does the AM10M02R require professional installation?

No. The display is mounted via an adhesive dash mount and powered via a Type-C car accessory socket adaptor, making it a plug-and-play installation for the display. The reverse camera requires a wired connection from the camera to the display's AV input via the included 6-metre cable, which will need to be routed appropriately within the vehicle. No permanent vehicle modification is required.

Is the smartphone connection wireless?

Yes. Apple CarPlay, Android Auto, AirPlay, and Android Mirror Cast all operate wirelessly between the smartphone and the AM10M02R. Wired connections are only required for the display power adaptor and the reverse camera.

How does audio work if my vehicle's head unit doesn't have Bluetooth or AUX?

The AM10M02R supports audio output via FM transmitter, allowing audio to be played through the vehicle's existing FM radio without requiring a Bluetooth or AUX connection on the head unit. The built-in speaker also provides audio directly from the display as a standalone option.

Does the reverse camera include parking guidelines?

Yes. The included reverse camera provides guideline support to assist with parking and reversing manoeuvres.

Is a Micro SD card included?

No. The Micro SD card is not included. The AM10M02R supports Micro SD cards up to 256GB for music playback and the card must be sourced separately.
